iAM-SUM Series – 8, 16 or 32 channel 3G-SDI & Anlg Audio Monitoring with Signal Upgrades
SKU: 8121-0350/0351/0352
8/16/32 channel, single screen, 3G-SDI & Analog Audio Monitor and Mixer with optional 2022-7 support, plus options to license additional input signals.

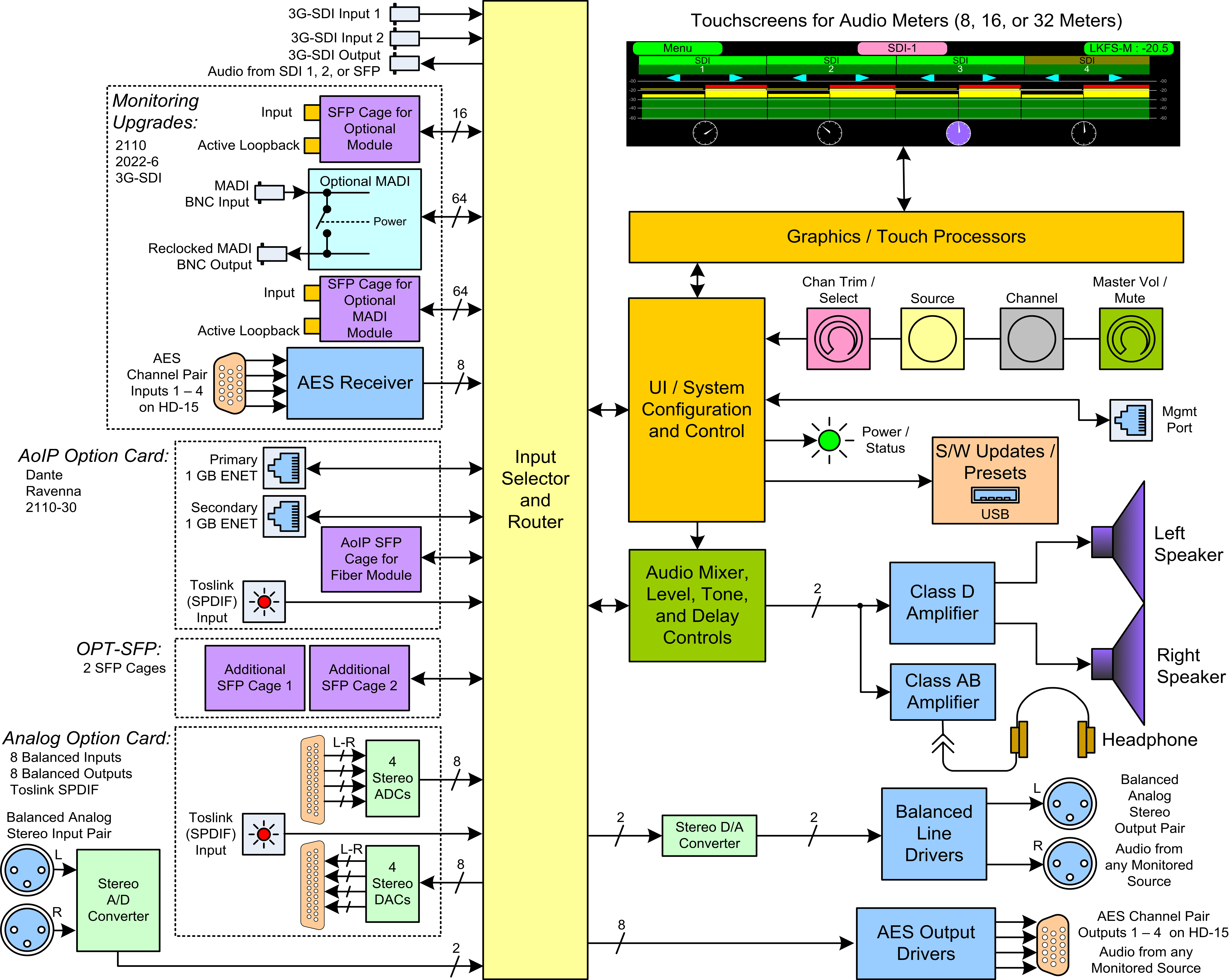

Description
The iAM-SUM Series is a set of well featured, easy to use and competitively priced IP ready audio monitors /mixers available in either 8, 16 or 32 channel configurations. Whether monitoring 8, 16 or 32 channels, the unit can be configured to operate in either single channel or pair mode. Standard features include 3G-SDI and a pair of Analog inputs and outputs. Upgrade/license other signal formats and processing options, as and when needed, either initially or after purchase.
Flexible. Adaptable. Future Proof.
Equally at home in QC, fast-paced OB and live-to-air production environments, iAM-SUM provides intuitive audio monitoring with instant access to signals or to user-definable presets of any individual signal source or a mix of sources for monitoring and mixing. Options for additional signals, include AES3, MADI, DanteTM, RavennaTM, SMPTE-2110 and SMPTE-2022-7.
All iAM Series monitors contain an onboard web server. Multiple units on the same network can be updated, monitored, and controlled via a web-based user interface.
Features and Benefits
- Fast selection and summing of up to 8, 16 or 32 audio channels, allowing quick muting and hold-for-solo
- Up to 64 presets
- Virtual rotary dials showing trim levels
- Access control with lockout prevents accidental or unauthorized changing of critical settings

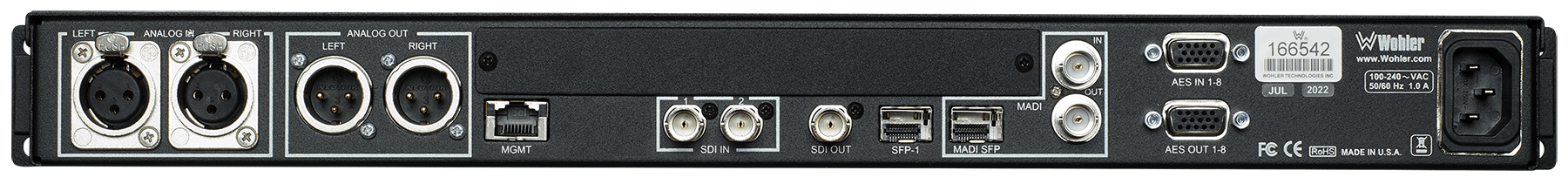

- 2 x 3G-SDI Inputs on BNC; 1 x 3G-SDI Output on BNC + 1 pair Analog in/out on XLR
- Optional Output routing enables the flexibility to route input signals to various outputs
- Optional I/O for AES3 on HD-15 (incl selected audio source converted to AES3 out), MADI on BNC (looped out), and SMPTE 2110 or SMPTE 2022 via SFP
- Option cards: Choose between AoIP, an additional 8 channels of analog inputs and outputs, or 2 additional SFP cages
- Measure Audio Loudness using ITU-R BS.1770 or EBU R128 standards
- Software upgradeable individually via USB or multiple units on the same network
- Browser-based interface that supports fast configuration that protects critical configurations from unauthorized alteration.
- APIs for remote management
Options
| Base Models | ||||||

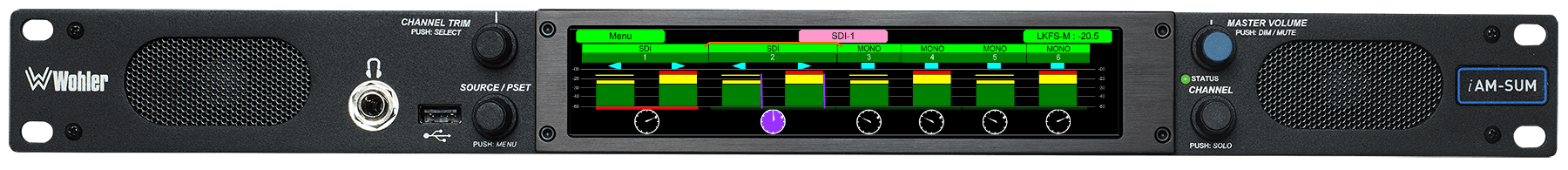

| iAM-SUM8 | 8121-0350 | 1RU 8 channels of audio monitoring & 8 meters. Includes SDI & Analog as standard | ||||
| iAM-SUM16 | 829092 | 1RU 16 channels of audio monitoring & 16 meters. Includes SDI & Analog as standard | ||||

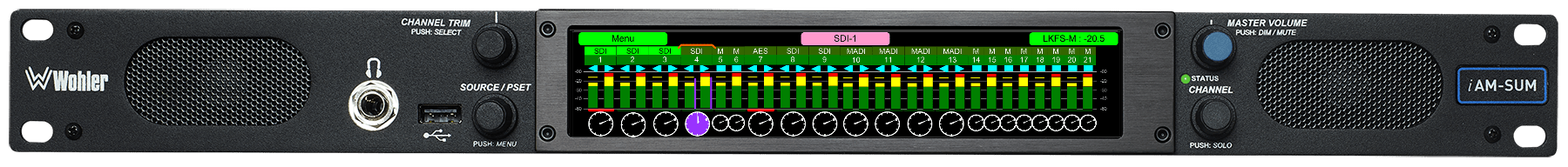

| iAM-SUM32 | 8121-0352 | 1RU 32 channels of audio monitoring & 32 meters. Includes SDI & Analog as standard | ||||
| Signal Licensing & Processing Options (software only, no hardware) | ||||||
| OPT-AES | 829080 | Enables decoding and monitoring of 4 x AES inputs, 1 AES Output | ||||
| OPT-MADI | 829092 | Enables decoding and monitoring of 1 x MADI64 input via BNC | ||||
| OPT-OUTPUT ROUTING | 829159 | Enables the flexibility to route input signals to various outputs | ||||
| Option Cards for Signal I/O Processing (includes hardware) | ||||||
| OPT-DANTE | 829171
829172 |
This AoIP option card enables decoding and monitoring of up to 64 ch of DanteTM OR Ravenna™ / AES67/ 2110-30 Input streams with NMOS Support. These option cards provide 2 x RJ-45 ports for 2022-7 support + SFP cage allowing MM and SM SFP’s as an alternate primary for AoIP Signals. TOSLINK included in both cards. | ||||
| OPT-ANLG/TOS | 829170 | Enable monitoring of 8 analog channels on DB-25. Hardware card with software activation key. Includes Optical TOSLINK input. | ||||
| OPT-SFP | 829179 | Adds two additional 3G inputs to 3G products, or two 12G inputs to 12G products. | ||||
| Small form-factor pluggable (SFP) Options | ||||||
| SFP-2110 w/Ember+ (or NMOS) | 829086/-1 | Receiver, Multi-Mode 850 NM, LC (fiber) Connectors. Use 829086-1 for NMOS variant. | ||||
| SFP-2022-6 | 829088 | Receiver, LC (fiber) Connectors | ||||
| SFP-2110 w/Ember+ (or NMOS) + 2022-6 | 829087/-1 | Receiver, Multi-Mode 850 NM, LC (fiber) Connectors. Use 829087-1 for NMOS variant. | ||||
| SFP-SDI | 829089 | 3G/HD/SD-SDI single video receiver with active loopback. HD-BNC Connectors. Only purchase if 3rd SDI I/P is required. | ||||
| SFP-SDI-Fiber | 829084 | SDI single mode Optical LC (fiber) video receiver. Up to 12G-SDI capable depending on base unit | ||||
| SFP-MADI-Fiber (MM or SM) | 829081/82 | MADI optical fiber transceiver; Multimode or Singlemode, LC (fiber) Connectors. Use 829081 for Multimode (MM). Use 829082 for Singlemode (SM). | ||||
A-V Specs
| Spkr Power Output | RMS Each Side: 5W Continuous/12W Peak |
| Peak Acoustic Output @ 2 feet | 90 dB SPL @ 2ft |
| AES Input Sampling Rate | 48 kHZ |
| Analog Input Impedance | 40k Ohms balanced |
| Frequency Response | 150 Hz to 16 kHz (+/-dB) acoustic, 40 Hz to 20 kHz (+/-1dB) electrical |
| Hum and Noise | Better than -68 dB below full output |
| Meter Dynamics | Simultaneous VU & PPM |
| Display Type | Capacitive LCD Touchscreen |
| Number of screens | 1 |
| Diagonal Display Size | 7.0" (178 mm) |
| Display Resolution (HxV) | 1242Hx280V |
| Viewing Angle | 160 (H) x 160 (V) |
Physical Specs
| Rack Height | 1RU |
| Power Consumption | 65 Watts typical |
| Power Supply | Internal 100-240 VAC ± 10%, 50/60 Hz, CE & UL approved. |
| Dimension Width | 19.0" (483mm) |
| Dimension Height | 1.75" (45mm) |
| Dimension Depth | 5.5" (140mm) |
| Net Weight | 5.5 lbs. (2.5 kg) |
| Shipping Weight | 8.0 lbs (3.6 kg) |
| Shipping Dimensions | 23 × 12 × 6 in (LxWxH) |
