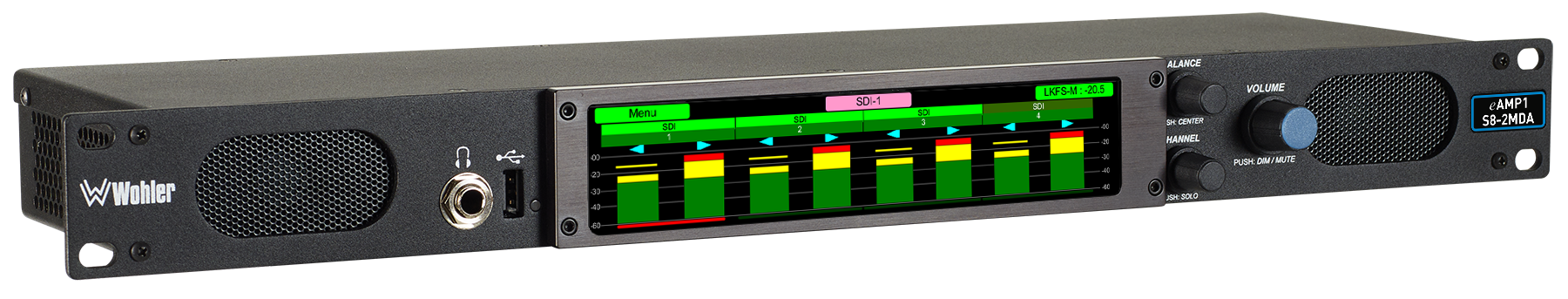

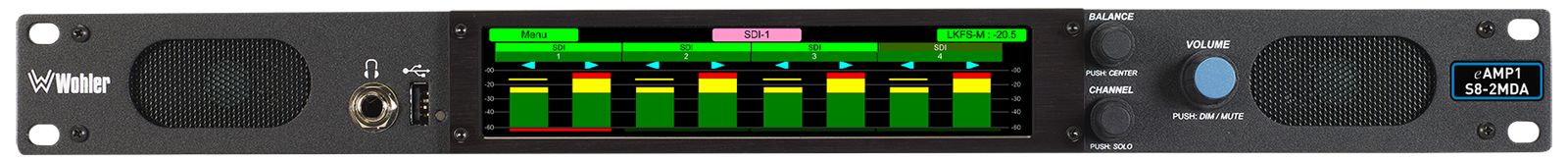

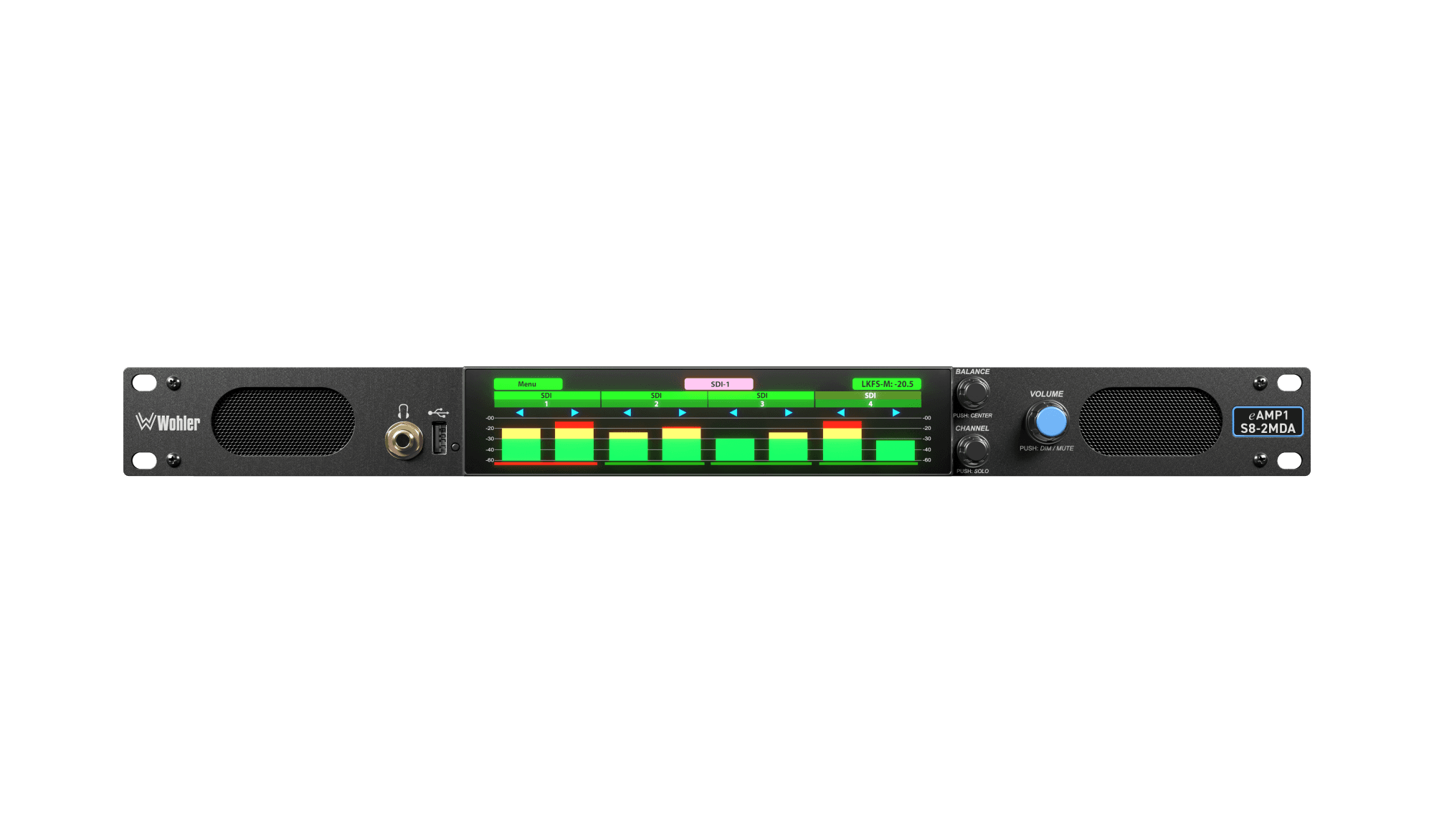

eAMP1-S8-2MDA
Dual 3G-SDI AES3 & Analog Audio Monitor
Photo 1 of 3What it does
The eAMP1-S8-2MDA offers fast and intuitive confidence monitoring of 3G/HD/SD-SDI, AES3 and analog audio sources. Whether in the studio or on the road, this unit provides simultaneous selection and summing of the selected source. It features adjustable volume and balance controls, clear display of levels, and phase indications. Flexible & Adaptable The e AMP1-S8-2MDA is designed to be much easier to operate than the retired S8’s and include a wide 7” LCD touchscreen display providing fast access to input sources, meters and menus, all augmented by hardware controls. And while we are putting our best price forward with a basic monitoring package that includes dual 3G/HD/SD-SDI, AES and Analog inputs (no IP options), a software upgrade package that includes loudness, presets, web meters/monitoring/configuration and customized output routing is available to bring its functionality in line with the more recent iSeries offerings in our price list. Dolby D, DD+ and E decoding are also optional add-ons
Datasheets, manuals & software
Datasheet
Software update
Capabilities
- Hybrid SDI/IP
- 24/7 operation
Why it's trusted
Low cost and energy efficient
Simultaneous level metering of 8 de-embedded audio channels from dual SDI inputs, AES or Analog sources
Quick, intuitive push-button or touch selection of any channels or pairs to sum, mute or solo
Monitor through built-in speakers, headphones or analog outputs with Optional muting for internal speakers
Stereo phase indicators
Adjustable Volume and Balance

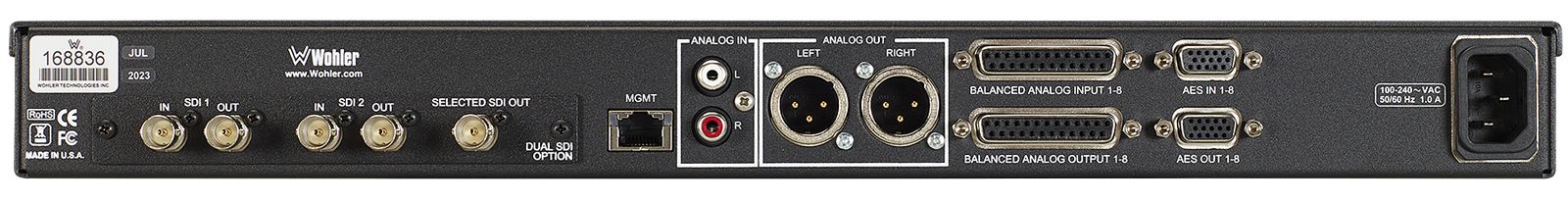

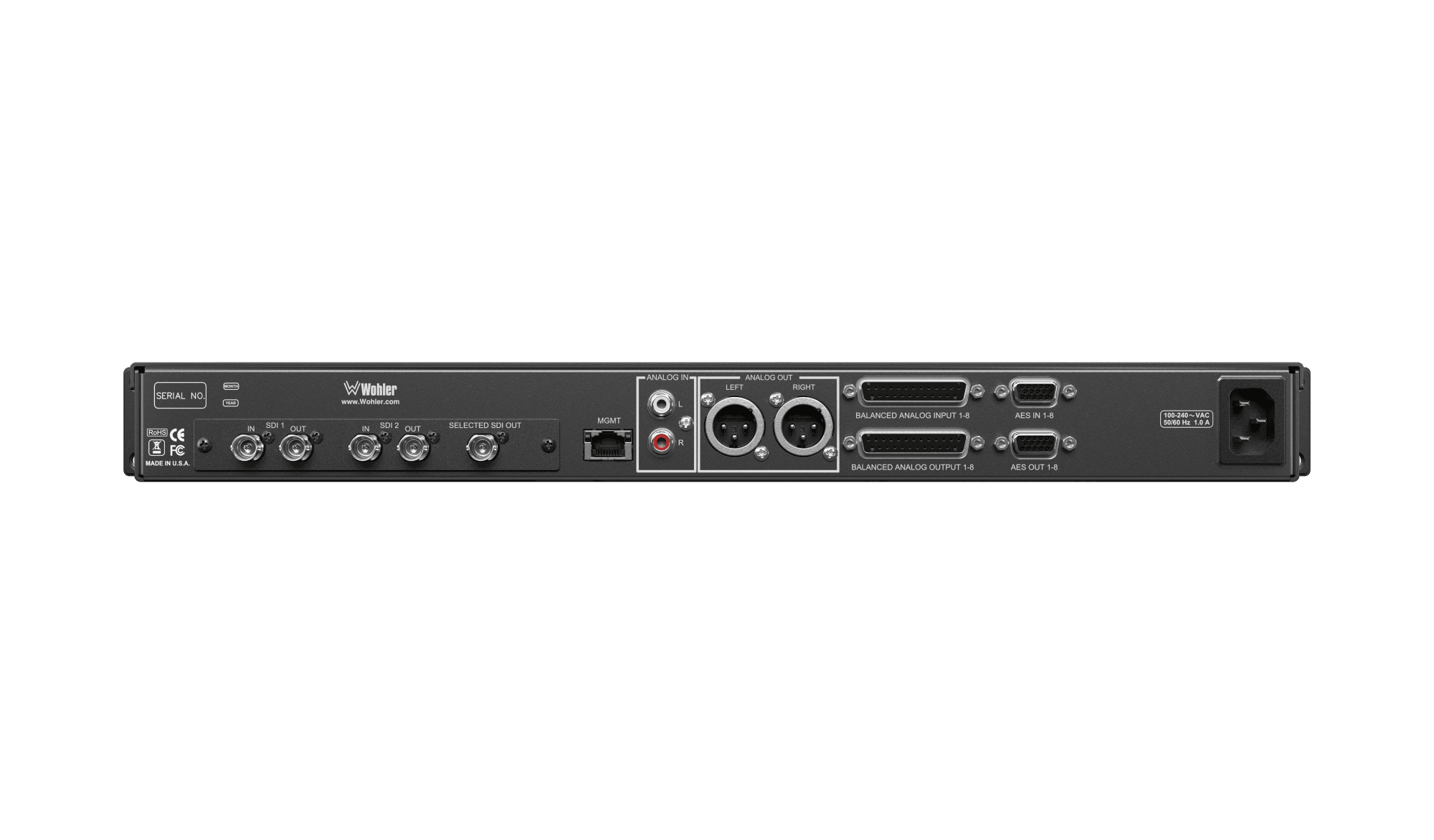

Balanced stereo analog outputs on XLR-Ms. Fixed level or volume/balance controlled.
Automatic frame rate detection and selection
Selectable line level or front panel volume control and outputs
Shallow chassis depth for easy installation in OB vehicles and consoles
OPT DOLBY adds decoding of *Dolby D, DD+ and E (requires OPT-e package)
APIs provide easy integration with 3rd party systems (requires OPT- e package)
Specifications
- Dimensions (W x H x D)
- 1RU in standard 19” rack: 19” x 1.75” x 5.5” (483 mm x 45 mm x 140 mm). Shipping dims: 23”x 6”x 12”
- Shipping Weight / Net Weight
- 5.8 lbs. (2.6 kg) / 3.3 lbs. (1.5 kg)
- Power Consumption / Supply
- 19W, 100 to 240 VAC ± 10%, 50-60 Hz, CE & UL approved
- Display Type / Resolution
- 7” (178 mm) LCD Capacitive Touchscreen; 1242H x 280V
- Viewing Angle
- 160 (H) x 160 (V)
- Audio Channels
- 8 Max
- Hum and Noise
- Better than -68 dB below full output
- Peak Acoustic Output
- 100 dB SPL @ 2 feet
- Speaker Power Output
- 5W RMS per side, 12W Peak
- Upgrades
- Via USB or GUI web interface
What you can add
Option cards, licences and upgrades for this product. Most can be added after purchase.
OPT-e package
829186Adds Loudness monitoring, Presets, & Web metering/monitoring/configuration
OPT-e Output Routing
829188Enables the flexibility to route input signals (AES & Analog only) to various outputs. Software activation key.
OPT-DOLBY
829174Allows decoding and monitoring of Dolby® D, DD+ & E. Includes Dolby Zoom & metadata. *This option requires OPT-e package
