Audio · iSeries

iAM1-MIX-8-AoIP (Dante)New

Audio Monitor with MADI and Dante

Item 8114-0460
AnalogDante/AES67MADISFP

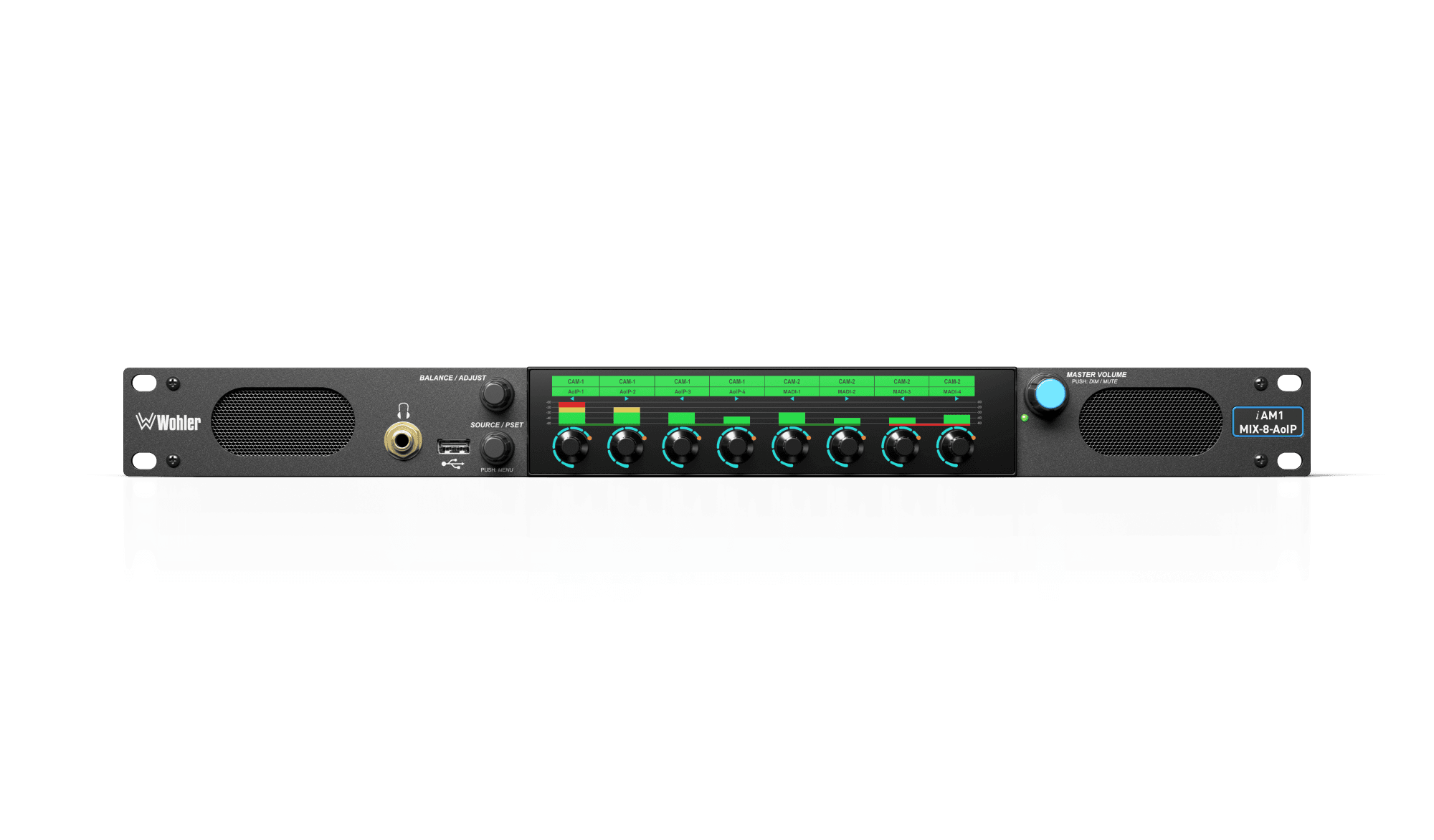

iAM1-MIX-8-AoIP-DANTE_PerspectivePhoto 1 of 3

iAM1-MIX-8-AoIP (Dante) · 1/3

iAM1-MIX-8-AoIP-DANTE_Perspective
Overview

What it does

The iAM1-MIX8-AoIP is a design that emphasizes individual mechanical controls for sum, mute and solo operations. This latest re-design of our successful MIX series has been enhanced with upgraded screen graphics and includes a touch screen, while retaining the individual channel rotary encoders. It is a well featured and competitively priced IP ready audio monitor and mixer which can be configured to operate in either single channel (8 channel) or pair mode (16 channel). Flexible. Adaptable. Future Proof. Features include MADI, unbalanced analog input and a pair of Analog outputs, with a choice of Dante or Ravenna. Network Capable with Remote access options: The unit includes built-in support for remote monitoring provided by our MAVRIC software applications suite. All iAM Series monitors contain an onboard web server. Multiple units on the same network can be updated, monitored, and controlled via a web-based user interface.

Downloads

Datasheets, manuals & software

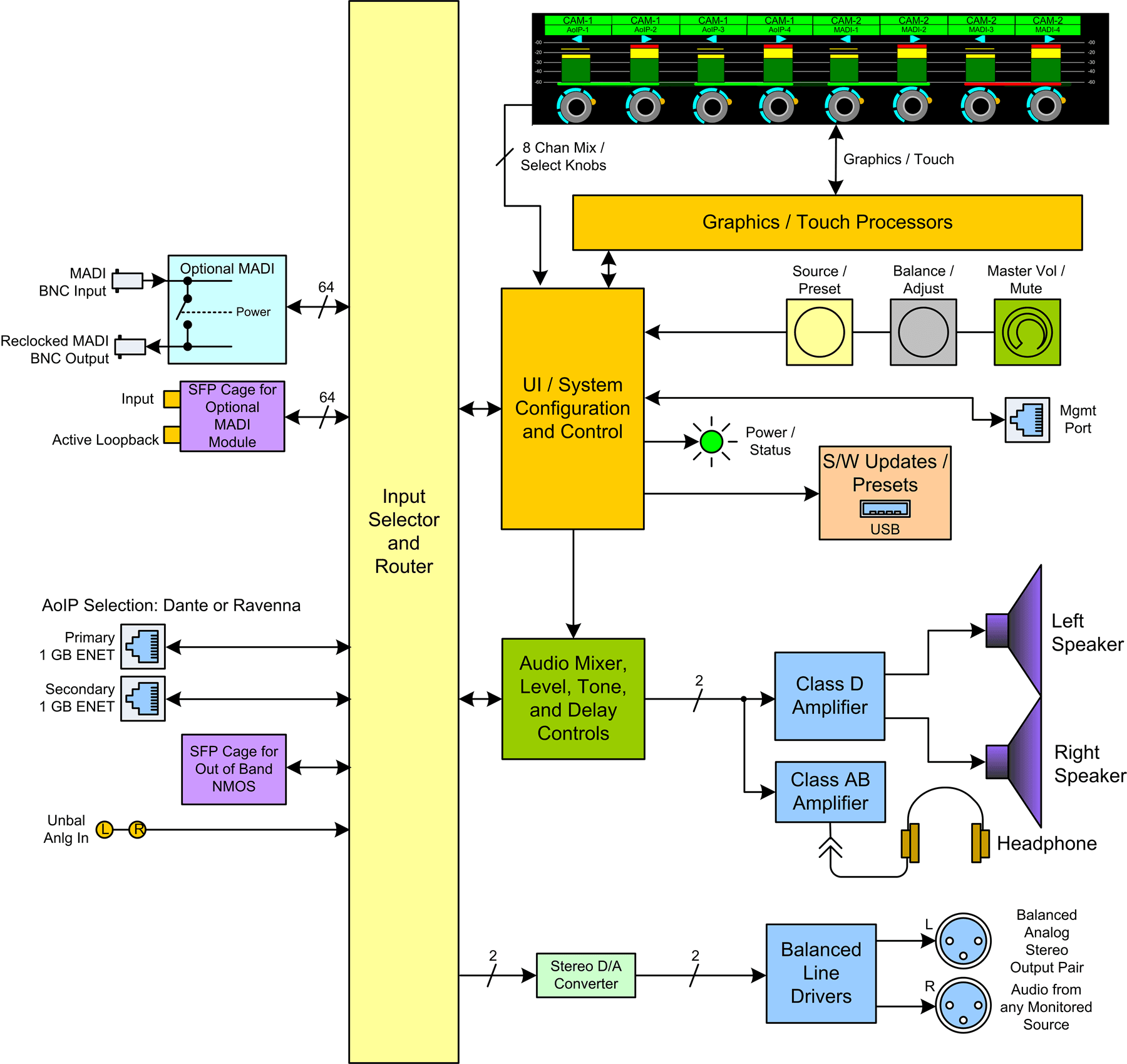

Block diagram

How it connects

iAM1-MIX-8-AoIP-DANTE_Block
At a glance

Capabilities

  • 1RU
  • MAVRIC Ready™
  • MIX Controls
  • Output Routing
  • Web GUI

Ready for more?

Talk to our team about specifications, availability and pricing — or how iAM1-MIX-8-AoIP (Dante) fits into your monitoring workflow. Need a demo? Just let us know. We are here to help and will respond as soon as possible.
