iAM1-MIX8-AoIP
Audio Monitoring & Mixer with MADI and choice of DanteTM or RavennaTM

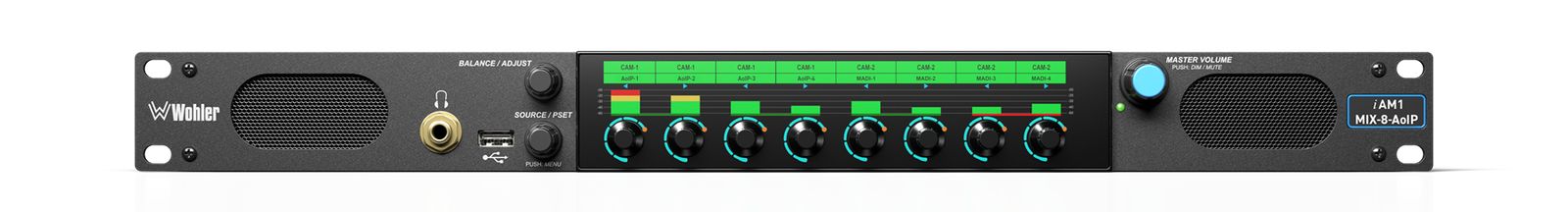

Photo 1 of 3What it does
The iAM1-MIX8-AoIP is a design that emphasizes individual mechanical controls for sum, mute and solo operations. This latest re-design of our successful MIX series has been enhanced with upgraded screen graphics and includes a touch screen, while retaining the individual channel rotary encoders. It is a well featured and competitively priced IP ready audio monitor and mixer which can be configured to operate in either single channel (8 channel) or pair mode (16 channel). Flexible. Adaptable. Future Proof. Features include MADI, unbalanced analog input and a pair of Analog outputs, with a choice of DanteTM or RavennaTM. Network Capable with Remote access options: The unit includes built-in support for remote monitoring provided by our MAVRIC software applications suite. All iAM Series monitors contain an onboard web server. Multiple units on the same network can be updated, monitored, and controlled via a web-based user interface.
Datasheets, manuals & software
Datasheet
Capabilities
- Loudness
- IP-ready
- Hybrid SDI/IP
- 24/7 operation
Why it's trusted
Fast selection and summing with LCD touch controls for up to 8 audio channels or 8 pairs (16 channels)
Master volume control that also provides a master mute/unmute
Channel names can be displayed for each input or pulled from a router
Standard I/O

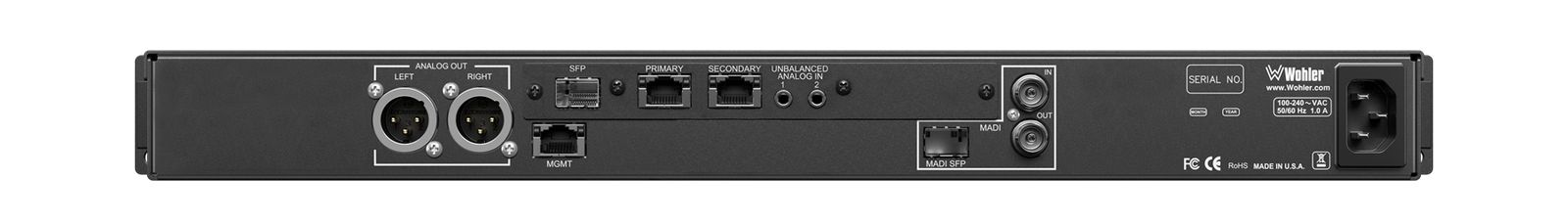

1 x MADI64 Input on BNC; 2 x Unbalanaced Analog Input over RCA, 1 pair Analog out on XLR, 2/3 x RJ45 for DanteTM or RavennaTM
Store and retrieve up to 64 presets
Optional Output routing enables the flexibility to route input signals to various outputs
Built-in speakers, headphone jack, USB and Ethernet ports with APIs for remote management
Software upgradeable individually via USB or multiple units on the same network
Built-in Audio-only remote monitoring probe. Requires MAVRIC remote monitoring activation.
Specifications
- Dimensions (W x H x D)
- 1RU in standard 19” rack: 19” x 1.75” x 5.5” (483 mm x 45 mm x 140 mm). Shipping dims: 23”x 6”x 12”
- Shipping Weight / Net Weight
- 8.0 lbs. (3.6 kg) / 5.5 lbs. (2.5 kg)
- Power Consumption / Supply
- 65W, 100 to 240 VAC ± 10%, 50-60 Hz, CE & UL approved
- Display Type / Resolution
- 7” (178 mm) LCD Capacitive Touchscreen; 1242H x 280V
- Viewing Angle
- 160° (H) x 160° (V)
- Audio Channels
- 16 Max
- Hum and Noise
- Better than -68 dB below full output
- Peak Acoustic Output
- 90 dB SPL @ 2 feet
- Speaker Power Output
- 5W RMS per side, 12W Peak
- Upgrades
- Via USB or GUI web interface
- APIs
- Provide easy integration with 3rd party control systems
