OPT-MADI/ANLG/TOS (12G)
This card enables monitoring of 8 Analog channels on DB-25, an Optical TOSLINK Input, monitoring of 1 x MADI64 input via BNC, and an SFP Cage that acc
Photo 1 of 3What it does

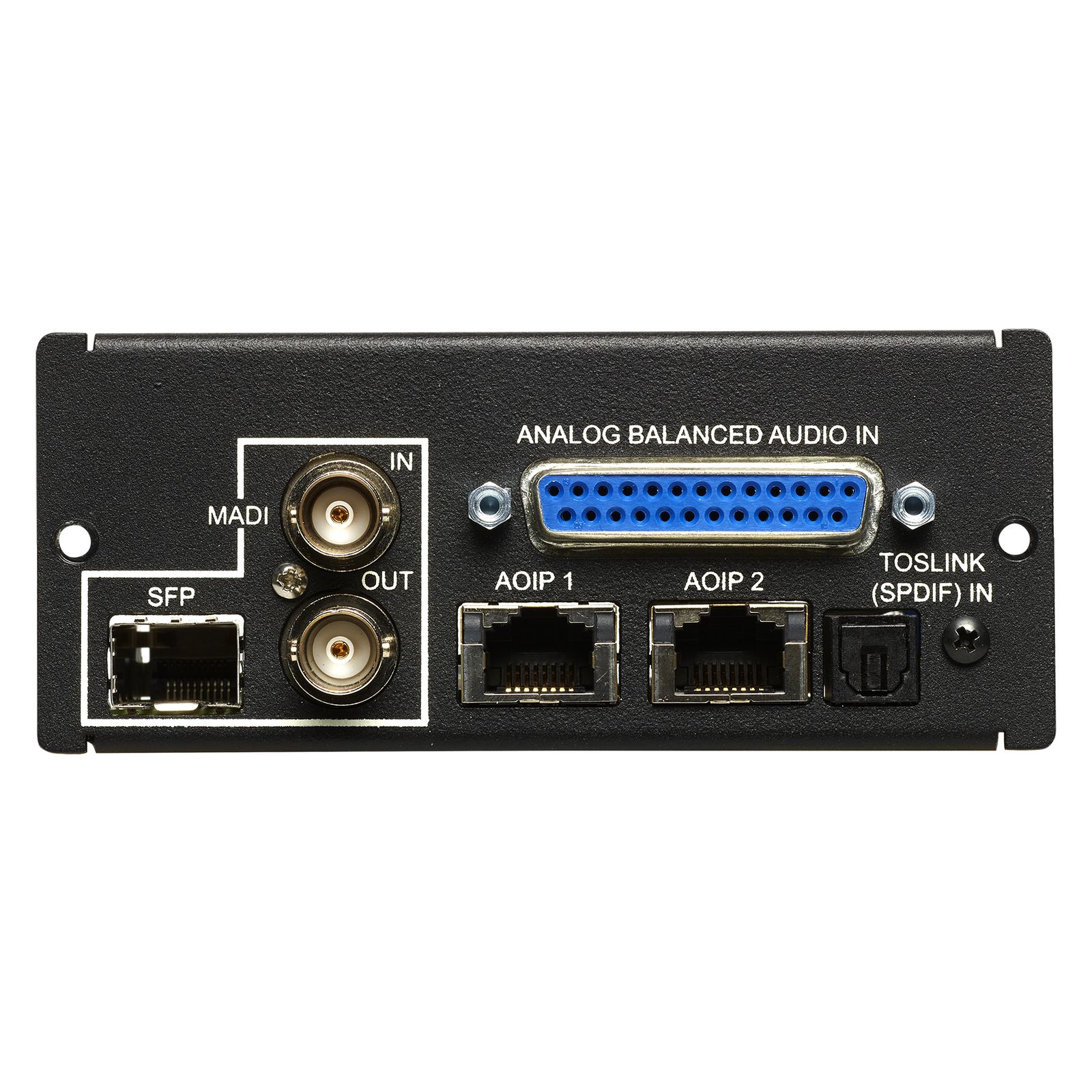

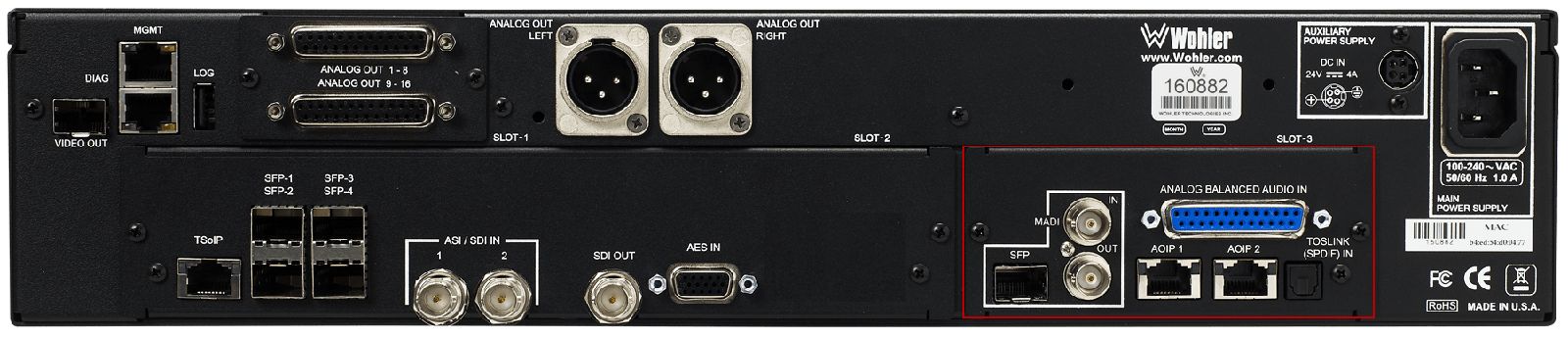

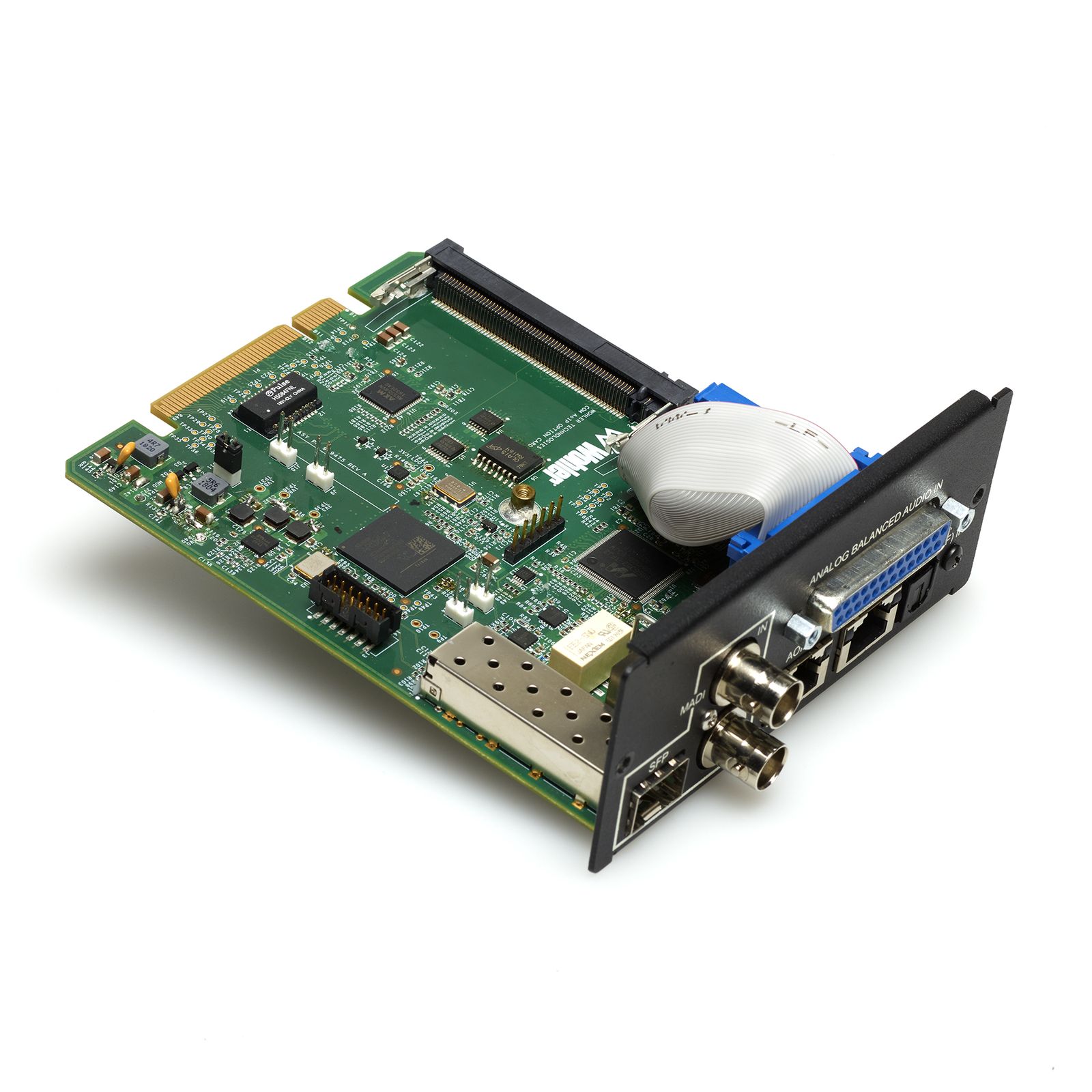

This card enables monitoring of 8 Analog channels on DB-25, an Optical TOSLINK Input, monitoring of 1 x MADI64 input via BNC, and an SFP Cage that accepts MADI Optical inputs and can be purchased / installed for the i-Series products listed below: iAM-12G-SDI iVAM2-MPEG This card can also be updated / upgraded to add Dante64 or Ravenna64 / AES67 processing options.
Specifications
- Shipping WeightDimensions (W x H x D)
- 2.0 lbs (0.9 kg)
- Shipping Dimensions
- N/A
What you can add
Option cards, licences and upgrades for this product. Most can be added after purchase.
OPT-DANTE (12G)
829164This AoIP option card enables monitoring of up to 64 ch of DanteTM / 2110-30. Adds primary and secondary RJ-45 ports for hitless / 2022-7 support (for Dante and 2110-30 signals). Hardwdare card with software activation key includes OPT-MADI/ANLG/TOS (829168) card.
View productOPT-RAVENNA 64 (12G)
829165This AoIP option card enables monitoring of up to 64 ch of RavennaTM / AES67 / 2110-30 Input streams with NMOS Support. Adds primary and secondary RJ-45 ports for hitless / 2022-7 support (for Ravenna and 2110-30 signals). Hardware card with software activation key includes OPT-MADI/ANLG/TOS (829168) card.
View product
