AMP2-VSDA (End of Life)


SKU: 8103-0120-EOL

Compact, low-cost units to select and monitor up to 4 audio channels from analog, AES, or SD-SDI sources

2 in stock

Request a Quote
Audio Monitor Analog AES3 Level Meters Phase Headphone Socket Speakers Made In USA


Important Note:

From time to time Wohler offers units here that have been unboxed, demonstrated or that we quite simply just want to get off of our factory shelves – either way the result is an incredible deal for you. All units are in excellent condition, are fully factory tested and come covered by our one year full warranty for your complete peace of mind.

  • Sales are on a CASH-IN-ADVANCE or CREDIT CARD basis.
  • Each item carries a full one year manufacturer’s warranty.
  • At these prices all sales are final, we can’t accept any returns.
  • All quantities are while supplies last.

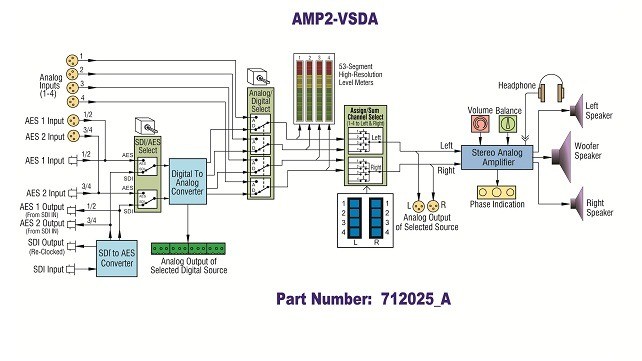

The AMP V Series monitors provide full fi delity stereo audio monitoring. These units feature four LED level meters showing accurate level-metering of all four input sources from the selected input group. These units contain high performance transducers driven by three power amplifi ers: one amplifi er/driver combination handles midrange and high frequency information, while the second handles summed low frequency information below the 500 Hz crossover point.

Extended HF response reveals potential problems with audio whine or hiss. Electronic rather than acoustic cancellation of bass frequencies provides positive audible detection of out-of-phase (reversed polarity) audio feeds.

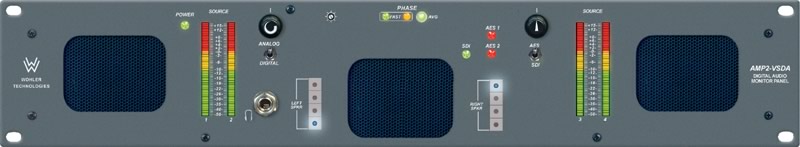

The front panel features an innovative LED display of phase/polarity relationships. Output limiter circuits are incorporated to protect the speakers, and extensive magnetic shielding allows placement immediately adjacent to video monitors with no color impurities.


  • Tri-color level meters displaying simultaneous VU and PPM

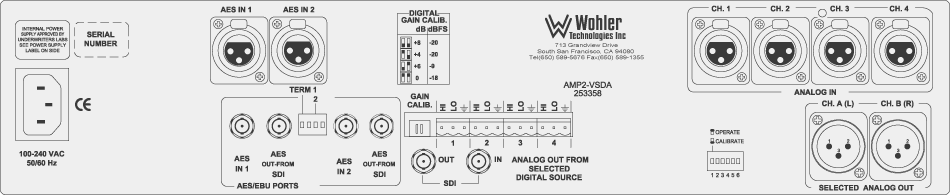

  • Eight balanced analog inputs
  • Independent selection of 2 from 4 mono sources to left and right outputs
  • Balanced analog output of 2 selected sources
  • Innovative LED display of phase/polarity relationships
  • Blowout proof speakers


  • Premium quality drivers and power amplifiers provide excellent reproduction
  • Focused sound reduces adjacent bay crosstalk
  • Thorough magnetic shielding allows placement next to video monitors
  • Extended frequency response and low distortion
  • Audible Indication of phase/polarity problems
  • Full fidelity audio monitoring

Features and Benefits



A-V Specs

Spkr Power OutputRMS Each Side: 10W Continuous/14W Peak;
Peak Acoustic Output @ 2 feet104 dB SPL @ 2 ft
Analog Input Impedance70 kOhms balanced
Frequency Response80 Hz - 16 kHz (+/-5 dB); (-10 dB @ 40 Hz, 22 kHz)
Hum and NoiseBetter than -68 dB below full output
Meter DynamicsVU and PPM

Physical Specs

Rack Height2RU
Power Consumption35 Watts
Power SupplyInternal IEC Connector, Universal Input, 100-240VAC, 50/60Hz, CE & UL approved.
Dimension Width19.0" (483mm)
Dimension Height3.5" (89mm)
Dimension Depth12.0" (305mm)
Net Weight18.0 lbs (8.2 kg)
Shipping Weight18.0 lbs (8.2 kg)
Shipping Dimensions24 × 17 × 8 in (LxWxH)


Looking for software updates for other products? Click here.

Reporting an issue? Click here.



There are no reviews yet.

Write your review here

Be the first to review “AMP2-VSDA (End of Life)”

Your email address will not be published. Required fields are marked *

This site uses Akismet to reduce spam. Learn how your comment data is processed.


Signal Input x , x , x
Signal Output x , x , x
Audio Specifications
Spkr Power Output RMS Each Side: 10W Continuous/14W Peak;
Peak Acoustic Output @ 2 feet 104 dB SPL @ 2 ft
Analog Input Impedance 70 kOhms balanced
Frequency Response 80 Hz - 16 kHz (+/-5 dB); (-10 dB @ 40 Hz, 22 kHz)
Hum and Noise Better than -68 dB below full output
Meter Dynamics VU and PPM
Video Specifications
Dimension Depth 12.0" (305mm)
Rack Height 2RU
Dimension Height 3.5" (89mm)
Dimension Width 19.0" (483mm)
Net Weight 18.0 lbs (8.2 kg)
Power Consumption 35 Watts
Power Supply Internal IEC Connector, Universal Input, 100-240VAC, 50/60Hz, CE & UL approved.
Shipping Weight 18.0 lbs (8.2 kg)
