PRESTO (End of Life)


SKU: 8011-0020-EOL

16 x 1 SDI Audio/Video Switcher

4 in stock

Request a Quote
Video Monitor 3G/HD/SD-SDI Made In USA


Important Note:

From time to time Wohler offers units here that have been unboxed, demonstrated or that we quite simply just want to get off of our factory shelves – either way the result is an incredible deal for you. All units are in excellent condition, are fully factory tested and come covered by our one year full warranty for your complete peace of mind.

  • Sales are on a CASH-IN-ADVANCE or CREDIT CARD basis.
  • Each item carries a full one year manufacturer’s warranty.
  • At these prices all sales are final, we can’t accept any returns.
  • All quantities are while supplies last.

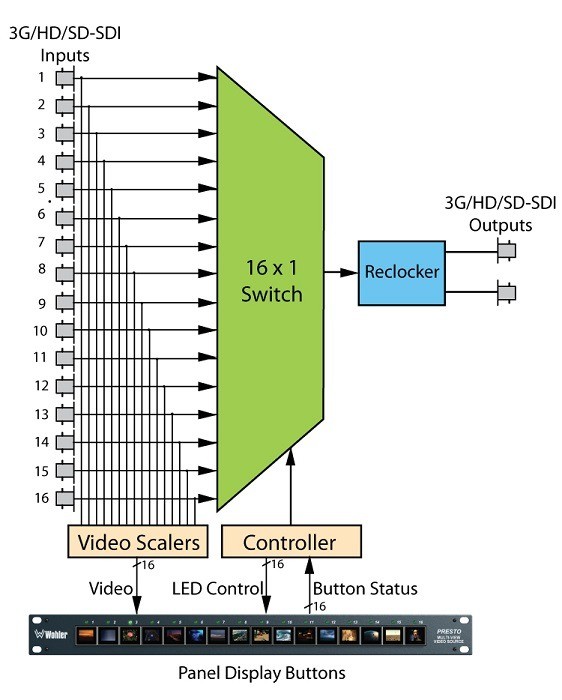

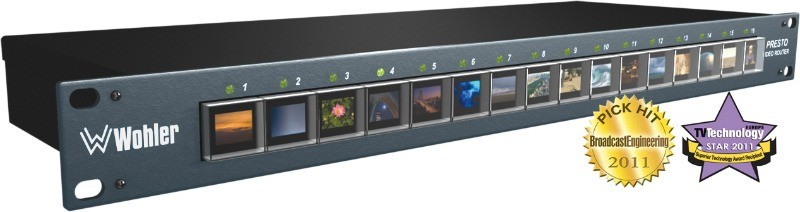

Presto is a simple, intuitive, yet high performance solution for organizing, managing and monitoring multiple SDI video streams in broadcast applications. It accepts up to sixteen 3G/HD/SD-SDI inputs and displays video on screens that are themselves buttons. Pressing one button switches that input, both video and associated audio, to a pair of re-clocked outputs for routing and/or monitoring on a larger device.

In busy multi-program environments, Presto’s prime advantage is its simplicity and size. No other product on the market packs as many screens in 1RU, and is as simple to use. Since each button is a mini video screen, you will never worry about switching to the wrong source again.


  • Accepts sixteen 3G/HD/SD-SDI signals in a compact 1RU frame
  • LED indicators clearly identify currently selected source
  • High quality OLED screens enable easy identifi cation of content
  • Rear panel inputs to activate front panel dimming and/or lockout


  • Quickly preview and verify video content prior to selection
  • Instant and intuitive switching of any source to a pair of re-clocked outputs
  • Affordable confi dence monitoring for multi-channel video server environments

Features and Benefits



A-V Specs

Display TypeOLED 30,000 hours
Number of screens16
Diagonal Display Size0.61" x 0.46" (15.5mm x 11.6mm)
Display Resolution (HxV)64 RGB x 48
Viewing Angle180 degrees

Physical Specs

Rack Height1RU
Power SupplyPower to the unit is 5V DC, 3.0 A. External power supply connects to power source (100 to 240 VAC +/- 10%, 50/60 Hz)
Dimension Width19.0" (483mm)
Dimension Height1.75" (44.5mm)
Dimension Depth7" (178mm)
Net Weight5.0 lbs (2.3 kg)
Shipping Weight5.0 lbs (2.3 kg)
Shipping DimensionsN/A (LxWxH)


Looking for software updates for other products? Click here.

Reporting an issue? Click here.



There are no reviews yet.

Write your review here

Be the first to review “PRESTO (End of Life)”

Your email address will not be published. Required fields are marked *

This site uses Akismet to reduce spam. Learn how your comment data is processed.


Signal Input x
Signal Output x
Audio Specifications
Video Specifications
Diagonal Display Size 0.61" x 0.46" (15.5mm x 11.6mm)
Display Resolution (HxV) 64 RGB x 48
Display Type OLED 30,000 hours
Number of screens 16
Viewing Angle 180 degrees
Dimension Depth 7" (178mm)
Rack Height 1RU
Dimension Height 1.75" (44.5mm)
Dimension Width 19.0" (483mm)
Net Weight 5.0 lbs (2.3 kg)
Power Supply Power to the unit is 5V DC, 3.0 A. External power supply connects to power source (100 to 240 VAC +/- 10%, 50/60 Hz)
Shipping Weight 5.0 lbs (2.3 kg)
