RM-3270W-3G2 (END OF LIFE)
SKU: 8002-0177
Dual 7.0 Inch Widescreen LCD Video Monitor with Dual Input 3G-SDI, CVBS & HDMI I/O, 3U. Speakers, meters, scopes, markers, tally, picture controls, IMD.
3 in stock
Request a Quote
Description

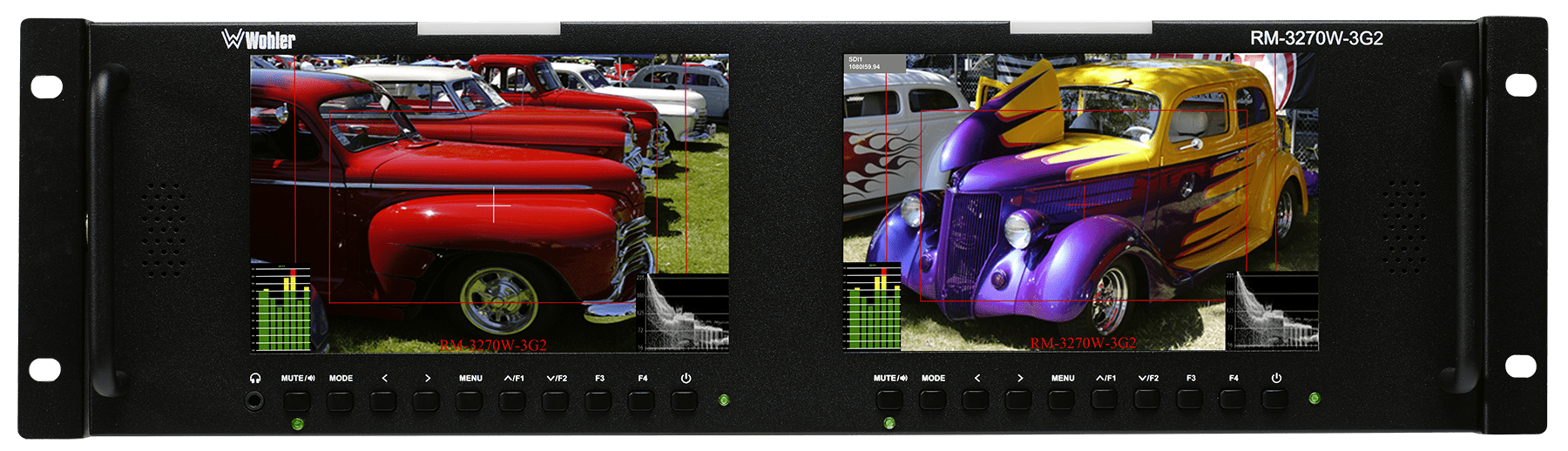

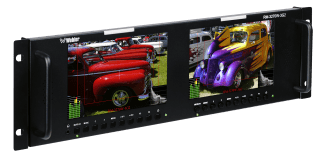

DUAL 3U RACKMOUNT VIDEO MONITOR WITH 3G-SDI, HDMI & COMPOSITE I/O
The RM Series is a fully featured range of slim, LCD rack-mounted video monitors. Therefore, that makes them ideal for mobile trucks, news and control rooms, production, post-production and video surveillance applications. These tilting monitors ship with on-screen level meters, multiple scopes (vectorscope, histogram), safe area and aspect ratio markers as standard features. They also ship with a variety of picture controls and assistive video features such as zoom, image flip, and focus assist. IMD labels, tally, and built-in color bars are also included. In conclusion, the RM-3270W-3G2 is a Dual 3U Video Monitor that meets a variety of needs and specifications.

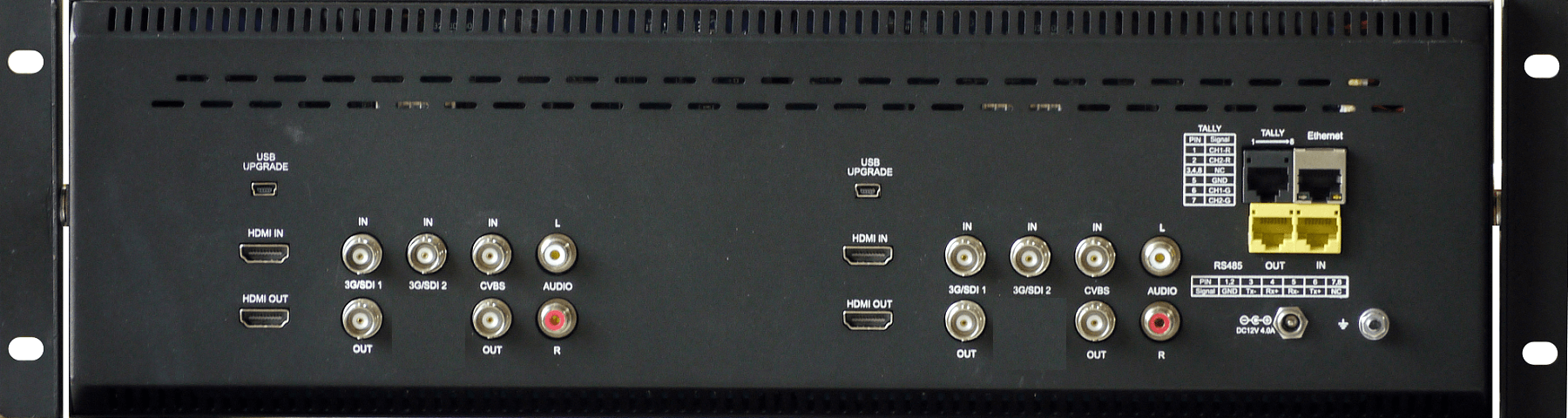

This unit supports standard frame rates and resolutions up through 3G-SDI, HDMI and Composite. Each input has a looped output. Select up to 16 audio channels for visual monitoring. Speakers are included too, while a 3.5mm headphone socket provides optional private monitoring.
Finally, each of the high-resolution LCD screens displays high-definition or standard-definition video in a range of aspect ratios. Select from multiple parameters from the menu to customize the information overlays on each screen.
Looking for more than 2 screens? We also have triple screen and quad screen options.
Would you like a 10″ screen rather than a 7″ screen? Please see our dual screen 10″ unit.
Links for external purchase:
- B&H Website
- MarkerTek Website
- HHB (UK)
- JBD Website (Poland)
- See our product listing on Amazon
View our product announcement.
Features and Benefits
- Dual 3U Video Monitor
- On-screen level meters up to 16 channels provide confidence audio monitoring
- On-screen vectorscope and histogram displays
- Ratio and Safe Area markers
- Tally and on-screen labeling provide quick and easy signal identification
- Image controls allow video image enhancement for each screen, individually
- Built-in color bars
- Intuitive on-screen menus
- Headphone output
- Client/Server GUI network control, ideal for configuring difficult to reach wall-mounted monitors
Options
A-V Specs
| Spkr Power Output | 5 Watts |
| Analog Input Impedance | 52 kOhms |
| Meter Dynamics | VU |
| Display Type | IPS-LCD with LED Backlight |
| Number of screens | 2 |
| Color Depth | 16.7M |
| Diagonal Display Size | 7 Inch |
| Native Aspect | 16:9 |
| Display Resolution (HxV) | 1280(H) x 800(V) |
| Viewing Angle | 178 (H) x 178 (V) |
| Contrast | 800:1 |
| Pixel Response | 30 ms, typical |
| Luminance | 400 cd/m^2 |
Physical Specs
| Rack Height | 3RU |
| Power Consumption | 35 Watts |
| Power Supply | External 120V to 240 VAC +- 10%, CE & UL approved. |
| Dimension Width | 19.0" (483mm) |
| Dimension Height | 5.25" (143mm) |
| Dimension Depth | 1.7" (44mm) |
| Net Weight | 7.0 lbs (3.2 kg) |
| Shipping Weight | 7.0 lbs (3.2 kg) |
| Shipping Dimensions | 24.0 × 10.0 × 6.0 in (LxWxH) |
Support
Looking for software updates for other products? Click here.
Reporting an issue? Click here.
Reviews
Write your review here
Features
| Signal Input | x , x , x , x |
|---|---|
| Signal Output | x , x |
| Data Ports | 2 x RS485 (IMD) on RJ-45; 1 x RJ-45 (tally); 1 USB S/W Upgrade per screen |
| Audio Specifications | |
| Spkr Power Output | 5 Watts |
| Analog Input Impedance | 52 kOhms |
| Meter Dynamics | VU |
| Video Specifications | |
| Color Depth | 16.7M |
| Contrast | 800:1 |
| Diagonal Display Size | 7 Inch |
| Display Resolution (HxV) | 1280(H) x 800(V) |
| Display Type | IPS-LCD with LED Backlight |
| Luminance | 400 cd/m^2 |
| Native Aspect | 16:9 |
| Number of screens | 2 |
| Pixel Response | 30 ms, typical |
| Viewing Angle | 178 (H) x 178 (V) |
| Features | |
| Interfacing | |
| Physical | |
| Dimension Depth | 1.7" (44mm) |
| Rack Height | 3RU |
| Dimension Height | 5.25" (143mm) |
| Dimension Width | 19.0" (483mm) |
| Net Weight | 7.0 lbs (3.2 kg) |
| Power Consumption | 35 Watts |
| Power Supply | External 120V to 240 VAC +- 10%, CE & UL approved. |
| Shipping Weight | 7.0 lbs (3.2 kg) |
| Other | |
| Processing | |
