SKU: 8001-0175

Dual 7.0″ Widescreen LCD Video Monitor, 3G/HD/SD-SDI, Composite. Audio/Video Metering. 3RU.

Request a Quote
Video Monitor 3G/HD/SD-SDI Analog Level Meters Measurement Tools Headphone Socket Speakers


From time to time Wohler offers units here that have been unboxed, demonstrated or that we quite simply just want to get off of our factory shelves – either way the result is an incredible deal for you. All units are in excellent condition, are fully factory tested and come covered by our one year full warranty for your complete peace of mind.

  • Sales are on a CASH-IN-ADVANCE or CREDIT CARD basis.
  • Each item carries a full one year manufacturer’s warranty.
  • At these prices all sales are final, we can’t accept any returns.
  • All quantities are while supplies last.

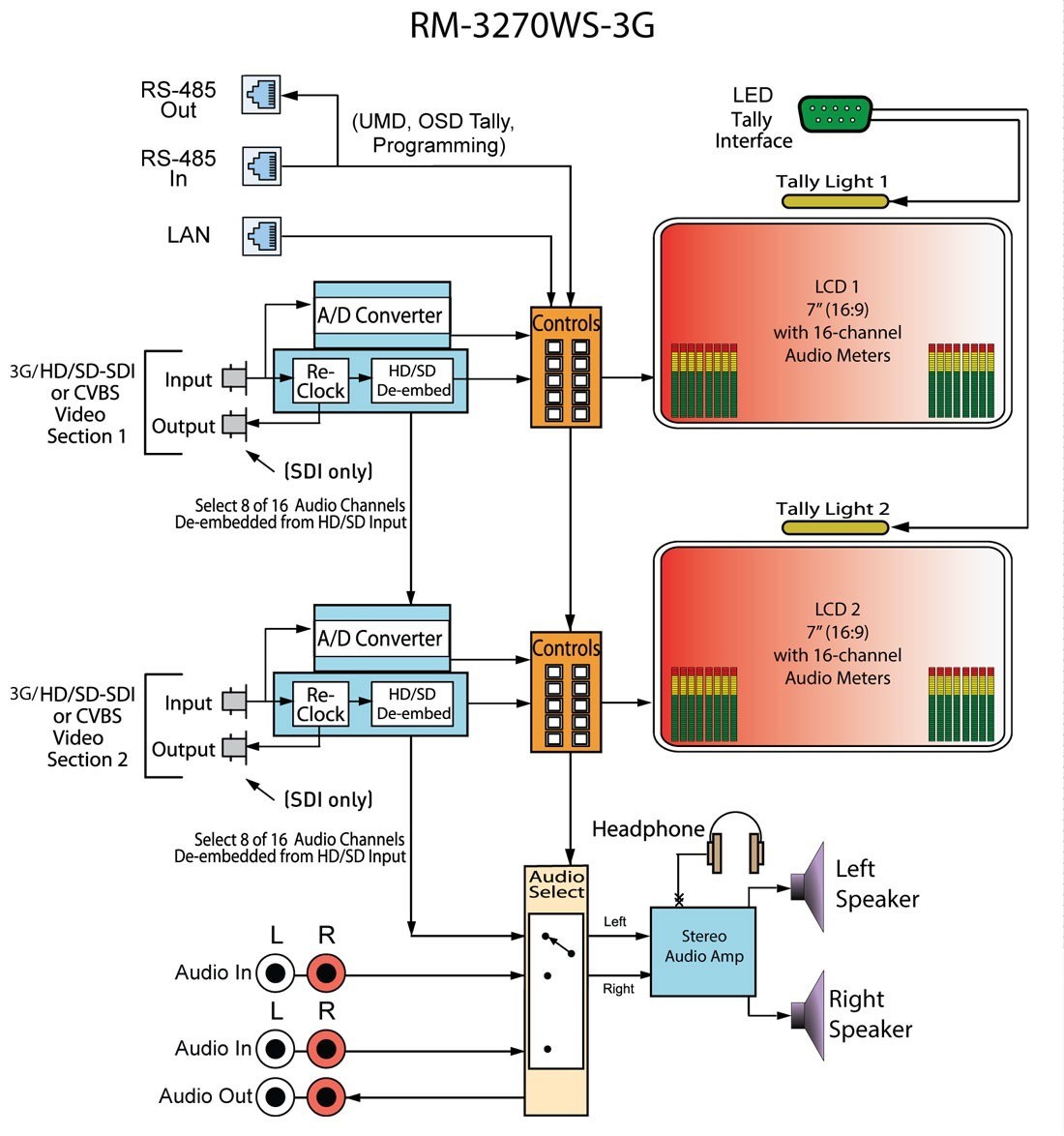

The RM-3270WS-3G is a highly-featured, low-cost in-rack 3G/HD/SD-SDI and CVBS video monitor ideal for the many feeds in mobile trucks, news and transmission control rooms, duplication, and post production applications.


The RM-3270WS-3G come standard with in-monitor level metering, selectable video waveform and vectorscope, safe and title markers, labeling, tally, timecode, video format, and built-in color bars, and an intuitive on-screen configuration menu.


Input signals are automatically detected and up to 16 audio channels embedded in an 3G/HD/SD-SDI bitstream may be selected for visual monitoring. A headphone jack or speakers provides audible stereo monitoring of selected left and right channels.

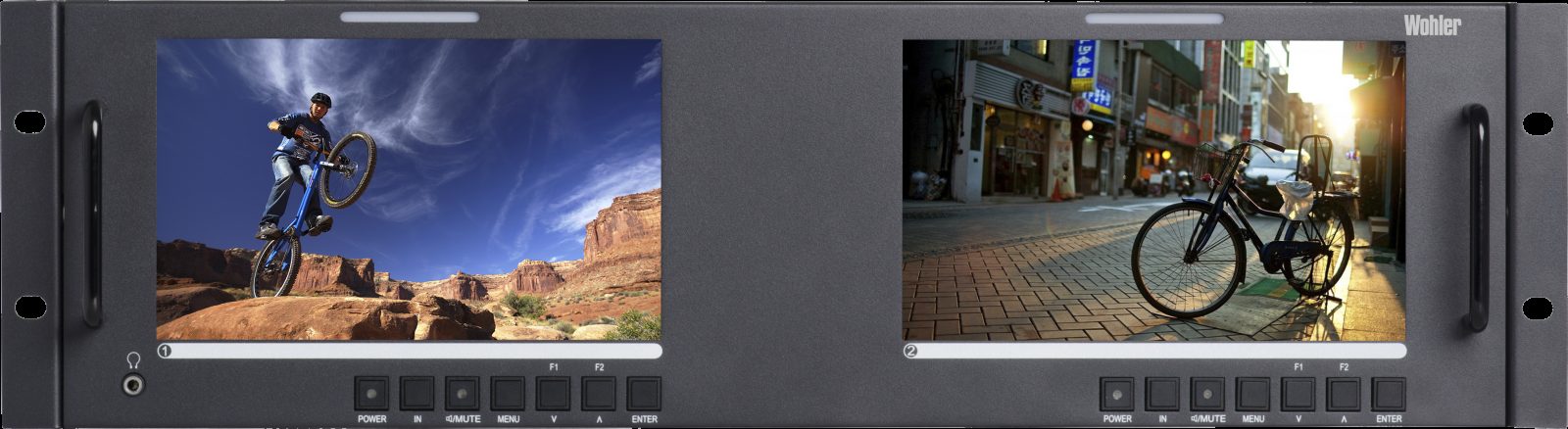

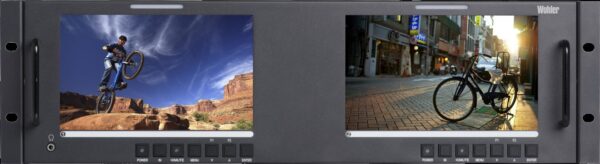

Each of the two high-resolution LCD screens display high-definition or standard- definition video at either 16:9 or 4:3 aspect ratio. Parameters are selected and adjusted using an on-screen display menu.

Features and Benefits

  • Monitor 3G/HD/SD-SDI and analog composite video signals
  • 1024 x 600 LCD displays
  • Waveform and vectorscope display
  • 16-channel in-picture level metering
  • Closed caption detection
  • Labelling, tally, timecode, detected video format, safe area and title markers display
  • Headphone output
  • Ethernet configuration and control


A-V Specs

Meter DynamicsVU or PPM or both
Display TypeLCD
Number of screens2
Color Depth16.7M, 24-Bit
Diagonal Display Size7 Inch
Native Aspect16:09
Display Resolution (HxV)1024 x 600
Viewing Angle135 (H) x 110 (V)
Pixel Response<25 ms
Luminance350 cd/m^2

Physical Specs

Rack Height3RU
Power Consumption10 Watts (3.8 Amps Max)
Power SupplyExternal 12VDC/3.8A, CE & UL approved.
Dimension Width19.0" (483mm)
Dimension Height5.25" (143mm)
Dimension Depth3.0" (76mm)
Net Weight6.0 lbs (2.7 kg)
Shipping Weight9.0 lbs (4.1 kg)
Shipping DimensionsN/A (LxWxH)


Looking for software updates for other products? Click here.

Reporting an issue? Click here.



There are no reviews yet.

Write your review here

Be the first to review “RM-3270WS-3G”

Your email address will not be published. Required fields are marked *

This site uses Akismet to reduce spam. Learn how your comment data is processed.


Signal Input x
Signal Output x , x

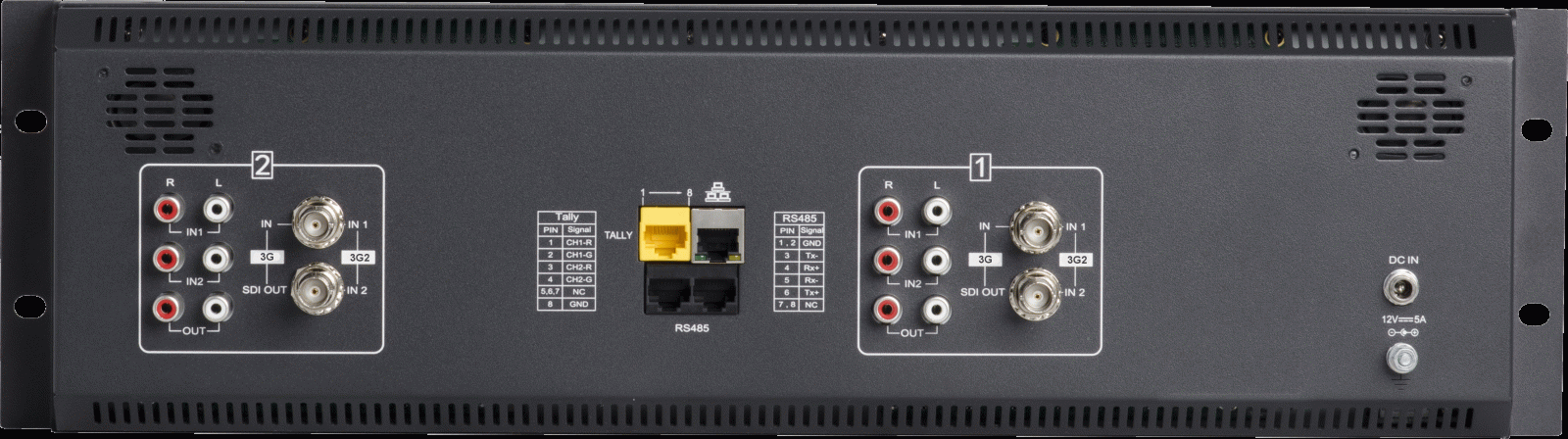

Data Ports 2 RS-485 on RJ-45 for system software upgrades and dynamic IMD controls; 1 DB-9 for tally control; 1 Ethernet connector for software updates
Audio Specifications
Meter Dynamics VU or PPM or both
Video Specifications
Color Depth 16.7M, 24-Bit
Contrast 700:01:00
Diagonal Display Size 7 Inch
Display Resolution (HxV) 1024 x 600
Display Type LCD
Luminance 350 cd/m^2
Native Aspect 16:09
Number of screens 2
Pixel Response <25 ms
Viewing Angle 135 (H) x 110 (V)
Dimension Depth 3.0" (76mm)
Rack Height 3RU
Dimension Height 5.25" (143mm)
Dimension Width 19.0" (483mm)
Net Weight 6.0 lbs (2.7 kg)
Power Consumption 10 Watts (3.8 Amps Max)
Power Supply External 12VDC/3.8A, CE & UL approved.
Shipping Weight 9.0 lbs (4.1 kg)
