RMTF-170-3G

SKU: 8001-0420

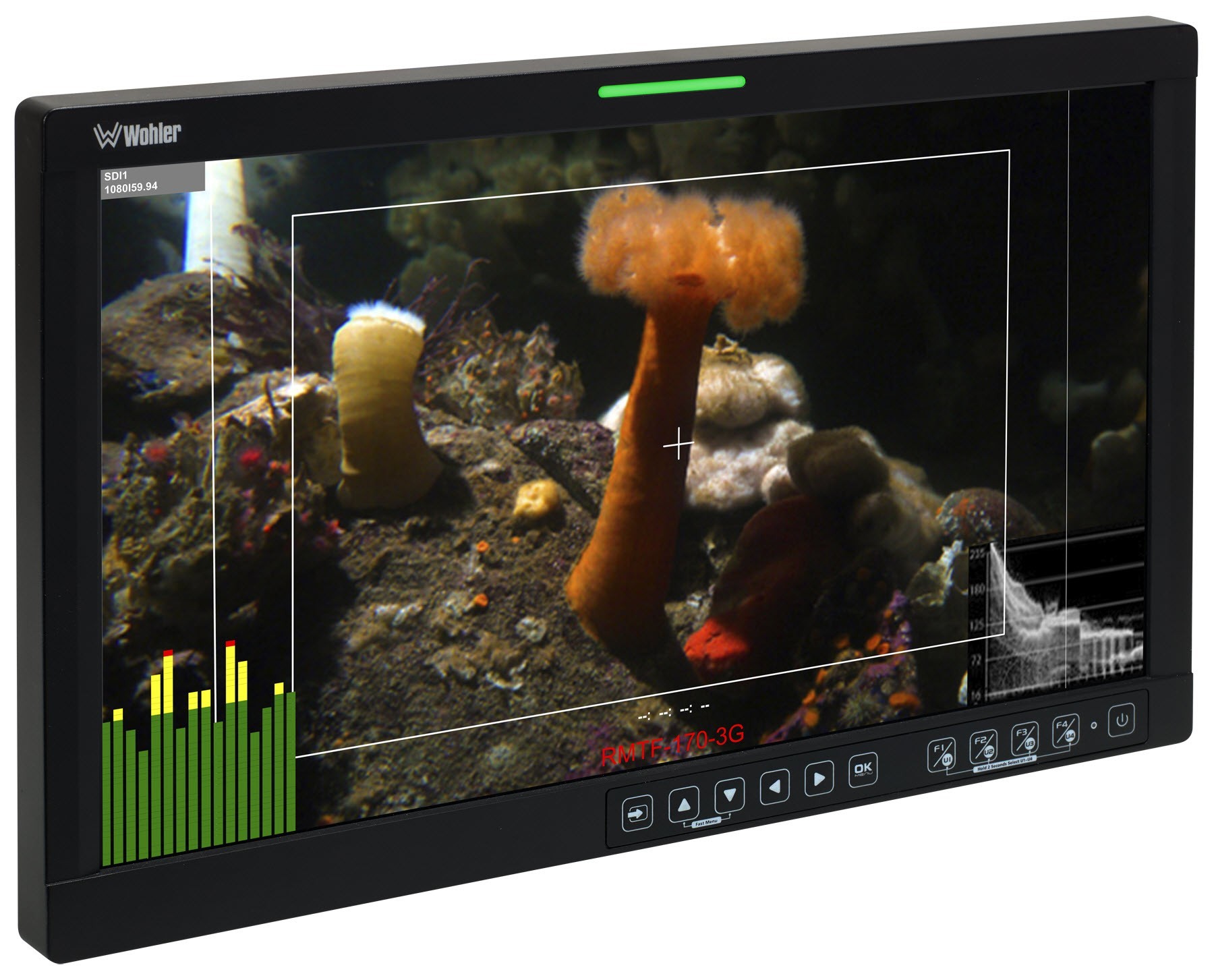

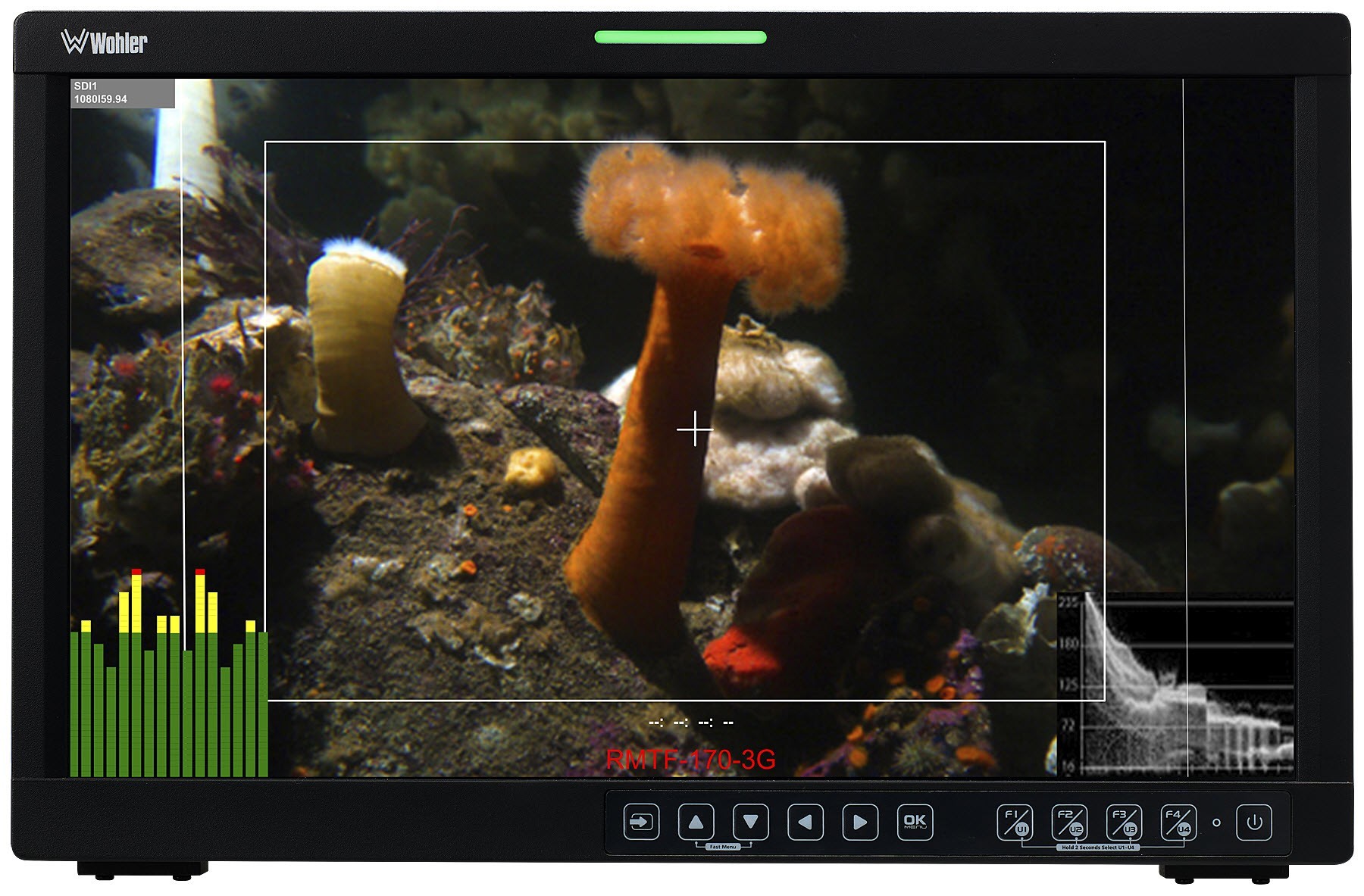

17″ LCD Video Monitor, Dual Input 3G/HD/SD-SDI, Composite, Component, HDMI. Audio/Video Metering. Rack Mount Frame. 6RU.

Request a Quote
Video Monitor 3G/HD/SD-SDI Analog HDMI Level Meters Measurement Tools Headphone Socket Speakers

Description

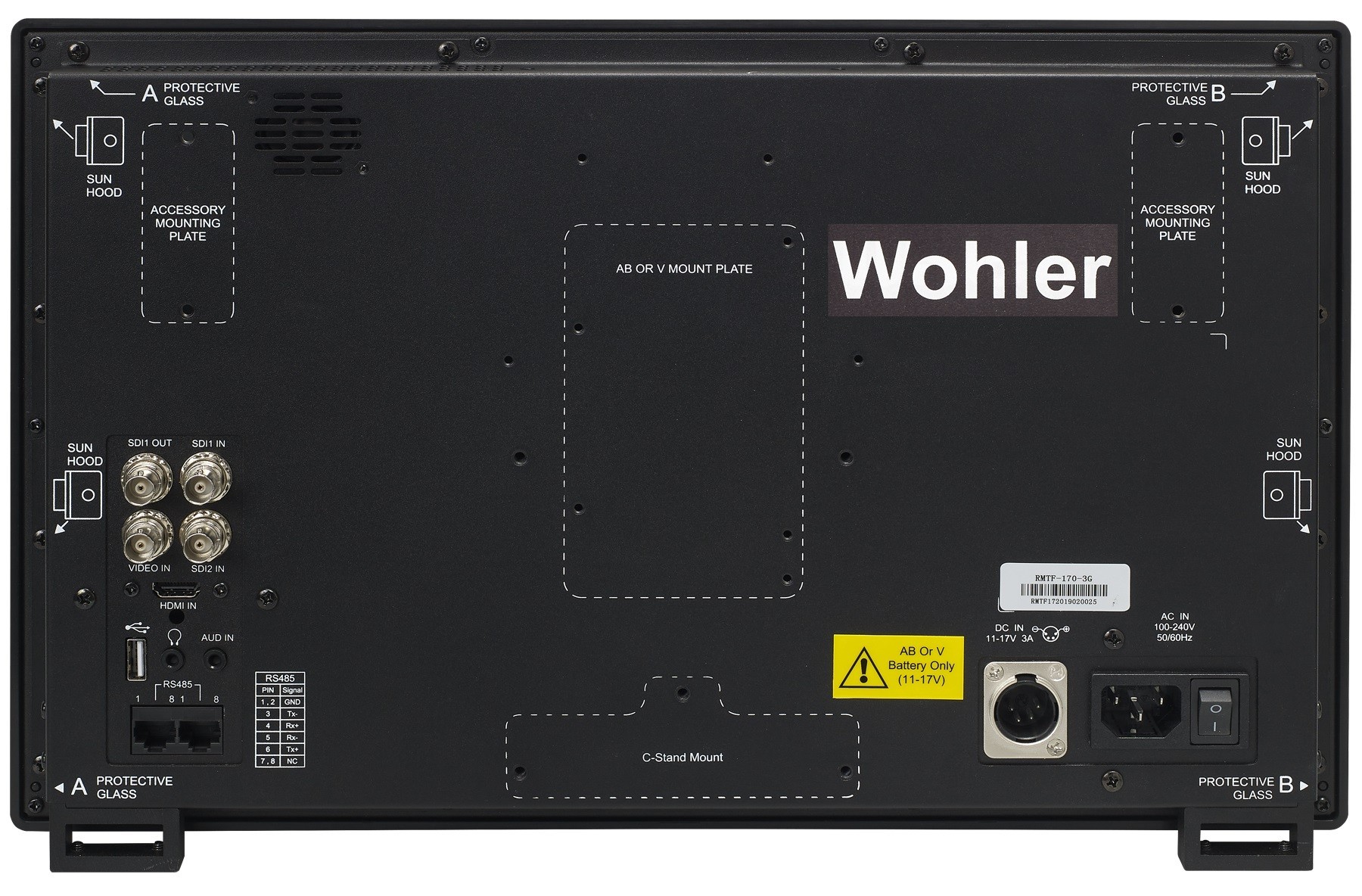

The RMTF-170-3G – with Table Top (TT) or Rack Mount (RM) options – monitors set a new standard in LCD monitors for broadcast and professional video applications.  They provide a 17″, 10 bit, 1920 x 1080 resolution, 16:9 format, anti-glare IPS LCD screen.  All video formats are scaled to fit on the screen in the highest quality using 12 bit digital processing, precision scaling, and gamma correction to produce the best images possible.  When used outdoors, an optional Sun Shade (part number 829201) is available for the RMTF-170-3G-TT tabletop monitor.  A standard XLR-4F connector can plug into the XLR-4M connector to supply 11 to 17 VDC at 3A to the product as an alternative to AC power.



This light and nimble monitor comes with a plethora of in-monitor display features including IMD, Tally, timecode, in-screen audio level metering, format display, and area/title safe markers.



The RMTF also provides a host of audio tools including 16-channel level metering and built-in speaker monitoring of its dual stereo analog inputs or SDI embedded audio.  Stand or rack-mount configurations available.



PLEASE NOTE THAT ONLY EIA 608 CAPTIONS ARE SUPPORTED IN THIS PRODUCT.  IT WILL NOT DECODE/MONITOR HD CAPTIONS.

Features and Benefits


  • Full-HD resolution 1920 x 1080 display
  • Multi-format 3G/HD/SD-SDI, HDMI & DVI, composite, Y/C and component video inputs
  • Waveform and Vectorscope display
  • Tally and on-screen labeling provide quick signal identification
  • Classic CRT-style image controls allow video image enhancements
  • In-picture audio level metering
  • Safe area and title markers
  • Gamma color calibration
  • Headphone and speaker outputs
  • User-defined function buttons
  • Intuitive on-screen user menus
  • DC Power connector for use with battery pack
  • Dual purpose USB connnector – used to load a camera look up table (LUT) or software upgrades

Options

A-V Specs

Analog Input Impedance20k Ohms
Meter DynamicsVU or PPM or both
Display TypeLCD
Number of screens1
Color Depth10 Bit
Diagonal Display Size17.3 Inch
Native Aspect16:09
Display Resolution (HxV)1920 x 1080
Viewing Angle178 (H) x 178 (V)
Contrast800:01
Pixel Response14 ms
Luminance300 cd/m^2

Physical Specs

Rack Height6RU
Power Consumption14 Watts
Power SupplyExternal 12VDC/5A, CE & UL approved.
Dimension Width16.6" (422mm)
Dimension Height10.4" (264mm)
Dimension Depth1.9" (49mm)
Net Weight11.0 lbs (5.0 kgs)
Shipping Weight11.0 lbs (5.0 kgs)
Shipping DimensionsN/A (LxWxH)

Support

Looking for software updates for other products? Click here.

Reporting an issue? Click here.

Reviews

Reviews

There are no reviews yet.


Write your review here

Be the first to review “RMTF-170-3G”

Your email address will not be published. Required fields are marked *

This site uses Akismet to reduce spam. Learn how your comment data is processed.

Features

Signal Input x , x , x , x
Signal Output x
Audio Specifications
Analog Input Impedance 20k Ohms
Meter Dynamics VU or PPM or both
Video Specifications
Color Depth 10 Bit
Contrast 800:01
Diagonal Display Size 17.3 Inch
Display Resolution (HxV) 1920 x 1080
Display Type LCD
Luminance 300 cd/m^2
Native Aspect 16:09
Number of screens 1
Pixel Response 14 ms
Viewing Angle 178 (H) x 178 (V)
Features
Interfacing
Physical
Dimension Depth 1.9" (49mm)
Rack Height 6RU
Dimension Height 10.4" (264mm)
Dimension Width 16.6" (422mm)
Net Weight 11.0 lbs (5.0 kgs)
Power Consumption 14 Watts
Power Supply External 12VDC/5A, CE & UL approved.
Shipping Weight 11.0 lbs (5.0 kgs)
Other
Processing
