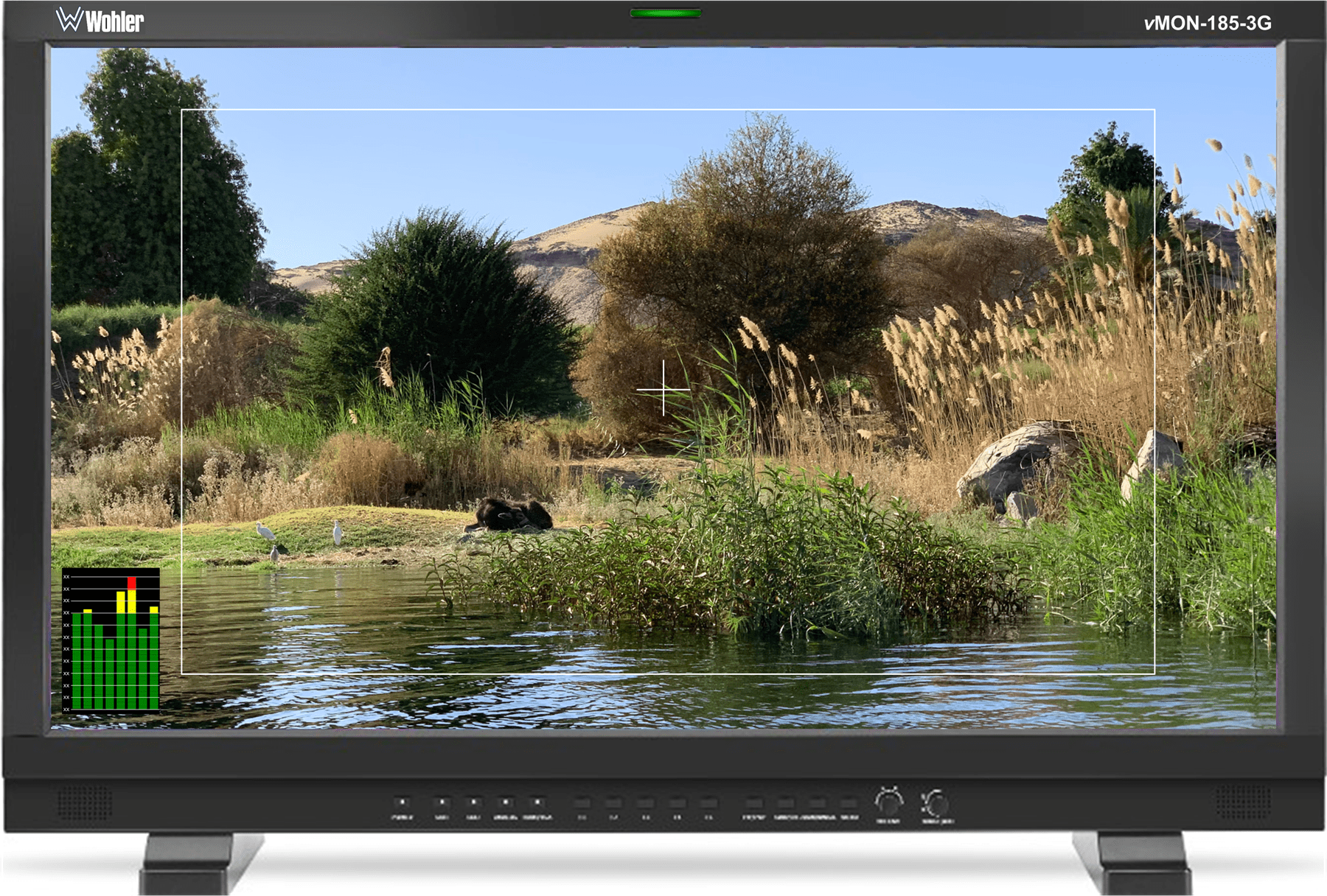

vMON-185-3G – 18.5” 3G/HD/SD-SDI, HDMI Video Monitor

SKU: 8006-0100

Fully featured, slim and cost effective 18.5” free standing 2K video monitor with on-screen audio level meters, waveform, and histogram.

Request a Quote
Video Monitor 3G/HD/SD-SDI HDMI Level Meters Measurement Tools Headphone Socket Speakers


The vMON Series is a full-featured range of slim, free standing video monitors ideal for mobile trucks, news and transmission control rooms, production/post-production and video surveillance applications. These monitors come standard with in-monitor level metering, selectable video vectorscope/histogram, safe area and aspect ratio markers, IMD labeling, tally, and built-in color bars, as well as a variety of picture controls and productive video features such as zoom controls and focus assist.

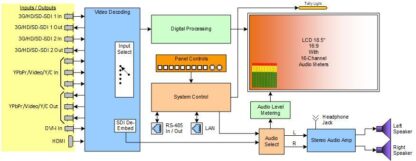

The vMON-185-3G is an 18.5” 4K HDR monitor with 2x3G/HD/SD-SDI and 1xYPbPr/Video/Y/C, 1xDVI-I, and 1xHDMI Inputs and 2x3G/HD/SD-SDI and 1xYPbPr/Video/Y/C outputs. It supports a variety of professional broadcasting features such as Waveform, Vectors, Pixel Measurement, and Darkness Check, making vMON-185-3G a brilliant 18.5 inch monitor in a 2K production workflow.


All standard frame rates and resolutions are supported from 3G-SDI, HDMI, and composite input sources, and each SDI and composite input has a looping output. Up to 16 audio channels may be selected for visual monitoring using on-screen bar graph style level meters. Monitoring speakers on the front panel allow the selected screen to be audibly monitored, while a 3.5mm headphone jack provides optional private monitoring.


The vMON-185-3G contains a large array of Features and Benefits as listed in the table on the following page.

Features and Benefits


– 1920 x 1080 resolution, 8 Bit LCD Panel

– 12 Bit Video Processing, no image delay

– 3G-SDI 4:4:4 12bit signals (SMPTE 425M A/B)

– 2x2K/3G-SDI inputs and outputs(2K/3G/HD/SD-SDI auto detect)

– 1x HDMI input, 1x DVI-I input, 1x composite video input

– PBP/PIP(size/position adjustable)

– Audio Level Meter, Blue/Mono Only

– Waveform, Vectorscope for SDI1, SDI2, HDMI/DVI

– Picture Flip, Focus Assist

– False Color, Zebra

– Part Zoom In

– Pixel Measurement and Audio Phase

– H/V Delay, Over Scan, Markers

– Darkness Check

– HDR supports PQ (ST2084) and HLG(1.0,1.1, 1.2, 1.3, 1.4, 1.5)

– 3D LUT Color calibration with ColourSpace & CalMAN

– Color space: REC709/EBU/DCI-P3 D65/DCI-P3/REC2020/


– Support user 3D LUT files import

– Various Gamma selection: Gamma 2.0, 2.2, 2.4, 2.6

– EOTF Log Curves: Slog(SDR), Slog2(SDR), Slog3(SDR), Slog3(HDR)

– Remote control: Ethernet/GPI, RS422 In/Out

– Dynamic UMD(TSL3.1/4.0)

– LED Tally Light and On-screen Tally display – 3G/HD/SD-SDI auto detect

– F-key configuration and Key Lock function

– Built-in Speakers


A-V Specs

Meter Dynamics2-16 channels for each display window (source dependent)
Number of screens1
Color Depth16.7 million
Diagonal Display Size18.5" Diagonal (409.6 mm H x 230.4 mm V)
Display Resolution (HxV)1920 H x 1080 V
Luminance350 cd/m2

Physical Specs

Power Consumption36 Watts
Power Supply100 – 240 VAC or 12 VDC
Dimension Width17.4" (441 mm)
Dimension Height13.2" (334 mm)
Dimension Depth5.9" (150 mm)
Net Weight13 lbs (5.9 kg)
Shipping Weight18 lbs (7.9 kg)
Shipping Dimensions26 × 20 × 10 in (LxWxH)


Looking for software updates for other products? Click here.

Reporting an issue? Click here.



There are no reviews yet.

Write your review here

Be the first to review “vMON-185-3G – 18.5” 3G/HD/SD-SDI, HDMI Video Monitor”

Your email address will not be published. Required fields are marked *

This site uses Akismet to reduce spam. Learn how your comment data is processed.


Signal Input x
Data Ports 1 Ethernet connector for software updates; 2 RS-485 on RJ-45 for UMD controls; 6 GPI Inputs on RJ-45 for external control
Audio Specifications
Meter Dynamics 2-16 channels for each display window (source dependent)
Video Specifications
Color Depth 16.7 million
Contrast 1000:1
Diagonal Display Size 18.5" Diagonal (409.6 mm H x 230.4 mm V)
Display Resolution (HxV) 1920 H x 1080 V
Luminance 350 cd/m2
Number of screens 1
Dimension Depth 5.9" (150 mm)
Dimension Height 13.2" (334 mm)
Dimension Width 17.4" (441 mm)
Net Weight 13 lbs (5.9 kg)
Power Consumption 36 Watts
Power Supply 100 – 240 VAC or 12 VDC
Shipping Weight 18 lbs (7.9 kg)
