vMON-185-3G2
18.5-Inch 2K Video Monitor
What it does

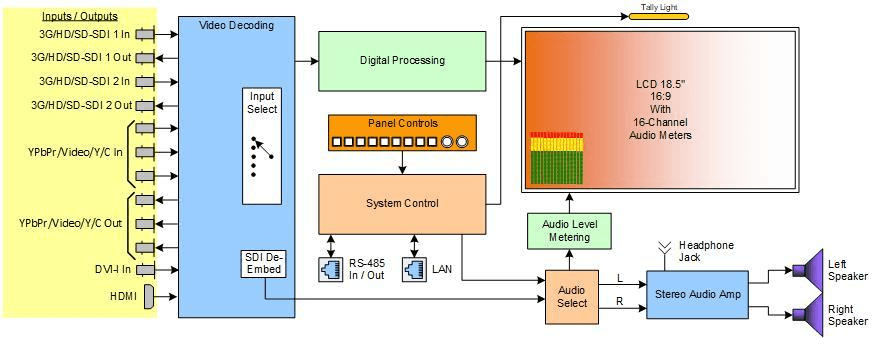

The vMON Series is a full-featured range of slim, free standing video monitors ideal for mobile trucks, news and transmission control rooms, production/post-production and video surveillance applications. These monitors come standard with in-monitor level metering, selectable video vectorscope/histogram, safe area and aspect ratio markers, IMD labeling, tally, and built-in color bars, as well as a variety of picture controls and productive video features such as zoom controls and focus assist. The vMON-185-3G2 is an 18.5” HDR monitor with 2x3G/HD/SD-SDI and 1xYPbPr/Video/Y/C, 1xDVI-I, and 1xHDMI Inputs and 2x3G/HD/SD-SDI and 1xYPbPr/Video/Y/C outputs. It supports a variety of professional broadcasting features such as Waveform, Vectors, Pixel Measurement, and Darkness Check, making vMON-185-3G2 a brilliant 18.5 inch monitor in a 2K production workflow. All standard frame rates and resolutions are supported from 3G-SDI, HDMI, and composite input sources, and each SDI and composite input has a looping output. Up to 16 audio channels may be selected for visual monitoring using on-screen bar graph style level meters. Monitoring speakers on the front panel allow the selected screen to be audibly monitored, while a 3.5mm headphone jack provides optional private monitoring. The vMON-185-3G2 contains a large array of Features and Benefits as listed in the table on the following page.
Datasheets, manuals & software
Datasheet
Capabilities
- Hybrid SDI/IP
- 24/7 operation
Why it's trusted
1920 x 1080 resolution, 8 Bit LCD Panel
12 Bit Video Processing, no image delay
3G-SDI 4:4:4 12bit signals (SMPTE 425M A/B)
2x2K/3G-SDI inputs and outputs(2K/3G/HD/SD-SDI auto detect)
1x HDMI input, 1x DVI-I input, 1x composite video input
PBP/PIP(size/position adjustable)
Audio Level Meter, Blue/Mono Only
Waveform, Vectorscope for SDI1, SDI2, HDMI/DVI
Picture Flip, Focus Assist
False Color, Zebra
Part Zoom In
Pixel Measurement and Audio Phase
H/V Delay, Over Scan, Markers
Darkness Check
HDR supports PQ (ST2084) and HLG(1.0,1.1, 1.2, 1.3, 1.4, 1.5)
3D LUT Color calibration with ColourSpace & CalMAN
Color space
REC709/EBU/DCI-P3 D65/DCI-P3/REC2020/
Support user 3D LUT files import
Various Gamma selection
Gamma 2.0, 2.2, 2.4, 2.6
EOTF Log Curves
Slog(SDR), Slog2(SDR), Slog3(SDR), Slog3(HDR)
Remote control
Ethernet/GPI, RS422 In/Out
Dynamic UMD(TSL3.1/4.0)
LED Tally Light and On-screen Tally display – 3G/HD/SD-SDI auto detect
F-key configuration and Key Lock function
Built-in Speakers
Specifications
- Audio / Video Specifications — Meter Dynamics
- 2-16 channels for each display window (source dependent)
- Audio / Video Specifications — Number of screens
- 1
- Audio / Video Specifications — Color Depth
- 16.7 million
- Audio / Video Specifications — Diagonal Display Size
- 18.5″ Diagonal (409.6 mm H x 230.4 mm V)
- Audio / Video Specifications — Display Resolution (HxV)
- 1920 H x 1080 V
- Audio / Video Specifications — Contrast
- 1000:1
- Audio / Video Specifications — Luminance
- 350 cd/m2
- Physical Specifications — Power Consumption
- 36 Watts
- Physical Specifications — Power Supply
- 100 – 240 VAC or 12 VDC
- Physical Specifications — Dimension Width
- 17.4″ (441 mm)
- Physical Specifications — Dimension Height
- 13.2″ (334 mm)
- Physical Specifications — Dimension Depth
- 5.9″ (150 mm)
- Physical Specifications — Net Weight
- 13 lbs (5.9 kg)
- Physical Specifications — Shipping Weight
- 18 lbs (7.9 kg)
- Physical Specifications — Shipping Dimensions
- 26 × 20 × 10 in (LxWxH)
