SKU: 8130-0400

AMP1-16-M

Dual Input, 16 Channel SDI audio monitor (3G, HD, SD).  1RU.  Sum, mute or solo de-embedded audio pairs using quick & easy push-buttons.
Data Sheet

Data Sheet

Manual

Manual

Ask a Question

Ask a Question

Support

Support

Software Update

Software Update

Sold Out

Request a Quote

fields marked with an * are required

AMP1-16-M

    First Name*

    Last Name*

    Email*

    Phone*

    Company Name*

    Select Country*

    Signal
    Please indicate the signals you need
    to decode or monitor

    3G-SDI12G-SDI/4K12G-SDI/4KST-2110ST-2022Ravenna/AES67Dante/AES67AnalogAES3MADIToslinkCVBS

    Any additional processing needs?
    Wohler offers additional processing options.
    Please check any/all that you want quoted.

    Dolby D/DD+/EDolby ATMOSOutput Routing

    Please describe your project

    please provide project informaion to help us give you the best quote.
    Quantities and # of channels to monitor is especially useful.

    Budget Status

    Date Product is required

    Number of units required

    Description

    16 Channel SDI Audio Monitor that provides Value for Money

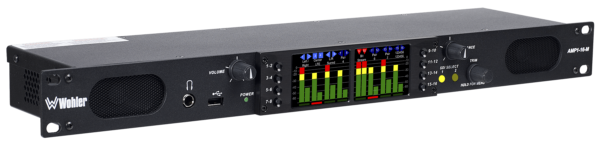

    Whether you are in the studio or on the road, the AMP1-16-M is an SDI audio monitor that offers fast and easy monitoring of 3G, HD, or SD formats.  Above all, Wohler has designed it for the most demanding environments.  First, with automatic frame rate detection, you get instant selection and summing of all 8 audio pairs (16 channel)  Next, you can choose between two SDI inputs and access all 16 channels via 8 pairs.  Additionally, other standard features include volume and balance controls, push-button selection of audio channels, SDI looped outputs, and conversion to analog on XLR.  Finally, level meters and phase display on two bright LCD’s.

    Do you only need to monitor 8 channels, not 16?  Please check out our AMP1-8-M instead.

    What about monitoring video with audio?  We have solutions for that as well.  Please check out our iVAM1-1.  Or visit our more fully-featured iAM-12G-SDI product page.

    Are you curious about what SDI is?  See the current entry at Wikipedia.

    Features & Benefits

    • Simultaneous level metering of 16 de-embedded audio channels from SDI
    • Choose between two SDI inputs (3G, HD or SD SDI)
    • Automatic SDI frame rate detection and selection
    • Shallow sub-5 inch depth for easy installation in Outside Broadcast vehicles and consoles
    • Both SDI inputs are looped and re-clocked
    • The selected and active SDI input is also re-clocked out on a 3rd dedicated BNC connector
    • Sum, mute or solo audio pairs using quick and easy push-buttons
    • High resolution metering on two LCD’s with 166-segment displays
    • Monitor audio through built-in speakers, headphones or analog outputs, with optional muting for internal speakers
    • Stereo or mono monitoring
    • Stereo phase indicators
    • Adjustable Volume and Balance
    • Balanced stereo analog outputs on XLR-Ms. Fixed level or volume/balance controlled.
    • Totally digital system architecture with high fidelity Class D amp
    • Selectable line level or front panel volume control and outputs

    Specifications

    Dimensions (W x H x D) 1RU in standard 19” rack: 19” x 1.75” x 4.25” (483 mm x 44 mm x 108 mm). Shipping dims: 23”x 6”x 12”
    Shipping Weight / Net Weight 7.0 lbs. (3.2 kg) / 5.0 lbs. (2.3 kg)
    Power Consumption / Supply 60W Typical, 100 to 240 VAC ± 10%, 50-60 Hz, CE & UL approved
    Display Type 2 x 2.4″ LED-backlit LCD’s to display meters and other information
    Audio Channels 8 Max
    Hum and Noise Better than -68 dB below full output
    Peak Acoustic Output 90 dB SPL @ 2 feet
    Speaker Power Output 6W RMS per side, 12W Peak
    Upgrades Front panel USB for software updates and preset storage / transfer

    Related products
