SKU: 8140-0200

RMoG-12G

12G-SDI Remote Monitor in openGear form factor with options for MADI, 2110, Dante and Ravenna. MAVRIC-compatible.
Data Sheet

Data Sheet

Ask a Question

Ask a Question

Support

Support

Request a Quote

fields marked with an * are required

RMoG-12G

    First Name*

    Last Name*

    Email*

    Phone*

    Company Name*

    Select Country*

    Signal
    Please indicate the signals you need
    to decode or monitor

    3G-SDI12G-SDI/4K12G-SDI/4KST-2110ST-2022Ravenna/AES67Dante/AES67AnalogAES3MADIToslinkCVBS

    Any additional processing needs?
    Wohler offers additional processing options.
    Please check any/all that you want quoted.

    Dolby D/DD+/EDolby ATMOSOutput Routing

    Please describe your project

    please provide project informaion to help us give you the best quote.
    Quantities and # of channels to monitor is especially useful.

    Budget Status

    Date Product is required

    Number of units required

    Description

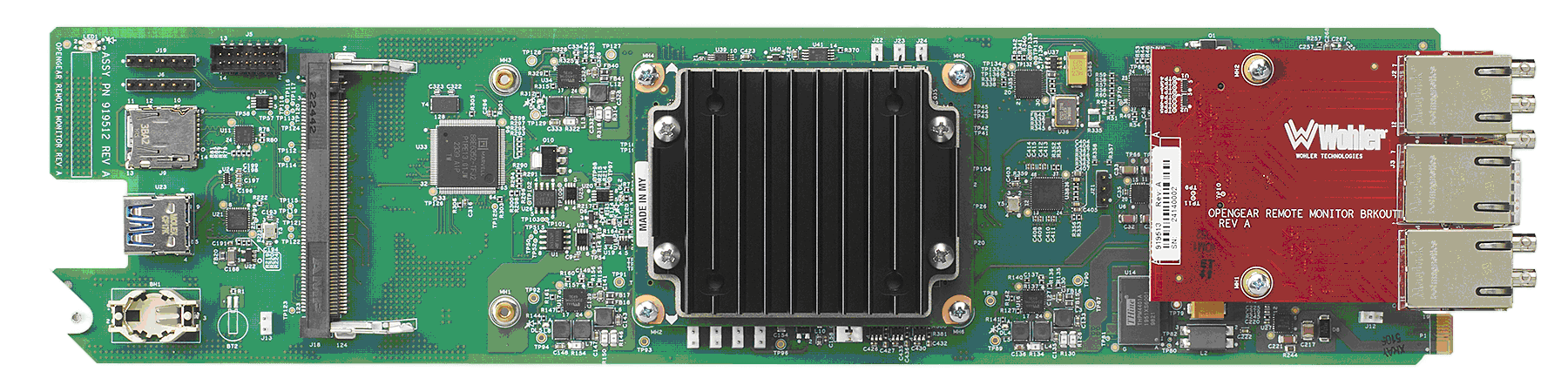

    A Wohler monitor-on-a-card in an openGear Form Factor

    This unit is for situations where a local operator is not available to operate the monitor front panel. Access the I/O with Audio, Video, Meters and Loudness via a web interface using a standard web browser. It’s also compatible with MAVRIC for multi-user remote monitoring and automated alerts.

    Features & Benefits

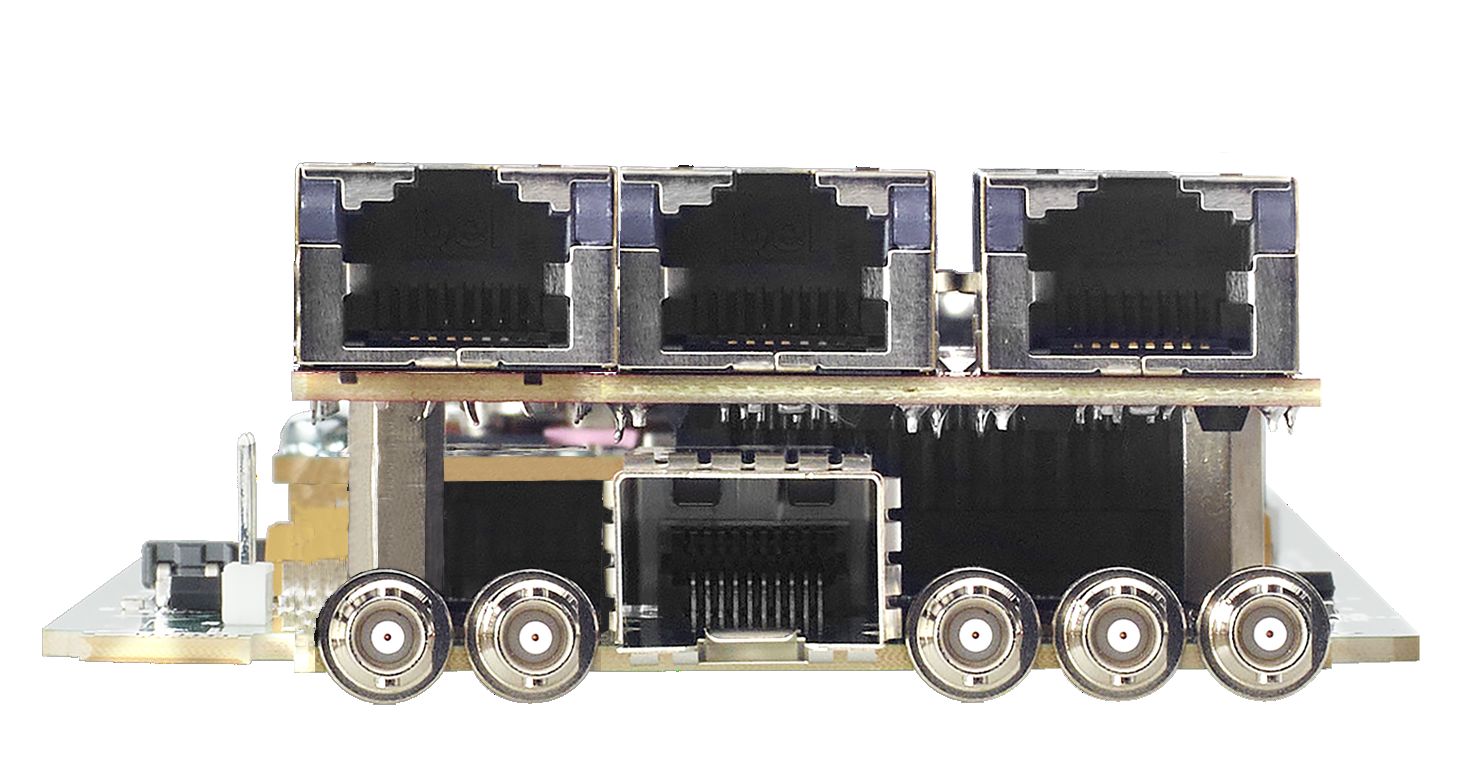

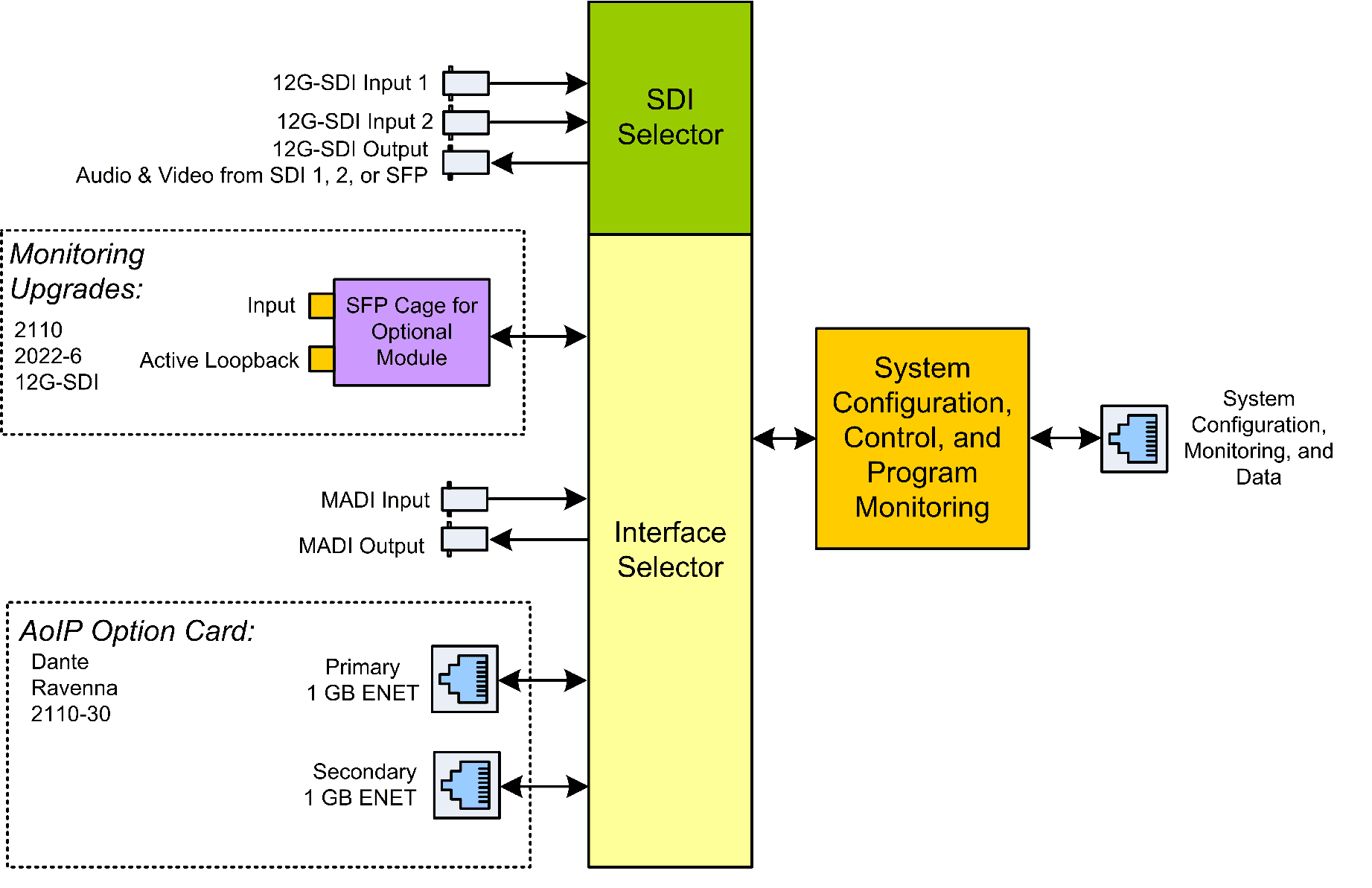

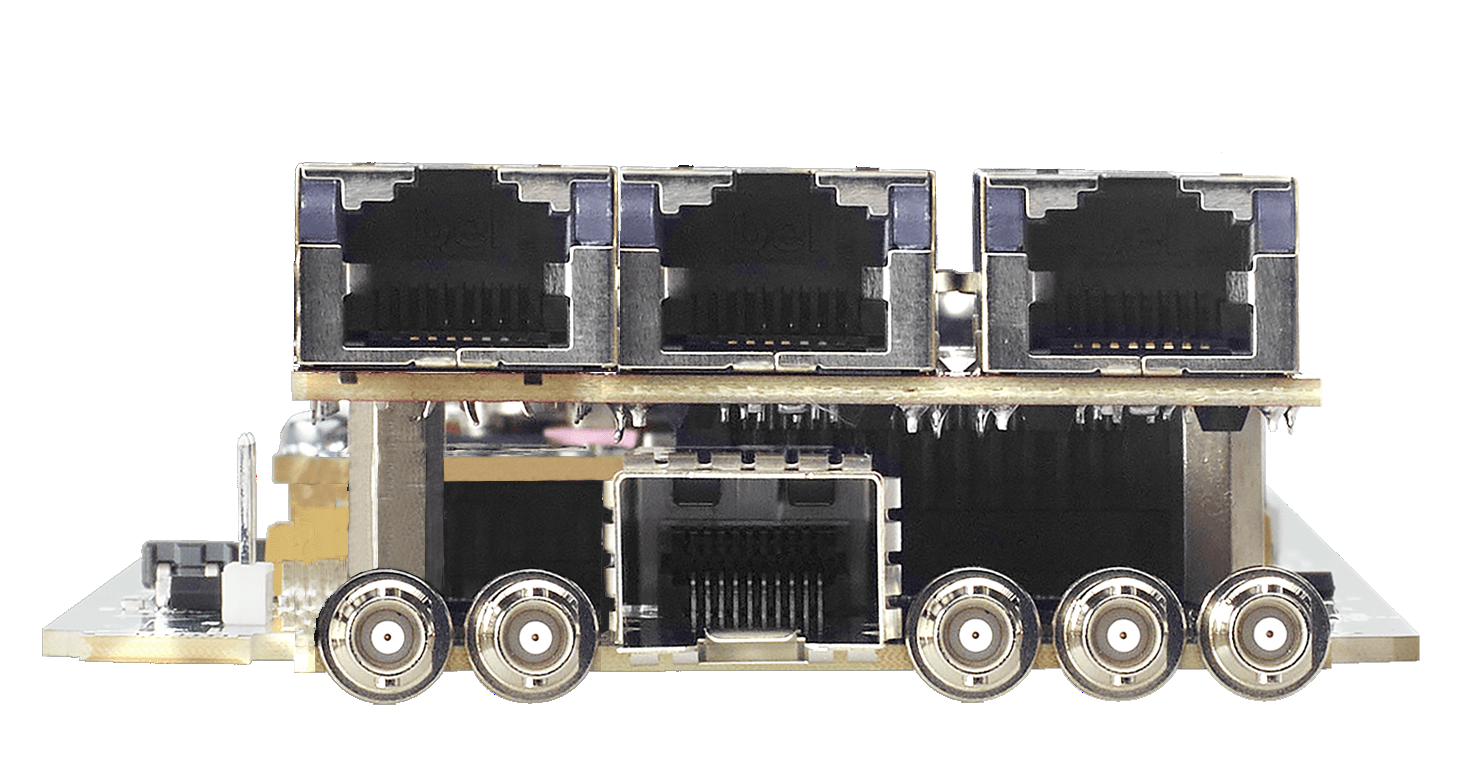

    Signal Inputs/Outputs:

    • 2 x 12G-SDI Inputs on HD-BNCs with selected output on HD-BNC
    • 1 x MADI BNC In and loop Out
    • 1 x SFP for ST 2022-6 or ST 2110
    • 1 x RJ45 for Remote Access
    • 2 x RJ45 for Optional Dante/Ravenna (AES67)



    Features/Benefits:

    • Monitor via web interface using standard web browser for access to audio, video, meters and loudness.
    • Automatic frame rate detection and selection
    • Software upgradeable via network
    • Web browser also used for configuration and preset creation
    • Automated alerts available when used with MAVRIC
    • Optional upgrades for additional SDI, MADI, 2110, 2022-6, MADI and hitless Ravenna or Dante

    Options

    Signal Licensing Options (software only, no hardware)
    OPT-MADI 829092 Enables decoding and monitoring of 1 x MADI64 input via BNC with a looped output.  Software activation key.
    Option Cards (1 Option Card only per Unit)
    OPT-RMOG-DANTE 829192 Enables monitoring of up to 64ch of DanteTM inputs to RMOG-12G-SDI. Hardware card with software activation key. Adds primary and secondary RJ-45 ports for hitless/2022-7 support (for Dante and 2110-30 signals).
    OPT-RMOG-RAVENNA 829193 Enables monitoring of up to 64ch of RavennaTM / AES67 inputs to RMOG-12G-SDI. Hardware card with software activation key. Adds primary and secondary RJ-45 ports for hitless/2022-7 support (for Dante and 2110-30 signals).
    Small form-factor pluggable (SFP) Options with software activation key
    SFP-SDI-Fiber 829084 12G/3G/HD/SD-SDI single mode Optical LC (fiber) video receiver.  Only required if an SDI input is needed via Fiber OR an additional SDI input is required.
    SFP-2022-6 829088 SMPTE 2022-6 receiver. Multi-Mode 850 NM, LC (fiber) Connectors. Use MN-SET to configure SFP.
    SFP-2110 w/NMOS or Ember+ 829086-1 SMPTE 2110 receiver.  Multi-Mode 850 NM, LC (fiber) Connectors. Use MN-SET to configure SFP. User selectable between NMOS and Ember+.  Unless specified, NMOS will be delivered as standard.
    SFP-2110 w/NMOS or Ember + 2022-6 829087-1 SMPTE 2110 or 2022-6 Receiver, Multi-Mode 850 NM, LC (fiber) Connectors. Use MN-SET to configure SFP. User selectable between NMOS and Ember+.  Unless specified, NMOS will be delivered as standard.

    Specifications

    Shipping Weight / Net Weight 2.0 lbs. (0.9 kg) / 1.0 lbs. (0.45 kg)
    Power Requirements
    		 Receives power from frame 9 to 15V DC (12V Nominal)
    Power Consumption / Supply
    		 Nominally 10W, 100 to 240 VAC +-10%, 50-60 Hz, CE & UL Approved
    Supported Frames
    		 openGear / 2RU Enclosure OGX-FR Supported Frames
    Audio Channels 16 Max
    Upgrades Via GUI web interface
    APIs Provide easy integration with 3rd party control systems
