    Description

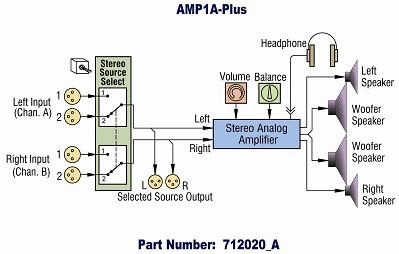

    The AMP1A Series monitors provide self-powered, full fidelity stereo audio monitoring of 2 analog channels (1 stereo channel) in the smallest rack space possible. These units contain four high performance transducers driven by three power amplifiers: one amplifier/driver combination handles midrange and high frequency information in stereo, while the second handles summed low frequency information below the 500 Hz crossover point.

    The unique design provides optimally focused sound for operators in an ultra near field (1 to 3 ft.) working environment and offers performance comparable to that of many separate monitor pairs, yet does so without the installation hassles, awkward speaker placements and “added-on” look. This provides for a higher SPL for the operator while reducing overall ambient sound and adjacent bay crosstalk.

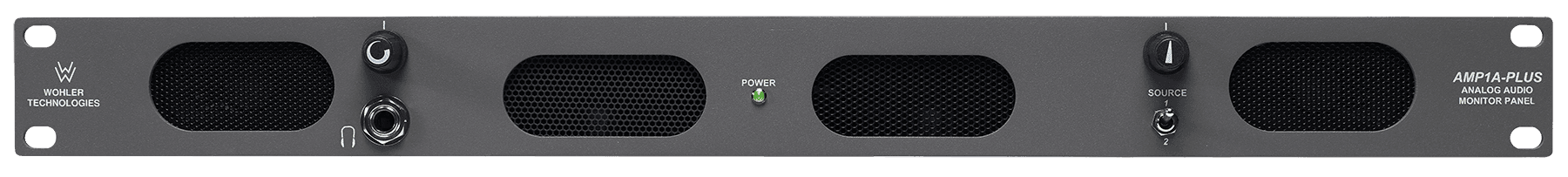

    Extended HF response reveals potential problems with audio whine or hiss. Electronic rather than acoustic cancellation of bass frequencies provides positive audible detection of out-of-phase (reversed polarity) audio feeds. A headphone jack is provided on the front panel; usage automatically mutes the speakers.

    Features & Benefits

    Features:

    • Full fidelity audio monitoring in only 1RU
    • Premium quality drivers and power amplifiers

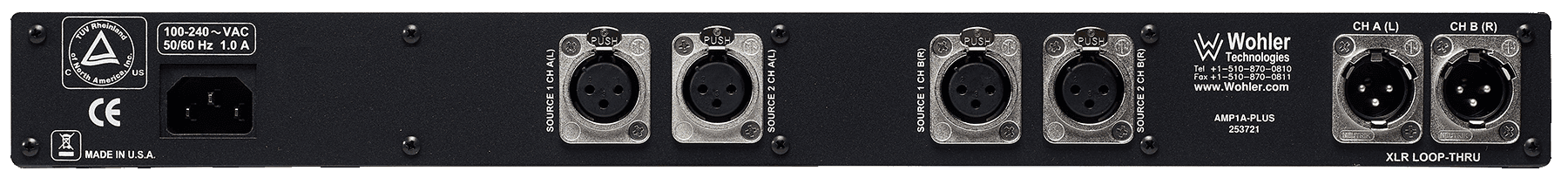

    • Two balance analog Inputs with loop-through (1 stereo)

    Benefits:

    • Thorough magnetic shielding allows placement next to video monitors
    • Extended Frequency Response and Low Distortion provide excellent audio reproduction
    • Audible indication of phase/polarity provides instant information

    Specifications

    Dimensions (W x H x D) 1RU in standard 19” rack: 19” x 1.75” x 10” (483 mm x 44 mm x 254 mm). Shipping dims: 23”x 6”x 12”
    Shipping Weight / Net Weight 10.0 lbs. (4.6 kg) / 10.0 lbs. (4.6 kg)
    Power Consumption / Supply 35W Typical, Internal IEC Connector, Universal Input, 100 to 240 VAC ± 10%, 50-60 Hz, CE & UL approved
    Hum and Noise Better than -68 dB below full output
    Peak Acoustic Output 98 dB SPL @ 2 feet
    Speaker Power Output 5W RMS per side, 10W Peak; RMS Bass: 10W Continuous/20W Peak
