SKU: 8114-0460 or 8114-0470

iAM1-MIX8-AoIP

Audio Monitoring & Mixer with MADI and choice of DanteTM (8114-0460) or RavennaTM (8114-0470)
Data Sheet

Data Sheet

Ask a Question

Ask a Question

Support

Support

Request a Quote

fields marked with an * are required

iAM1-MIX8-AoIP

    First Name*

    Last Name*

    Email*

    Phone*

    Company Name*

    Select Country*

    Signal
    Please indicate the signals you need
    to decode or monitor

    3G-SDI12G-SDI/4K12G-SDI/4KST-2110ST-2022Ravenna/AES67Dante/AES67AnalogAES3MADIToslinkCVBS

    Any additional processing needs?
    Wohler offers additional processing options.
    Please check any/all that you want quoted.

    Dolby D/DD+/EDolby ATMOSOutput Routing

    Please describe your project

    please provide project informaion to help us give you the best quote.
    Quantities and # of channels to monitor is especially useful.

    Budget Status

    Date Product is required

    Number of units required

    Description

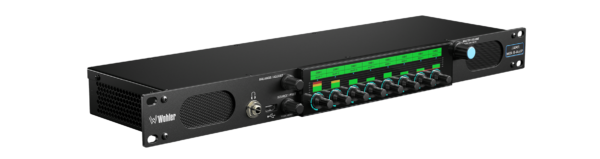

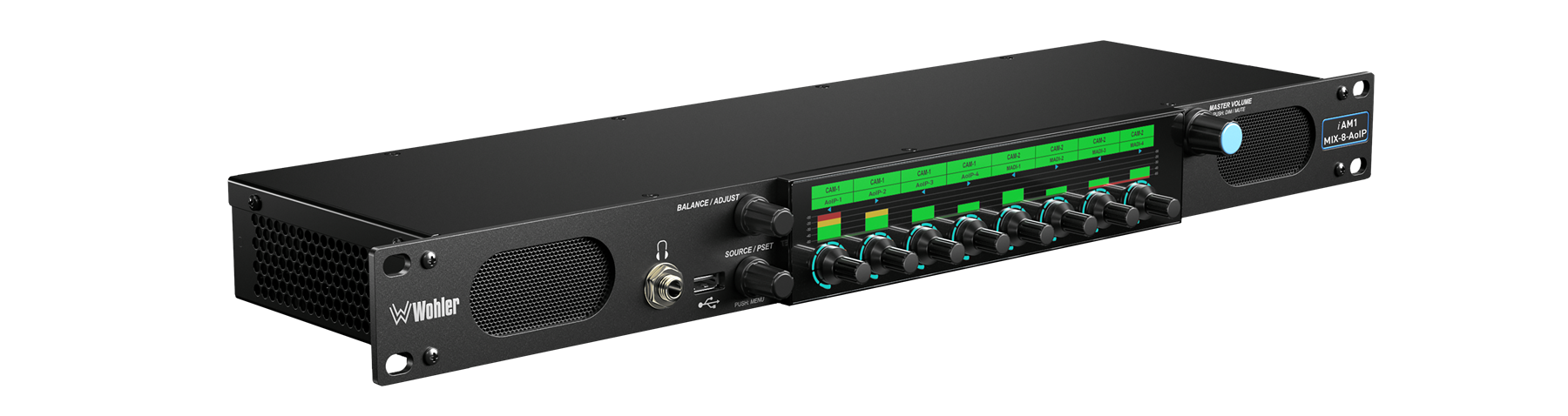

    The iAM1-MIX8-AoIP is a design that emphasizes individual mechanical controls for sum, mute and solo operations.  This latest re-design of our successful MIX series has been enhanced with upgraded screen graphics and includes a touch screen, while retaining the individual channel rotary encoders.  It is a well featured and competitively priced IP ready audio monitor and mixer which can be configured to operate in either single channel (8 channel) or pair mode (16 channel).

    Flexible. Adaptable. Future Proof.

    Features include MADI, unbalanced analog input and a pair of Analog outputs, with a choice of DanteTM or RavennaTM.

    Network Capable with Remote access options:

    The unit includes built-in support for remote monitoring provided by our MAVRIC software applications suite.  All iAM Series monitors contain an onboard web server. Multiple units on the same network can be updated, monitored, and controlled via a web-based user interface.

    Features & Benefits

    • Fast selection and summing with LCD touch controls for up to 8 audio channels or 8 pairs (16 channels)
    • Master volume control that also provides a master mute/unmute
    • Channel names can be displayed for each input or pulled from a router

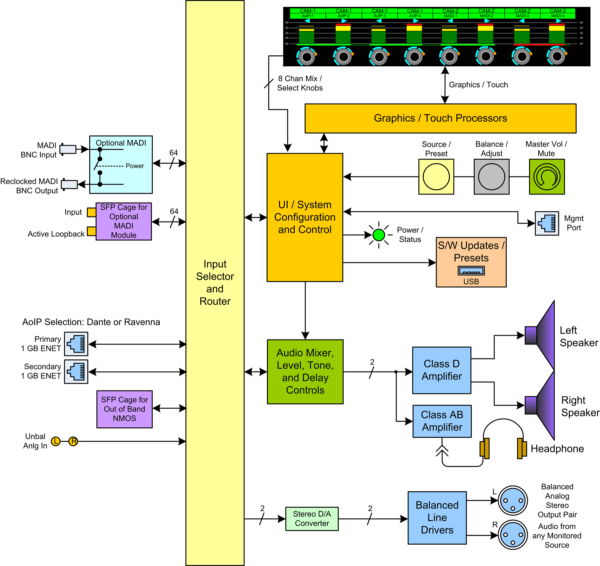

    • Standard I/O: 1 x MADI64 Input on BNC; 2 x Unbalanaced Analog Input over RCA, 1 pair Analog out on XLR, 2/3 x RJ45 for DanteTM or RavennaTM
    • Store and retrieve up to 64 presets
    • Optional Output routing enables the flexibility to route input signals to various outputs
    • Built-in speakers, headphone jack, USB and Ethernet ports with APIs for remote management
    • Software upgradeable individually via USB or multiple units on the same network
    • Built-in Audio-only remote monitoring probe. Requires MAVRIC remote monitoring activation.

    Specifications

    Dimensions (W x H x D) 1RU in standard 19” rack: 19” x 1.75” x 5.5” (483 mm x 45 mm x 140 mm). Shipping dims: 23”x 6”x 12”
    Shipping Weight / Net Weight 8.0 lbs. (3.6 kg) / 5.5 lbs. (2.5 kg)
    Power Consumption / Supply 65W, 100 to 240 VAC ± 10%, 50-60 Hz, CE & UL approved
    Display Type / Resolution 7” (178 mm) LCD Capacitive Touchscreen; 1242H x 280V
    Viewing Angle 160° (H) x 160° (V)
    Audio Channels 16 Max
    Hum and Noise Better than -68 dB below full output
    Peak Acoustic Output 90 dB SPL @ 2 feet
    Speaker Power Output 5W RMS per side, 12W Peak
    Upgrades Via USB or GUI web interface
    APIs Provide easy integration with 3rd party control systems
