eAMP1-16-M

Dual Input 3G/HD/SD-SDI 16 Channel Audio Monitor. 1RU.

Datasheet

Manual

Ask a Question

Contact Support

Software Update

Request a Quote

fields marked with an * are required

eAMP1-16-M

    First Name*

    Last Name*

    Email*

    Phone*

    Company Name*

    Select Country*

    Signal
    Please indicate the signals you need
    to decode or monitor

    3G-SDI12G-SDI/4K12G-SDI/4KST-2110ST-2022Ravenna/AES67Dante/AES67AnalogAES3MADIToslinkCVBS

    Any additional processing needs?
    Wohler offers additional processing options.
    Please check any/all that you want quoted.

    Dolby D/DD+/EDolby ATMOSOutput Routing

    Please describe your project

    please provide project informaion to help us give you the best quote.
    Quantities and # of channels to monitor is especially useful.

    Budget Status

    Date Product is required

    Number of units required

    Description

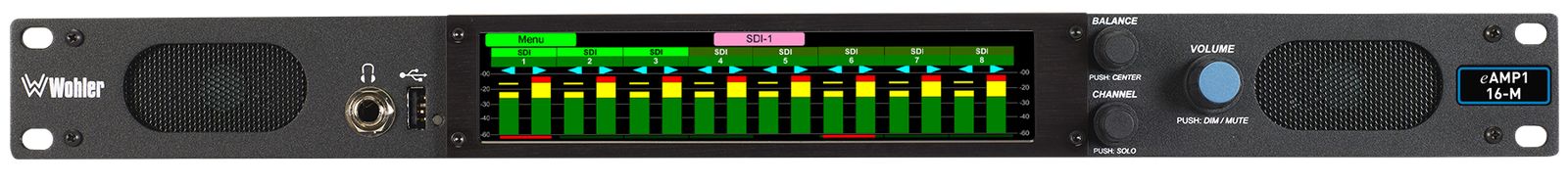

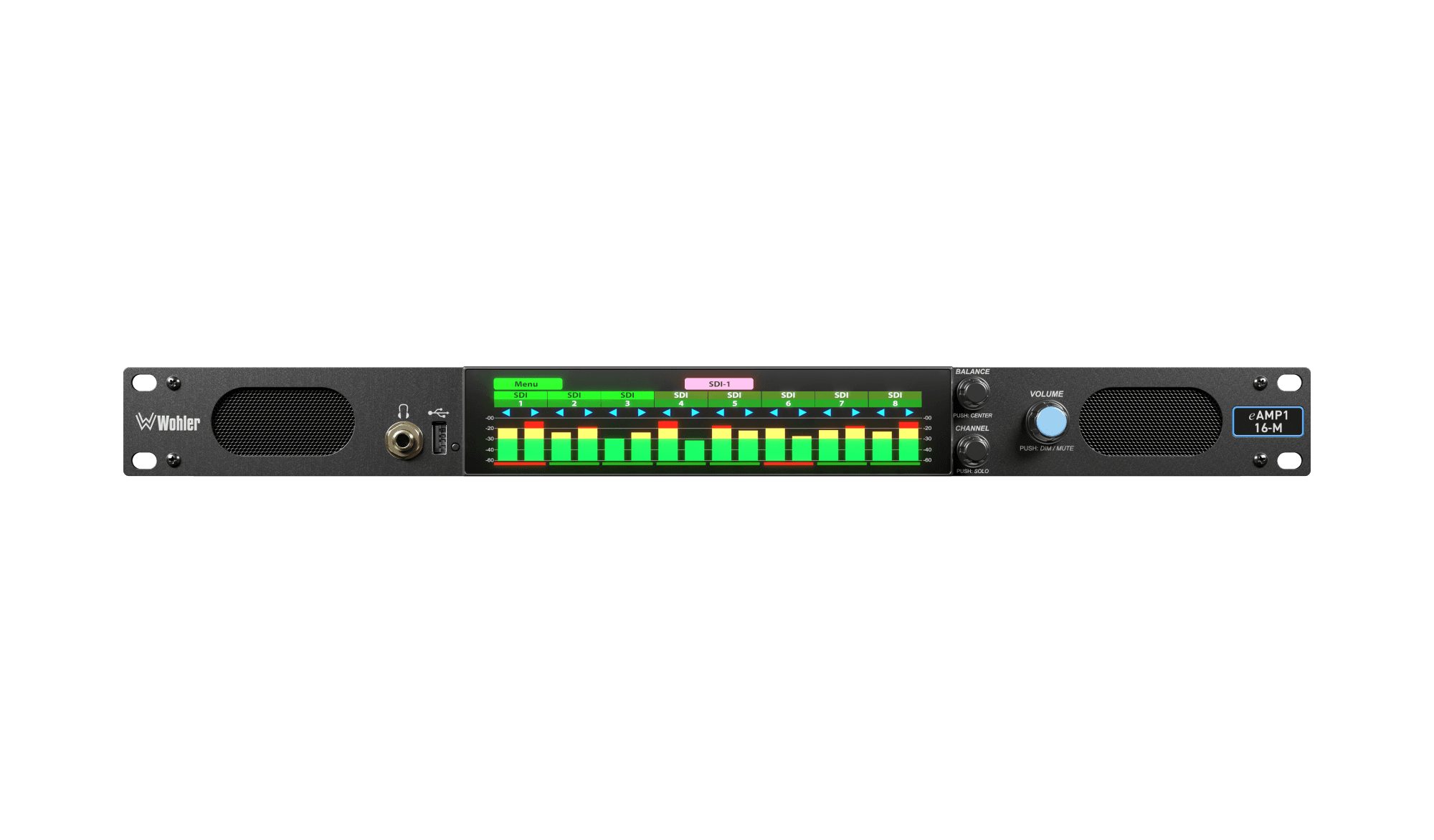

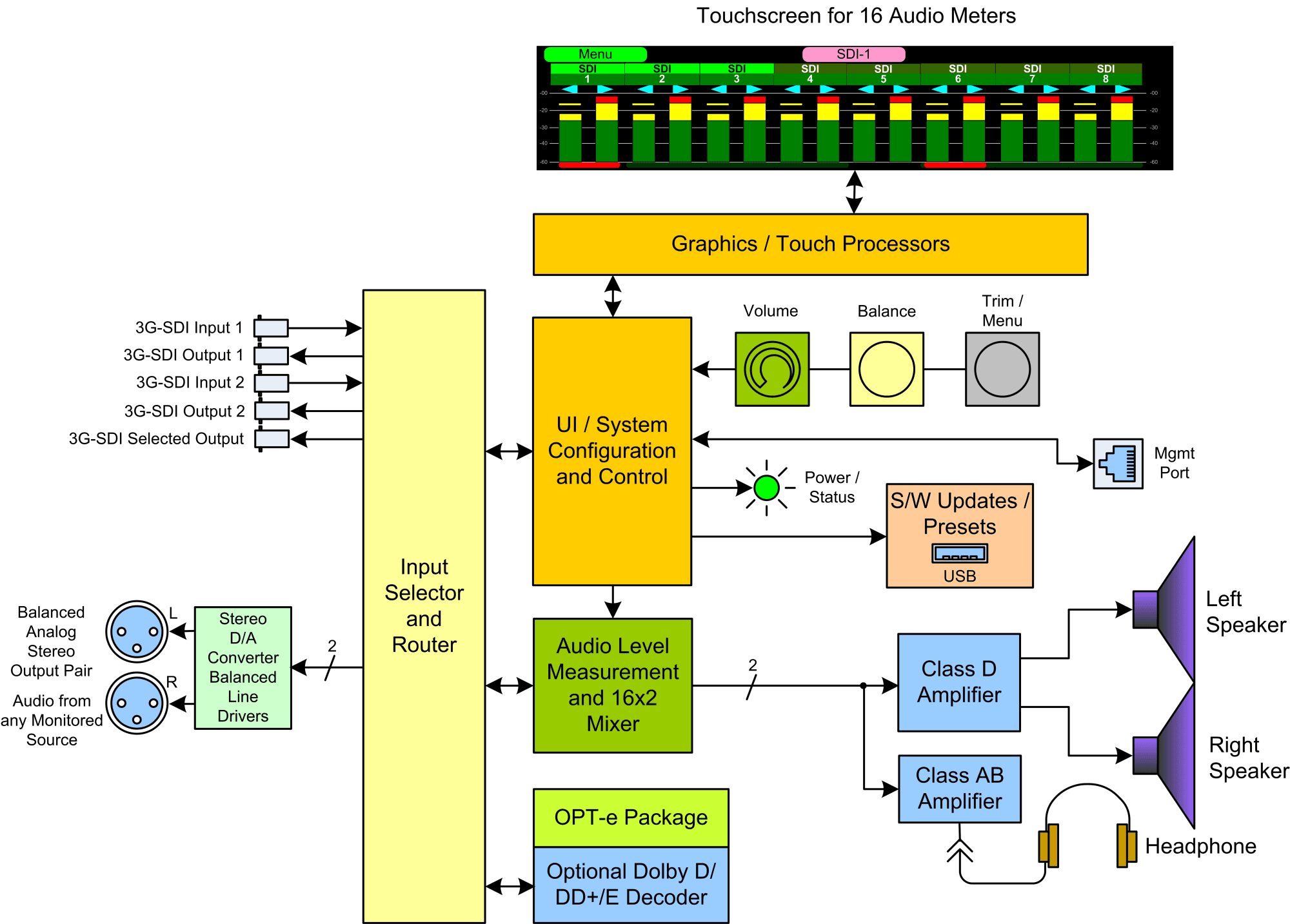

    Single 7”screen, compact, low-cost unit to select and monitor up to 16 audio channels from either of two 3G/HD/SD-SDI inputs.

    Replacements for the 16-M’s, the, eAMP1-16-M offers fast, intuitive operation for monitoring SDI audio in the most demanding production applications. Whether in the studio or on the road, these models provide simultaneous selection and summing of any grouping of SDI audio pairs. They feature adjustable volume and balance controls, clear display of levels, and phase indications on a bright 7” LED-backlit LCD display.

    Features & Benefits

    • Simultaneous level metering of up to 16 channels of de-embedded audio channels from SDI
    • Touch-enabled or scroll and push selection of any pairs to sum for monitoring
    • Monitor through built-in speakers, headphones and analog outputs with optional muting for internal speakers
    • Stereo or mono monitoring
    • Stereo phase indicators
    • Adjustable Volume and Balance

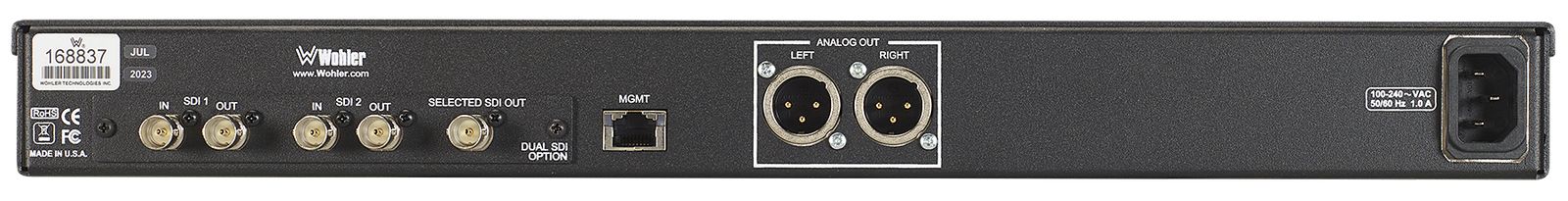

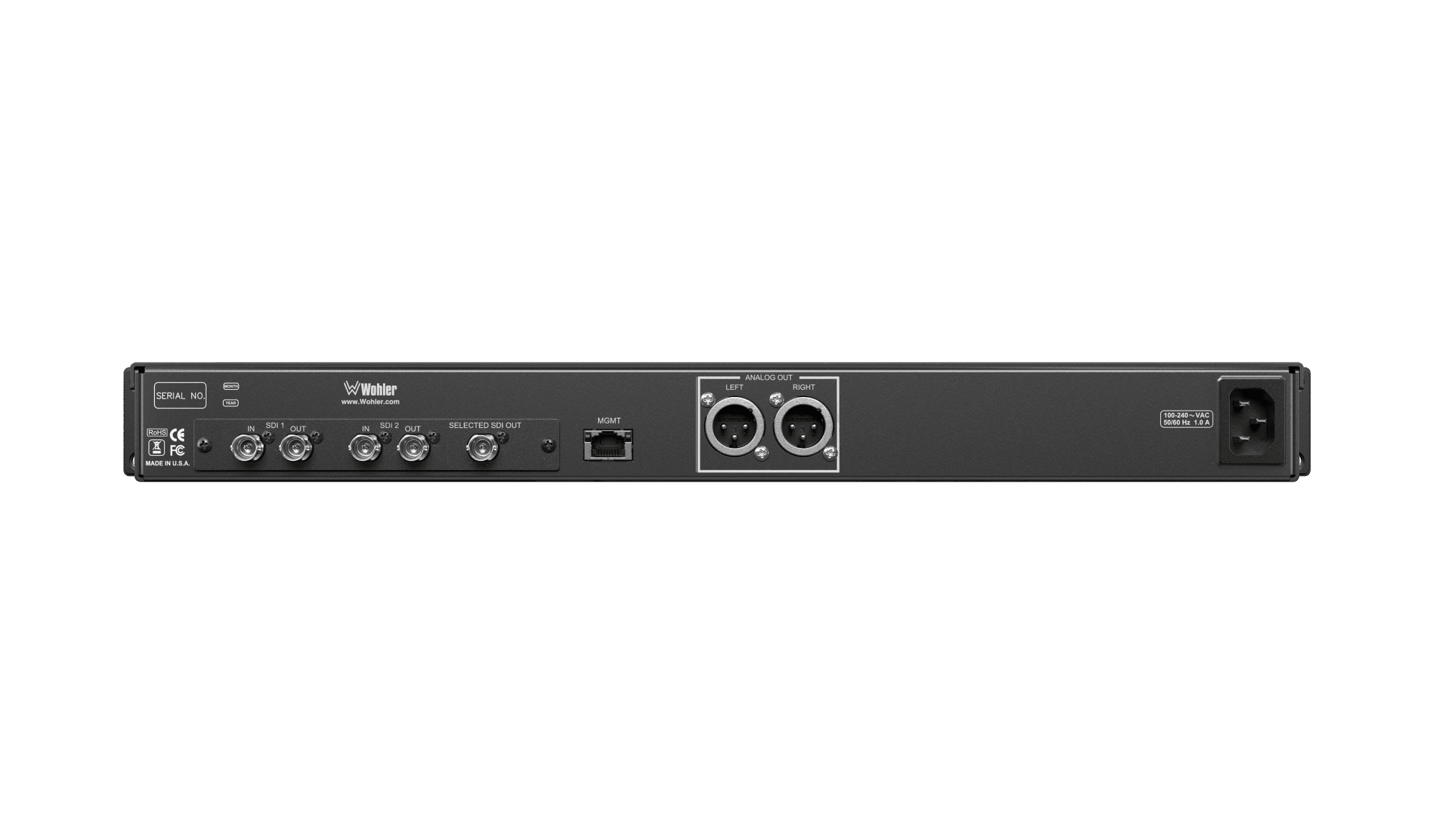

    • Balanced stereo analog outputs on XLR-Ms with fixed level or volume / balance configuration options.
    • Automatic frame rate detection and selection
    • Selectable line level or front panel volume control and outputs
    • Shallow chassis depth for easy installation in OB vehicles and consoles
    • OPT-DOLBY adds decoding of *Dolby D, DD+ and E (requires OPT-e package)
    • APIs provide easy integration with 3rd party systems (requires OPT- e package)

    Upgrade Options

    OPT-e package 829186 Adds Loudness monitoring, Presets, & Web metering/monitoring/configuration
    OPT-e Output Routing 829188 Enables the flexibility to route input signals (AES & Analog only) to various outputs. Software activation key.
    OPT-DOLBY 829174 Allows decoding and monitoring of Dolby® D, DD+ & E. Includes Dolby Zoom & metadata. *This option requires OPT-e package

    Specifications

    Dimensions (W x H x D) 1RU in standard 19” rack: 19” x 1.75” x 5.5” (483 mm x 45 mm x 140 mm). Shipping dims: 23”x 6”x 12”
    Shipping Weight / Net Weight 5.8 lbs. (2.6 kg) / 3.3 lbs. (1.5 kg)
    Power Consumption / Supply 19W, 100 to 240 VAC ± 10%, 50-60 Hz, CE & UL approved
    Display Type / Resolution 7” (178 mm) LCD Capacitive Touchscreen; 1242H x 280V
    Viewing Angle 160 (H) x 160 (V)
    Audio Channels 16 Max
    Hum and Noise Better than -68 dB below full output
    Peak Acoustic Output 90 dB SPL @ 2 feet
    Speaker Power Output 5W RMS per side, 12W Peak
    Upgrades Via USB or GUI web interface
