    Description

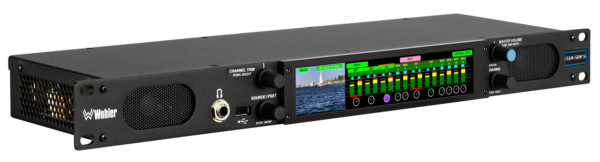

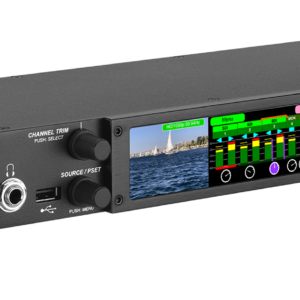

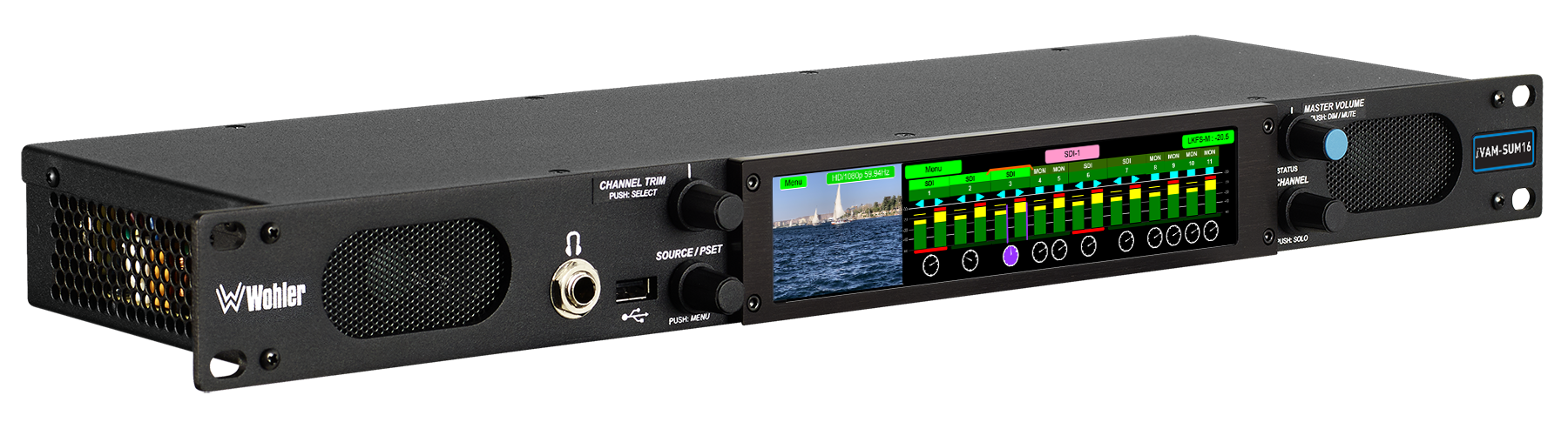

    The iVAM1-SUM16 is a well featured, easy to use and competitively priced IP ready audio and video monitor / mixer. The unit can be configured to operate in either single channel or pair mode. Standard features include 3G-SDI, an HDMI output, and a pair of Analog inputs and outputs. Upgrade/license other signal formats and processing options, as and when needed, either initially or after purchase.

    Flexible. Adaptable. Future Proof.

    Equally at home in QC, fast-paced OB and live-to-air production environments, iAM-SUM provides intuitive audio and video monitoring with instant access to signals or to user-definable presets of any individual signal source or a mix of sources for monitoring and mixing. Options for additional signals, include AES3, MADI, DanteTM, RavennaTM, SMPTE-2110 and SMPTE-2022-7.

    All iVAM Series monitors contain an onboard web server. Multiple units on the same network can be updated, monitored, and controlled via a web-based user interface.

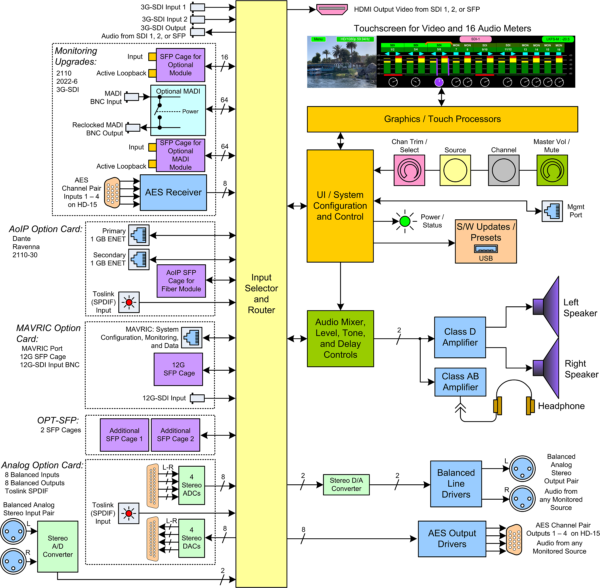

    Features & Benefits

    • Fast selection and summing of up to 8 or 16 audio channels with video, allowing quick muting and hold-for-solo. Video display includes resolution indication and HDR detection
    • Up to 64 presets
    • Virtual rotary dials showing trim levels
    • Access control with lockout prevents accidental or unauthorized changing of critical settings
    • 2 x 3G-SDI Inputs on BNC; 1 x 3G-SDI Output on BNC + 1 pair Analog in/out on XLR
    • Optional Output routing enables the flexibility to route input signals to various outputs
    • Optional I/O for AES3 on HD-15 (incl selected audio source converted to AES3 out), MADI on BNC (looped out), and SMPTE 2110 or SMPTE 2022 via SFP
    • Option cards: Choose between AoIP, an additional 8 channels of analog inputs and outputs, or 2 additional SFP cages
    • Measure Audio Loudness using ITU-R BS.1770 or EBU R128 standards
    • Software upgradeable individually via USB or multiple units on the same network
    • Browser-based interface that supports fast configuration that protects critical configurations from unauthorized alteration.
    • APIs for remote management

    Upgrade Options

    Signal Licensing Options (software only, no hardware)
    OPT-AES 829080 Enables decoding and monitoring of 4 x AES inputs, 1 AES Output
    OPT-MADI 829092 Enables decoding and monitoring of 1 x MADI64 input via BNC
    Processing Options (software only)
    OPT-OUTPUT ROUTING 829159 Enables the flexibility to route input signals to various outputs.
    Option Cards for Signal I/O Processing (includes hardware)
    OPT-DANTE 829171/-1 This AoIP option card enables monitoring of up to 64 ch of DanteTM. Choice of either two stereo unbalanced Analog inputs or TOSLINK optical input.
    OPT-RAVENNA 64 829172/-1 This AoIP option card enables monitoring of up to 64 ch of RaevennaTM / AES67 input, Choice of either two stereo unbalanced Analog inputs or TOSLINK optical input.
    OPT-ANLG/TOS 829170 Enable monitoring of 8 analog channels on DB-25. Hardware card with software activation key. Includes Optical TOSLINK input.
    OPT-SFP 829179 Adds two additional 3G inputs to 3G products, or two 12G inputs to 12G products.
    Small form-factor pluggable (SFP) Options
    SFP-2110 w/Ember+ (or NMOS) 829086/-1 Receiver, Multi-Mode 850 NM, LC (fiber) Connectors. Use 829086-1 for NMOS variant.
    SFP-2022-6 829088 Receiver, LC (fiber) Connectors
    SFP-2110 w/Ember+ (or NMOS) + 2022-6 829087/-1 Receiver, Multi-Mode 850 NM, LC (fiber) Connectors. Use 829087-1 for NMOS variant.
    SFP-SDI 829089 3G/HD/SD-SDI single video receiver with active loopback. HD-BNC Connectors. Only purchase if 3rd SDI I/P is required.
    SFP-SDI-Fiber 829084 SDI single mode Optical LC (fiber) video receiver. Up to 12G-SDI capable depending on base unit
    SFP-MADI-Fiber (MM or SM) 829081/2 MADI optical fiber transceiver; Multimode or Singlemode, LC (fiber) Connectors. Use 829081 for Multimode (MM). Use 829082 for Singlemode (SM).

    Specifications

    Dimensions (W x H x D) 1RU in standard 19” rack: 19” x 1.75” x 5.5” (483 mm x 45 mm x 140 mm). Shipping dims: 23”x 6”x 12”
    Shipping Weight / Net Weight 8.0 lbs. (3.6 kg) / 5.5 lbs. (2.5 kg)
    Power Consumption / Supply 65W, 100 to 240 VAC ± 10%, 50-60 Hz, CE & UL approved
    Display Type / Resolution 7” (178 mm) LCD Capacitive Touchscreen; 1242H x 280V
    Viewing Angle 160° (H) x 160° (V)
    Audio Channels 16 Max
    Hum and Noise Better than -68 dB below full output
    Peak Acoustic Output 90 dB SPL @ 2 feet
    Speaker Power Output 5W RMS per side, 12W Peak
    Upgrades Via USB or GUI web interface
    APIs Provide easy integration with 3rd party control systems
