SKU: 8006-0320


Fully featured, slim and cost effective 32.5” free standing 8K video monitor with on-screen audio level meters, quad split, waveform, and histogram.
Data Sheet

Data Sheet



Ask a Question

Ask a Question



Request a Quote

fields marked with an * are required


    First Name*

    Last Name*



    Company Name*

    Select Country*

    Please indicate the signals you need
    to decode or monitor


    Any additional processing needs?
    Wohler offers additional processing options.
    Please check any/all that you want quoted.

    Dolby D/DD+/EDolby ATMOSOutput Routing

    Please describe your project

    please provide project informaion to help us give you the best quote.
    Quantities and # of channels to monitor is especially useful.

    Budget Status

    Date Product is required

    Number of units required


    The vMON Series is a full-featured range of slim, free standing video monitors ideal for mobile trucks, news and transmission control rooms, production/post-production and video surveillance applications. These monitors come standard with in-monitor level metering, selectable video vectorscope/histogram, safe area and aspect ratio markers, IMD labeling, tally, and built-in color bars, as well as a variety of picture controls and productive video features such as zoom controls and focus assist.

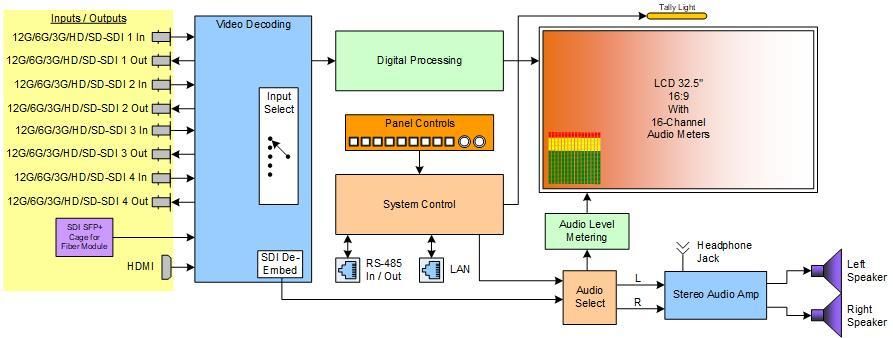

    The vMON-320-8K is a 32.5” 8K HDR monitor with 4x12G/6G/3G/HD/SD-SDI inputs and outputs and an integral HDMI 2.0 interface. It supports up to 8192×4320 60P signals. 3D LUT color calibration with a Klein K10 probe provides an excellent picture quality. The vMON-320-8K is suggested for high-end 8K, 4K and FHD outside shooting, production, studio and OB van applications.

    All standard frame rates and resolutions are supported from 12G-SDI and HDMI input sources, and each 12G-SDI input has a looping output. Up to 16 audio channels may be selected for visual monitoring using on-screen bar graph style level meters. Monitoring speakers on the front panel allow the selected screen to be audibly monitored, while a 3.5mm headphone jack provides optional private monitoring.

    The vMON-320-8K contains a vast array of Features and Benefits as listed in the table on the following page.

    Additional information

    By Signal Input

    12G-SDI/4K, 3G-SDI, HDMI

    Features and Benefits

    – 3840 x 2160 4K resolution

    – Supports 8K SDI signals at 8192 x 4320 resolution

    – 12 Bit Video Processing, no image delay

    – 4K 12G-SDI single link signal, 4K/8K Quad link 2 Sample Interleave (2SI), Square Division (SQD)

    – 1 x SDI SFP+ module optical input cage, 1 x HDMI 2.0 input

    – Free Quad-View (border control/window adjustment), 4 x SDI/HDMI mixed inputs & frequency rates

    – 16 ch Embedded Audio Level Meters

    – 4K HDR Waveform, Vector Scope, Marker/Box Control Function

    – Picture Flip, Focus Assist, False Color, Zebra

    – Full Scan, Over Scan, Blue/Mono Only

    – Key Lock, Video Freeze

    – SDR and HDR comparison, Darkness Check

    – Color Space & EOTF Curves Auto Sensing, matching(REC709/REC2020)

    – Color Space (REC709/EBU/DCI-P3 D65/DCI-P3/REC2020/Bypass)

    – HDR: PQ (ST2084), HLG (1.0, 1.1, 1.2, 1.3, 1.4, 1.5)

    – Sony Camera Log Curves: Slog, Slog2, Slog3

    – Canon Camera Log Curves: Clog, Clog2, Clog3

    – ARRI Camera Log Curves: LogC

    – Panasonic Camera Log Curves: Vlog, Vlog (softroll)

    – Gamma (2.0, 2.2, 2.4, 2.6), HDR Area Display

    – 3D LUT Color calibration with ColourSpace & CalMAN

    – 3rd party 3D LUT files import (USER1/USER2)

    – Eight Selectable Scene Settings

    – Dynamic and Static UMD/IMD Display (TSL3.1/4.0/5.0)

    – 608/708 CC Closed Caption

    – Firmware upgrade/LUT file import via USB/Ethernet

    – GPI (selectable/markable windows)

    – Built-in Speakers

    A-V Specs

    Meter Dynamics 2-16 channels for each display window (source dependent)
    Number of screens 1
    Color Depth 1.07 billion
    Diagonal Display Size 32.5″ Diagonal (719.5 mm H x 404.7 mm V)
    Display Resolution (HxV) 3840 H x 2160 V
    Contrast 2000:1
    Luminance 400 cd/m2
    Meter Dynamics 2-16 channels for each display window (source dependent)

    Physical Specs

    Power Consumption 70 Watts
    Power Supply 100 – 240 VAC or 12 VDC
    Dimension Width 29.5″ (750 mm)
    Dimension Height 19.6″ (498 mm)
    Dimension Depth 6.3″ (160 mm)
    Net Weight 36 lbs (17 kg)
    Shipping Weight 36 lbs (17 kg)
    Shipping Dimensions 40 × 29 × 17 in (LxWxH)
