    Wohler Technologies is upgrading its IP Ready iVAM Series of products with a new ST2110 Video and multi-channel audio monitor.  The unit accepts single mode as well as multimode SFP’s for ST2110 over a pair of 10G SFP slots and provides the ability to apply in-band NMOS (via SFP’s) and Out Of Band NMOS control via a separate RJ45 network interface. It includes optional HDMI In and HDMI out and GPIO. Option cards for hitless AoIP monitoring for Dante and Ravenna are available.

    Flexible Adaptable Future Proof

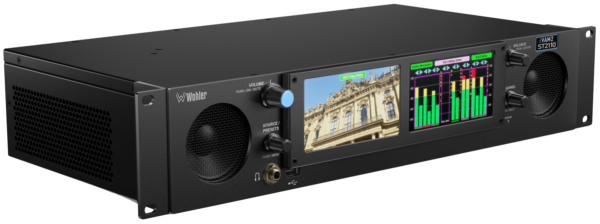

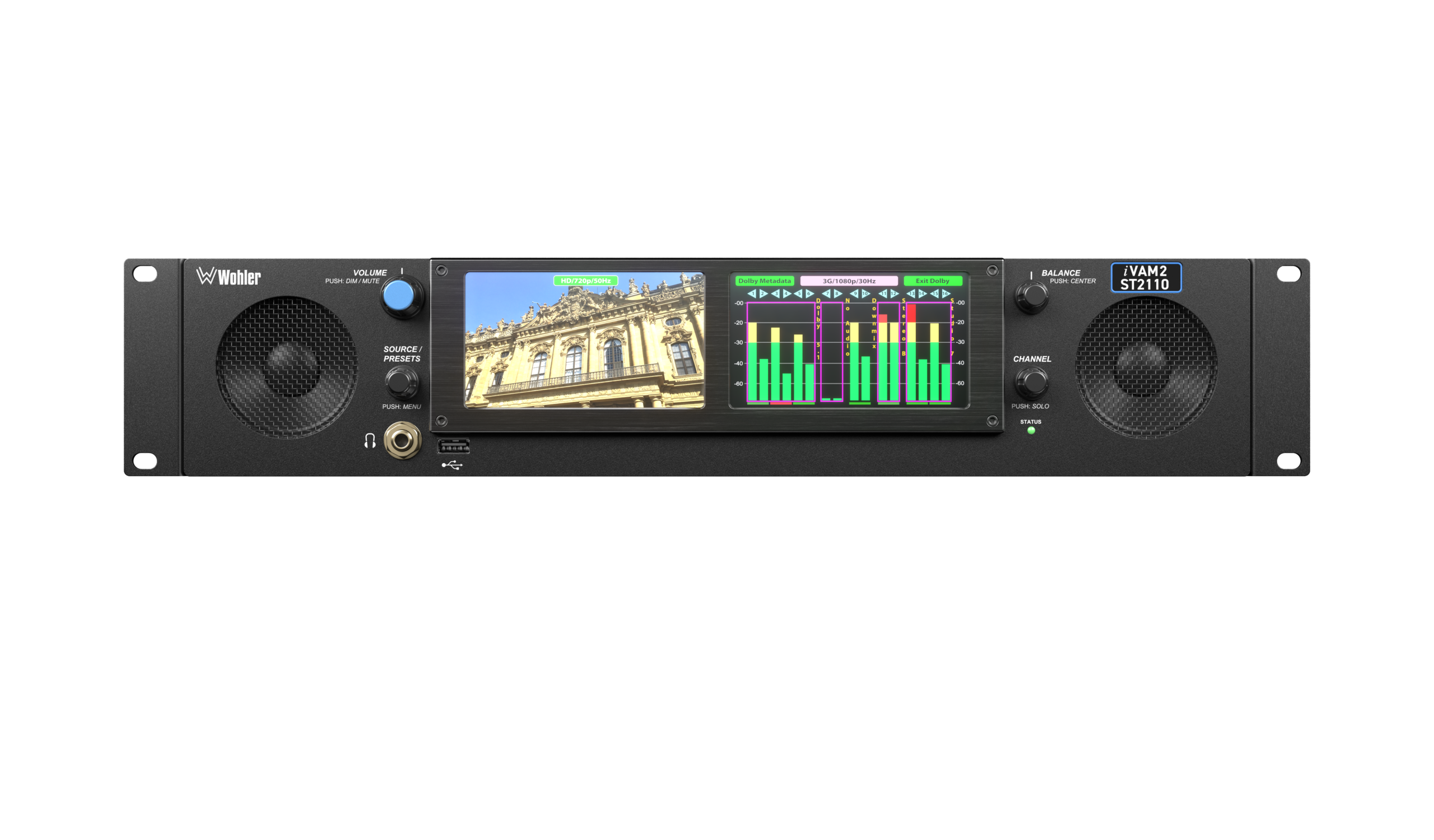

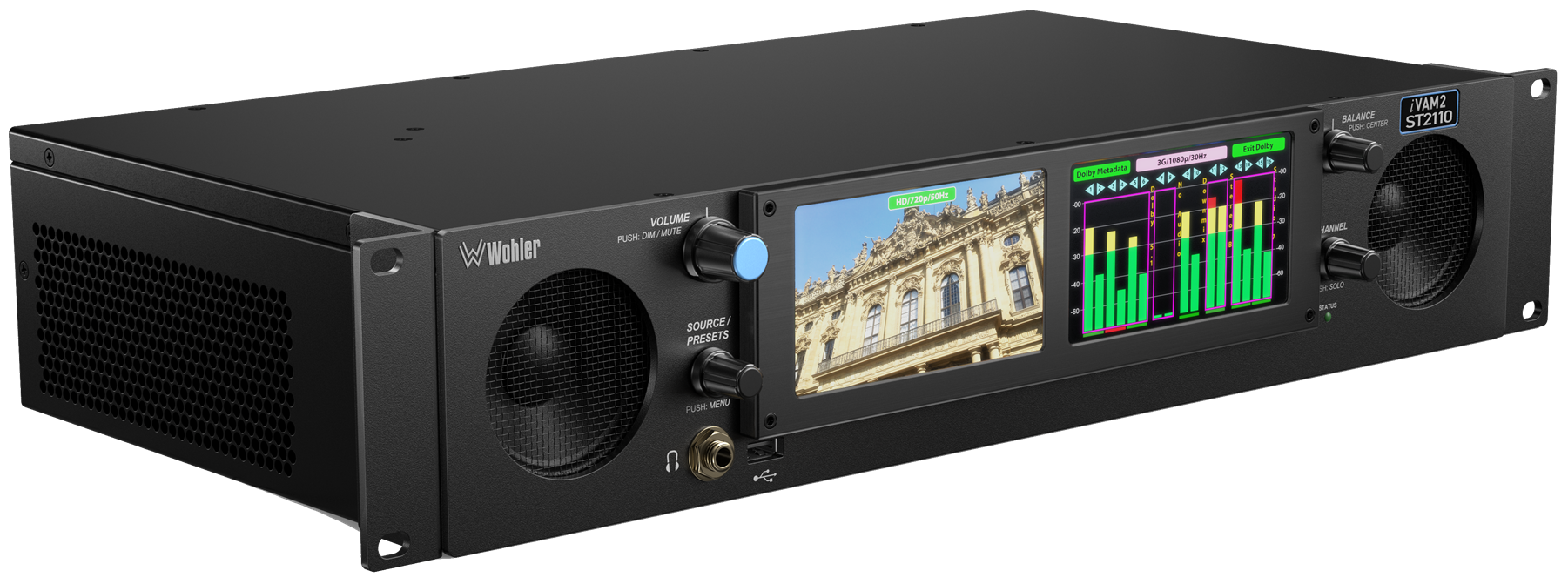

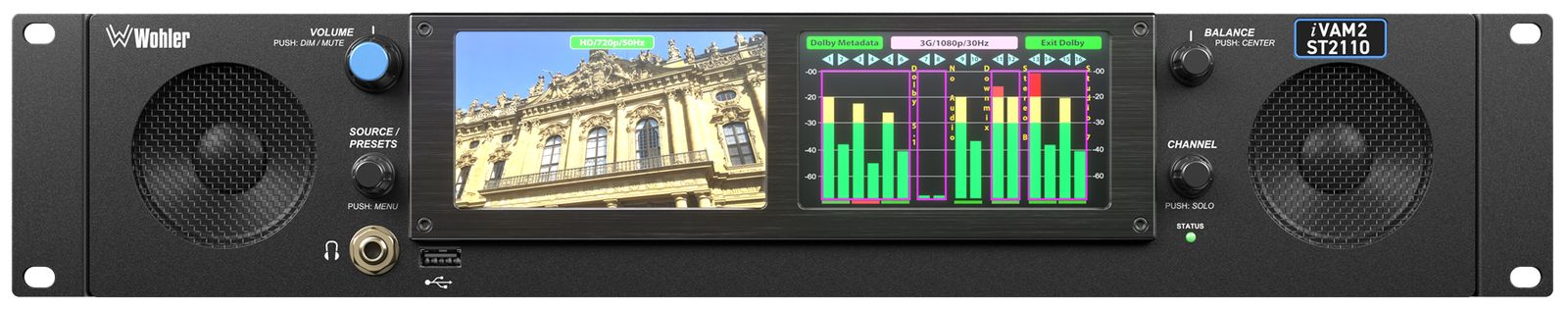

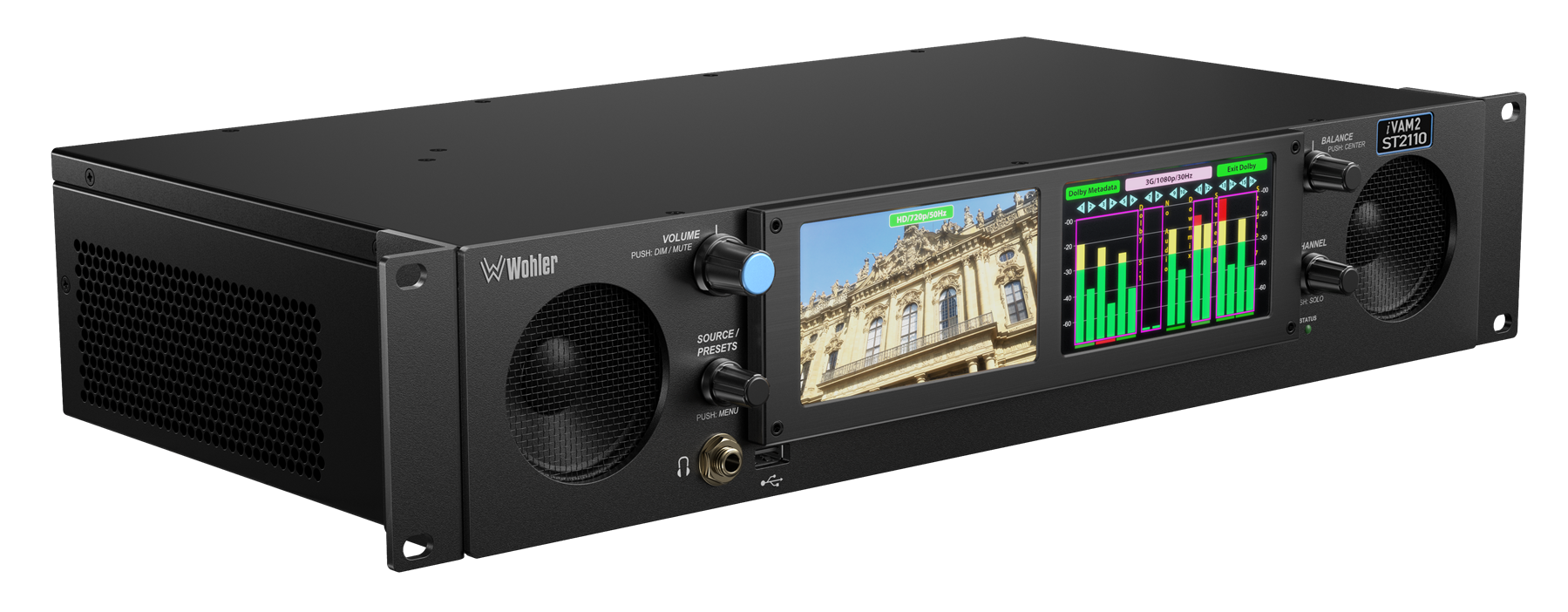

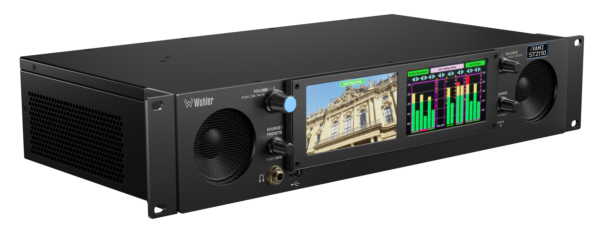

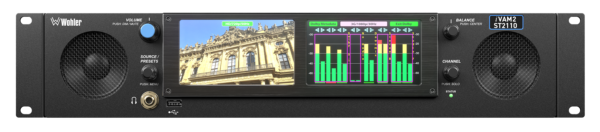

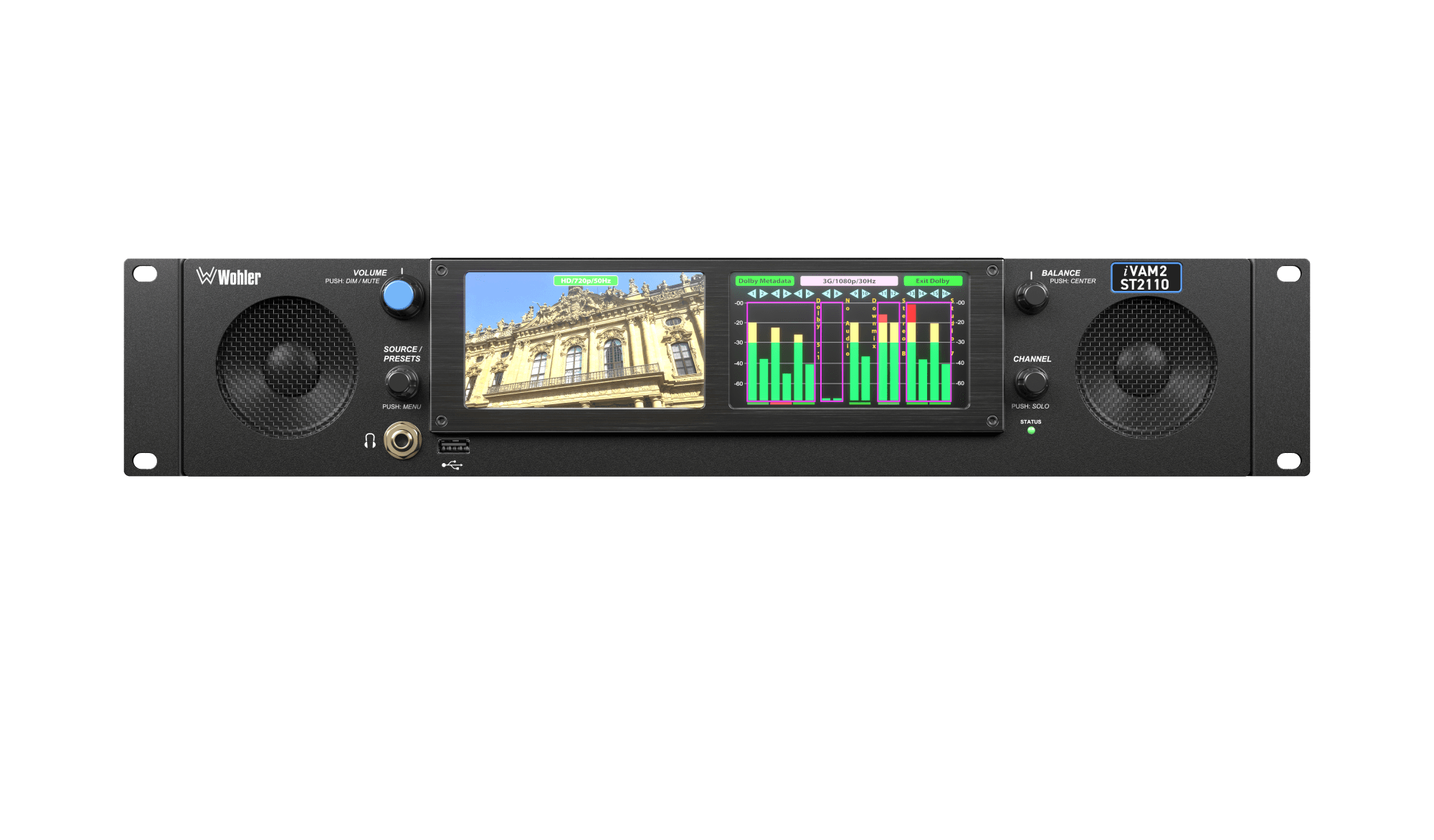

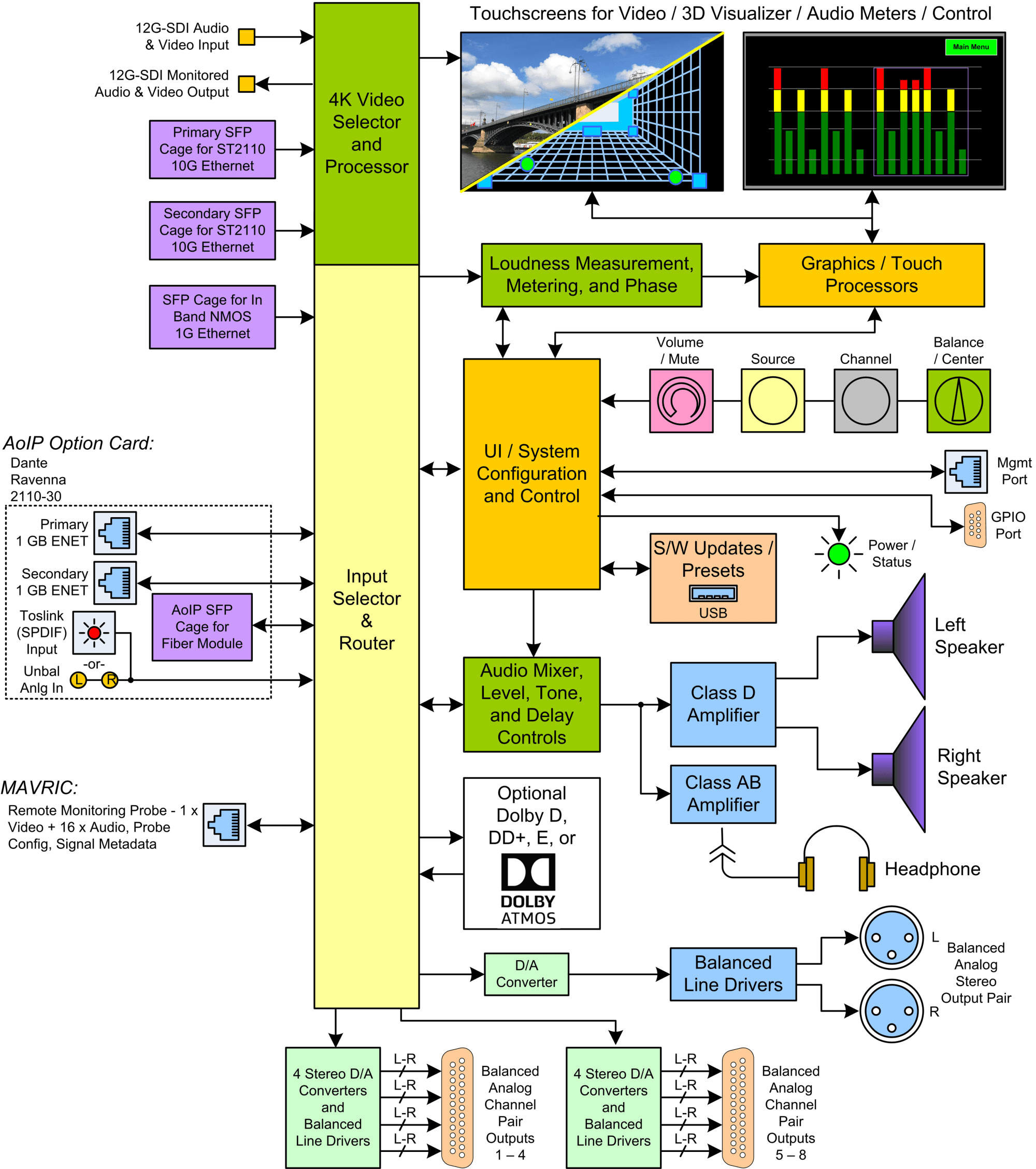

    iVAM2-ST2110 is designed to be easy to operate, yet powerful enough to provide high quality, accessible and easy to use monitoring of hitless ST 2110 and HDMI within a compact form factor.  In-band as well as Out Of Band NMOS controls to manage stream connections is provided via separate RJ45 IP interface. Touch screen & front panel controls duplicate previous mature design philosophies of shipping iAM units. At 2U, with enhanced speakers, the iVAM2-ST2110 also provides the powerful sound output and audio reproduction that Wohler is well known for.

    Network Capable with Remote access options:

    A front mounting USB port is available for simple software updates. All iAM Series monitors contain an onboard web server. Multiple units on the same network can be updated, monitored, and controlled via a web-based user interface.

    Features & Benefits

    • Hitless ST2110 video and audio monitoring along with SDI OUT, coupled with HDMI IN and HDMI Out and GPIO
    • In-band NMOS via SFP’s and Out Of Band NMOS via separately provided RJ45 network interface.

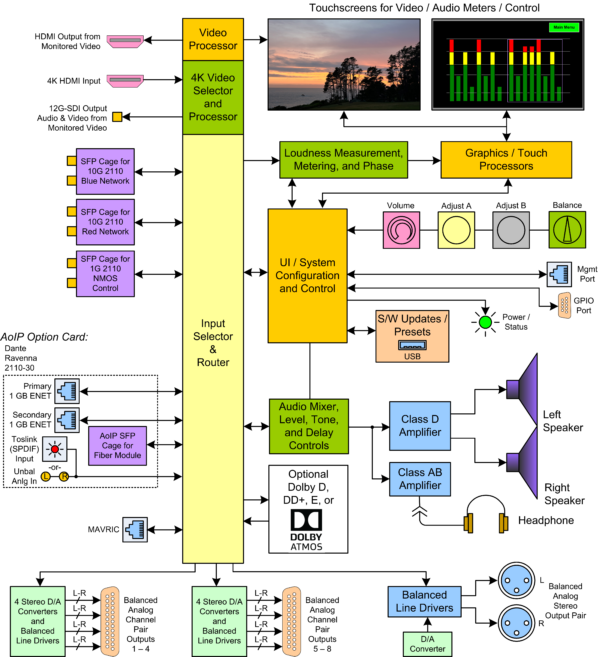

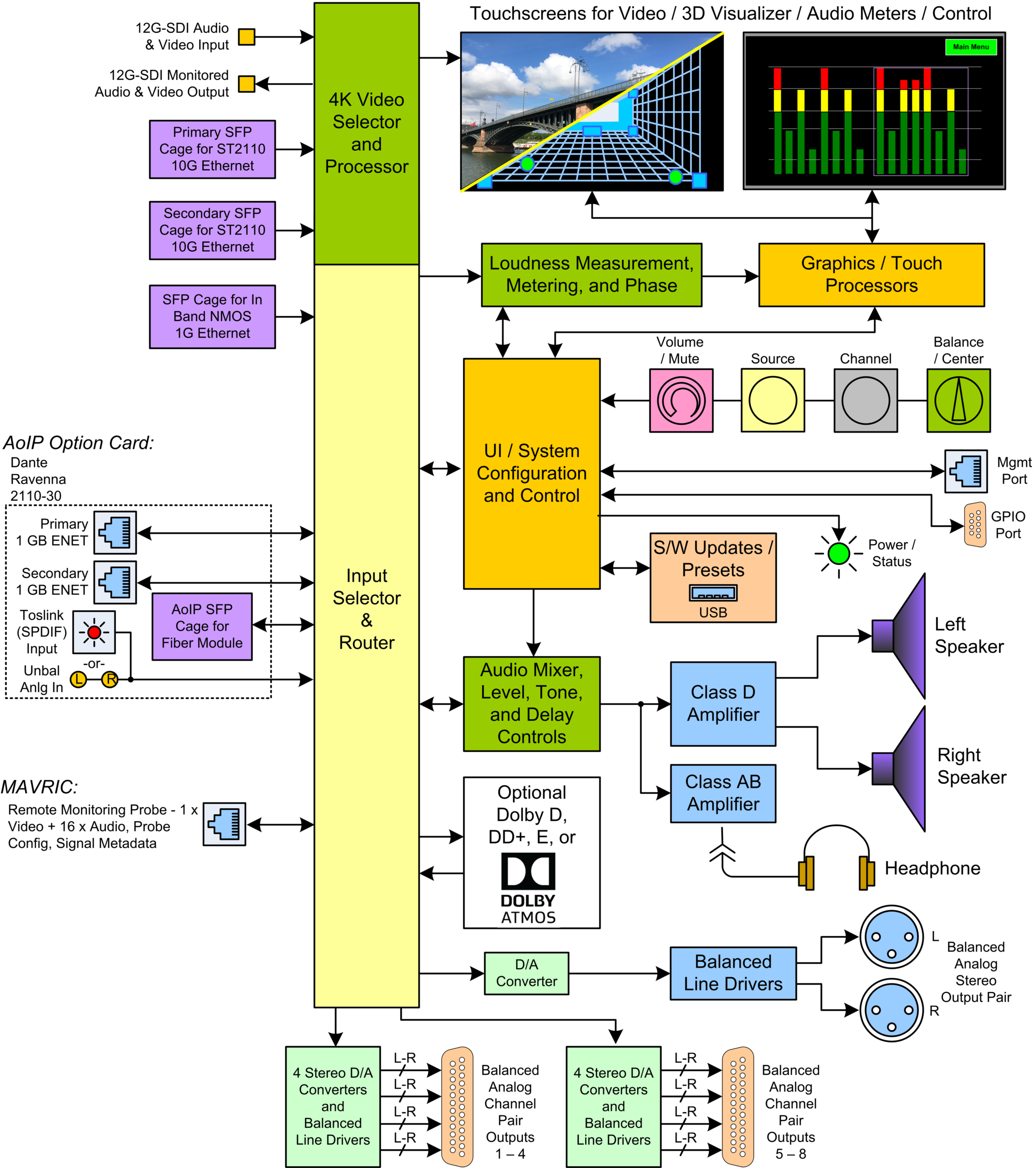

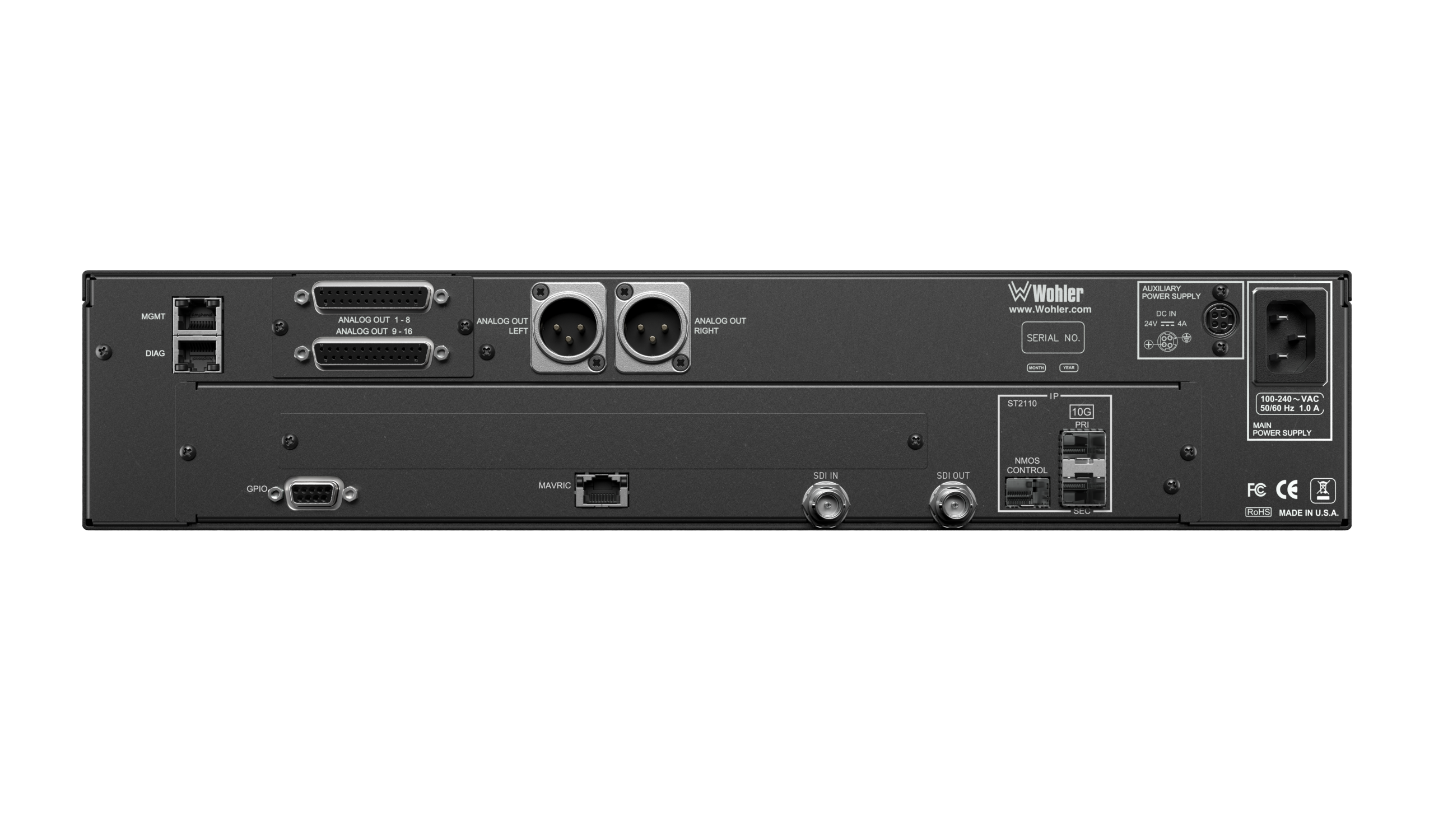

    • Standard I/O: 2 x 10G SFP inputs to monitor hitless ST2110, SDI Out signals
    • Optional I/O: options include HDMI IN/OUT, GPIO
    • Option Card: To enable Analog, Dante & Ravenna
    • Redundant Power supply for failsafe operation
    • Measure Audio Loudness using ITU-R BS. 1770 or EBU R128 standards – included
    • Video monitoring and audio monitoring of up to 16 channels of audio from multiple sources
    • Built-in speakers, headphone jack, USB and Ethernet ports with APIs for remote management
    • Store and retrieve presets via USB or remote web interface
    • Software upgradeable via USB or network, upgrade multiple units at once

    Upgrade Options

    Option Cards for Signal I/O and/or Processing (includes hardware)
    OPT-DOLBY 829167 Enable monitoring of Dolby D, DD+ or E streams over 2110.  Software activation key
    OPT-DOLBY-ATMOS 829163 Enables monitoring of Dolby Atmos®, D, DD+ or E and ED2 streams over 2110. Software activation key
    OPT-GPIO 829198 Enables 4*GPI and 2*GPO’s. Sofware activation key
    OPT-ANALOG 829170-1 Enables 16 channels of analog output from selected source or mix. Software activation key

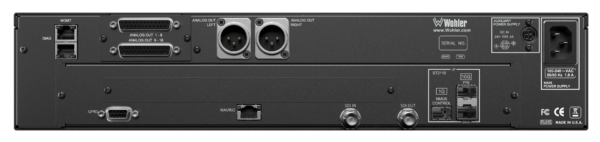

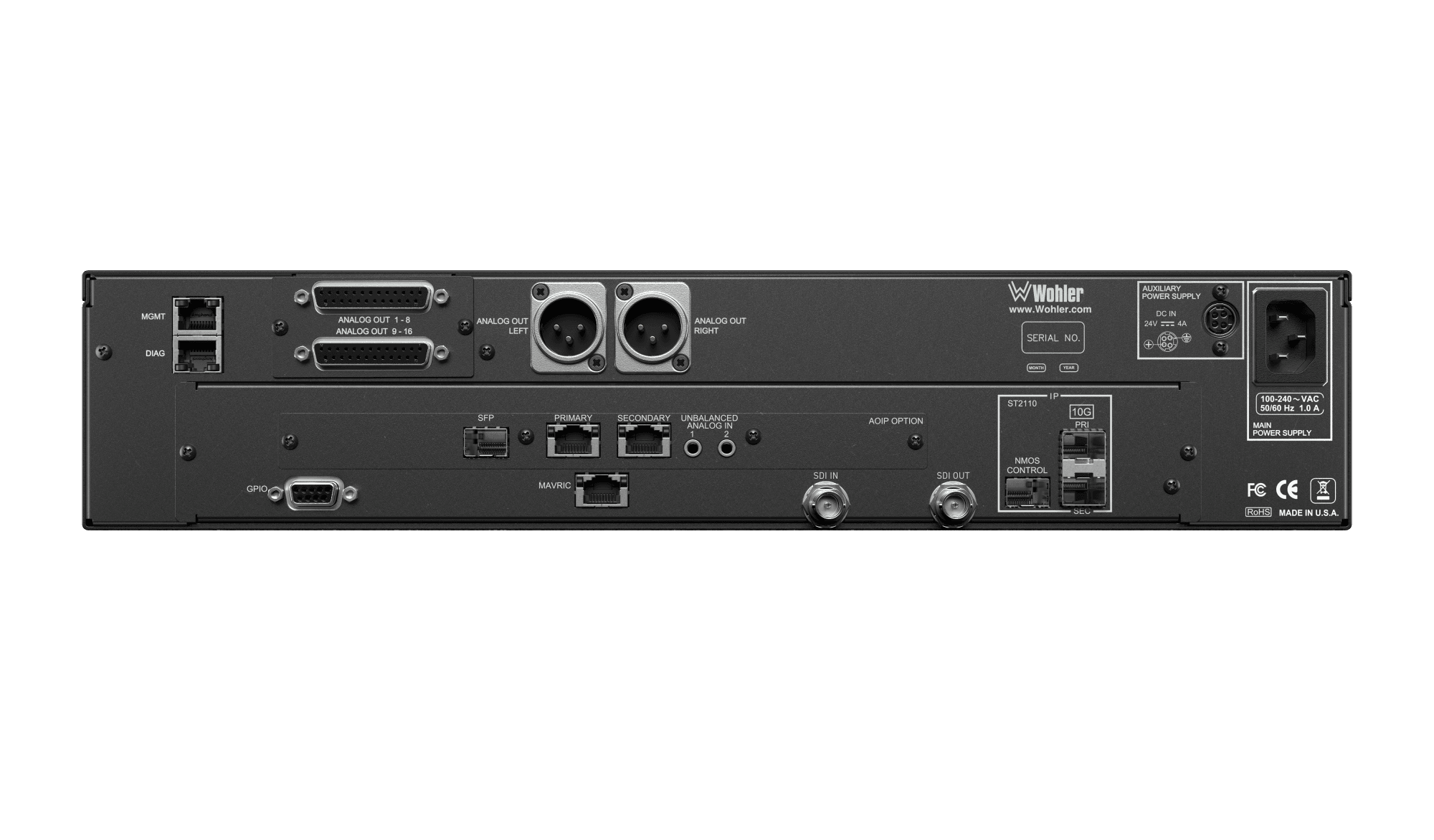

    OPT-DANTE 829171-2 or 829171-3 Enable monitoring from up to 64ch DanteTM input streams, including primary and secondary RJ-45 for hitless/2022-7 support (for Dante and 2110-30 signals) and a Gigabit SFP cage allowing multi-mode and single-mode network SFP’s for AoIP signals.  Order 829171-2 for Optical TOSLINK Input or 829171-3 for 2 x unbalanced Analog Inputs.
    OPT-RAVENNA 64 829172-5 or 829172-6 Enable monitoring from up to 64ch RavennaTM input streams, including primary and secondary RJ-45 for hitless/2022-7 support (for Ravenna and 2110-30 signals) and a Gigabit SFP cage allowing multi-mode and single-mode network SFP’s for AoIP signals.  Order 829172-5 for Optical TOSLINK Input or 829172-6 for 2 x unbalanced Analog Inputs.

    Specifications

    Dimensions (W x H x D) 2RU in standard 19” rack: 19” x 3.5” x 9.5” (483 mm x 89 mm x 242 mm). Shipping dims: 24”x 17”x 8”
    Shipping Weight / Net Weight 16.0 lbs. (7.3 kg) / 11.0 lbs. (5.0 kg)
    Power Consumption / Supply 40W Typical, 18VDC, 100 to 240 VAC ± 10%, 50-60 Hz, CE & UL approved
    Display Type / Resolution 2 x 4.3” (109 mm) LCD Capacitive Touchscreen; 480H x 272V
    Viewing Angle 160° (H) x 160° (V)
    Audio Channels 16 Max
    Hum and Noise Better than -75 dB below full output
    Peak Acoustic Output 104 dB SPL @ 2 feet
    Speaker Power Output 15W RMS per side, 30W Peak
    Upgrades Via USB or GUI web interface. Upgrading multiple units available via web interface.
    Presets Programmable/nameable.Can be copied from unit to unit via USB or GUI software / Ethernet
    APIs Get Available Presets; Get Preset Information; Get Active Preset; Set Mute/Unmute Clusters; Set Solo Cluster; Set Solo Channel; Set Source Select
