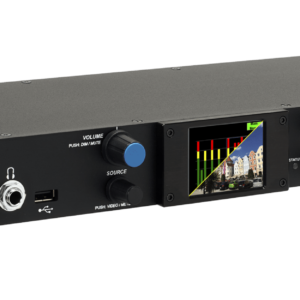

iVAM1-3

3G SDI, AES3 & Analog Video/Audio LCD Monitor with Optional Signal Upgrades for ST-2110, ST-2022, & MADI & AES3. 1RU. Touch-capable. Video, meters & loudness measurement.

Datasheet

Manual

Ask a Question

Contact Support

Software Update

Request a Quote

fields marked with an * are required

iVAM1-3

    First Name*

    Last Name*

    Email*

    Phone*

    Company Name*

    Select Country*

    Signal
    Please indicate the signals you need
    to decode or monitor

    3G-SDI12G-SDI/4K12G-SDI/4KST-2110ST-2022Ravenna/AES67Dante/AES67AnalogAES3MADIToslinkCVBS

    Any additional processing needs?
    Wohler offers additional processing options.
    Please check any/all that you want quoted.

    Dolby D/DD+/EDolby ATMOSOutput Routing

    Please describe your project

    please provide project informaion to help us give you the best quote.
    Quantities and # of channels to monitor is especially useful.

    Budget Status

    Date Product is required

    Number of units required

    Description

    An LCD Monitor that provides Value for Money!

    The all new iVAM1-3 represents a well featured, easy to use, competitively priced 16 channel video and audio monitor which comes standard with 3G-SDI and Analog inputs and includes Loudness measurement and phase status.  License other signal formats and processing options, including AoIP, Toslink and 8 channel Analog, as and when needed, either initially or after purchase.

    Flexible. Adaptable. Future Proof.

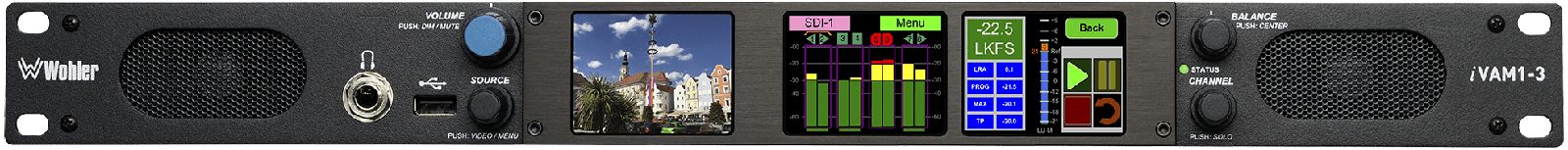

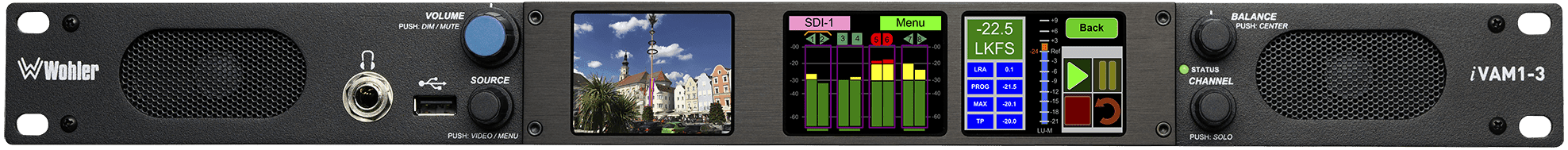

    iVAM1-3 is designed to be easy to operate, providing access to both video and meters, as well as loudness and other data.  The unit comes standard with Analog and 3G-SDI but has options for additional signals, including ST-2110, ST-2022AES3, Dante, Ravenna & MADI64.  The touch screen front panels make the unit easy to use, easy to operate, and easy to configure for your particular purpose.  Four rotary knobs supplement the touch controls and provide fast and easy access to volume, balance, signal source or presets, and channel selection. A front mounted USB port is provided for software updates to support new and emerging technologies. All iAM Series monitors are built with an onboard web server.

    The iVAM1-3 is the perfect solution for any application that requires a compact 1U unit and superior performance characteristics for the purpose of monitoring an evolving range of professional signals.

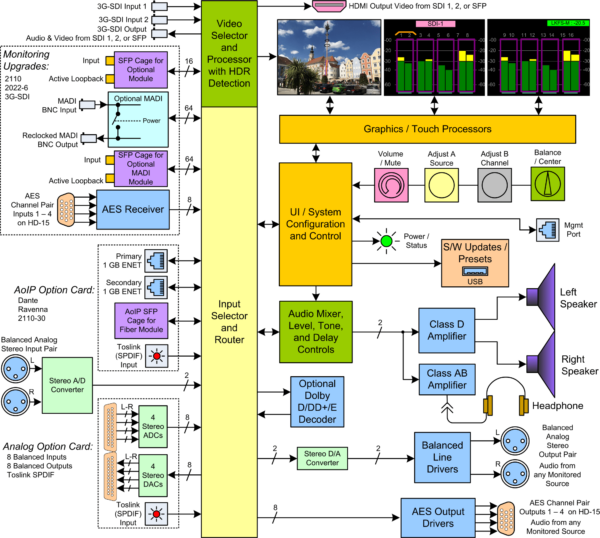

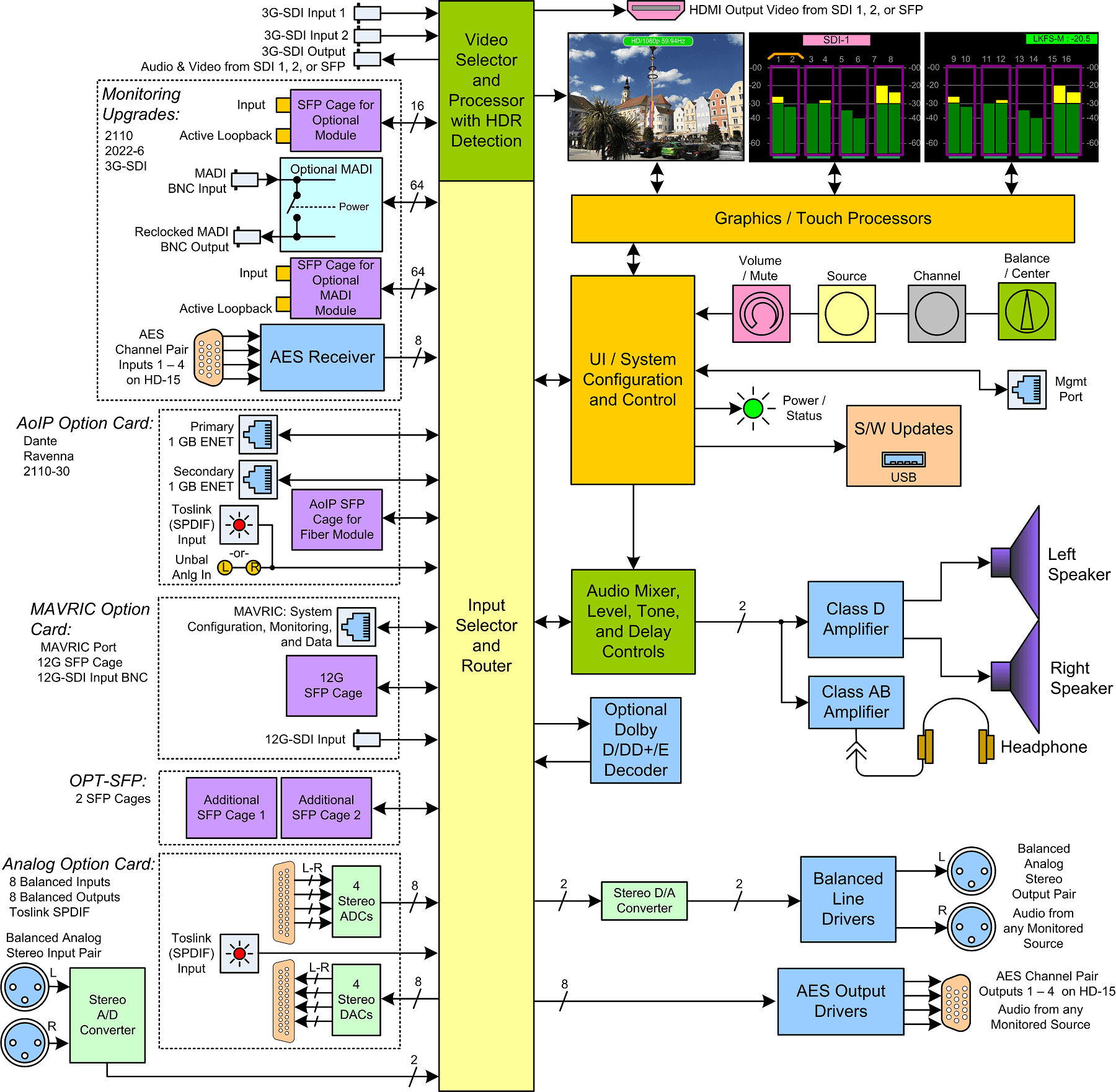

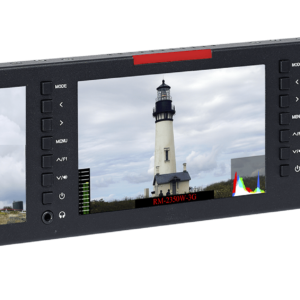

    Want a 2U unit with larger screens and bigger sound?  See our iVAM2-2

    Features & Benefits

    • Video or audio monitoring (up to 16 channels) from multiple sources
    • Up to 64 presets
    • Optional Output Routing enables the flexibility to route input signals to various outputs

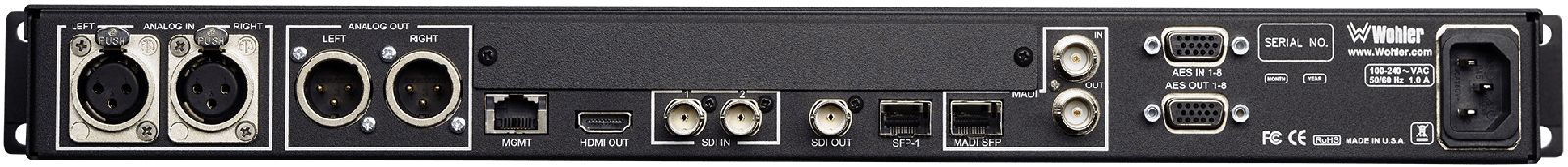

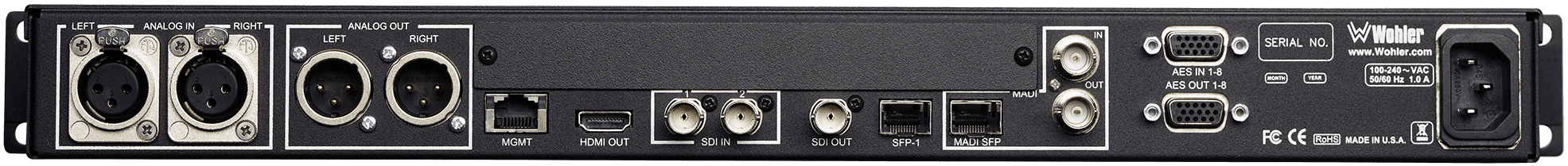

    • 2 x 3G SDI Inputs on BNC; 1 x 3G SDI Output of selected source on BNC
    • Optional I/O for SMPTE 2110 or SMPTE 2022 via SFP, AES3 on HD-15 (incl selected audio source converted to AES3 out), & MADI via BNC (looped out)
    • HDMI Output of the monitored video source is included as standard
    • Measure Audio Loudness using ITU-R BS.1770 or EBU R128 standards
    • Option Cards for AoIP or an additional 8 channels of analog inputs and outputs
    • Software upgrades via USB or network.
    • APIs included for remote control

    Options

    Signal Licensing Options (software only, no hardware)
    OPT-AES 829080 Enables decoding and monitoring of 4 x AES inputs, 1 AES Output
    OPT-MADI 829092 Enables decoding and monitoring of 1 x MADI64 input via BNC
    Processing Options (software only)
    OPT-DOLBY 829174 Enable monitoring of Dolby D, DD+ or E streams. Software activation key. Functions on SDI via BNC, or any of the following OPT/SFP’s: OPT-AES, SFP-SDI-Fiber, SFP-2022-6, SFP-2110, and SFP-2110+2022-6
    OPT-OUTPUT ROUTING 829159 Enables the flexibility to route input signals to various outputs.
    Option Cards for Signal I/O Processing (includes hardware)
    OPT-DANTE 829171/-1 This AoIP option card enables monitoring of up to 64 ch of DanteTM. Choice of either two stereo unbalanced Analog inputs or TOSLINK optical input.
    OPT-RAVENNA 64 829172/-1 This AoIP option card enables monitoring of up to 64 ch of RaevennaTM / AES67 input, Choice of either two stereo unbalanced Analog inputs or TOSLINK optical input.
    OPT-ANLG/TOS 829170 Enable monitoring of 8 analog channels on DB-25. Hardware card with software activation key. Includes Optical TOSLINK input.
    OPT-SFP 829179 Adds two additional 3G inputs to 3G products, or two 12G inputs to 12G products.
    Small form-factor pluggable (SFP) Options
    SFP-2110 w/Ember+ (or NMOS) 829086/-1 Receiver, Multi-Mode 850 NM, LC (fiber) Connectors. Use 829086-1 for NMOS variant.
    SFP-2022-6 829088 Receiver, LC (fiber) Connectors
    SFP-2110 w/Ember+ (or NMOS) + 2022-6 829087/-1 Receiver, Multi-Mode 850 NM, LC (fiber) Connectors. Use 829087-1 for NMOS variant.
    SFP-SDI 829089 3G/HD/SD-SDI single video receiver with active loopback. HD-BNC Connectors. Only purchase if 3rd SDI I/P is required.
    SFP-SDI-Fiber 829084 SDI single mode Optical LC (fiber) video receiver. Up to 12G-SDI capable depending on base unit
    SFP-MADI-Fiber (MM or SM) 829081/2 MADI optical fiber transceiver; Multimode or Singlemode, LC (fiber) Connectors. Use 829081 for Multimode (MM). Use 829082 for Singlemode (SM).

    Specifications

    Dimensions (W x H x D) 1RU in standard 19” rack: 19” x 1.75” x 5.5” (483 mm x 45 mm x 140 mm). Shipping dims: 23”x 6”x 12”
    Shipping Weight / Net Weight 8.0 lbs. (3.6 kg) / 5.5 lbs. (2.5 kg)
    Power Consumption / Supply 65W, 100 to 240 VAC ± 10%, 50-60 Hz, CE & UL approved
    Display Type / Resolution 3 x 2.4” (60 mm) LCD Capacitive Touchscreen; 320H x 240V
    Viewing Angle 160° (H) x 160° (V)
    Audio Channels 16 Max
    Hum and Noise Better than -68 dB below full output
    Peak Acoustic Output 90 dB SPL @ 2 feet
    Speaker Power Output 5W RMS per side, 12W Peak
    Upgrades Via USB or GUI web interface
    APIs Provide easy integration with 3rd party control systems
