SKU: 8114-0380

iVAM2-CMD

New
HDMI 2.0 Multi-Channel Audio/Video monitor with 12G SDI
Data Sheet

Data Sheet

Ask a Question

Ask a Question

Support

Support

Request a Quote

fields marked with an * are required

iVAM2-CMD

    First Name*

    Last Name*

    Email*

    Phone*

    Company Name*

    Select Country*

    Signal
    Please indicate the signals you need
    to decode or monitor

    3G-SDI12G-SDI/4K12G-SDI/4KST-2110ST-2022Ravenna/AES67Dante/AES67AnalogAES3MADIToslinkCVBS

    Any additional processing needs?
    Wohler offers additional processing options.
    Please check any/all that you want quoted.

    Dolby D/DD+/EDolby ATMOSOutput Routing

    Please describe your project

    please provide project informaion to help us give you the best quote.
    Quantities and # of channels to monitor is especially useful.

    Budget Status

    Date Product is required

    Number of units required

    Description

    Wohler Technologies is upgrading its IP Ready iVAM Series of products with a new HDMI 2.0 video and multi-channel audio monitor.  The unit includes HDMI 2.0 In and HDMI 2.0 out with 12G SDI IN/OUT and options to add AES, GPIO and a choice of DanteTM or RavennaTM.



    Flexible Adaptable Future Proof

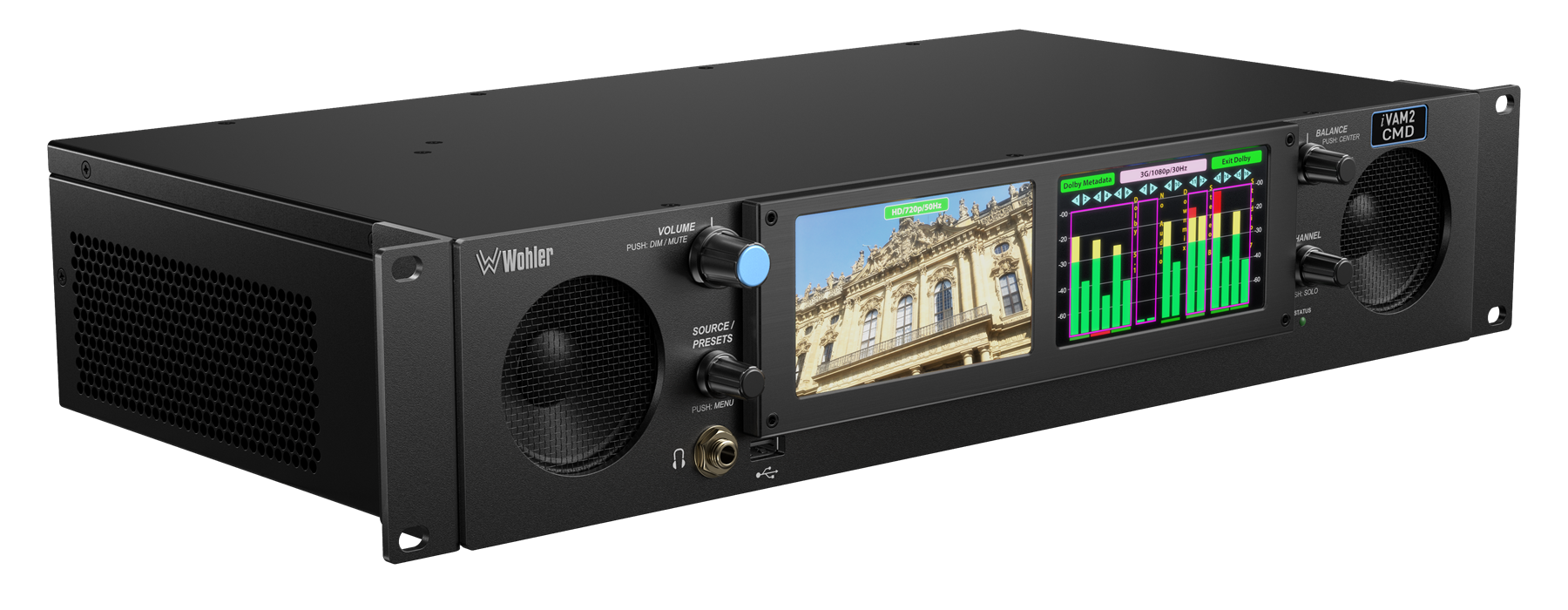

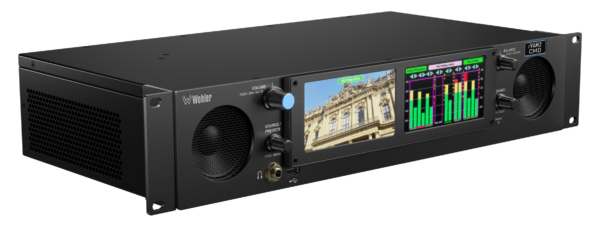

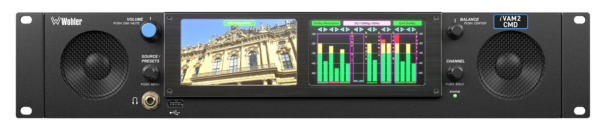

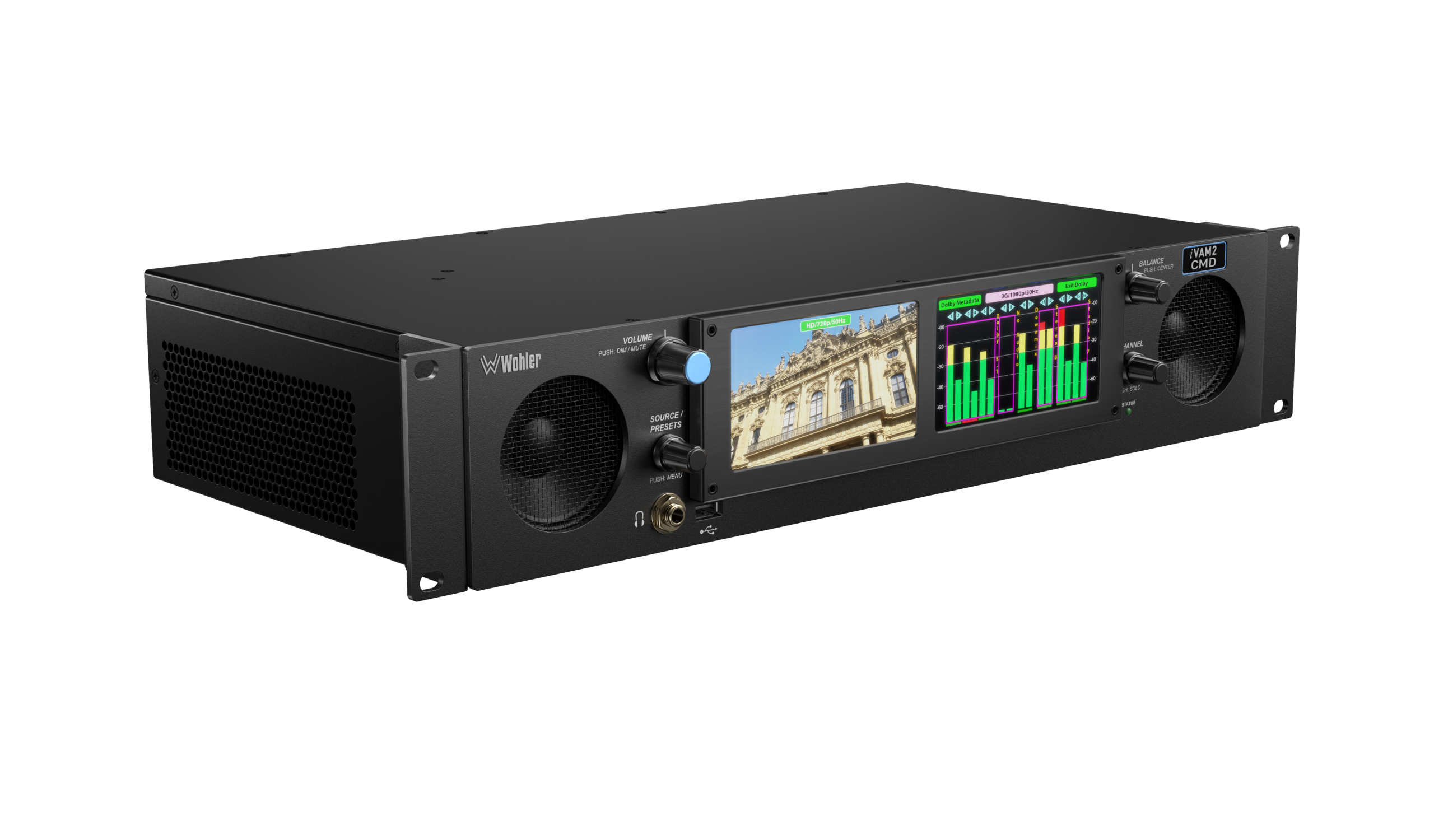

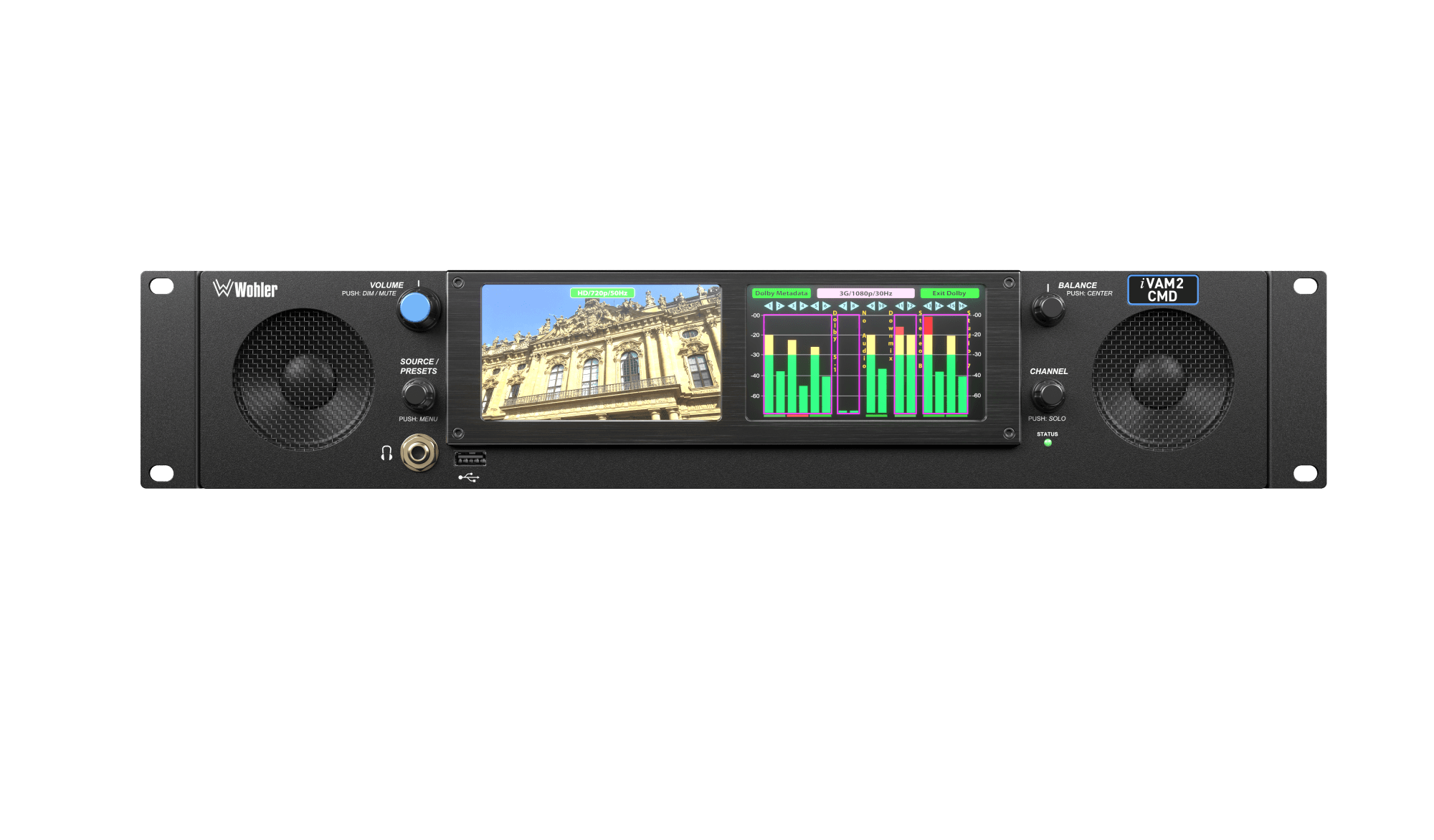

    iVAM2-CMD is designed to be easy to operate, yet powerful enough to provide high quality, accessible and easy to use monitoring of HDMI 2.0 and 12G SDI within a compact form factor. Touch screen & front panel controls duplicate previous mature design philosophies of shipping iAM units. At 2U, with upgraded speakers and sub-woofers, the iVAM2-CMD also provides the powerful sound output and audio reproduction that Wohler is well known for.



    Network Capable with Remote access options:

    A front-mounting USB port is available for simple software updates. All iAM Series monitors contain an onboard web server. Multiple units on the same network can be updated, monitored, and controlled via a web-based user interface.

    Features & Benefits

    Features/Benefits

    • HDMI IN/Out with SDI IN/OUT, coupled with options for AES, GPIO and DanteTM or RavennaTM.

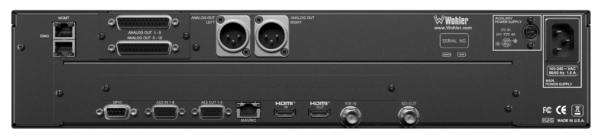

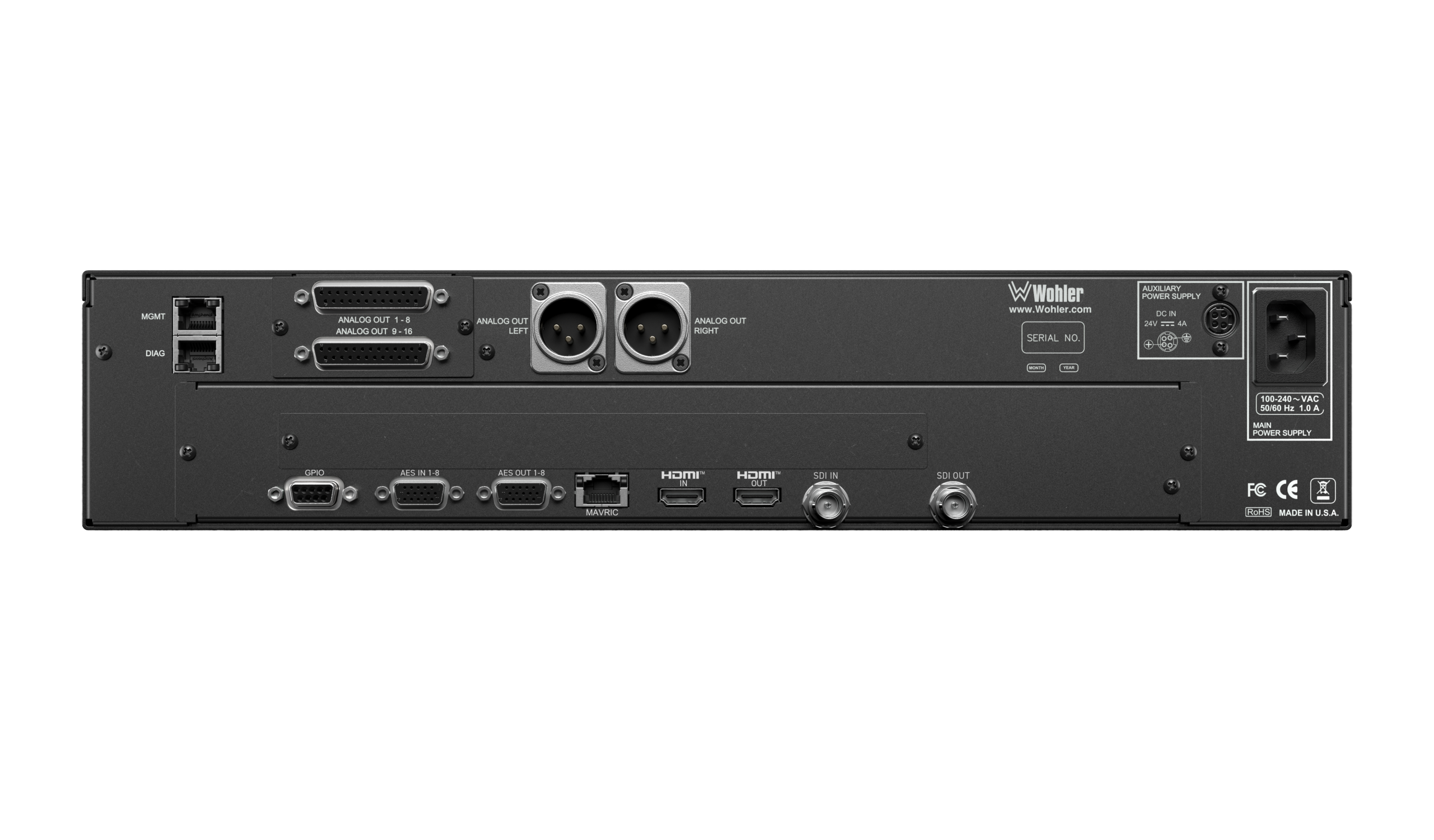

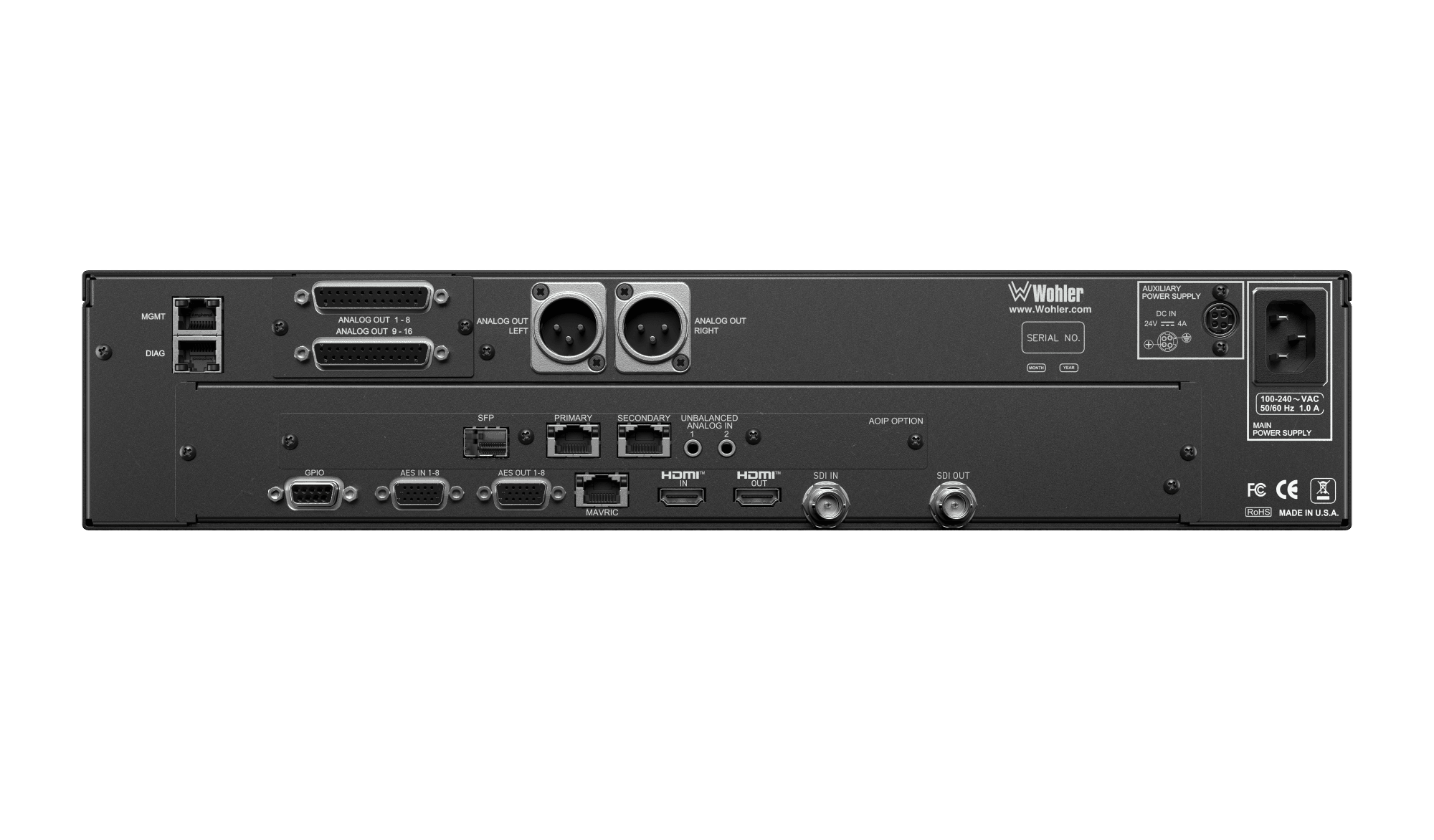

    • Standard I/O: 1 x HDMI 2.0 IN/OUT, 1 x 12G SDI IN, 16x Analog Out, as well 2x Analog Out (Downmix).
    • Optional I/O: options include AES I/O and GPIO
    • Option Card for additional I/O: To enable Analog, MADI via SFP, Dante & Ravenna
    • Measure Audio Loudness using ITU-R BS. 1770 or EBU R128 standards – included
    • Video monitoring and audio monitoring of up to 16 channels of audio from multiple sources
    • Built-in speakers, headphone jack, USB and Ethernet ports with APIs for remote management
    • Store and retrieve presets via USB or remote web interface
    • Software upgradeable via USB or network, upgrade multiple units at once
    • Built-in 8 x Audio + 1 x Video remote monitoring probe. Requires MAVRIC remote monitoring activation.



    Upgrade Options

    Option Cards for Signal I/O and/or Processing (includes hardware)
    OPT-GPIO 829198 Enables 4*GPI and 2*GPO’s. Sofware activation key
    OPT-AES 829168 Enables monitoring of 8 Analog channels on DB-25, monitoring of 1 x MADI64 I/P via BNC., including TOSLINK
    OPT-DANTE 829171-2 or 829171-3 Enable monitoring from up to 64ch DanteTM input streams, including primary and secondary RJ-45 for hitless/2022-7 support (for Dante and 2110-30 signals) and a Gigabit SFP cage allowing multi-mode and single-mode network SFP’s for AoIP signals.  Order 829171-2 for Optical TOSLINK Input or 829171-3 for 2 x unbalanced Analog Inputs.
    OPT-RAVENNA 64 829172-5 or 829172-6 Enable monitoring from up to 64ch RavennaTM input streams, including primary and secondary RJ-45 for hitless/2022-7 support (for Ravenna and 2110-30 signals) and a Gigabit SFP cage allowing multi-mode and single-mode network SFP’s for AoIP signals.  Order 829172-5 for Optical TOSLINK Input or 829172-6 for 2 x unbalanced Analog Inputs.

    Specifications

    Dimensions (W x H x D) 2RU in standard 19” rack: 19” x 3.5” x 9.5” (483 mm x 89 mm x 242 mm). Shipping dims: 24”x 17”x 8”
    Shipping Weight / Net Weight 16.0 lbs. (7.3 kg) / 11.0 lbs. (5.0 kg)
    Power Consumption / Supply 40W Typical, 18VDC, 100 to 240 VAC ± 10%, 50-60 Hz, CE & UL approved
    Display Type / Resolution 2 x 4.3” (109 mm) LCD Capacitive Touchscreen; 480H x 272V
    Viewing Angle 160° (H) x 160° (V)
    Audio Channels 16 Max
    Hum and Noise Better than -75 dB below full output
    Peak Acoustic Output 104 dB SPL @ 2 feet
    Speaker Power Output 15W RMS per side, 30W Peak
    Upgrades Via USB or GUI web interface. Upgrading multiple units available via web interface.
    Presets Programmable/nameable.Can be copied from unit to unit via USB or GUI software / Ethernet
    APIs Get Available Presets; Get Preset Information; Get Active Preset; Set Mute/Unmute Clusters; Set Solo Cluster; Set Solo Channel; Set Source Select
