HDM-215-3G-TT

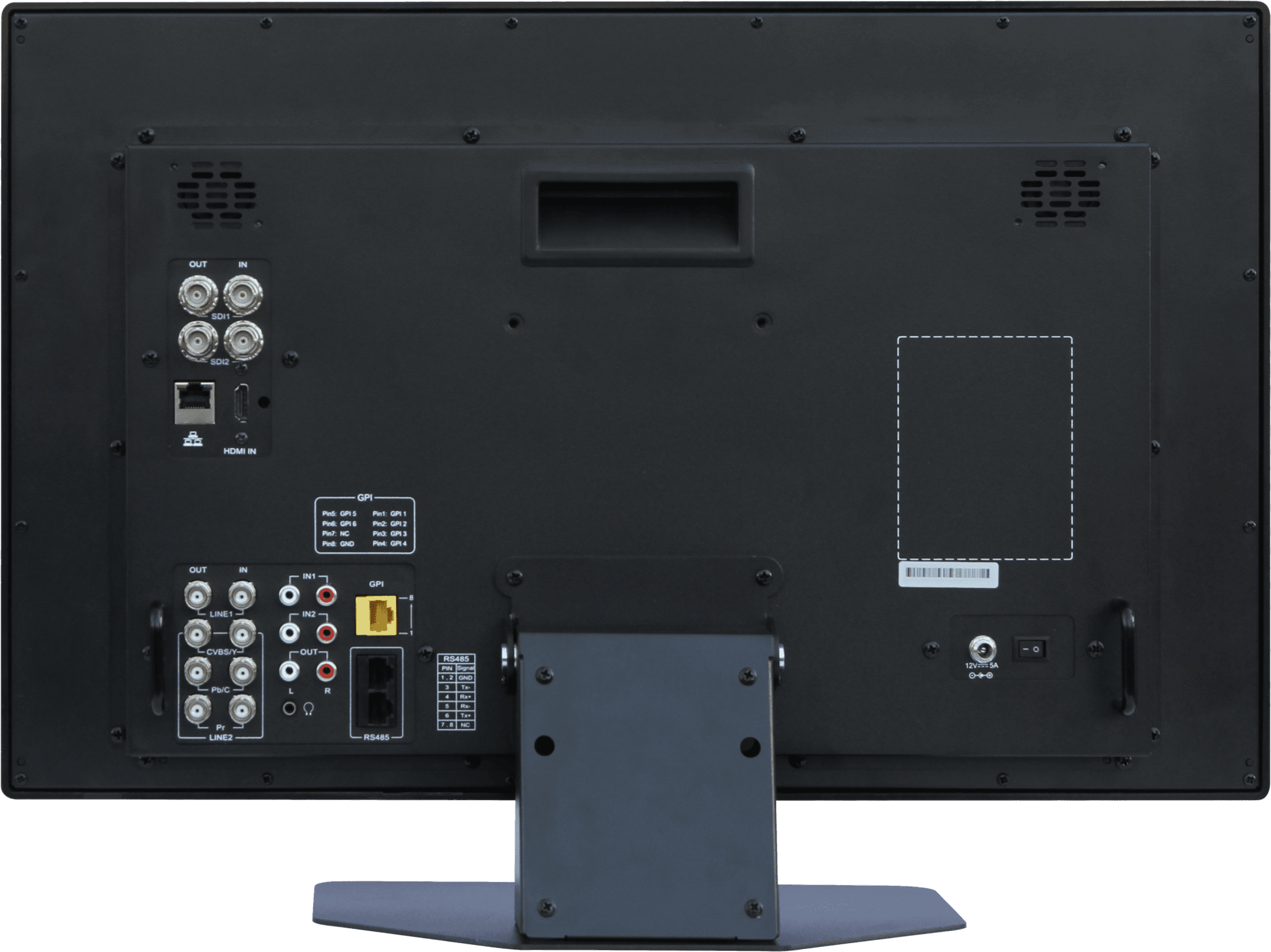

21″ LCD Video Monitor, Dual Input 3G/HD/SD-SDI, Composite, Component, HDMI. Audio/Video Metering. Tabletop Stand.

Datasheet

Manual

Ask a Question

Contact Support

Request a Quote

fields marked with an * are required

HDM-215-3G-TT

    First Name*

    Last Name*

    Email*

    Phone*

    Company Name*

    Select Country*

    Signal
    Please indicate the signals you need
    to decode or monitor

    3G-SDI12G-SDI/4K12G-SDI/4KST-2110ST-2022Ravenna/AES67Dante/AES67AnalogAES3MADIToslinkCVBS

    Any additional processing needs?
    Wohler offers additional processing options.
    Please check any/all that you want quoted.

    Dolby D/DD+/EDolby ATMOSOutput Routing

    Please describe your project

    please provide project informaion to help us give you the best quote.
    Quantities and # of channels to monitor is especially useful.

    Budget Status

    Date Product is required

    Number of units required

    Description

    The HDM Series dual split screen, LED-backlit LCD 10-bit displays are high-performance professional monitors that support advanced 12-bit digital processing technology.  These monitors feature 3D comb filter, de-interlace, accurate scaling engine, GAMMA correction and color temperature adjustment.

    The state-of-the-art HDM Series monitors can be configured as a dual split display, a large screen with one smaller view, or as a single large display screen.  They are ideally suited for use in news and transmission control rooms, program production, channel branding and any environment that requires intensive monitoring.

    The HDM Series accepts up to 2 channels of 3G/HD/SD-SDI, CVBS, Component signals or HDMI input.  Waveform, vectorscope, and audio de-embedding are provided for SDI.  In-picture features also include metering of up to 16 channels, UMD, format display and various markers.

    Features & Benefits

    BENEFITS:

    • Simultaneously monitor two display screens and control each image independently.
    • User-defined hot key functionality for either H/V delay, underscan, on-screen display, and more.
    • On-screen, 16 channel level metering provides audio confidence monitoring.
    • Tally and on-screen labeling provide quick and easy signal identification.
    • CRT-style image controls allow video image enhancement for each screen individually.

    FEATURES:

    • Supports multi-format analog and digital audio signals
    • Allows adjustment of the parameters for each screen
    • Provides high-quality waveform or vector monitoring (for SDI)
    • User-adjustable color temperatures with presets.

    A-V Specs

    Meter Dynamics  VU or PPM or both
    Display Type  LCD
    Number of screens  1
    Color Depth  8 Bit
    Diagonal Display Size  21.5 Inch
    Native Aspect  16:09
    Display Resolution (HxV)  1920 x 1080
    Viewing Angle  178 (H) x 178 (V)
    Contrast  1000:01:00
    Pixel Response  <8 ms
    Luminance  250 cd/m^2



    Physical Specs

    Rack Height  9RU
    Power Consumption  50 Watts
    Power Supply  External 12VDC/5A, CE & UL approved.
    Dimension Width  20.4×12.6×2.7″ (520x320x70mm) — Without Rack Mount
    Dimension Height  15.75″ (402mm)
    Dimension Depth  3.0″ (76mm)
    Net Weight  10.0 lbs (4.6 kgs)
    Shipping Weight  10.0 lbs (4.6 kgs)
    Shipping Dimensions  N/A (LxWxH)
