SKU: 8121-0430

eVAM1-16-12G

New
12G-SDI & Analog Audio Monitoring & Mixer
Data Sheet

Data Sheet

Ask a Question

Ask a Question

Support

Support

Request a Quote

fields marked with an * are required

eVAM1-16-12G

    First Name*

    Last Name*

    Email*

    Phone*

    Company Name*

    Select Country*

    Signal
    Please indicate the signals you need
    to decode or monitor

    3G-SDI12G-SDI/4K12G-SDI/4KST-2110ST-2022Ravenna/AES67Dante/AES67AnalogAES3MADIToslinkCVBS

    Any additional processing needs?
    Wohler offers additional processing options.
    Please check any/all that you want quoted.

    Dolby D/DD+/EDolby ATMOSOutput Routing

    Please describe your project

    please provide project informaion to help us give you the best quote.
    Quantities and # of channels to monitor is especially useful.

    Budget Status

    Date Product is required

    Number of units required

    Description

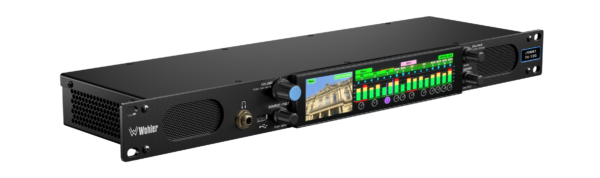

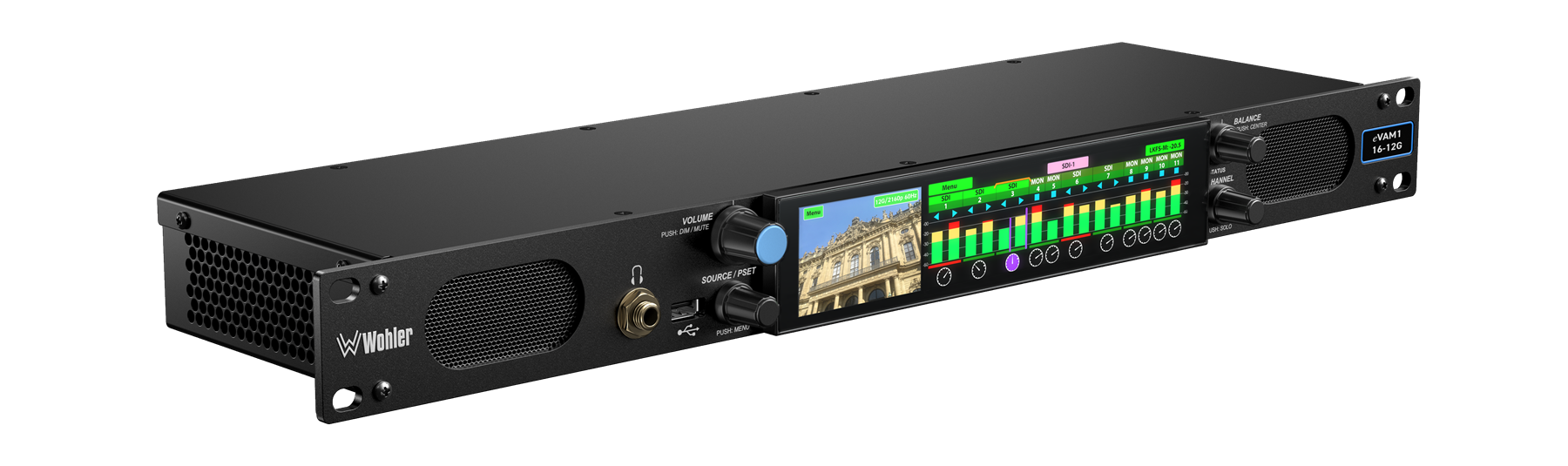

    The eVAM1-16-12G provides convenient LCD touch controls for sum, mute and solo channels for audio and video monitoring operations.  This latest version of our successful eSeries has been upgraded with the capability to monitor 12G SDI signals, and enhanced screen graphics and includes a touch screen. As part of our eSeries product line, it is a well featured and competitively priced audio and video monitor and mixer.

    12G Monitoring on a budget.

    Standard features include 12G-SDI and a pair of Analog outputs. Built in web server for remote configuration. Built in MAVRIC remote monitoring.

    Network Capable with Remote access options:

    The unit includes built-in support for audio-only remote monitoring provided by our MAVRIC software applications suite (Note: activating DD+ will automatically disable MAVRIC remote monitoring).  All eSeries monitors contain an onboard web server. Multiple units on the same network can be updated, monitored, and controlled via a web-based user interface.

    Features & Benefits

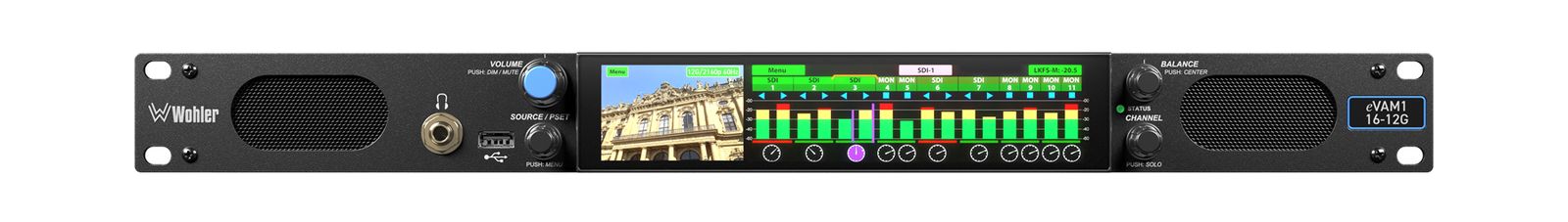

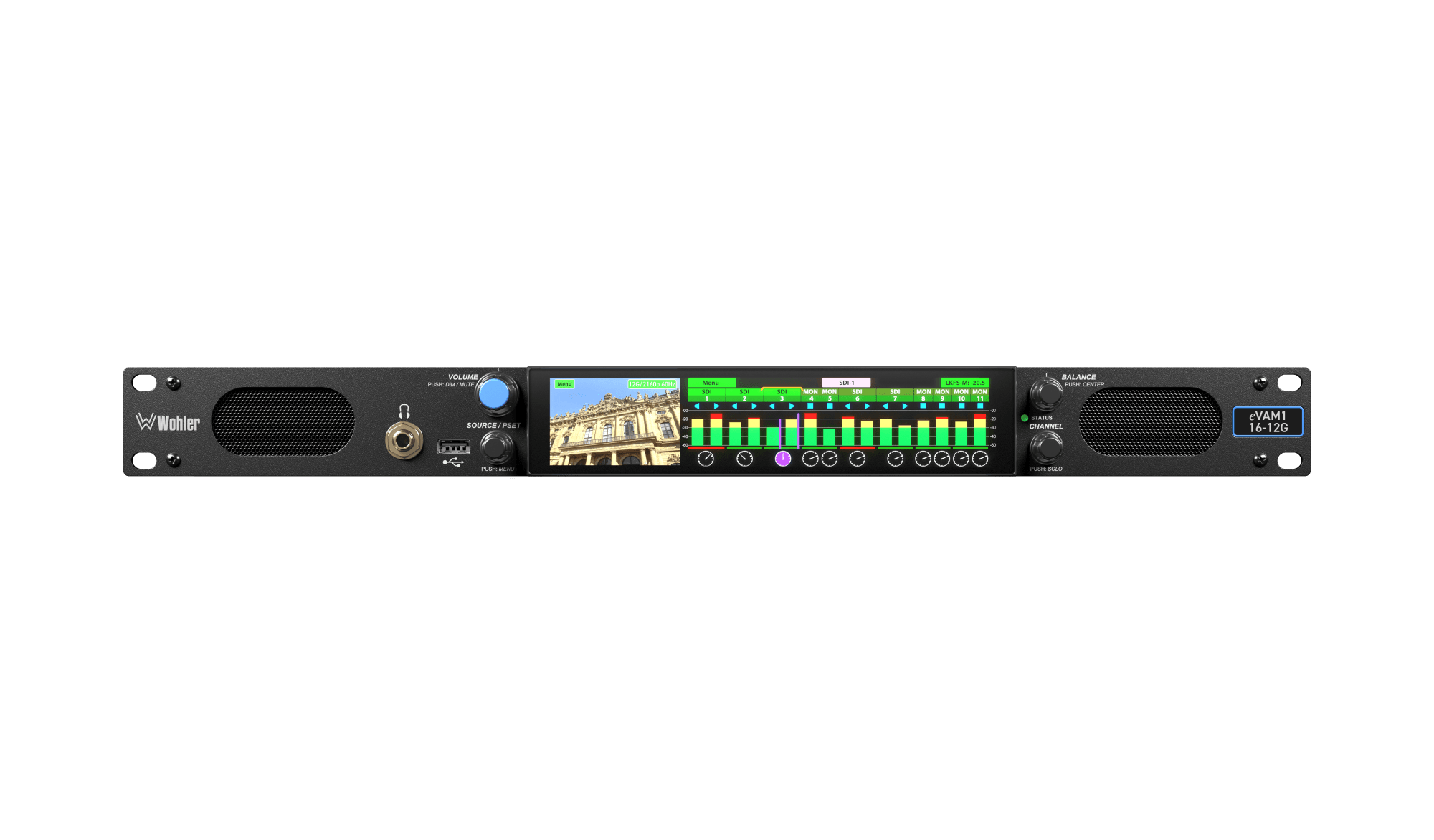

    • Fast selection and summing of up to 16 audio channels via LCD touch panel
    • Master volume control that also provides a master mute/unmute
    • Channel names can be displayed for each input or pulled from a router

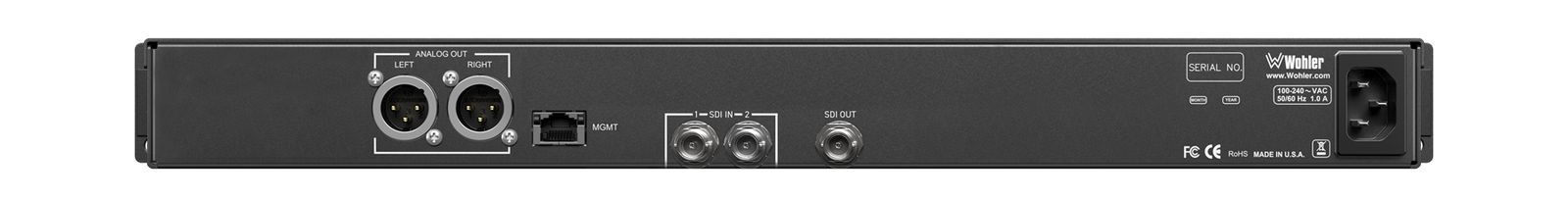

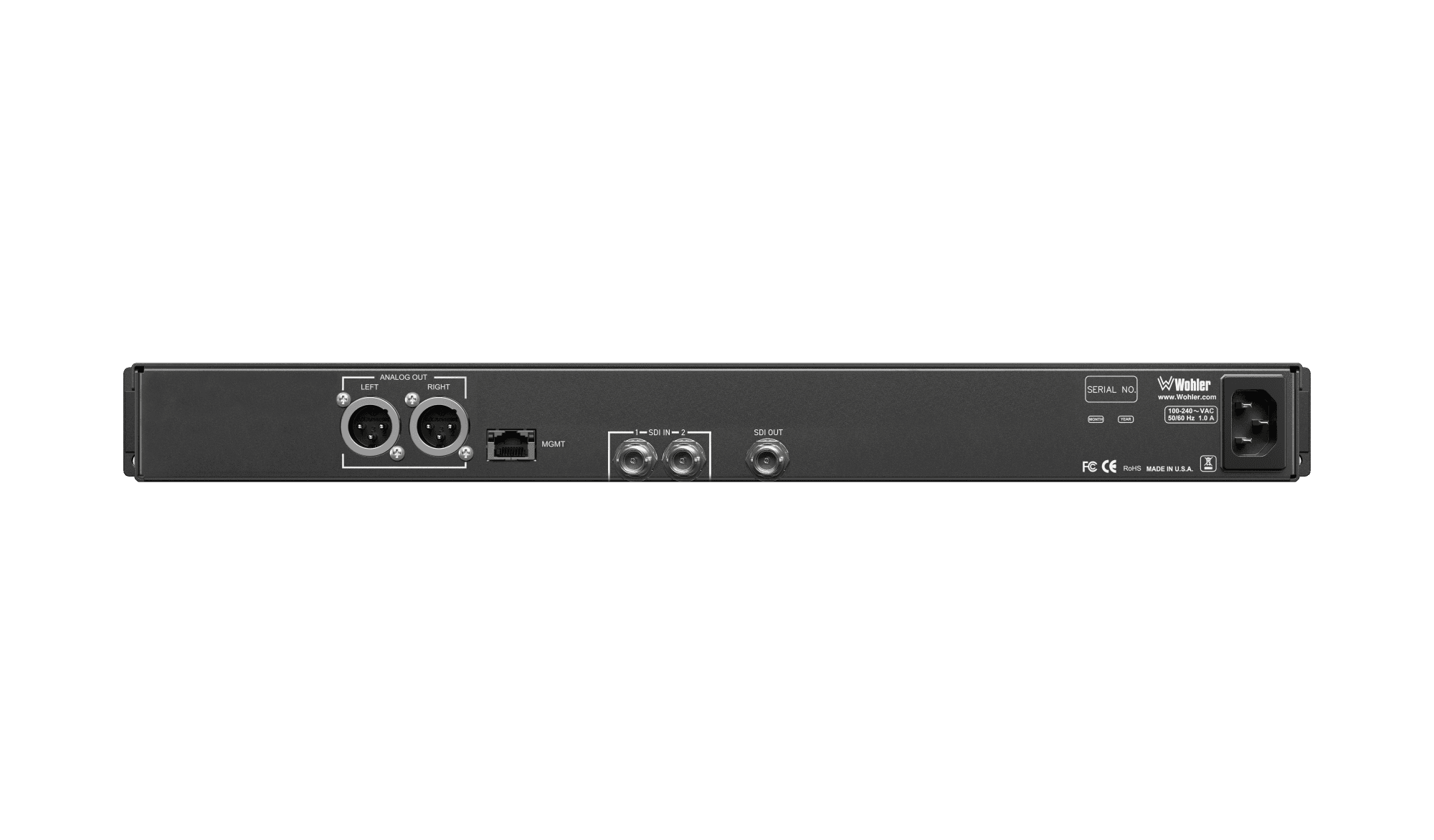

    • Standard I/O: 2 x 12G-SDI Inputs on BNC; 1 x 12G-SDI Output on BNC + 1 pair Analog out on XLR
    • Store and retrieve up to 64 presets
    • Built-in speakers, headphone jack, USB and Ethernet ports with APIs for remote management
    • Software upgradeable individually via USB or multiple units on the same network
    • Built-in Audio-only remote monitoring probe. Requires MAVRIC remote monitoring account.

    Specifications

    Dimensions (W x H x D) 1RU in standard 19” rack: 19” x 1.75” x 5.5” (483 mm x 45 mm x 140 mm). Shipping dims: 23”x 6”x 12”
    Shipping Weight / Net Weight 8.0 lbs. (3.6 kg) / 5.5 lbs. (2.5 kg)
    Power Consumption / Supply 65W, 100 to 240 VAC ± 10%, 50-60 Hz, CE & UL approved
    Display Type / Resolution 7” (178 mm) LCD Capacitive Touchscreen; 1242H x 280V
    Viewing Angle 160° (H) x 160° (V)
    Audio Channels 8 or 16
    Hum and Noise Better than -68 dB below full output
    Peak Acoustic Output 90 dB SPL @ 2 feet
    Speaker Power Output 5W RMS per side, 12W Peak
    Upgrades Via USB or Web GUI
    APIs Provide easy integration with 3rd party control systems
