AMP1-16-M | 16 Channel SDI audio monitor

SKU: 8130-0400

Dual Input, 16 Channel SDI audio monitor (3G, HD, SD).  1RU.  Sum, mute or solo de-embedded audio pairs using quick & easy push-buttons.

Request a Quote
Audio Monitor 3G/HD/SD-SDI Level Meters Phase USB Socket Headphone Socket Speakers Made In USA

Description

16 Channel SDI Audio Monitor that provides Value for Money

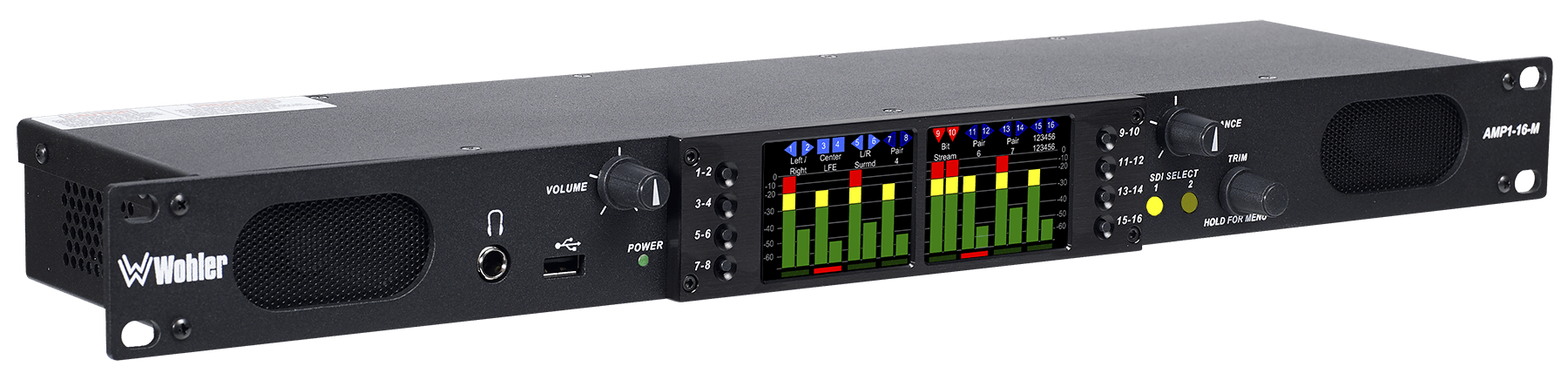

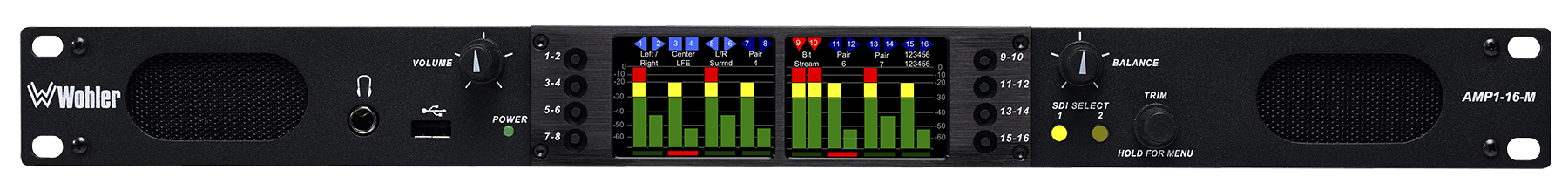

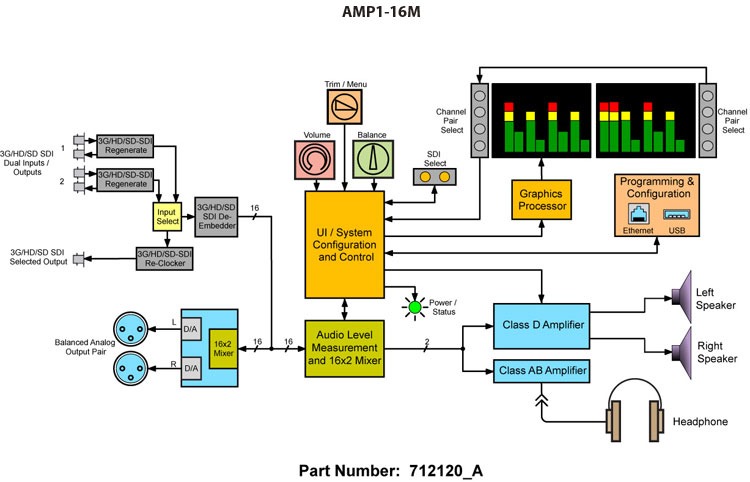

Whether you are in the studio or on the road, the AMP1-16-M is an SDI audio monitor that offers fast and easy monitoring of 3G, HD, or SD formats.  Above all, Wohler has designed it for the most demanding environments.  First, with automatic frame rate detection, you get instant selection and summing of all 8 audio pairs (16 channel)  Next, you can choose between two SDI inputs and access all 16 channels via 8 pairs.  Additionally, other standard features include volume and balance controls, push-button selection of audio channels, SDI looped outputs, and conversion to analog on XLR.  Finally, level meters and phase display on two bright LCD’s.



Do you only need to monitor 8 channels, not 16?  Please check out our AMP1-8-M instead.



What about monitoring video with audio?  We have solutions for that as well.  Please check out our iVAM1-1.  Or visit our more fully-featured iAM-12G-SDI product page.



Are you curious about what SDI is?  See the current entry at Wikipedia.

Features and Benefits


  • Simultaneous level metering of 16 de-embedded audio channels from SDI
  • Choose between two SDI inputs (3G, HD or SD SDI)
  • Automatic SDI frame rate detection and selection
  • Shallow sub-5 inch depth for easy installation in Outside Broadcast vehicles and consoles

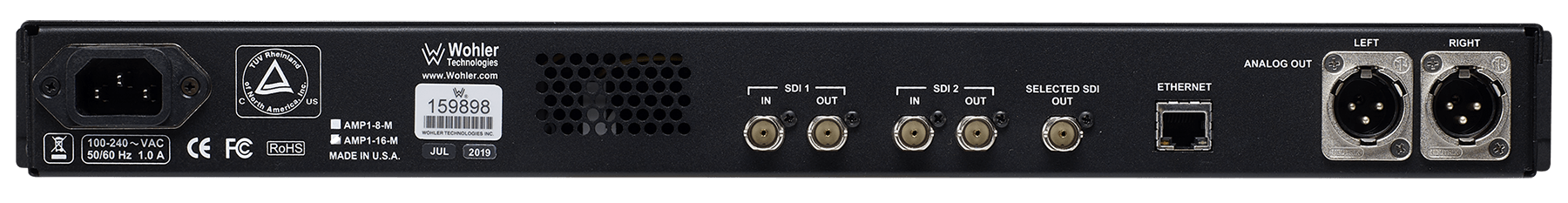

  • Both SDI inputs are looped and re-clocked
  • The selected and active SDI input is also re-clocked out on a 3rd dedicated BNC connector
  • Sum, mute or solo audio pairs using quick and easy push-buttons
  • High resolution metering on two LCD’s with 166-segment displays
  • Monitor audio through built-in speakers, headphones or analog outputs, with optional muting for internal speakers
  • Stereo or mono monitoring
  • Stereo phase indicators
  • Adjustable Volume and Balance
  • Balanced stereo analog outputs on XLR-Ms. Fixed level or volume/balance controlled.
  • Totally digital system architecture with high fidelity Class D amp
  • Selectable line level or front panel volume control and outputs

Options

A-V Specs

Spkr Power OutputRMS Each Side: 6W Continuous/12W Peak
Peak Acoustic Output @ 2 feet90 dB SPL at 2 feet
Frequency Response150 Hz to 16 kHz (+/- 5 dB)
Hum and NoiseBetter than -68 dB below full output
Meter DynamicsConfigurable up to simultaneous VU & PPM
Display TypeLCD
Number of screens2
Diagonal Display Size2.4 Inch
Display Resolution (HxV)320 x 240

Physical Specs

Rack Height1RU
Power Consumption60 Watts
Power SupplyInternal IEC Connector, Universal Input, 100-240VAC, 50/60Hz, CE & UL approved.
Dimension Width19.0" (483mm)
Dimension Height1.75" (45mm)
Dimension Depth4.25" (108mm)
Net Weight7 lbs (3.2 kg)
Shipping Weight7 lbs (3.2 kg)
Shipping Dimensions23 × 12 × 6 in (LxWxH)

Support

Latest Upgrade Software: AMP1-16-M Version Revision H

Looking for software updates for other products? Click here.

Reporting an issue? Click here.
