AMP1-2SDA+ – 2 Channel Audio Monitoring with extra inputs

SKU: 8103-0210

2 Channel Audio Monitoring and Metering for 3G-SDI, AES3 and Analog audio inputs. 1RU.  Simple front panel controls with bright displays and meters.

Request a Quote
Audio Monitor 3G/HD/SD-SDI Analog AES3 Level Meters Phase USB Socket Headphone Socket Speakers Made In USA

Description

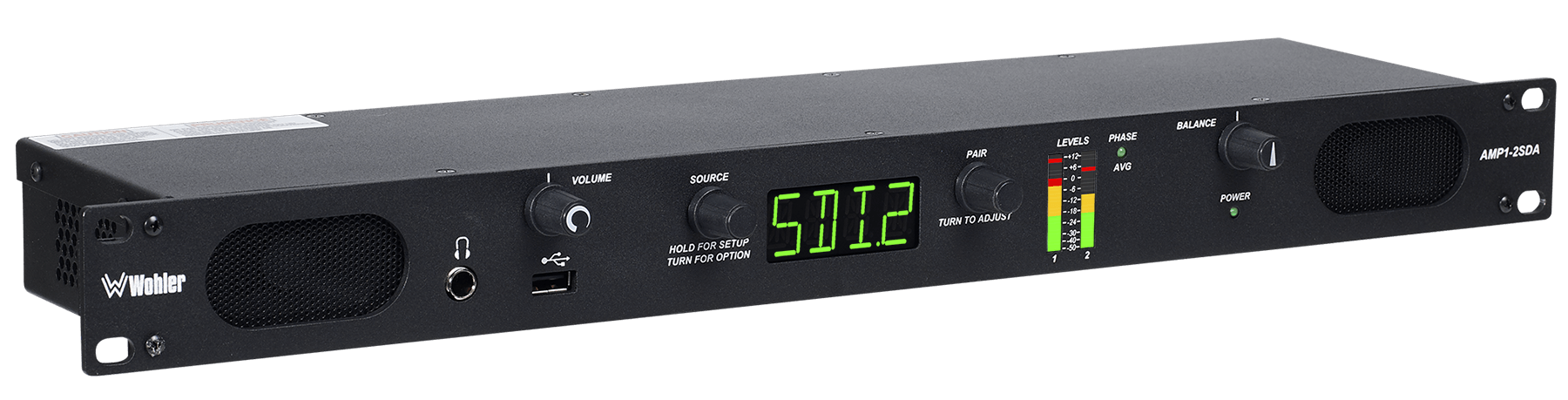

Ultra-compact, 2 channel audio monitor that fits perfectly in a network facility or OB truck for live events.  This makes the AMP1-2SDA+ ideal for a range of applications where basic, but reliable audio monitoring is required.

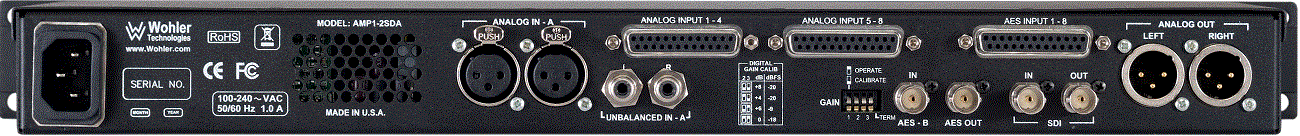

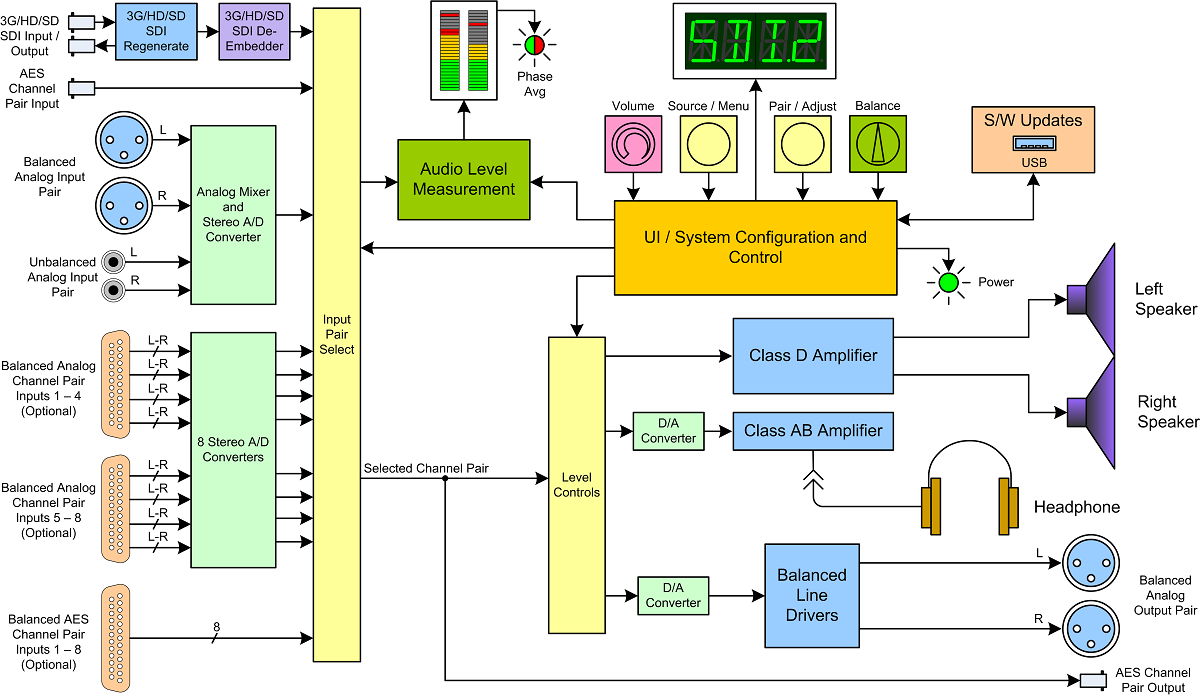

Wohler has distilled 25 plus years of knowledge and experience into our AMP1- 2SDA product.  This unit has Wohler build quality, a shallow depth of five inches, and great pricing.  Fast selection and monitoring of any available pair of audio is available via either 1 x 3G-SDI (with looped output), 1 x AES3 input pair, and either of 2 pairs of Analog inputs (Balanced or Unbalanced).  An additional 8 pairs of both Analog and AES3 on 3 x DB-25 inputs are included on the AMP1-2SDA+ model.  Analog and AES3 outputs of the selected pair are included in the unit for external monitoring.

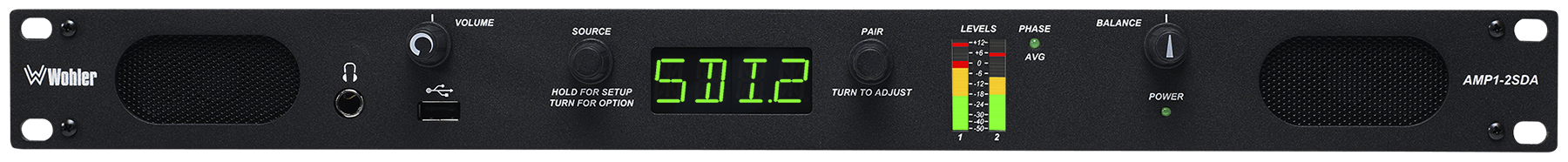

Designed with simplicity in mind, the AMP1-2SDA provides two rotary controls that allow the user to easily select a source with the first and then move through that source’s corresponding audio pairs with the second.  A large front panel screen, highly visible to users, displays the selected source and monitored pair, along with brightly displayed levels on  2 x 26 segment LED meters.  Additional features include simple tone controls for adjusting audio output and an audio trim control for altering the analog output levels.

Links for External Purchase:



Don’t need the extra analog and AES3 inputs?  Check out our AMP1-2SDA.

Features and Benefits


  • Wohler quality sound
  • Selectable 2 channel audio monitoring of 16-channel 3G-SDI, 2 channel AES, and 2 channel Analog (Balanced or Unbalanced)
    • An additional 16 channels (8 pairs) of both Analog and AES3 are included with this unit
  • Bright, easily visible front panel display
  • Simple uncluttered front panel controls
  • Monitor through built-in speakers, headphones and analog outputs
  • Shallow chassis for easy installation in OB vehicles and consoles
  • Adjustable Volume and Balance
  • Stereo phase indicator
  • Selectable trim and tone controls

Options

A-V Specs

Spkr Power OutputRMS Each Side: 5W Continuous/12W Peak
Peak Acoustic Output @ 2 feet90 dB SPL at 2 feet
Frequency Response150 Hz to 16 kHz (+/- 5 dB)
Hum and NoiseBetter than -68 dB below full output
Meter DynamicsSimultaneous VU & PPM

Physical Specs

Rack Height1RU
Power Consumption60 Watts
Power SupplyExternal 18VDC to 100-240 VAC ± 10%, 50/60 Hz,CE & UL approved.
Dimension Width19.0" (483mm)
Dimension Height1.75" (45mm)
Dimension Depth4.25" (108mm)
Net Weight7.0 lbs (3.2 kg)
Shipping Weight7.0 lbs (3.2 kg)
Shipping Dimensions23 × 12 × 6 in (LxWxH)

Support

Latest Upgrade Software: AMP1-2SDA+ Version Revision E

Looking for software updates for other products? Click here.

Reporting an issue? Click here.

Reviews

Reviews

There are no reviews yet.


Write your review here

Be the first to review “AMP1-2SDA+ – 2 Channel Audio Monitoring with extra inputs”

Your email address will not be published. Required fields are marked *

This site uses Akismet to reduce spam. Learn how your comment data is processed.

Features

Signal Input x , x , x
Signal Output x , x , x
Audio Specifications
Spkr Power Output RMS Each Side: 5W Continuous/12W Peak
Peak Acoustic Output @ 2 feet 90 dB SPL at 2 feet
Frequency Response 150 Hz to 16 kHz (+/- 5 dB)
Hum and Noise Better than -68 dB below full output
Meter Dynamics Simultaneous VU & PPM
Video Specifications
Features
Interfacing
Physical
Dimension Depth 4.25" (108mm)
Rack Height 1RU
Dimension Height 1.75" (45mm)
Dimension Width 19.0" (483mm)
Net Weight 7.0 lbs (3.2 kg)
Power Consumption 60 Watts
Power Supply External 18VDC to 100-240 VAC ± 10%, 50/60 Hz,CE & UL approved.
Shipping Weight 7.0 lbs (3.2 kg)
Other
Processing
