AMP1-DA/106

SKU: 8101-0020

2 Channel, AES, Analog Audio Monitor. 1RU.

Request a Quote
Audio Monitor Analog AES3 Level Meters Headphone Socket Speakers Made In USA

Description

The AMP1-DA/106 provides self-powered, full-fidelity stereo audio monitoring of 2 channels from analog and AES/EBU Digital sources and ultra-high resolution LEDs with 106 segments in the smallest rack space possible.



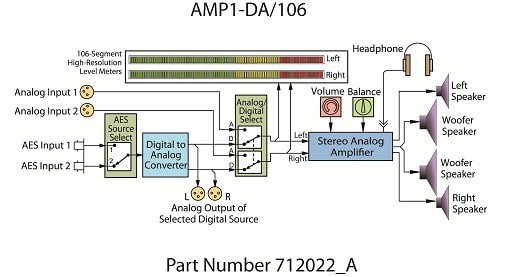

This unit contains four high performance transducers driven by three power amplifiers: one amplifier/driver combination handles midrange and high frequency information in stereo, while the second handles summed low frequency information below the 500 Hz crossover point. The unique design provides optimally focused sound for operators in an ultra near field (1 to 3 ft.) working environment and offers performance comparable to that of many separate monitor pairs, yet does so without the installation hassles, awkward speaker placements and “added-on” look. This provides for a higher SPL for the operator while reducing overall ambient sound and adjacent bay crosstalk. The level meters are now available with a choice of BBC, DIN, Nordic and VU scales and PPM Only.



Extended HF response reveals potential problems with audio, whine, or hiss. Electronic rather than acoustic cancellation of bass frequencies provides positive audible detection of out-of-phase (reversed polarity) audio feeds. A headphone jack is provided on the front panel, usage automatically mutes the speakers. Output limiter circuits are incorporated to protect the speakers, and extensive magnetic shielding allows placement immediately adjacent to video monitors with no color impurities. Our unique tri-color LED design means we can offer an almost unlimited variety of options such as phase correlation, peak hold, and alternate scales.The standard display mode is set as a single segment PPM “dot” above a VU bar; each segment’s color is fixed according to its position on the scale. Level calibration may be set via dip switches to select one of four different calibration levels.



The AMP1-DA/106 is ideally suited for use in VTR bays, mobile production vehicles, teleconferencing installations, multimedia systems, satellite link and cable TV facilities, and on-air radio studios.

Features and Benefits


  • Full fidelity audio monitor in only 1RU
  • Two unbalanced AES/EBU digial inputs (selectable)
  • Two balanced analog inputs (1 stereo)
  • Balanced analog output of selected source

Options

A-V Specs

Spkr Power OutputRMS Each Side: 5W Continuous/10W Peak;RMS Bass: 10W Continuous/20W Peak
Peak Acoustic Output @ 2 feet98 dB SPL @ 2 ft
AES Input Sampling Rate32-48 kHz, auto-detecting
Analog Input Impedance40 kOhms balanced
Frequency Response80 Hz - 16 kHz (+/-7 dB); (-10 dB @ 50 Hz, 22 kHz)
Hum and NoiseBetter than -68 dB below full output
Meter DynamicsSimultaneous VU & PPM

Physical Specs

Rack Height1RU
Power Consumption35 Watts
Power SupplyInternal IEC Connector, Universal Input, 100-240VAC, 50/60Hz, CE & UL approved.
Dimension Width19.0" (483mm)
Dimension Height1.75" (45mm)
Dimension Depth12.0" (305mm)
Net Weight14.0 lbs (6.4 kg)
Shipping Weight14.0 lbs (6.4 kg)
Shipping Dimensions23.5 × 17 × 7.5 in (LxWxH)

Support

Looking for software updates for other products? Click here.

Reporting an issue? Click here.

Reviews

Reviews

There are no reviews yet.


Write your review here

Be the first to review “AMP1-DA/106”

Your email address will not be published. Required fields are marked *

This site uses Akismet to reduce spam. Learn how your comment data is processed.

Features

Signal Input x , x
Signal Output x
Audio Specifications
Spkr Power Output RMS Each Side: 5W Continuous/10W Peak;RMS Bass: 10W Continuous/20W Peak
Peak Acoustic Output @ 2 feet 98 dB SPL @ 2 ft
AES Input Sampling Rate 32-48 kHz, auto-detecting
Analog Input Impedance 40 kOhms balanced
Frequency Response 80 Hz - 16 kHz (+/-7 dB); (-10 dB @ 50 Hz, 22 kHz)
Hum and Noise Better than -68 dB below full output
Meter Dynamics Simultaneous VU & PPM
Video Specifications
Features
Interfacing
Physical
Dimension Depth 12.0" (305mm)
Rack Height 1RU
Dimension Height 1.75" (45mm)
Dimension Width 19.0" (483mm)
Net Weight 14.0 lbs (6.4 kg)
Power Consumption 35 Watts
Power Supply Internal IEC Connector, Universal Input, 100-240VAC, 50/60Hz, CE & UL approved.
Shipping Weight 14.0 lbs (6.4 kg)
Other
Processing
