AMP2-S8-MDA-3G (LAST BUY)

SKU: 8101-0100

8 Channel, 3G/HD/SD-SDI, AES, Analog Audio Monitor. 2RU.

Request a Quote
Audio Monitor 3G/HD/SD-SDI Analog AES3 Level Meters Phase Configuration Presets Audio Mixing Headphone Socket Speakers Made In USA

Description

The AMP2-S8-MDA monitor is an exceptionally high-quality audio monitor systems offering premium quality 8-channel analog, AES/EBU, 3G/HD/SD-SDI multi-channel audio monitoring and conversion as well as professional level metering. These units contain 3 audiophile-quality drivers and three power amplifiers; 3 speakers and amplifiers reproduce mid-range and high frequency information in stereo, while the third amp/driver combination handles summed LF information below the 500 Hz crossover point.

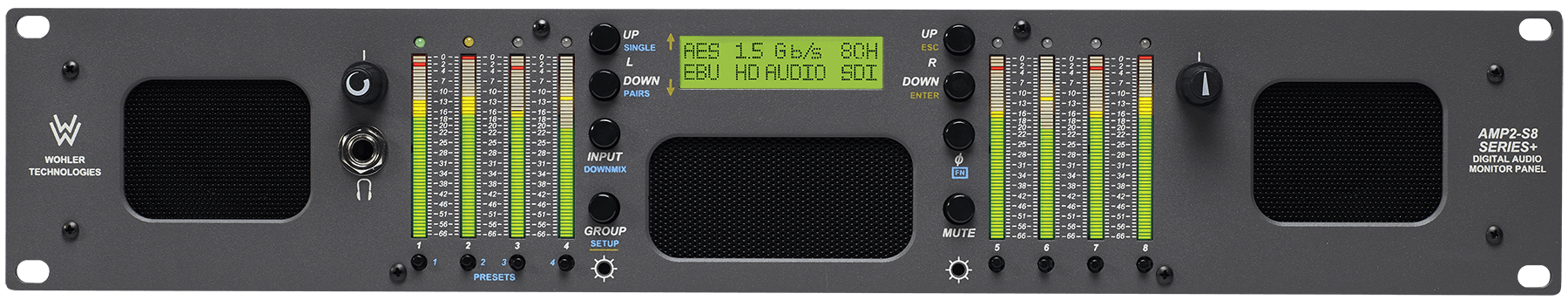

These units feature eight 53-segment high-resolution, tri-color LED level meters showing simultaneous VU and PPM for superior level-metering. The front panel features an innovative LCD display of phase/polarity relationships. Output limiter circuits are incorporated to protect the speakers, and extensive magnetic shielding allows placement immediately adjacent to video monitors with no color impurities.



The unique design provides optimally focused sound for operators in an ultra near-field (1 to 3 ft.) working environment and offers performance comparable to that of many separate monitor pairs, without the installation hassles, awkward speaker placements and “added-on” look. This provides for a higher SPL for the operator while reducing overall ambient sound and adjacent bay crosstalk. Extended HF response reveals potential problems with audio whine or hiss and electronic rather than acoustic cancellation of bass frequencies provides positive audible detection of out-of-phase (reversed polarity) audio feeds. A headphone jack is provided on the front panel that automatically mutes the speakers.



These units are ideally suited for use in space-critical environments such as TV facilities, studios, VTR bays, mobile production vehicles, satellite links and indeed, any rack mount environment where multi-channel audio monitoring is required.

Features and Benefits



FEATURES:

  • Front panel summing of any combination of up to 8 channels to the left and/or right speakers and selected
  • Eight 53-segment tri-color LED bar graphs displaying simultaneous VU and PPM
  • Headphone jack (mutes speakers)
  • Premium quality drivers and power amplifiers
  • Audible indications of phase/polarity problems
  • Phase-correlation display of selected channels
  • Output limiter protected speakers

BENEFITS:

  • Thorough magnetic shielding prevents interference from nearby equipment.
  • Electronic cancellation provides detection of out-of-phase (reversed polarity) audio feeds.
  • Excellent frequency response and low distortion
  • Focused sound, reduces adjacent bay crosstalk
  • Ultra near-field offers exceptional monitoring performance.
  • Small rack space requirements make them perfectly suited for use in space-critical

Options

A-V Specs

Spkr Power OutputRMS Each Side: 5W Continuous/10W Peak
Peak Acoustic Output @ 2 feet104 dB SPL @ 2 ft
AES Input Sampling Rate32-48 kHz, auto-detecting
Analog Input Impedance27k Ohms, Minimum
Frequency Response80 Hz - 18 kHz (+/-5 dB); (-10 dB @ 55 Hz, 21 kHz)
Hum and NoiseBetter than -68 dB below full output
Meter DynamicsSimultaneous VU & PPM
Display TypeLCD

Physical Specs

Rack Height2RU
Power Consumption72 Watts Max
Power SupplyInternal IEC Connector, Universal Input, 100-240VAC, 50/60Hz, CE & UL approved.
Dimension Width19.0" (483mm)
Dimension Height3.5" (89mm)
Dimension Depth14.0" (356mm)
Net Weight21.0 lbs (9.6 kg)
Shipping Weight21.0 lbs (9.6 kg)
Shipping Dimensions23.5 × 17.0 × 7.5 in (LxWxH)

Support

Looking for software updates for other products? Click here.

Reporting an issue? Click here.

Reviews

Reviews

There are no reviews yet.


Write your review here

Be the first to review “AMP2-S8-MDA-3G (LAST BUY)”

Your email address will not be published. Required fields are marked *

This site uses Akismet to reduce spam. Learn how your comment data is processed.

Features

Signal Input x , x , x
Signal Output x , x , x
Data Ports 2 RS-232 Connectors for programming, setup and diagnostics; OPTIONAL: 1 DB-9 Connector for remote selection of input sources (Part numbers 824016, 824017)
Audio Specifications
Spkr Power Output RMS Each Side: 5W Continuous/10W Peak
Peak Acoustic Output @ 2 feet 104 dB SPL @ 2 ft
AES Input Sampling Rate 32-48 kHz, auto-detecting
Analog Input Impedance 27k Ohms, Minimum
Frequency Response 80 Hz - 18 kHz (+/-5 dB); (-10 dB @ 55 Hz, 21 kHz)
Hum and Noise Better than -68 dB below full output
Meter Dynamics Simultaneous VU & PPM
Video Specifications
Display Type LCD
Features
Interfacing
Physical
Dimension Depth 14.0" (356mm)
Rack Height 2RU
Dimension Height 3.5" (89mm)
Dimension Width 19.0" (483mm)
Net Weight 21.0 lbs (9.6 kg)
Power Consumption 72 Watts Max
Power Supply Internal IEC Connector, Universal Input, 100-240VAC, 50/60Hz, CE & UL approved.
Shipping Weight 21.0 lbs (9.6 kg)
Other
Processing
