iAM-AUDIO-1 | 1U Audio over IP Monitor with Metering
SKU: 8114-0200
Versatile Multi-Source, touch-capable Audio over IP Monitor with options for SDI, Dante, Ravenna, the audio essences of ST-2110, ST-2022-6, Dolby Processing, AES3, MADI & Analog. 1RU.
Out of stock
Description
16 channel Audio over IP Monitor with options for multiple signal upgrades, including SDI, Dante, Ravenna, 2110 & 2022

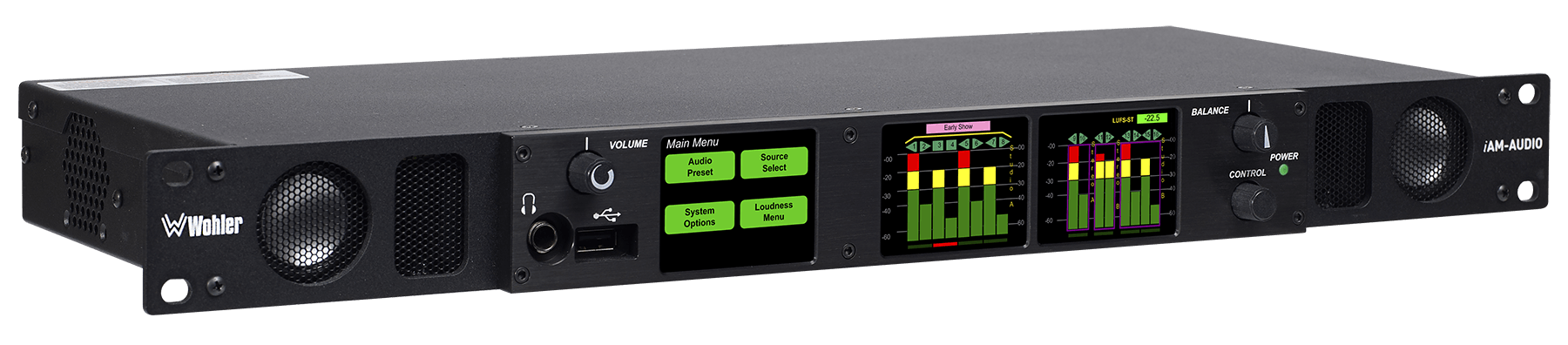

iAM-AUDIO-1 is a 16 channel audio monitor that is easy to operate, yet powerful enough to provide high quality, value-added monitoring of multiple signal types within a space-saving 1U chassis. Input options include SDI (3G, HD, SD), the latest IP formats (Ravenna, AES67, Dante) and the audio essences of ST-2110 and ST-2022-6.. Analog ships standard. AES3 & MADI inputs are also available. Dolby processing is available as a processing option. This unit also includes loudness monitoring and phase metering as standard.

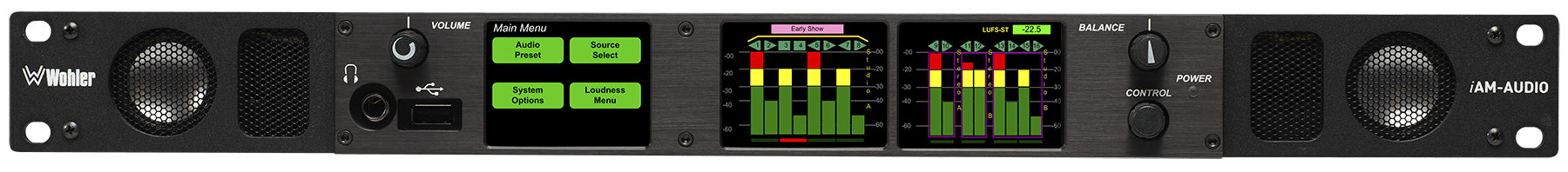

Three touch screen panels make the unit easy to use, easy to operate, and easy to configure for your particular purpose. Three rotary knobs supplement the touch controls and provide fast and easy access to volume, balance and other control functions, especially for summing, soloing, muting and related tasks. A front mounted USB port is provided for software updates to support new and emerging technologies. All iAM Series monitors are built with an onboard web server. Multiple units on the same network can be updated, monitored and controlled via a browser-based user interface that supports fast configuration.
The iAM-Audio-1 is the perfect solution for any application that requires a compact unit for monitoring an evolving range of professional signals.
Links for external purchase:
- B&H Website
- MarkerTek Website
- HHB (UK)
- See our product listing on Amazon
Looking for something bigger? See our iAM-AUDIO-2(RU)
Features and Benefits
- Audio over IP Monitor
- Touch screen front panel for easy, intuitive control
- Monitor up to 16 channels of audio from multiple sources

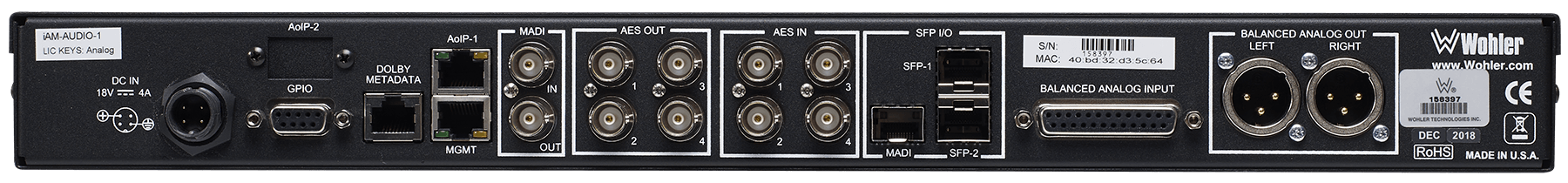

- Built-in speakers, headphone jack, USB and Ethernet ports
- A range of included and optional connectors and signal processing options, including SFP slots for future I/O and Ethernet inputs for IP-based I/O
- Measure Audio Loudness using ITU-R BS.1770 or EBU R128 standards
- Store and retrieve presets via USB or remote software control
- Software upgrades via USB or network
- APIs included for remote control
Options
| Base Units | ||||||
| iAM-AUDIO-1 | 8114-0200 | 1RU. Audio monitoring and metering with touchscreen control. Includes OPT-ANLG only. | ||||
| iAM-AUDIO-2 | 8114-0250 | 2RU. Audio monitoring and metering with touchscreen control. Includes OPT-ANLG only. | ||||
| Signal Licensing Options (software only, no hardware) | ||||||
| OPT-ANLG | 829093 | Included as standard. Enable monitoring of 8 Analog channels on DB-25. Software activation key. | ||||
| OPT-AES | 829080 | Enable Monitoring of 4 AES3 Input Pairs. | ||||
| OPT-MADI | 829092 | Enable Monitoring of 1 x MADI64 input via BNC with 1 looped output | ||||
| Processing Options (includes hardware) |
||||||
| OPT-DOLBY (iSeries) | 829077 | Enables monitoring of Dolby® D, DD+ or E streams. Hardware card with software activation key. OPT-DOLBY requires any one of the following OPT/SFPs to be added: OPT-AES, SFP-SDI, SFP-SDI-Fiber, SFP-2022-6, SFP 2110 or SFP-2110+2022-6 | ||||
| OPT-DANTE (iSeries) | 829078 | Enable monitoring from up to a 64ch Dante™ Input. Hardware card with software activation key. | ||||
| OPT-RAVENNA 64 (iSeries) | 829173 | Enable monitoring from up to a 64ch Ravenna™ / AES67 Input. Includes NMOS support. Hardware card with software activation key. | ||||
| OPT-RAVENNA 256 (iSeries) | 829079 | Enable monitoring from up to a 256ch Ravenna™ / AES67 Input. Includes NMOS support. Hardware card with software activation key. | ||||
| Small form-factor pluggable (SFP) Options | ||||||
| SFP-SDI | 829089 | 3G/HD/SD-SDI single video receiver with active loopback. HD-BNC Connectors. SFP Module with sfw activation key. Only purchase if 3rd SDI I/P is required. | ||||
| SFP-SDI-Fiber | 829084 | SDI single mode Optical LC (fiber) video receiver. Up to 12G-SDI capable depending on base unit. | ||||
| SFP-2110 w/Ember+ or NMOS | 829086/-1 | Receiver, Multi-Mode 850 NM, LC (fiber) Connectors. Use 829086-1 for NMOS variant. | ||||
| SFP-2022-6 | 829088 | Receiver, LC (fiber) Connectors. | ||||
| SFP-2110 w/Ember+ (or NMOS) & 2022-6 | 829087/-1 | Receiver, Multi-Mode 850 NM, LC (fiber) Connectors. Use 829087-1 for NMOS variant. | ||||
| SFP-MADI-MM-Fiber | 829081/82 | MADI optical fiber transceiver; Multimode or Singlemode, LC (fiber) Connectors. Use 829081 for Multimode (MM). Use 829082 for Singlemode (SM). | ||||
A-V Specs
| Spkr Power Output | RMS Each Side: 12W Continuous/24W Peak |
| Peak Acoustic Output @ 2 feet | 98 dB SPL @ 2ft |
| AES Input Sampling Rate | 48 kHZ |
| Analog Input Impedance | 40k Ohms balanced |
| Frequency Response | 150 Hz to 16 kHz (+/-dB) acoustic, 40 Hz to 20 kHz (+/-1dB) electrical |
| Hum and Noise | Better than -68 dB below full output |
| Meter Dynamics | Simultaneous VU & PPM |
| Display Type | LCD Touchscreen |
| Number of screens | 3 Graphics |
| Diagonal Display Size | 2.4" (60 mm) |
| Display Resolution (HxV) | 320Hx240V |
Physical Specs
| Rack Height | 1RU |
| Power Consumption | 30 Watts typical |
| Power Supply | External 18VDC to 100-240 VAC ± 10%, 50/60 Hz,CE & UL approved. |
| Dimension Width | 19.0" (483mm) |
| Dimension Height | 1.75" (45mm) |
| Dimension Depth | 7.25" (185mm) |
| Net Weight | 11.0 lbs. (5.0 kg) |
| Shipping Weight | 11.0 lbs (5.0 kg) |
| Shipping Dimensions | 12.0 × 12.0 × 6.0 in (LxWxH) |
Support
Latest Upgrade Software: iAM-AUDIO-1 Version 3.8-39
Looking for software updates for other products? Click here.
Reporting an issue? Click here.
Reviews
Write your review here
Features
| Signal Input | x , x , x , x , x , x , x , x , x , x , x |
|---|---|
| Signal Output | x , x , x , x |
| Audio Specifications | |
| Spkr Power Output | RMS Each Side: 12W Continuous/24W Peak |
| Peak Acoustic Output @ 2 feet | 98 dB SPL @ 2ft |
| AES Input Sampling Rate | 48 kHZ |
| Analog Input Impedance | 40k Ohms balanced |
| Frequency Response | 150 Hz to 16 kHz (+/-dB) acoustic, 40 Hz to 20 kHz (+/-1dB) electrical |
| Hum and Noise | Better than -68 dB below full output |
| Meter Dynamics | Simultaneous VU & PPM |
| Video Specifications | |
| Diagonal Display Size | 2.4" (60 mm) |
| Display Resolution (HxV) | 320Hx240V |
| Display Type | LCD Touchscreen |
| Number of screens | 3 Graphics |
| Features | |
| Interfacing | |
| Physical | |
| Dimension Depth | 7.25" (185mm) |
| Rack Height | 1RU |
| Dimension Height | 1.75" (45mm) |
| Dimension Width | 19.0" (483mm) |
| Net Weight | 11.0 lbs. (5.0 kg) |
| Power Consumption | 30 Watts typical |
| Power Supply | External 18VDC to 100-240 VAC ± 10%, 50/60 Hz,CE & UL approved. |
| Shipping Weight | 11.0 lbs (5.0 kg) |
| Other | |
| Processing | |
