iVAM1-12G | 1U 12G-SDI & Analog LCD monitor – IP Ready
SKU: 8124-0100
16 channel, triple screen, 12G-SDI & Analog Audio & Video Monitor with optional 2022-7 support, plus options to license additional input signals.
Description
Flexible. Adaptable. Future Proof.

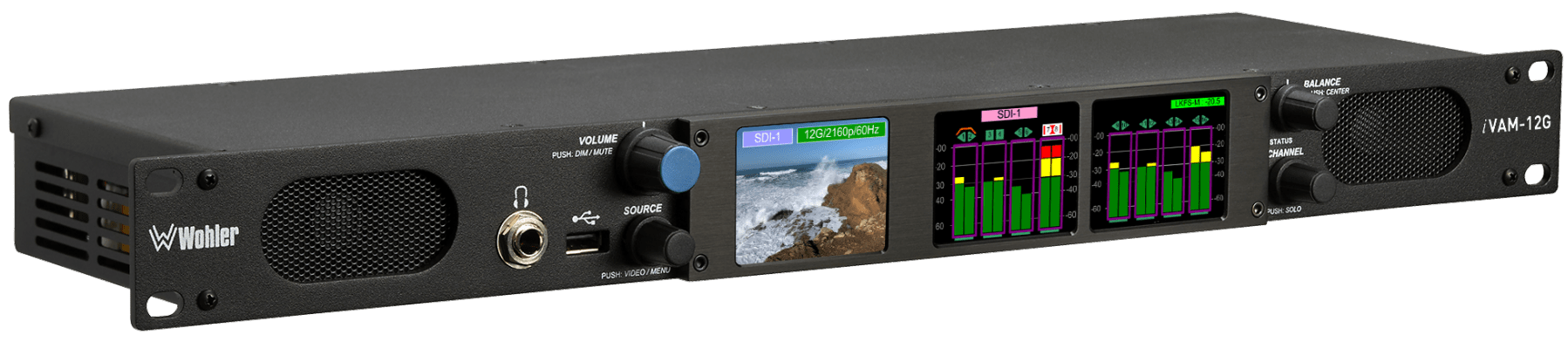

The iVAM1-12G is a premium version of our iVAM series offering 12G-SDI monitoring at a competitive price. It is a well featured, easy to use, 16 channel video and audio monitor which comes standard with 2 x 12G-SDI inputs on BNC connectors and a pair of Analog inputs on XLR connectors. Standard features include Loudness measurement, phase status and HDR detection. License other signal formats and processing options, including Dolby, AoIP (Dante or Ravenna), Toslink and 8 channel Analog, as and when needed, either initially or after purchase. With touch screen controls, three 2.4″ screens and a depth of under 6”, the iVAM1-12G is the perfect solution for any application that requires a compact product for simple-to-complex monitoring of an evolving range of professional signals.
Want a 2U unit with larger screens and bigger sound? See our iAM-12G-SDI.

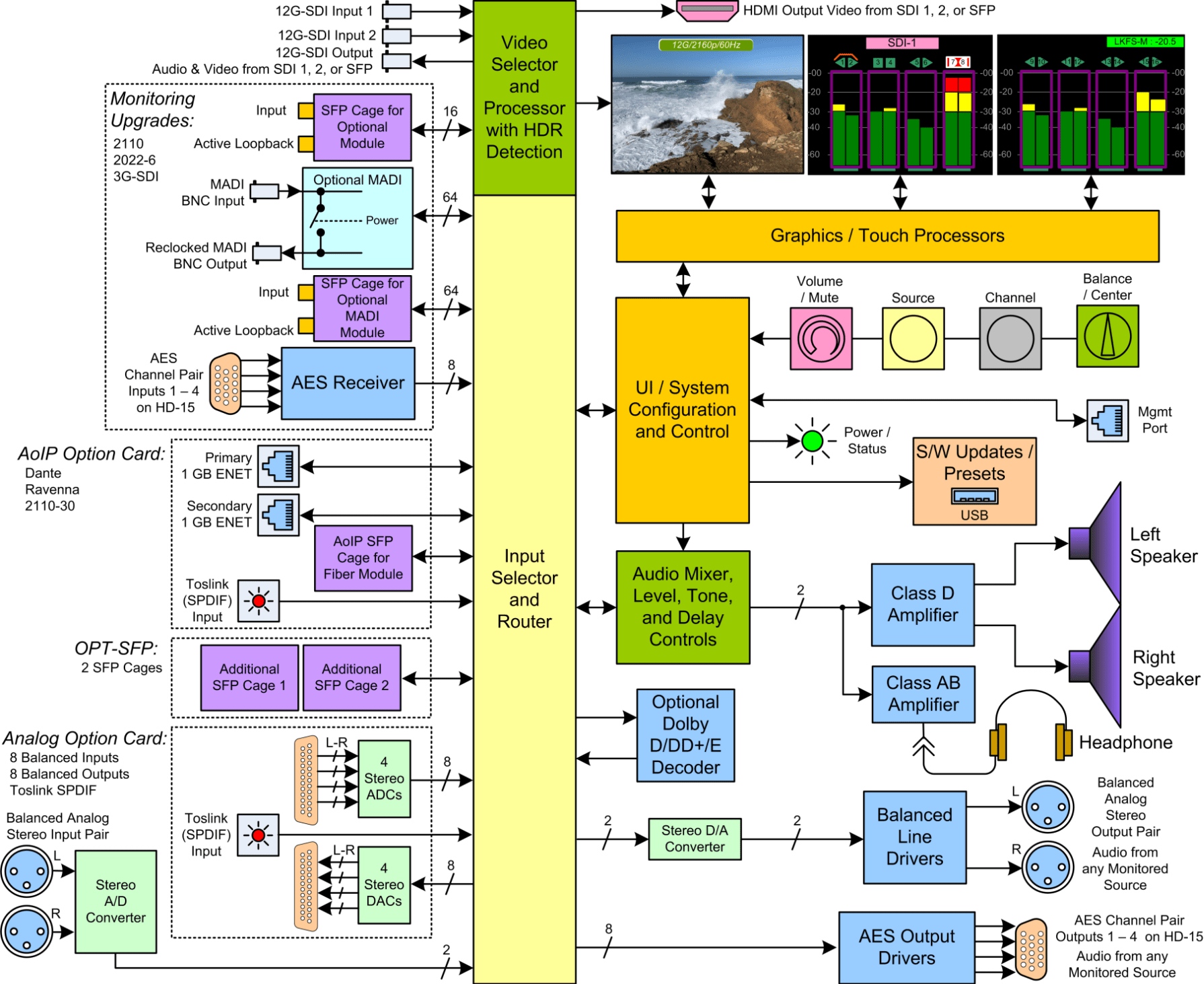

Features and Benefits
- Video and audio monitoring (up to 16 channels) from multiple sources
- Up to 64 presets

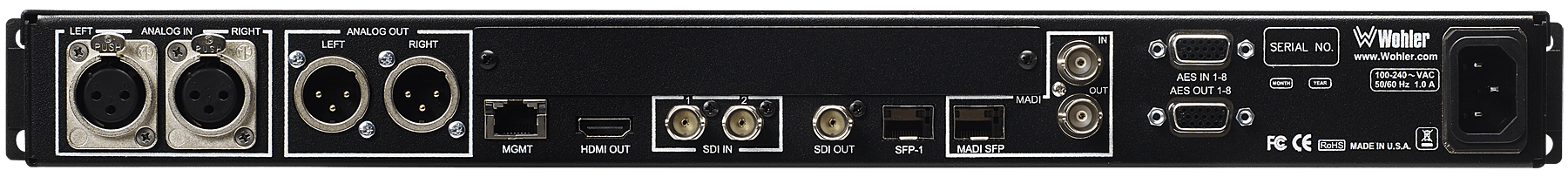

- 2 x 12G-SDI Inputs on BNC that can also monitor 3G/HD/SD-SD; 1 x 12G-SDI Output of selected video source on BNC + 1 pair Analog in/out on XLR
- Optional Output Routing enables the flexibility to route input signals to various outputs
- Optional I/O for AES3 on HD-15 (incl selected audio source converted to AES3 out), MADI on BNC (looped out), and SMPTE 2110 or SMPTE 2022 via SFP.
- HDMI Output of the monitored video source included HDMI output follows the input up to 1080p, except for 12G where it will be 1080p @ 60Hz. Monitors the first 8 ch of audio.
- Measure Audio Loudness using ITU-R BS.1770 or EBU R128 standards
- Option cards for AoIP, additional SFP’s, or 8 channels of analog I/O, and TOSLINK
- Software upgradeable via USB or network
- APIs for remote management
Options
| Signal Licensing Options (software only, no hardware) | ||||||
| OPT-AES | 829080 | Enables decoding and monitoring of 4 x AES inputs, 1 AES Output | ||||
| OPT-MADI | 829092 | Enables decoding and monitoring of 1 x MADI64 input via BNC | ||||
| Processing Options (software only) | ||||||
| OPT-DOLBY | 829174 | Enable monitoring of Dolby D, DD+ or E streams. Software activation key. Functions on SDI via BNC, or any of the following OPT/SFP’s: OPT-AES, SFP-SDI-Fiber, SFP-2022-6, SFP-2110, and SFP-2110+2022-6 | ||||
| OPT-OUTPUT ROUTING | 829159 | Enables the flexibility to route input signals to various outputs. | ||||
| Option Cards for Signal I/O Processing (includes hardware) | ||||||
| OPT-DANTE | 829171
829172 |
This AoIP option card enables decoding and monitoring of up to 64 ch of DanteTM OR Ravenna™ / AES67/ 2110-30 Input streams with NMOS Support. These option cards provide 2 x RJ-45 ports for 2022-7 support + SFP cage allowing MM and SM SFP’s as an alternate primary for AoIP Signals. TOSLINK included in both cards. | ||||
| OPT-ANLG/TOS | 829170 | Enable monitoring of 8 analog channels on DB-25. Hardware card with software activation key. Includes Optical TOSLINK input. | ||||
| OPT-SFP | 829179 | Adds two additional 3G inputs to 3G products, or two 12G inputs to 12G products. | ||||
| Small form-factor pluggable (SFP) Options | ||||||
| SFP-2110 w/Ember+ (or NMOS) | 829086/-1 | Receiver, Multi-Mode 850 NM, LC (fiber) Connectors. Use 829086-1 for NMOS variant. | ||||
| SFP-2022-6 | 829088 | Receiver, LC (fiber) Connectors | ||||
| SFP-2110 w/Ember+ (or NMOS) + 2022-6 | 829087/-1 | Receiver, Multi-Mode 850 NM, LC (fiber) Connectors. Use 829087-1 for NMOS variant. | ||||
| SFP-SDI | 829089 | 3G/HD/SD-SDI single video receiver with active loopback. HD-BNC Connectors. Only purchase if 3rd SDI I/P is required. | ||||
| SFP-SDI-Fiber | 829084 | SDI single mode Optical LC (fiber) video receiver. Up to 12G-SDI capable depending on base unit | ||||
| SFP-SDI-Output | 829083 | 3G/HD-SD-SDI Transceiver, HD-BNC connectors, I/P and O/P are both SDI | ||||
| SFP-MADI-Fiber (MM or SM) | 829081/82 | MADI optical fiber transceiver; Multimode or Singlemode, LC (fiber) Connectors. Use 829081 for Multimode (MM). Use 829082 for Singlemode (SM). | ||||
A-V Specs
| Spkr Power Output | RMS Each Side: 5W Continuous/12W Peak |
| Peak Acoustic Output @ 2 feet | 90 dB SPL @ 2ft |
| AES Input Sampling Rate | 48 kHZ |
| Analog Input Impedance | 40k Ohms balanced |
| Frequency Response | 150 Hz to 16 kHz (+/-dB) acoustic, 40 Hz to 20 kHz (+/-1dB) electrical |
| Hum and Noise | Better than -68 dB below full output |
| Meter Dynamics | Simultaneous VU & PPM |
| Display Type | Capacitive LCD Touchscreen x 3 |
| Number of screens | 3 (1 Video/Graphics, 2 Graphics Only) |
| Diagonal Display Size | 2.4" (60 mm) |
| Display Resolution (HxV) | 320Hx240V |
| Viewing Angle | 160 (H) x 160 (V) |
Physical Specs
| Rack Height | 1RU |
| Power Consumption | 65 Watts typical |
| Power Supply | Internal 100-240 VAC ± 10%, 50/60 Hz, CE & UL approved. |
| Dimension Width | 19.0" (483mm) |
| Dimension Height | 1.75" (45mm) |
| Dimension Depth | 5.5" (140mm) |
| Net Weight | 7.5 lbs. (3.4 kg) |
| Shipping Weight | 7.6 lbs (3.4 kg) |
| Shipping Dimensions | 23 × 12 × 6 in (LxWxH) |
Support
Looking for software updates for other products? Click here.
Reporting an issue? Click here.
Reviews
Write your review here
Features
| Signal Input | x , x , x , x , x , x , x |
|---|---|
| Signal Output | x , x , x , x , x |
| Audio Specifications | |
| Spkr Power Output | RMS Each Side: 5W Continuous/12W Peak |
| Peak Acoustic Output @ 2 feet | 90 dB SPL @ 2ft |
| AES Input Sampling Rate | 48 kHZ |
| Analog Input Impedance | 40k Ohms balanced |
| Frequency Response | 150 Hz to 16 kHz (+/-dB) acoustic, 40 Hz to 20 kHz (+/-1dB) electrical |
| Hum and Noise | Better than -68 dB below full output |
| Meter Dynamics | Simultaneous VU & PPM |
| Video Specifications | |
| Diagonal Display Size | 2.4" (60 mm) |
| Display Resolution (HxV) | 320Hx240V |
| Display Type | Capacitive LCD Touchscreen x 3 |
| Number of screens | 3 (1 Video/Graphics, 2 Graphics Only) |
| Viewing Angle | 160 (H) x 160 (V) |
| Features | |
| Interfacing | |
| Physical | |
| Dimension Depth | 5.5" (140mm) |
| Rack Height | 1RU |
| Dimension Height | 1.75" (45mm) |
| Dimension Width | 19.0" (483mm) |
| Net Weight | 7.5 lbs. (3.4 kg) |
| Power Consumption | 65 Watts typical |
| Power Supply | Internal 100-240 VAC ± 10%, 50/60 Hz, CE & UL approved. |
| Shipping Weight | 7.6 lbs (3.4 kg) |
| Other | |
| Processing | |
