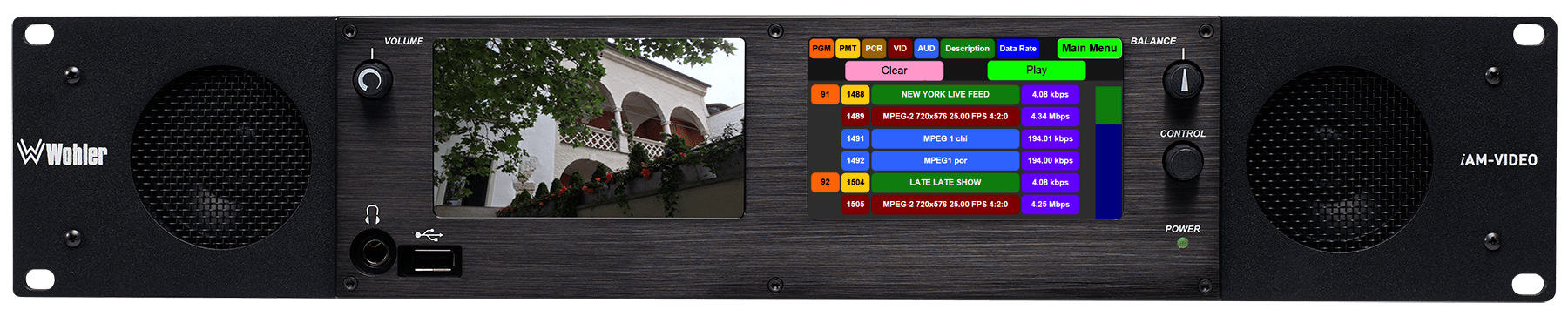

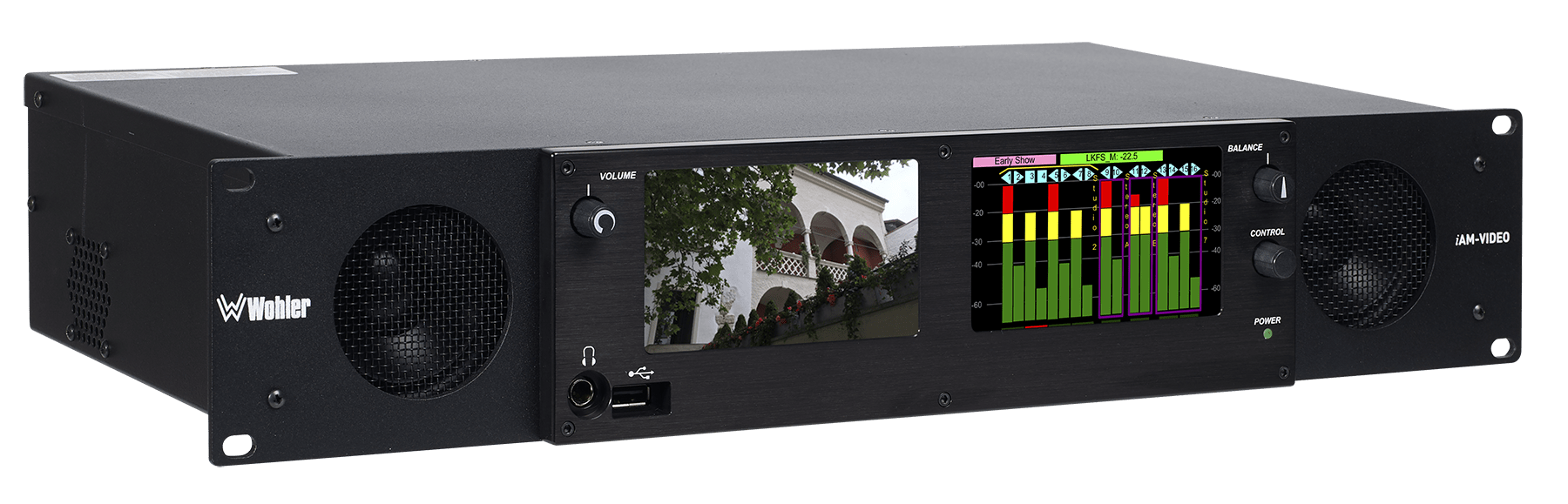

iAM-VIDEO-2 audio & video monitor with included MPEG

SKU: 8114-0350

Versatile & future-proof SDI Video and Audio Monitor with included MPEG monitoring (MPEG2TS).  2110, 2022-6, Dante and Ravenna also available. 2RU

Out of stock

Audio Monitor Video Monitor Data Monitor 3G/HD/SD-SDI (option) Analog AES3 (option) MADI64 (option) Dante (option) Ravenna (option) ST-2110 (option) ST-2022 (option) Fiber Optic (option) MPEG-2/-4 Level Meters Configuration Presets Measurement Tools Dolby Audio Decoding (option) Loudness Measurement Audio Mixing Remote User Interface Touchscreen Panel Interface USB Socket Headphone Socket Speakers API SFP Socket Made In USA

Description

Flexible. Adaptable. Future Proof. MPEG Monitoring available as an option.

The iAM-VIDEO-2, with included MPEG monitoring, is a versatile video and audio monitor.  Because of this, it is suited to a variety of monitoring applications within the broadcast, telecom, and other related industries.  It includes two 3G SDI SFP cages with additional options for AES3 and MADI.  IP format options are included too: MPEG2TS, SMPTE 2022 and SMPTE 2110, RavennaTM / AES67 and DanteTM, and a growing range of additional I/O via an SFP interface.

It’s easy to operate, because it incorporates the mature touch-screen features that were optimized in previous iAM Series units.  Use the included USB port to perform software upgrades, import / export of presets, and charge your devices.  In addition, Wohler is known for powerful sound output and audio reproduction.  This unit continues that tradition with high-quality front mounted speakers and sub-woofers.

FEATURES & BENEFITS:

  • Touch screen front panel for easy, intuitive control
  • MPEG monitoring over Ethernet or ASI (requires SFP-SDI)
  • Signal processing options for SMPTE 2110, SMPTE 2022-6, Dante & Ravenna
  • Video monitoring and audio monitoring of up to 16 channels of audio from multiple sources
  • Built-in speakers, headphone jack, USB and Ethernet ports
  • Measure Audio Loudness using ITU-R BS.1770 or EBU R128 standards
  • Store and retrieve presets via USB or remote software control
  • Software upgradeable via USB or network, upgrade multiple units at once
  • APIs included for remote control

Features and Benefits



Options



Signal Licensing Options (software only, no hardware)
OPT-ANLG 829093 Included as standard. Enable monitoring of 8 Analog channels on DB-25. Software activation key.
OPT-AES 829080 Enable Monitoring of 4 AES3 Input Pairs.
OPT-MADI 829092 Enable Monitoring of 1 x MADI64 input via BNC with 1 looped output
Processing Options (includes hardware)
OPT-MPEG (iAM-VIDEO Only) 829077 Enables monitoring of MPEG-2 & H.264 / MPEG-4 AVC in TS over IP
OPT-DOLBY (iSeries) 829077 Enables monitoring of Dolby® D, DD+ or E streams. Hardware card with software activation key. OPT-DOLBY requires any one of the following OPT/SFPs to be added: OPT-AES, SFP-SDI, SFP-SDI-Fiber, SFP-2022-6, SFP 2110 or SFP-2110+2022-6
OPT-DANTE (iSeries) 829078 Enable monitoring from up to a 64ch Dante™ Input. Hardware card with software activation key.
OPT-RAVENNA 64 (iSeries) 829173 Enable monitoring from up to a 64ch Ravenna™ / AES67 Input. Includes NMOS support. Hardware card with software activation key.
OPT-RAVENNA 256 (iSeries) 829079 Enable monitoring from up to a 256ch Ravenna™ / AES67 Input. Includes NMOS support. Hardware card with software activation key.
Small form-factor pluggable (SFP) Options
SFP-SDI 829089 3G/HD/SD-SDI single video receiver with active loopback. HD-BNC Connectors. SFP Module with sfw activation key. Only purchase if 3rd SDI I/P is required.
SFP-2110 w/Ember+
SFP-2110 w/NMOS
829086
829086-1
SMPTE 2110 receiver, Multi-Mode 850 NM, LC (fiber) Connectors. SFP Module with software activation key.
SFP-2022-6 829088 SMPTE 2022-6 receiver, Multi-Mode 850 NM, LC (fiber) Connectors. SFP Module with software activation key. Use emSET to configure SFP.
SFP-2110 w/Ember+ & 2022-6
SFP-2110 w/NMOS + & 2022-6
829087
829087-1
SMPTE 2110 or 2022-6 receiver, Multi-Mode 850 NM, LC (fiber) Connectors. SFP Module with software activation key. Use emSET to configure SFP.
SFP-SDI-OUTPUT 829083 3G-SDI Transceiver; HD-BNC connectors; Input and output are both SDI. SDI Output is from selected source (Video output is set at 1080p60). For 12G-SDI, it may only be used as an input when used in one of the 4 SFP slots or as an output (when connected to the Output SFP cage). SFP module with software activation key.
SFP-HDMI-OUTPUT 829155 HDMI/DVI output SFP. HDMI 2.0 Type D connector. Video output is set to 1080p60 from selected video source. Supports 2 channels of audio. SFP module with software activation key.
SFP-SDI-Fiber 829084 3G/HD-SD-SDI/ASI video SFP optical input; LC (fiber) Connectors. Single-Mode Receiver, Medium Haul, Non-MSA, no output; SFP with software activation key
SFP-SDI-Dual 829154 3G/HD/SD-SDI dual receiver; HD-BNC Connectors; SFP module with software activation key. Carries MPEG over ASI with OPT-MPEG option.
SFP-MADI-MM-Fiber 829081 MADI optical fiber receiver; Multi-Mode, LC (fiber) Connectors. SFP Module with software activation key.
SFP-MADI-SM-Fiber 829082 MADI optical fiber receiver; Single-Mode, LC (fiber) Connectors. SFP Module with software activation key.



A-V Specs

Spkr Power OutputRMS Each Side: 15W Continuous/30W Peak
Peak Acoustic Output @ 2 feet104 dB SPL @ 2 ft
AES Input Sampling Rate48 kHZ
Analog Input Impedance40k Ohms balanced
Frequency Response60 Hz - 16 kHz (+/-5 dB); (-10 dB @ 50 Hz, 20 kHz)
Hum and NoiseBetter than -75 dB below full output
Meter DynamicsSimultaneous VU & PPM
Display TypeLCD Touchscreen
Number of screens1 Video; 1 Graphics
Diagonal Display Size4.3" (109 mm)
Display Resolution (HxV)480H x 272V

Physical Specs

Rack Height2RU
Power Consumption40 Watts typical
Power SupplyExternal 18VDC to 100-240 VAC ± 10%, 50/60 Hz,CE & UL approved.
Dimension Width19.0" (483mm)
Dimension Height3.5" (89mm)
Dimension Depth9.5" (242mm)
Net Weight11 lbs (5.0 kg)
Shipping Weight16 lbs (7.3 kg)
Shipping DimensionsN/A (LxWxH)

Support

Latest Upgrade Software: iAM-VIDEO-2 Version 2.5-3

Looking for software updates for other products? Click here.

Reporting an issue? Click here.

Reviews

Reviews

There are no reviews yet.


Write your review here

Be the first to review “iAM-VIDEO-2 audio & video monitor with included MPEG”

Your email address will not be published. Required fields are marked *

This site uses Akismet to reduce spam. Learn how your comment data is processed.

Features

Signal Input x , x , x , x , x , x , x , x , x , x , x , x
Signal Output x , x , x , x , x
Data Ports 1 Ethernet port for configuration/control of unit via remote GUI
Audio Specifications
Spkr Power Output RMS Each Side: 15W Continuous/30W Peak
Peak Acoustic Output @ 2 feet 104 dB SPL @ 2 ft
AES Input Sampling Rate 48 kHZ
Analog Input Impedance 40k Ohms balanced
Frequency Response 60 Hz - 16 kHz (+/-5 dB); (-10 dB @ 50 Hz, 20 kHz)
Hum and Noise Better than -75 dB below full output
Meter Dynamics Simultaneous VU & PPM
Video Specifications
Diagonal Display Size 4.3" (109 mm)
Display Resolution (HxV) 480H x 272V
Display Type LCD Touchscreen
Number of screens 1 Video; 1 Graphics
Features
Interfacing
Physical
Dimension Depth 9.5" (242mm)
Rack Height 2RU
Dimension Height 3.5" (89mm)
Dimension Width 19.0" (483mm)
Net Weight 11 lbs (5.0 kg)
Power Consumption 40 Watts typical
Power Supply External 18VDC to 100-240 VAC ± 10%, 50/60 Hz,CE & UL approved.
Shipping Weight 16 lbs (7.3 kg)
Other
Processing
