RM-2443WS-3G2

SKU: 8001-0345

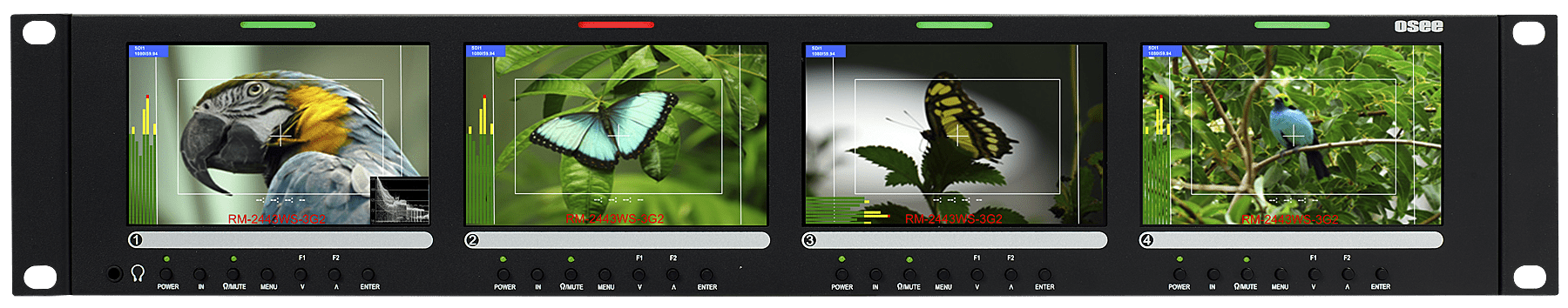

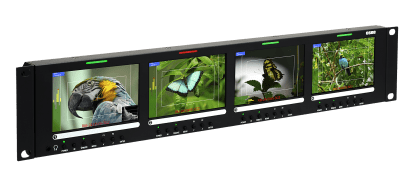

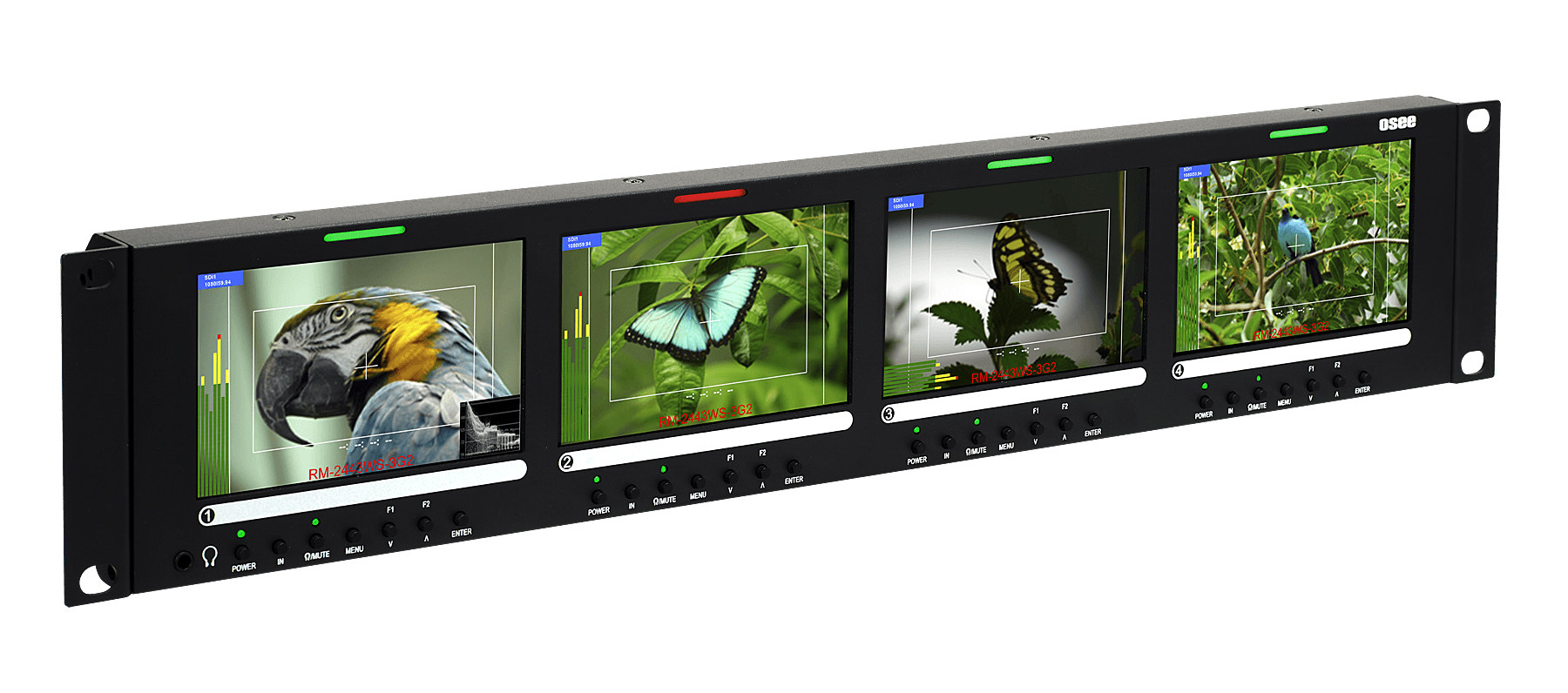

Quad 4.3″ 16:9 Widescreen LCD Video Monitor, Dual Input 3G/HD/SD-SDI, Composite. Audio/Video Metering. 2RU.

Request a Quote
Video Monitor 3G/HD/SD-SDI Analog Level Meters Measurement Tools Headphone Socket Speakers

Description

The RM Series is a full-featured, low-cost range of in-rack 3G/HD/SD-SDI and CVBS video monitors ideal for the many feeds in mobile trucks, news and transmission control rooms, duplication, and post production applications.



These tilting monitors come standard with in-monitor level metering, selectable video waveform and vectorscope, safe and title markers, labeling, tally, timecode, video format, and built-in color bars, as well as familiar CRT-style picture controls and an intuitive on-screen configuration menu.

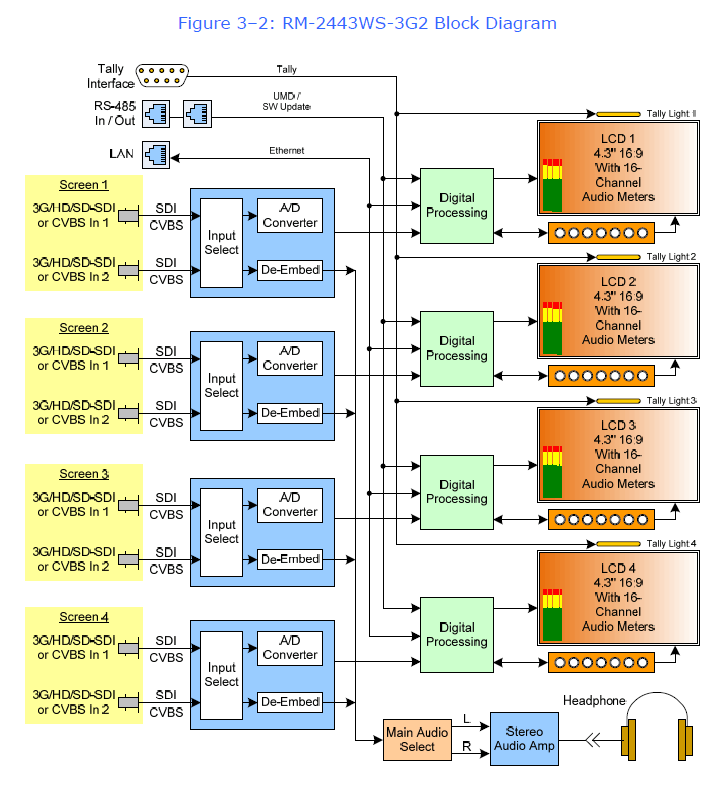

Input signals are automatically detected and up to 8 of the 16 audio channels embedded in an HD/SD-SDI bitstream may be selected for visual monitoring on 8 on-screen bar graph style level meters on the 3G and 3G2 models. A headphone jack provides audible stereo monitoring of selected left and right channels.



Each of the four high-resolution LCD screens display high-definition or standard-definition video at either 16:9 or 4:3 aspect ratio. Parameters are selected and adjusted using an on-screen display menu.

Features and Benefits



BENEFITS:

  • On-screen level meters provide confidence audio monitoring.
  • Tally and on-screen labeling provide quick and easy signal identification
  • CRT-style image controls allow video image enhancement for each screen individually
  • User defined hot key functionality provides either H/V delay, underscan, on-screen display, and more

FEATURES:

  • In-picture waveform, and vectorscope display
  • Labelling, tally, timecode, detected video format, safe area and title markers display
  • On-screen image calibration controls
  • Gamma color calibration
  • Built-in color bars
  • User-defined function buttons
  • Intuitive on-screen menu

Options

A-V Specs

Meter DynamicsVU or PPM or both
Number of screens4

Physical Specs

Rack Height2RU
Power Consumption10 Watts (3.8 Amps Max)
Power SupplyExternal 12VDC/3.8A, CE & UL approved.
Dimension Width19.0" (483mm)
Dimension Height3.5" (89mm)
Dimension Depth2.5" (64mm)
Net Weight7.0 lbs (3.2 kg)
Shipping Weight7.0 lbs (3.2 kg)
Shipping Dimensions24.0 × 10.0 × 6.0 in (LxWxH)

Support

Looking for software updates for other products? Click here.

Reporting an issue? Click here.

Reviews

Reviews

There are no reviews yet.


Write your review here

Be the first to review “RM-2443WS-3G2”

Your email address will not be published. Required fields are marked *

This site uses Akismet to reduce spam. Learn how your comment data is processed.

Features

Signal Input x

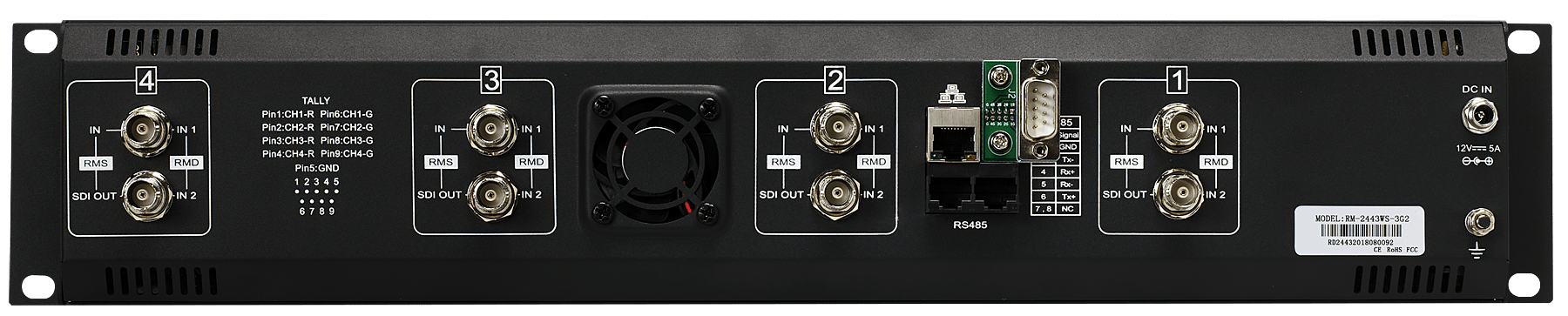

Data Ports 2 RS-485 on RJ-45 for system software upgrades and dynamic IMD controls; 1 DB-9 for tally control; 1 Ethernet connector for software updates
Audio Specifications
Meter Dynamics VU or PPM or both
Video Specifications
Number of screens 4
Features
Interfacing
Physical
Dimension Depth 2.5" (64mm)
Rack Height 2RU
Dimension Height 3.5" (89mm)
Dimension Width 19.0" (483mm)
Net Weight 7.0 lbs (3.2 kg)
Power Consumption 10 Watts (3.8 Amps Max)
Power Supply External 12VDC/3.8A, CE & UL approved.
Shipping Weight 7.0 lbs (3.2 kg)
Other
Processing
