HDM-320-4K-TT – Quad 4x3G-SDI Inputs
SKU: 8001-0630
32″ 12-bit Ultra HD LCD screen supports up to 4 channels of 3G/HD/SD-SDI. 1920x 1080 resolution. In-screen audio level meters. Tabletop Stand.
Description

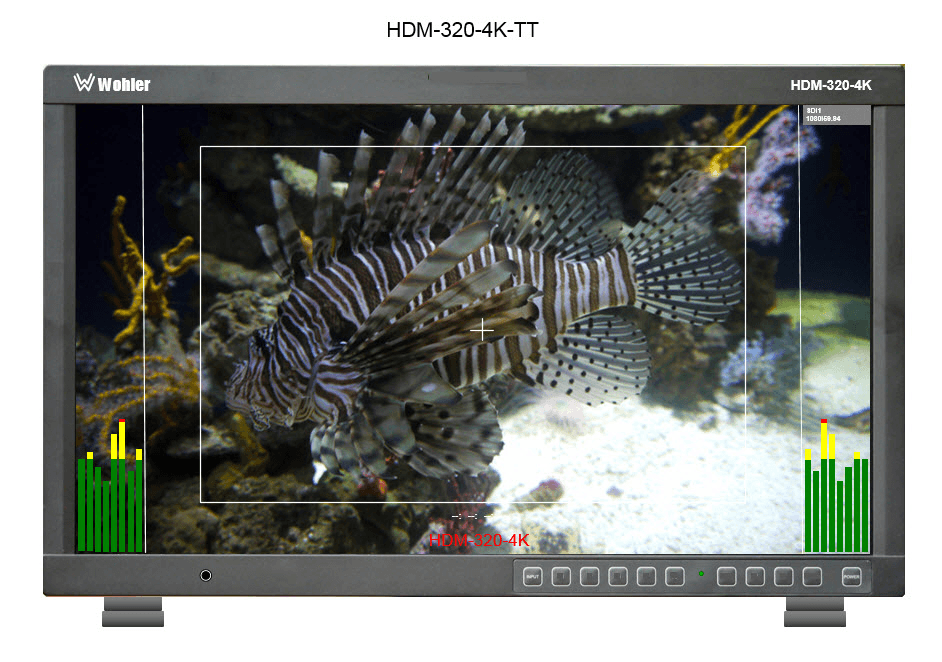

The HDM-320-4K-TT monitor sets a new standard in UltraHD LCD monitors for broadcast and professional video applications. It provides a 32”, 1920 x 1080 resolution, 16:9 format, 60Hz refresh, anti-glare IPS LCD screen. All video formats are scaled to fit on the screen in the highest quality using 12-bit digital processing, precision scaling and gamma correction to produce the best images possible.
Features and Benefits
- Monitor 2SI Interleave or Quad-Link 4K video using four HD-SDI inputs together.
- Two display modes: single display and quad link display.
- Each of 4 SDI inputs can be displayed by full screen in single mode. Quad link mode supports 2-SI and square division display.
- User defined hot key functionality for either H/V delay, underscan, on-screen display.
- On-screen, 16-channel level metering provides audio confidence monitoring.
- Tally and on-screen labeling provide quick and easy signal identification.
- CRT-style image controls allow video image enhancement for each screen individually.
- Supports multi-format analog and digital audio signals.
- Allows adjustment of the parameters for each screen.
- User-adjustable color temperatures with presets.
- Ethernet, RS-485 and GPI control interfaces.
Options
A-V Specs
| Meter Dynamics | VU or PPM or both |
| Display Type | Active color matrix amorphous LCD IPS with LED Backlight |
| Number of screens | 1 |
| Color Depth | 1.073G colors |
| Diagonal Display Size | 32" Diagonal |
| Native Aspect | 16:9,4:3 |
| Display Resolution (HxV) | 1920 H x 1080 V |
| Viewing Angle | 178° x 178° |
| Contrast | 3000:1 |
| Luminance | 300 cd/m2 |
Physical Specs
| Rack Height | 13RU |
| Power Consumption | 44 Watts |
| Power Supply | Internal IEC Connector, Universal Input, 100-240VAC, 50/60Hz, CE & UL approved. |
| Dimension Width | 28.3" (720mm) |
| Dimension Height | 17.4" (442mm) |
| Dimension Depth | 2.8" (78mm) |
| Net Weight | 29.0 lbs (13.2 kg) |
| Shipping Weight | 29.0 lbs (13.2 kg) |
| Shipping Dimensions | N/A (LxWxH) |
Support
Looking for software updates for other products? Click here.
Reporting an issue? Click here.
Reviews
Write your review here
Features
| Signal Input | x |
|---|---|

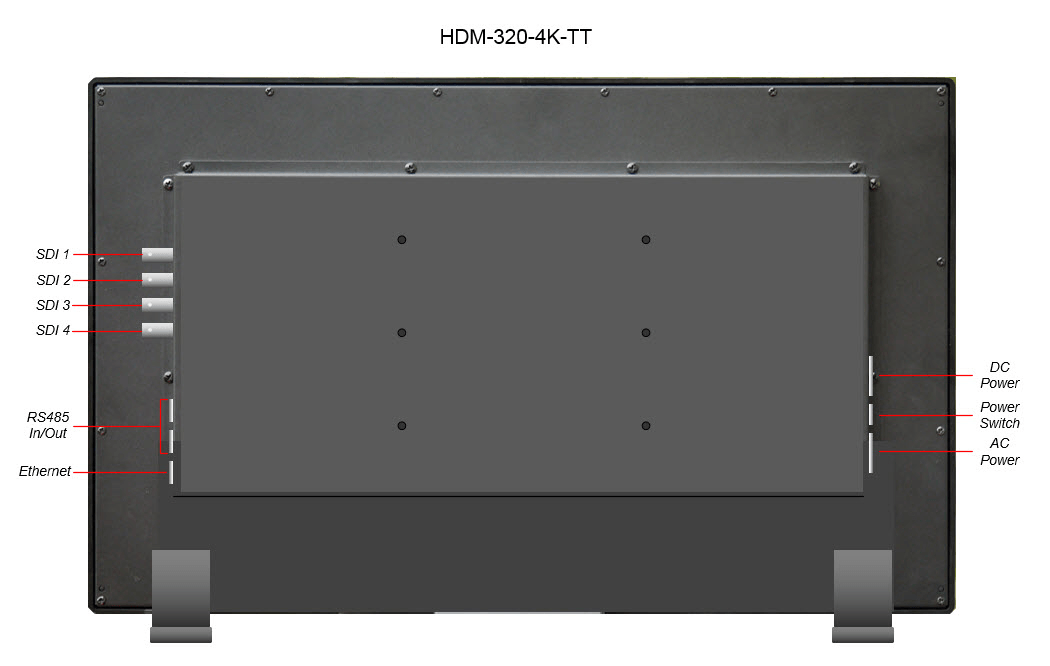

| Data Ports | 1 Ethernet connector for software updates; 2 RS-485 on RJ-45 for UMD controls; 6 GPI Inputs on RJ-45 for external control |
| Audio Specifications | |
| Meter Dynamics | VU or PPM or both |
| Video Specifications | |
| Color Depth | 1.073G colors |
| Contrast | 3000:1 |
| Diagonal Display Size | 32" Diagonal |
| Display Resolution (HxV) | 1920 H x 1080 V |
| Display Type | Active color matrix amorphous LCD IPS with LED Backlight |
| Luminance | 300 cd/m2 |
| Native Aspect | 16:9,4:3 |
| Number of screens | 1 |
| Viewing Angle | 178° x 178° |
| Features | |
| Interfacing | |
| Physical | |
| Dimension Depth | 2.8" (78mm) |
| Rack Height | 13RU |
| Dimension Height | 17.4" (442mm) |
| Dimension Width | 28.3" (720mm) |
| Net Weight | 29.0 lbs (13.2 kg) |
| Power Consumption | 44 Watts |
| Power Supply | Internal IEC Connector, Universal Input, 100-240VAC, 50/60Hz, CE & UL approved. |
| Shipping Weight | 29.0 lbs (13.2 kg) |
| Other | |
| Processing | |
