SKU: 8101-0100

AMP2-S8-MDA-3G (Last, 1 Available)

Carries full warranty.  CIA Terms for purchase. Regularly priced at $4,195, last unit available at $1,995.  8 Channel, 3G/HD/SD-SDI, AES, Analog Audio Monitor. 2RU.
Data Sheet

Data Sheet



Ask a Question

Ask a Question




Request a Quote

fields marked with an * are required

AMP2-S8-MDA-3G (Last, 1 Available)

    First Name*

    Last Name*



    Company Name*

    Select Country*

    Please indicate the signals you need
    to decode or monitor


    Any additional processing needs?
    Wohler offers additional processing options.
    Please check any/all that you want quoted.

    Dolby D/DD+/EDolby ATMOSOutput Routing

    Please describe your project

    please provide project informaion to help us give you the best quote.
    Quantities and # of channels to monitor is especially useful.

    Budget Status

    Date Product is required

    Number of units required

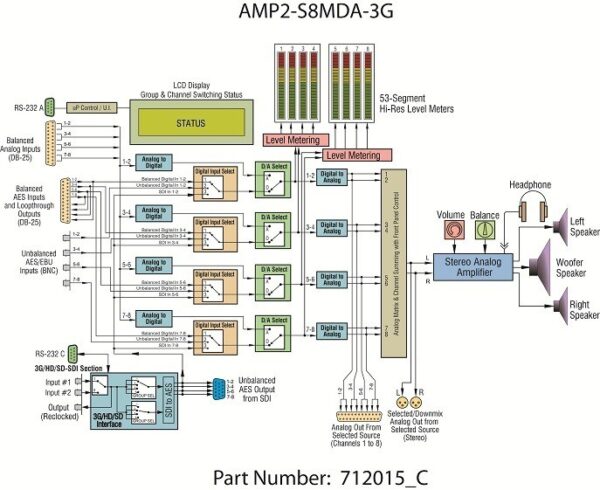

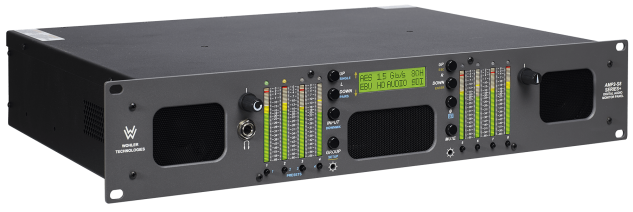

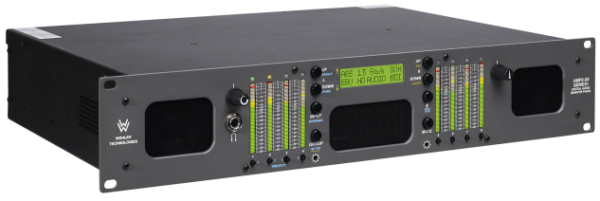

    The AMP2-S8-MDA monitor is an exceptionally high-quality audio monitor systems offering premium quality 8-channel analog, AES/EBU, 3G/HD/SD-SDI multi-channel audio monitoring and conversion as well as professional level metering. These units contain 3 audiophile-quality drivers and three power amplifiers; 3 speakers and amplifiers reproduce mid-range and high frequency information in stereo, while the third amp/driver combination handles summed LF information below the 500 Hz crossover point.

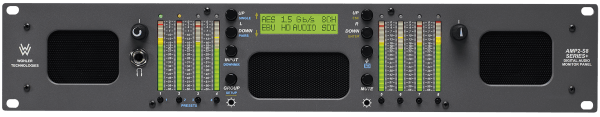

    These units feature eight 53-segment high-resolution, tri-color LED level meters showing simultaneous VU and PPM for superior level-metering. The front panel features an innovative LCD display of phase/polarity relationships. Output limiter circuits are incorporated to protect the speakers, and extensive magnetic shielding allows placement immediately adjacent to video monitors with no color impurities.

    The unique design provides optimally focused sound for operators in an ultra near-field (1 to 3 ft.) working environment and offers performance comparable to that of many separate monitor pairs, without the installation hassles, awkward speaker placements and “added-on” look. This provides for a higher SPL for the operator while reducing overall ambient sound and adjacent bay crosstalk. Extended HF response reveals potential problems with audio whine or hiss and electronic rather than acoustic cancellation of bass frequencies provides positive audible detection of out-of-phase (reversed polarity) audio feeds. A headphone jack is provided on the front panel that automatically mutes the speakers.

    These units are ideally suited for use in space-critical environments such as TV facilities, studios, VTR bays, mobile production vehicles, satellite links and indeed, any rack mount environment where multi-channel audio monitoring is required.

    Features & Benefits


    • Front panel summing of any combination of up to 8 channels to the left and/or right speakers and selected
    • Eight 53-segment tri-color LED bar graphs displaying simultaneous VU and PPM
    • Headphone jack (mutes speakers)
    • Premium quality drivers and power amplifiers
    • Audible indications of phase/polarity problems
    • Phase-correlation display of selected channels
    • Output limiter protected speakers


    • Thorough magnetic shielding prevents interference from nearby equipment.
    • Electronic cancellation provides detection of out-of-phase (reversed polarity) audio feeds.
    • Excellent frequency response and low distortion
    • Focused sound, reduces adjacent bay crosstalk
    • Ultra near-field offers exceptional monitoring performance.
    • Small rack space requirements make them perfectly suited for use in space-critical

    A-V Specs

    Spkr Power Output  RMS Each Side: 5W Continuous/10W Peak
    Peak Acoustic Output @ 2 feet  104 dB SPL @ 2 ft
    AES Input Sampling Rate  32-48 kHz, auto-detecting
    Analog Input Impedance  27k Ohms, Minimum
    Frequency Response  80 Hz – 18 kHz (+/-5 dB); (-10 dB @ 55 Hz, 21 kHz)
    Hum and Noise  Better than -68 dB below full output
    Meter Dynamics  Simultaneous VU & PPM
    Display Type  LCD


    Physical Specs

    Rack Height  2RU
    Power Consumption  72 Watts Max
    Power Supply  Internal IEC Connector, Universal Input, 100-240VAC, 50/60Hz, CE & UL approved.
    Dimension Width  19.0″ (483mm)
    Dimension Height  3.5″ (89mm)
    Dimension Depth  14.0″ (356mm)
    Net Weight  21.0 lbs (9.6 kg)
    Shipping Weight  21.0 lbs (9.6 kg)
    Shipping Dimensions  23.5 × 17.0 × 7.5 in (LxWxH)
