SKU: 8500-2100

Single Probe Licenses (SaaS)

New
HEAR audio, WATCH video, and VIEW meters, loudness, and other data from one or more signal probes in any global location.
Data Sheet

Data Sheet

Ask a Question

Ask a Question

Support

Support

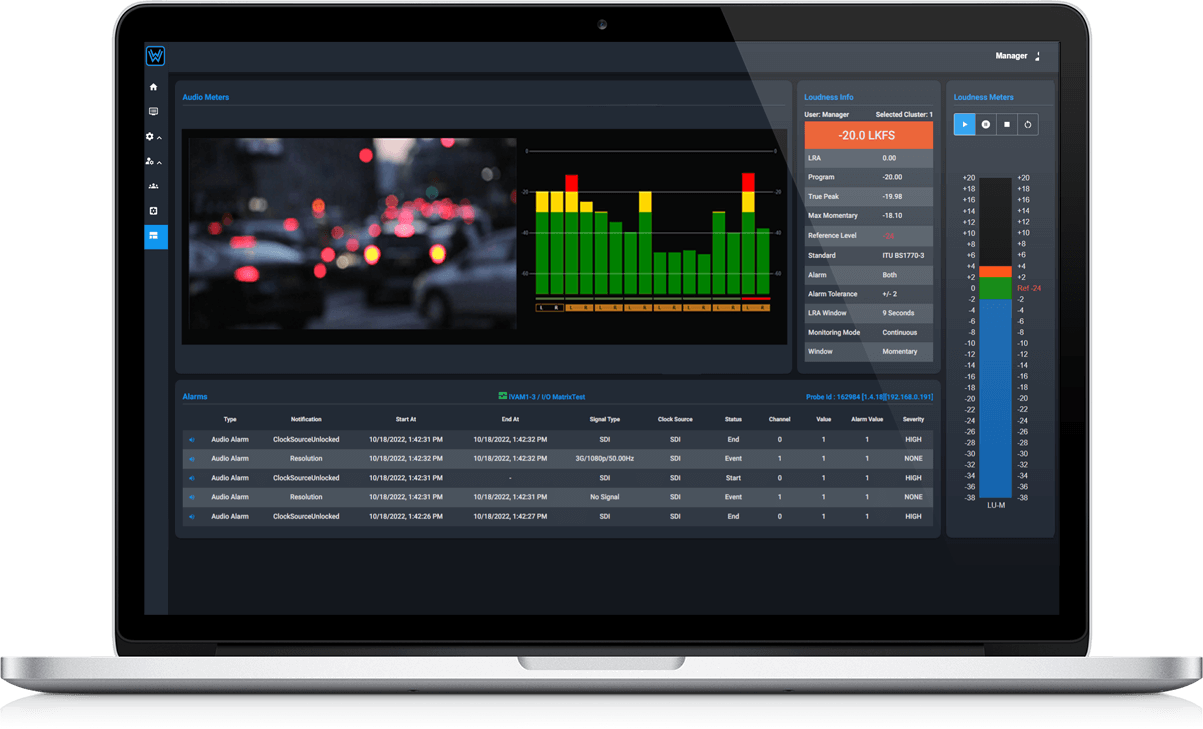

Remote Monitoring Desktop

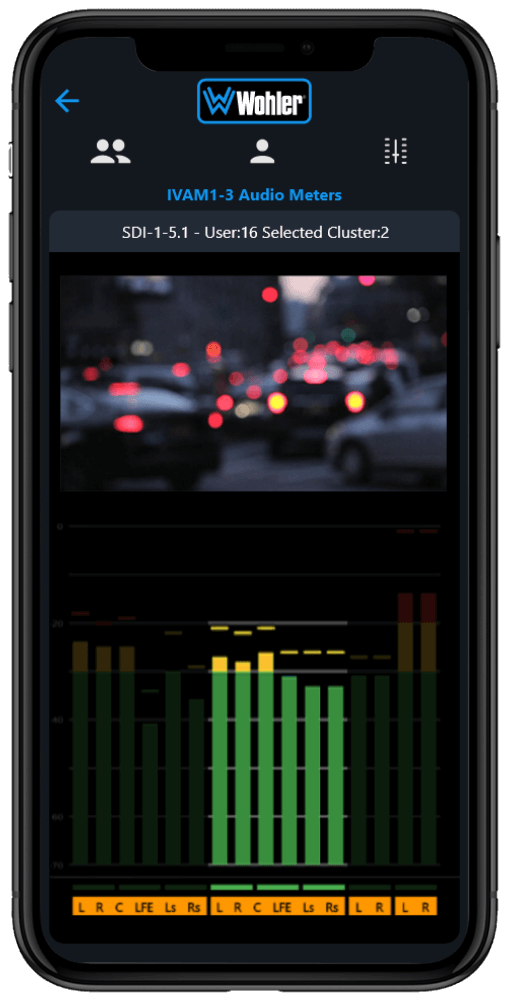

Remote Monitoring Mobile

Request a Quote

fields marked with an * are required

Single Probe Licenses (SaaS)

    First Name*

    Last Name*

    Email*

    Phone*

    Company Name*

    Select Country*

    Signal
    Please indicate the signals you need
    to decode or monitor

    3G-SDI12G-SDI/4K12G-SDI/4KST-2110ST-2022Ravenna/AES67Dante/AES67AnalogAES3MADIToslinkCVBS

    Any additional processing needs?
    Wohler offers additional processing options.
    Please check any/all that you want quoted.

    Dolby D/DD+/EDolby ATMOSOutput Routing

    Please describe your project

    please provide project informaion to help us give you the best quote.
    Quantities and # of channels to monitor is especially useful.

    Budget Status

    Date Product is required

    Number of units required

    Description

    MAVRIC is designed and built for all our existing customers, in addition to new ones. The system integrates with audio software probes built into our current iSeries and eSeries in-rack monitors, enabling our customers to do more with existing equipment they may already own. The key features are that while allowing for remote monitoring, including the ability to listen to a pair of selected channels remotely, the software probe does not in any way interfere with the normal operation of the in-rack monitor, and the operator interacting with the front panel is not even aware of the existence of the software probe. The system also enables multiple users to look at the signals from these software probes simultaneously.

    Specifically, Remote Monitoring has been built as a natural progression to our in-rack monitoring products, keeping in sight our customers’ need to monitor signals across the globe and removing the need for a person to be physically in front of the equipment.  Visual, aural, loudness, and other data from one or more signal probes is directly accessible on your desktop browser, laptop, or via our MAVRIC app (available for both Apple & Android devices) on your tablet or smartphone.

    Features & Benefits

    • Remotely listen to individual audio channels (8/16), or a stereo downmix of selected audio clusters.
    • Remotely view audio meters and loudness levels for selected audio clusters and video signals.
    • Remotely view signal metadata for all monitored signals.
    • Support on-site and off-site personnel located across remote infrastructure like OB vans and remote data centers/TCR’s.
    • Enable rapid pinpointing and resolution of problems during live events.
    • Seamlessly integrate monitoring systems across worldwide locations.
    • Seamlessly integrate monitoring systems across worldwide locations.
    • Monitor signals remotely using a standard Internet browser or via an Android/iOS App.
    • Construct your own multiviewer from probes deployed anywhere in the world.
    • Create probe configuration presets to select video source along with any selection of 8/16 audio channels for remote monitoring.
    • Use with built-in software audio probes available on all current Wohler iSeries and eSeries in-rack monitors.
    • Use with Signal probes available as hardware option card installed in your in-rack Wohler monitors, or on available Wohler openGear monitoring cards for remote monitoring.

    Specifications

    • Probes as well as number of concurrent users can be scaled independently.
    • For on-premise installations please contact Wohler for precise server specifications required to run the application.
    • Regular bug-fixes, security patches and feature enhancements are covered by an Annual Maintenance contract (AMC).
    • Installation:
      • Deployed on-premise, in the Cloud or as a hybrid installation, with secure encrypted communications across all interfaces and signal sources.
      • Also available as a hosted service managed entirely by Wohler

    Purchase and Quoting Options

    MAVRIC Wohler Hosted (Cloud)
    Remote Monitoring (MS) for Audio Only 8500-2400 No minimum on number of audio probes.  Probes can be licensed as per requirements in the Cloud, with secure encrypted communications across all interfaces and signal sources.  Charges as a subscription per annum.
    Remote Monitoring (MS) for Audio/Video 8500-2430 No minimum on number of audio and video probes.  Probes can be licensed as per requirements in the Cloud, with secure encrypted communications across all interfaces and signal sources.  Charges as a subscription per annum (billed quarterly).
    MAVRIC On Premises (Private Cloud, VM or hybrid)
    Remote Monitoring – 5 8500-2100 Initial installation licensed to monitor 5 probes.  Additional probles can be licensed as per requirements in blocks of 5.  Deployed on-premise, either in the customer’s private Cloud, on a VM, or as a hybrid installation, with secure encrypted communicatiins across all interfaces and signal sources.  Subject to Annual Maintenance.
    Hardware Options to enable MAVRIC Remote Monitoring
    Free 2 Channel Audio N/A All iSeries and eSeries monitors have a built-in ability to send 2 channels of audio to MAVRIC Remote Monitoring without any additional hardware purchases.
    RMOG-12G-SDI 8140-0200 openGear monitor card with remote GUI for use and access, but also compatible with MAVRIC, acceptx 2 x 12G-SDI inputs on BNC with 1 selected output.  Options available for SDI on Fiber, 2110 and 2022, and for hitless AES67, Dante or Ravenna AoIP.
    OPT-RMOC-12G 829189-1U

    829190-2U

    		 Signal probe option card for all current 1U and 2U iSeries & eSeries in-rack monitors, installed in the option card slot.  Single SFP slot for 12G/3G SDI or ST2110 input.  Capable of monitoring 16 channels of audio plus a single video input.  Both audio & video are selectable from a choice of sources connected directly to the card, or inputs connected to the in-rack monitor.
