SKU: 8001-0176

RM-3270WS-3G2

Dual 7.0″ Widescreen LCD Video Monitor, Dual Input 3G/HD/SD-SDI, Composite. Audio/Video Metering. 3RU.
Data Sheet

Data Sheet

Manual

Manual

Ask a Question

Ask a Question

Support

Support


Sold Out

Request a Quote

fields marked with an * are required

RM-3270WS-3G2

    First Name*

    Last Name*

    Email*

    Phone*

    Company Name*

    Select Country*

    Signal
    Please indicate the signals you need
    to decode or monitor

    3G-SDI12G-SDI/4K12G-SDI/4KST-2110ST-2022Ravenna/AES67Dante/AES67AnalogAES3MADIToslinkCVBS

    Any additional processing needs?
    Wohler offers additional processing options.
    Please check any/all that you want quoted.

    Dolby D/DD+/EDolby ATMOSOutput Routing

    Please describe your project

    please provide project informaion to help us give you the best quote.
    Quantities and # of channels to monitor is especially useful.

    Budget Status

    Date Product is required

    Number of units required

    Description

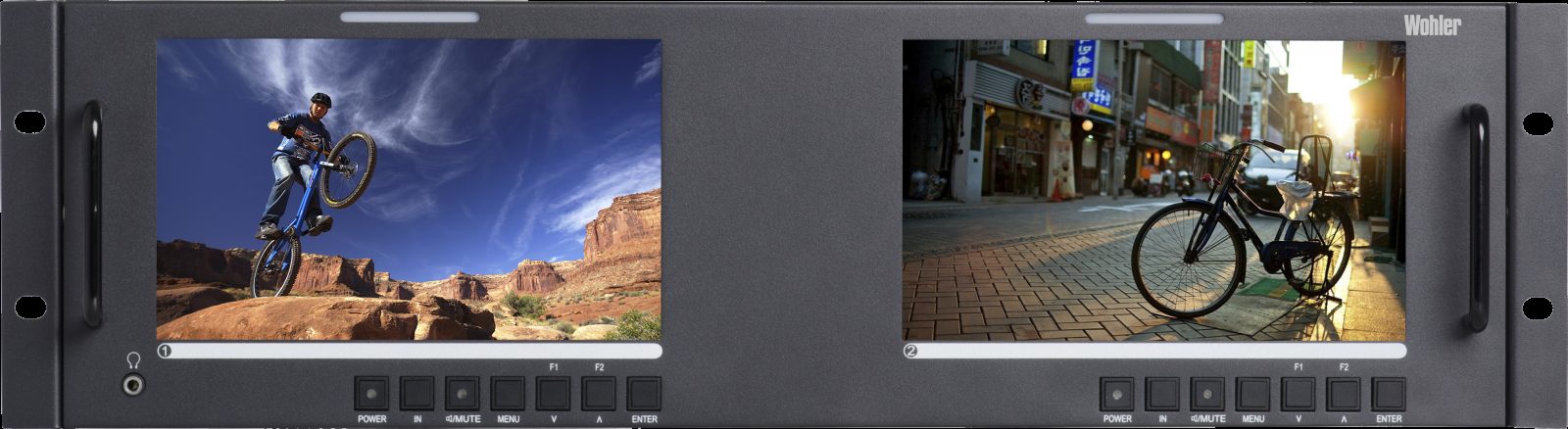

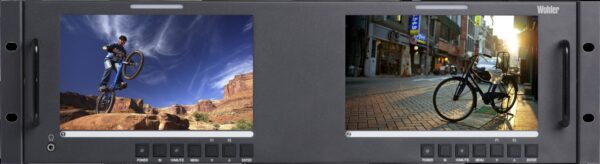

    The RM-3270WS-3G2 is a highly-featured, low-cost in-rack 3G/HD/SD-SDI and CVBS video monitor ideal for the many feeds in mobile trucks, news and transmission control rooms, duplication, and post production applications.

    The RM-3270WS-3G2 come standard with in-monitor level metering, selectable video waveform and vectorscope, safe and title markers, labeling, tally, timecode, video format, and built-in color bars, and an intuitive on-screen configuration menu.

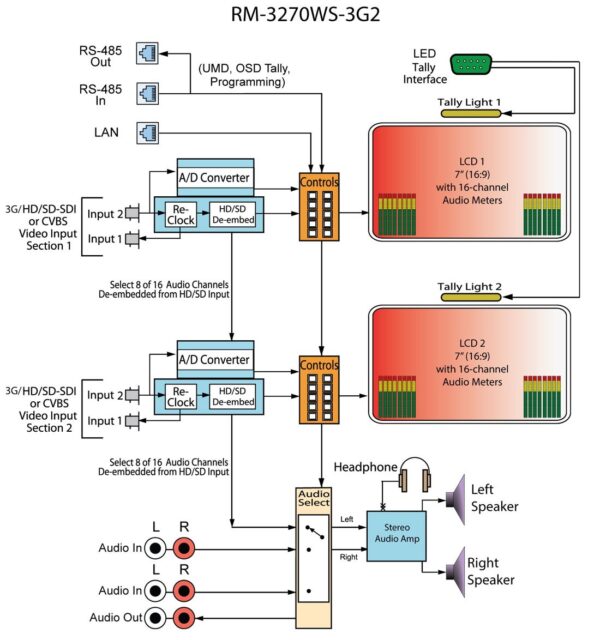

    Input signals are automatically detected and up to 16 audio channels embedded in an 3G/HD/SD-SDI bitstream may be selected for visual monitoring. A headphone jack or speakers provides audible stereo monitoring of selected left and right channels.

    Each of the two high-resolution LCD screens display high-definition or standard- definition video at either 16:9 or 4:3 aspect ratio. Parameters are selected and adjusted using an on-screen display menu.

    Features & Benefits

    • Monitor 3G/HD/SD-SDI and analog composite video signals
    • 1024 x 600 LCD displays
    • Waveform and vectorscope display
    • 16-channel in-picture level metering
    • Closed caption detection
    • Labelling, tally, timecode, detected video format, safe area and title markers display
    • Headphone output
    • Ethernet configuration and control

    A-V Specs

    Meter Dynamics  VU or PPM or both
    Display Type  LCD
    Number of screens  2
    Color Depth  16.7M, 24-Bit
    Diagonal Display Size  7 Inch
    Native Aspect  16:09
    Display Resolution (HxV)  1024 x 600
    Viewing Angle  135 (H) x 110 (V)
    Contrast  700:01:00
    Pixel Response  <25 ms
    Luminance  350 cd/m^2



    Physical Specs

    Rack Height  3RU
    Power Consumption  10 Watts (3.8 Amps Max)
    Power Supply  External 12VDC/3.8A, CE & UL approved.
    Dimension Width  19.0″ (483mm)
    Dimension Height  5.25″ (143mm)
    Dimension Depth  3.0″ (76mm)
    Net Weight  6.0 lbs (2.7 kg)
    Shipping Weight  9.0 lbs (4.1 kg)
    Shipping Dimensions  N/A (LxWxH)
