Wohler Technologies has been in business for over 30 years.  We invented in-rack monitoring and we are now RE-INVENTING this broadcast technology for the modern media enterprise to handle IP MONITORING.

Flexible. Adaptable. Future Proof.

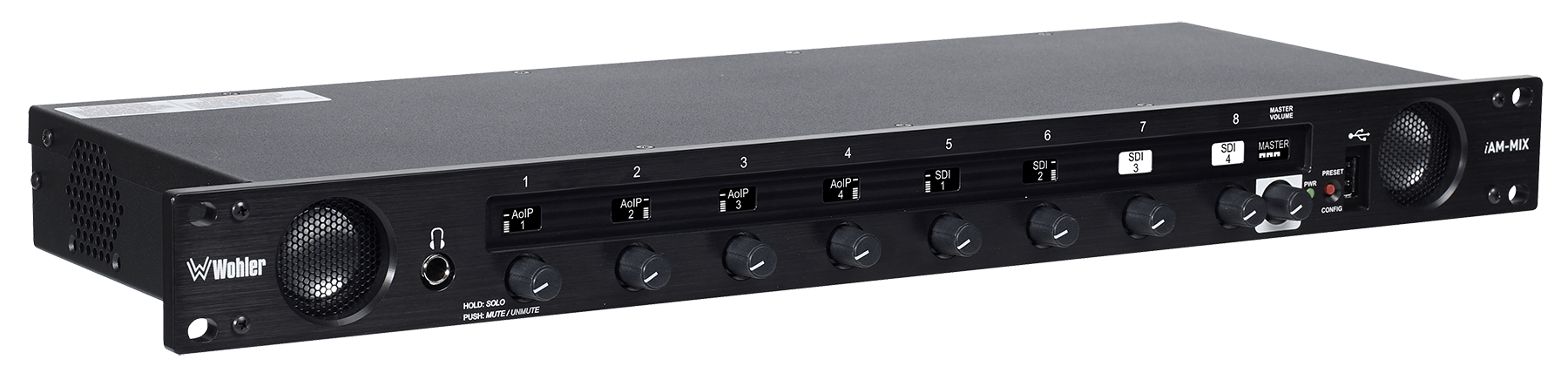

Specifically designed for fast-paced OB, studio and live-to-air production environments, iAM-MIX provides intuitive audio signal monitoring with instant access to signals or to user-definable presets of any individual signal source or a mix of sources for monitoring and mixing. Signal options include the latest IP formats: SMPTE 2110, SMPTE 2022, Ravenna^TM/AES67 and Dante^TM

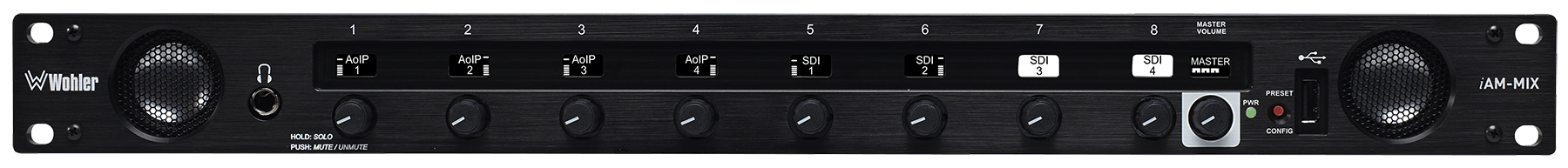

Choose from either 8 or 16 level controls, both with an independent master level control and instant mute capability and push-for-solo capability. Individual OLED display indicators show status, presence metering and channel name – which can be manually edited or automatically read from a network connected router.

Multiple units on the same network can be controlled via a browser-based user interface that supports fast configuration with role-based authentication to protect critical setups.  In short, iAM-MIX is the perfect solution for any application that requires a simple, compact solution for monitoring a range of audio signals.

FEATURES & BENEFITS:

• Fast selection and summing of up to 8 audio channels, allowing quick muting and hold-for-solo
• Master volume control that also provides a master mute/unmute
• Channel names can be displayed for each input or pulled from a router

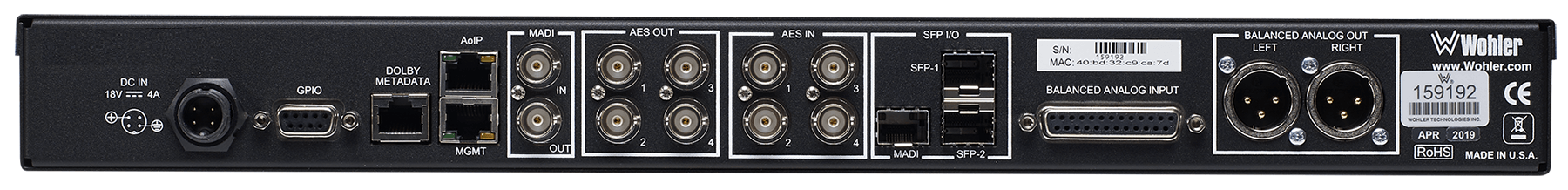

• Built-in speakers, headphone jack, USB and Ethernet ports
• A range of included and optional connectors and signal processing options, including SFP slots for future I/O and Ethernet inputs for IP-based I/O
• Store and retrieve presets up to 64 presets (16 accessible on front panel)
• Software upgradeable via USB or network, upgrade multiple units at once
• APIs included for remote control

iAM Series Option Matrix

PART NUMBERS:

Base Units:

• iAM-MIX-8: 8114-0090: 1RU Base Unit. 8 selectable output controls. Includes OPT-ANLG only.
• iAM-MIX-16: 8114-0140: 1RU Base Unit. 16 selectable output controls. Includes OPT-ANLG only.

Processing Options:

• OPT-DANTE: 829078: Enable monitoring of up to 64ch Dante™ Input. Hardware card with software activation key.
• OPT-RAVENNA: 829079: Enable monitoring of up to 256ch Ravenna™ / AES67 Input. Hardware card with software activation key.

I/O Options:

• SFP-SDI (829089) 3G/HD/SD-SDI single receiver w/active loopback, HD-BNC Connectors. SFP module with software activation key
• SFP-SDI-Fiber (829084) 3G/HD/SD-SDI/ASI SFP optical input; LC (fiber) Connectors; Single-Mode Receiver, Medium Haul, Non-MSA, no output; with software activation key
• SFP-2110 (829086) SMPTE 2110 receiver; Multi-Mode 850 NM, LC (fiber) Connectors. SFP module with software activation key
• SFP-2022-6 (829088) SMPTE 2022-6 receiver; Multi-Mode 850 NM, LC (fiber) Connectors. SFP module with software activation key
• SFP-Madi-MM-Fiber (829081) MADI optical fiber transceiver; Multi-Mode, LC (fiber) Connectors. SFP module with software activation key.
• SFP-Madi-SM-Fiber (829082) MADI optical fiber transceiver; Single-Mode, LC (fiber) Connectors. SFP module with software activation key.
• OPT-MADI (829092) Enable monitoring of 1 x MADI64 input via BNC with 1 x looped output. Software activation key.
• OPT-AES (829080) Enable monitoring of AES3 Input Pairs. Software activation key.
• OPT-ANLG (829093) Enable monitoring of 8 Analog channels on DB-25. Software activation key. Included as standard with all iAM-MIX & iAM-AUDIO variants



Options for iAM Series



Spkr Power Output	RMS Each Side: 12W Continuous/24W Peak
Peak Acoustic Output @ 2 feet	90 dB SPL @ 2 feet
AES Input Sampling Rate	48 kHZ
Analog Input Impedance	40k Ohms balanced
Frequency Response	150 Hz to 16 kHz (+/-dB) acoustic, 40 Hz to 20 kHz (+/-1dB) electrical
Hum and Noise	Better than -68 dB below full output

Rack Height	1RU
Power Consumption	30 Watts typical
Power Supply	External 18VDC to 100-240 VAC ± 10%, 50/60 Hz,CE & UL approved.
Dimension Width	19.0" (483mm)
Dimension Height	1.75" (45mm)
Dimension Depth	6.5" (165 mm)
Net Weight	6.5 lbs. (2.9 kg)
Shipping Weight	8.5 lbs (3.9 kg)
Shipping Dimensions	N/A (LxWxH)
