SKU: 8003-0070-RB

Dual input 4.3” looped HD/SD-SDI video monitor. Also includes a 6-channel Dolby D and PCM audio monitor with metering, drawing from 1 of 2 undecoded Dolby stream inputs

1 in stock

Request a Quote
Audio Monitor Video Monitor 3G/HD/SD-SDI AES3 Dolby Audio Decoding Headphone Socket Speakers Made In USA


Important Note:

From time to time Wohler offers units here that have been unboxed, demonstrated or that we quite simply just want to get off of our factory shelves – either way the result is an incredible deal for you. All units are in excellent condition, are fully factory tested and come covered by our one year full warranty for your complete peace of mind.

  • Sales are on a CASH-IN-ADVANCE or CREDIT CARD basis.
  • Each item carries a full one year manufacturer’s warranty.
  • At these prices all sales are final, we can’t accept any returns.
  • All quantities are while supplies last.

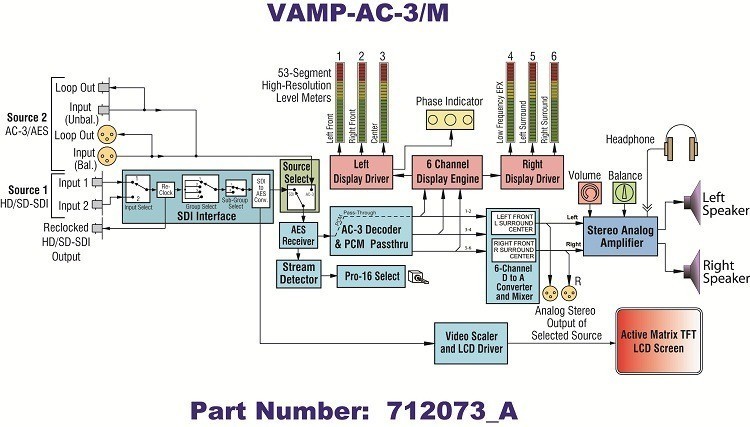

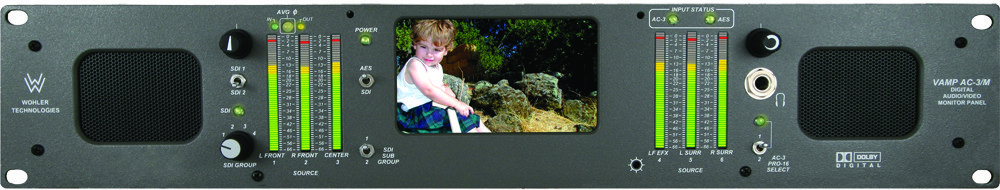

The VAMP AC-3/M is a complete integrated 6 channel Dolby Digital audio and SDI video monitoring system as well as professional level metering in a compact two rack space cabinet. A 4.3” widescreen color active matrix TFT LCD displays all formats of SDI video from two auto-sensing HD/SD-SDI inputs with re-clocked output. The audio source is selectable between embedded SDI and AES Dolby D.

The VAMP AC-3/M features six 53 segment highresolution tri-color LED level meters showing simultaneous VU and PPM for superior level metering. Output limiter circuits are incorporated to protect the speakers, and extensive magnetic shielding allows placement immediately adjacent to video monitors with no color impurities.

The unique design provides optimally focused sound for operators in an ultra near field (1 to 3 ft.) working environment and offers performance comparable to that of many separate monitor pairs, yet does so without the installation hassles, awkward speaker placements and “added-on” look. This provides for a higher SPL for the operator while reducing overall ambient sound and adjacent bay crosstalk. Extended HF response reveals potential problems with audio whine or hiss and electronic rather than acoustic cancellation of bass frequencies provides positive audible detection of out-of-phase (reversed polarity) audio feeds.

Features & Benefits:
• 4.3” 16:9 format color LCD video screen
• Six high-resolution 53-segment meters showing simultaneous VU and PPM
• Premium quality drivers and power amplifiers
• Output limiter protected speakers
• Hear and see up to 6 channels of audio simultaneously
• Powerful 100dB SPL at 2 feet (0.6m)
• Focused sound, reduces adjacent bay crosstalk
• Includes an internal Dolby Digital AC-3 decoder
• Balanced analog output of 2 selected channels or multi-channel downmix
• Thorough magnetic shielding

Features and Benefits



A-V Specs

Spkr Power Output15 W per speaker
Peak Acoustic Output @ 2 feet100 dB SPL @ 2 ft
AES Input Sampling Rate32-48 kHz, auto-detecting
Frequency Response80 Hz - 16 kHz (+/-7 dB)
Hum and NoiseBetter than -68 dB below full output
Meter DynamicsSimultaneous VU & PPM
Display TypeTransmissive High-resolution LCD, active matrix TFT
Number of screens1
Diagonal Display Size4.3"
Display Resolution (HxV)480H x 272V

Physical Specs

Rack Height2RU
Power Consumption60 Watts
Power Supply100-240 VAC ± 10%, 50/60 Hz,CE & UL approved.
Dimension Width19.0" (483mm)
Dimension Height3.5" (90mm)
Dimension Depth15.0" (381mm)
Net Weight18 lbs (8.2 kg)
Shipping Weight20 lbs (9.1 kg)
Shipping DimensionsN/A (LxWxH)


Looking for software updates for other products? Click here.

Reporting an issue? Click here.



There are no reviews yet.

Write your review here

Be the first to review “VAMP-AC3-M (EOL)”

Your email address will not be published. Required fields are marked *

This site uses Akismet to reduce spam. Learn how your comment data is processed.


Signal Input x , x , x , x
Signal Output x , x , x
Audio Specifications
Spkr Power Output 15 W per speaker
Peak Acoustic Output @ 2 feet 100 dB SPL @ 2 ft
AES Input Sampling Rate 32-48 kHz, auto-detecting
Frequency Response 80 Hz - 16 kHz (+/-7 dB)
Hum and Noise Better than -68 dB below full output
Meter Dynamics Simultaneous VU & PPM
Video Specifications
Diagonal Display Size 4.3"
Display Resolution (HxV) 480H x 272V
Display Type Transmissive High-resolution LCD, active matrix TFT
Luminance 165NITs
Number of screens 1
Dimension Depth 15.0" (381mm)
Rack Height 2RU
Dimension Height 3.5" (90mm)
Dimension Width 19.0" (483mm)
Net Weight 18 lbs (8.2 kg)
Power Consumption 60 Watts
Power Supply 100-240 VAC ± 10%, 50/60 Hz,CE & UL approved.
Shipping Weight 20 lbs (9.1 kg)
