SKU: 8005-0040-EOL

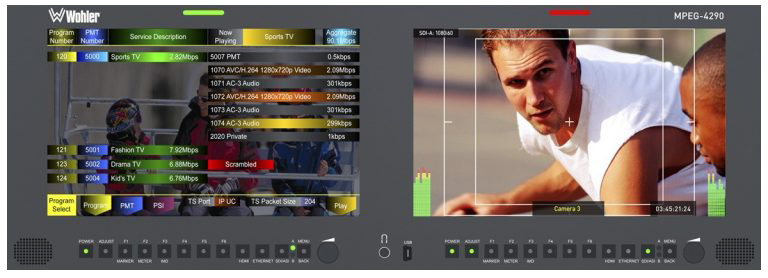

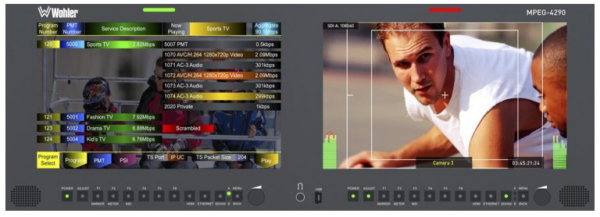

MPEG-4290 (End of Life)

Cost-effective solution for real-time MPEG TS, SDI, and HDMI monitoring to enable delivery of excellent Quality of Service (QoS)
Data Sheet

Data Sheet

Manual

Manual

Ask a Question

Ask a Question

Support

Support


Sold Out

Sorry this product is sold out / Out of Stock

$ 2848

Request a Quote

fields marked with an * are required

MPEG-4290 (End of Life)

    First Name*

    Last Name*

    Email*

    Phone*

    Company Name*

    Select Country*

    Signal
    Please indicate the signals you need
    to decode or monitor

    3G-SDI12G-SDI/4K12G-SDI/4KST-2110ST-2022Ravenna/AES67Dante/AES67AnalogAES3MADIToslinkCVBS

    Any additional processing needs?
    Wohler offers additional processing options.
    Please check any/all that you want quoted.

    Dolby D/DD+/EDolby ATMOSOutput Routing

    Please describe your project

    please provide project informaion to help us give you the best quote.
    Quantities and # of channels to monitor is especially useful.

    Budget Status

    Date Product is required

    Number of units required

    Description

    Important Note:

    From time-to-time Wohler offers units here that have been unboxed, demonstrated or that we quite simply just want to get off of our factory shelves – either way the result is an incredible deal for you. All units are in excellent condition, are fully factory tested and come covered by our one-year full warranty for your complete peace of mind.

    • Sales are on a CASH-IN-ADVANCE or CREDIT CARD basis.
    • Each item carries a full one-year manufacturer’s warranty.
    • At these prices all sales are final, we can’t accept any returns.
    • All quantities are while supplies last.

    The MPEG series decodes and displays MPEG-2 and MPEG-4 signals via Ethernet IP or BNC ASI inputs while giving users the ability to browse PAT, PMT, EIT and NIT data tabels for each selected stream. In addition to MPEG IPTV and ASI inputs the MPEG series monitors also feature dual 3G/HD/SD-SDI inputs with loop-through output, HDMI input, and audio monitoring with on-screen level meters.

    Only the MPEG series decodes and monitors MPEG transport streams carrying MPEG-2, MPEG-4/H.264 encoded video plus all associated data tables for complete confidence monitoring in places it was previously impractical or very costly to do so. The MPEG series brings confidence monitoring to a new level without codec limitations or the costly upgrades usually associated with MPEG monitoring equipment.

    Features & Benefits

    FEATURES & BENEFITS:

    • Stand-alone multi-format confidence monitoring station (Dual ASI, 3G/HD/SD-SDI with loop-through, Single IP and HDMI inputs on all screens)
    • Automatically identifies and decodes selected MPEG-2 4:2:0 and H.264/MPEG-4 4:2:0 video, audio, and metadata
    • Status Indicators offer a quick go/no go indication of MPEG parameters, including: PAT, CAT, NIT, SDT, EIT, TDT, SIT and Sync
    • Dolby® Digital and Digital+ Decode (Optional)
    • Multiple audio decode of up to 12 groups to support multiple language tracks
    • In-picture level metering for up to 16-channels of audio
    • Level meters can display both average & PPM (Peak) levels with selectable meter scales
    • Tally and on-screen labelling for quick and easy signal identification
    • In-picture Centre, Area, and Safe Title Markers
    • Supports frame rates up to 1080p60 on both baseband and compressed inputs
    • Easy to use interface with color coding for different elements
    • Low power consumption
    • Monitor embedded audio through local speakers and 3.5 mm headphone output
    • Future proof design through easy software upgrades via USB for additional features and functions

    A-V Specs

    Display Type  Active color matrix amorphous LCD TFT screen; LED Backlight
    Number of screens  2
    Color Depth  16.7 million
    Diagonal Display Size  9″
    Native Aspect  16:9 native 4:3 selectable
    Display Resolution (HxV)  800 x 480
    Viewing Angle  176 degrees horizontal x 176 degrees vertical
    Contrast  600:1
    Pixel Response  <25 ms off-on-off (black to white to black)
    Luminance  400 cd/m^2

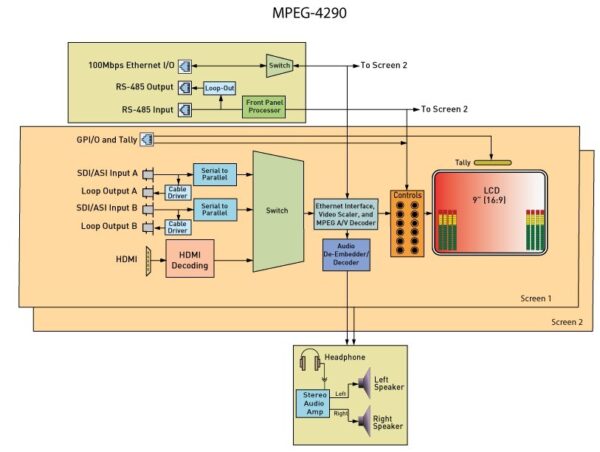

    Diagram

    Physical Specs

    Rack Height  4RU
    Power Consumption  10W
    Power Supply  Power to the unit connects to mains power (100 to 240 VAC ± 10%, 50/60Hz); AC Power cord supplied
    Dimension Width  19.0″ (483mm)
    Dimension Height  7″ (178mm)
    Dimension Depth  2.2″ (56mm)
    Net Weight  6.1 lbs (2.8 kg)
    Shipping Weight  7.3 lbs (2.8 kg)
    Shipping Dimensions  24 × 17 × 8 in (LxWxH)
