SKU: 8002-0177

RM-3270W-3G2 (Last, 3 Available)

Carries full warranty.  CIA Terms for purchase.  Regularly priced at $2,495, last units available at $1,195.  Dual 7.0 Inch Widescreen LCD Video Monitor with Dual Input 3G-SDI, CVBS & HDMI I/O, 3U. Speakers, meters, scopes, markers, tally, picture controls, IMD.
Data Sheet

Data Sheet

Manual

Manual

Ask a Question

Ask a Question

Support

Support

Sale!
Sold Out

Sorry this product is sold out / Out of Stock

$ 1195

Read more

Request a Quote

fields marked with an * are required

RM-3270W-3G2 (Last, 3 Available)

    First Name*

    Last Name*

    Email*

    Phone*

    Company Name*

    Select Country*

    Signal
    Please indicate the signals you need
    to decode or monitor

    3G-SDI12G-SDI/4K12G-SDI/4KST-2110ST-2022Ravenna/AES67Dante/AES67AnalogAES3MADIToslinkCVBS

    Any additional processing needs?
    Wohler offers additional processing options.
    Please check any/all that you want quoted.

    Dolby D/DD+/EDolby ATMOSOutput Routing

    Please describe your project

    please provide project informaion to help us give you the best quote.
    Quantities and # of channels to monitor is especially useful.

    Budget Status

    Date Product is required

    Number of units required

    Description

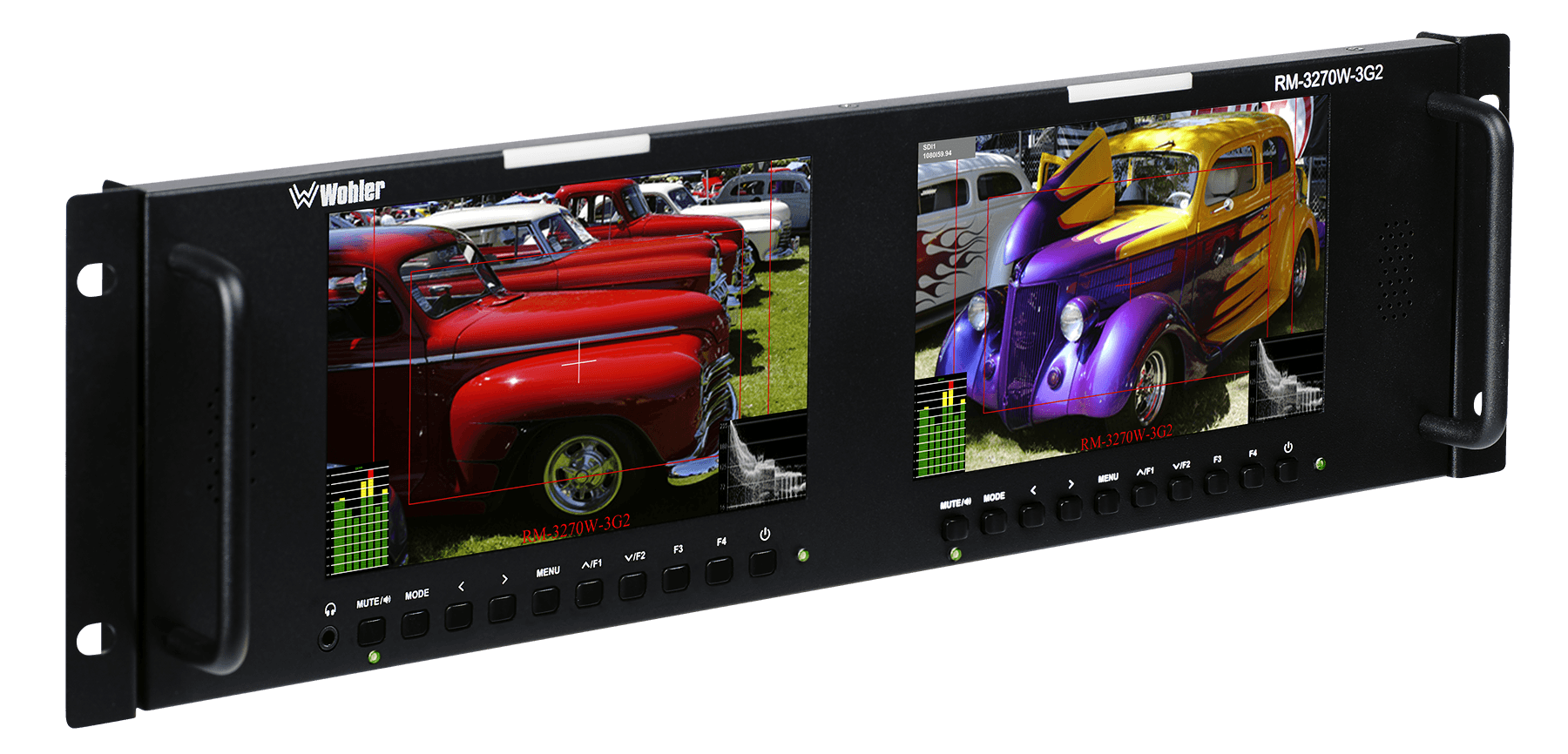

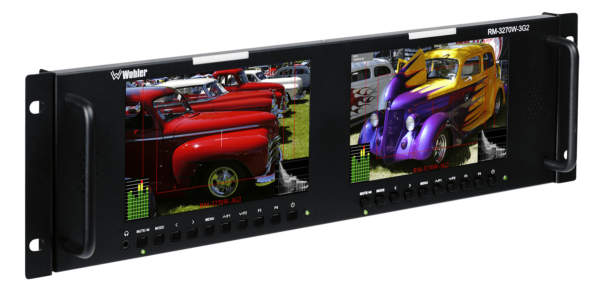

    DUAL 3U RACKMOUNT VIDEO MONITOR WITH 3G-SDI, HDMI & COMPOSITE I/O

    The RM Series is a fully featured range of slim, LCD rack-mounted video monitors.  Therefore, that makes them ideal for mobile trucks, news and control rooms, production, post-production and video surveillance applications. These tilting monitors ship with on-screen level meters, multiple scopes (vectorscope, histogram), safe area and aspect ratio markers as standard features.  They also ship with a variety of picture controls and assistive video features such as zoom, image flip, and focus assist.  IMD labels, tally, and built-in color bars are also included.  In conclusion, the RM-3270W-3G2 is a Dual 3U Video Monitor that meets a variety of needs and specifications.

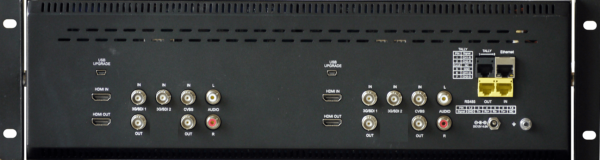

    This unit supports standard frame rates and resolutions up through 3G-SDI, HDMI and Composite.  Each input has a looped output. Select up to 16 audio channels for visual monitoring.  Speakers are included too, while a 3.5mm headphone socket provides optional private monitoring.



    Finally, each of the high-resolution LCD screens displays high-definition or standard-definition video in a range of aspect ratios. Select from multiple parameters from the menu to customize the information overlays on each screen.



    Looking for more than 2 screens?  We also have triple screen and quad screen options.



    Would you like a 10″ screen rather than a 7″ screen?  Please see our dual screen 10″ unit.



    Links for external purchase:



    View our product announcement.

    Additional information

    By Product Categories

    Video
    Monitoring Need

    RM & vMON Series Monitors
    By Product Feature

    Video Scopes & Picture Controls
    By Signal Input

    3G-SDI, Analog, HDMI

    Features and Benefits

    • Dual 3U Video Monitor
    • On-screen level meters up to 16 channels provide confidence audio monitoring
    • On-screen vectorscope and histogram displays
    • Ratio and Safe Area markers
    • Tally and on-screen labeling provide quick and easy signal identification
    • Image controls allow video image enhancement for each screen, individually
    • Built-in color bars
    • Intuitive on-screen menus
    • Headphone output
    • Client/Server GUI network control, ideal for configuring difficult to reach wall-mounted monitors

    Options

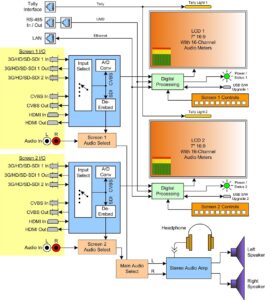

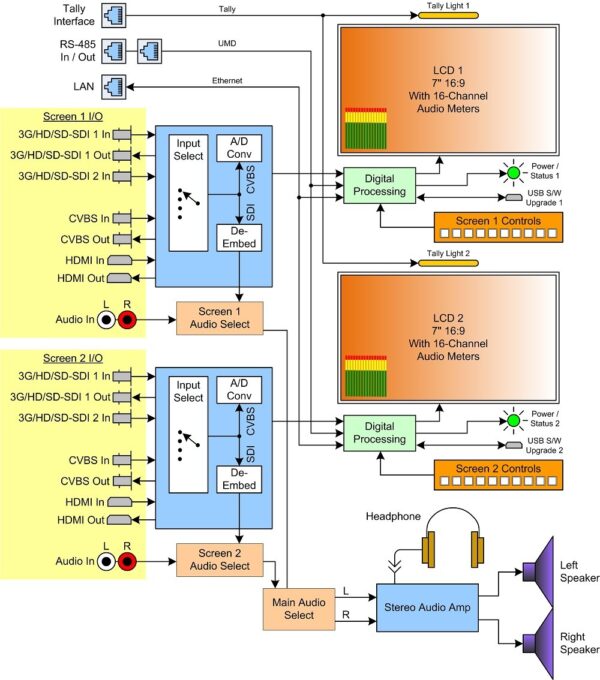

    Diagram

    A-V Specs

    Spkr Power Output 5 Watts
    Analog Input Impedance 52 kOhms
    Meter Dynamics VU
    Display Type IPS-LCD with LED Backlight
    Number of screens 2
    Color Depth 16.7M
    Diagonal Display Size 7 Inch
    Native Aspect 16:9
    Display Resolution (HxV) 1280(H) x 800(V)
    Viewing Angle 178 (H) x 178 (V)
    Contrast 800:1
    Pixel Response 30 ms, typical
    Luminance 400 cd/m^2

    Physical Specs

    Rack Height 3RU
    Power Consumption 35 Watts
    Power Supply External 120V to 240 VAC +- 10%, CE & UL approved.
    Dimension Width 19.0″ (483mm)
    Dimension Height 5.25″ (143mm)
    Dimension Depth 1.7″ (44mm)
    Net Weight 7.0 lbs (3.2 kg)
    Shipping Weight 7.0 lbs (3.2 kg)
    Shipping Dimensions 24.0 × 10.0 × 6.0 in (LxWxH)
