SKU: 8003-0070-EOL

VAMP-AC3-M (Last, 1 Available)

Carries full warranty.  CIA Terms for purchase. Regularly priced at $5,195, last unit selling at $1,495. Dual input 4.3” looped HD/SD-SDI video monitor. Also includes a 6-channel Dolby D and PCM audio monitor with metering, drawing from 1 of 2 undecoded Dolby stream inputs
Data Sheet

Data Sheet



Ask a Question

Ask a Question



Sold Out

Sorry this product is sold out / Out of Stock

$ 1495

Request a Quote

fields marked with an * are required

VAMP-AC3-M (Last, 1 Available)

    First Name*

    Last Name*



    Company Name*

    Select Country*

    Please indicate the signals you need
    to decode or monitor


    Any additional processing needs?
    Wohler offers additional processing options.
    Please check any/all that you want quoted.

    Dolby D/DD+/EDolby ATMOSOutput Routing

    Please describe your project

    please provide project informaion to help us give you the best quote.
    Quantities and # of channels to monitor is especially useful.

    Budget Status

    Date Product is required

    Number of units required


    Important Note:

    From time to time Wohler offers units here that have been unboxed, demonstrated or that we quite simply just want to get off of our factory shelves – either way the result is an incredible deal for you. All units are in excellent condition, are fully factory tested and come covered by our one year full warranty for your complete peace of mind.

    • Sales are on a CASH-IN-ADVANCE or CREDIT CARD basis.
    • Each item carries a full one year manufacturer’s warranty.
    • At these prices all sales are final, we can’t accept any returns.
    • All quantities are while supplies last.

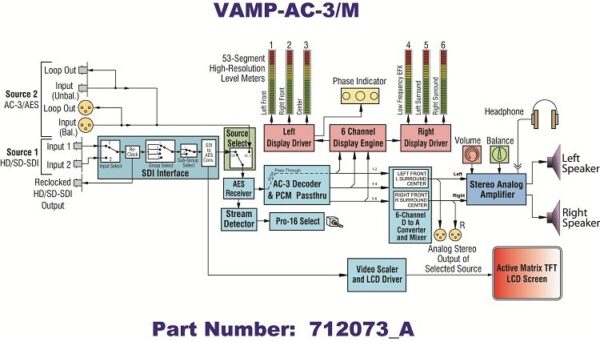

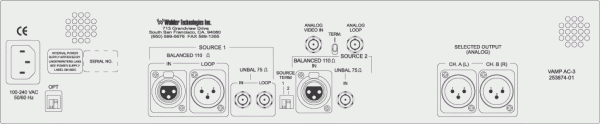

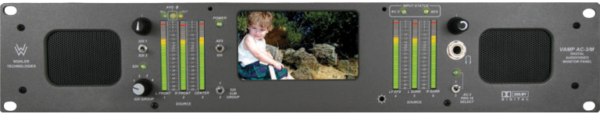

    The VAMP AC-3/M is a complete integrated 6 channel Dolby Digital audio and SDI video monitoring system as well as professional level metering in a compact two rack space cabinet. A 4.3” widescreen color active matrix TFT LCD displays all formats of SDI video from two auto-sensing HD/SD-SDI inputs with re-clocked output. The audio source is selectable between embedded SDI and AES Dolby D.

    The VAMP AC-3/M features six 53 segment highresolution tri-color LED level meters showing simultaneous VU and PPM for superior level metering. Output limiter circuits are incorporated to protect the speakers, and extensive magnetic shielding allows placement immediately adjacent to video monitors with no color impurities.

    The unique design provides optimally focused sound for operators in an ultra near field (1 to 3 ft.) working environment and offers performance comparable to that of many separate monitor pairs, yet does so without the installation hassles, awkward speaker placements and “added-on” look. This provides for a higher SPL for the operator while reducing overall ambient sound and adjacent bay crosstalk. Extended HF response reveals potential problems with audio whine or hiss and electronic rather than acoustic cancellation of bass frequencies provides positive audible detection of out-of-phase (reversed polarity) audio feeds.

    Additional information

    By Product Categories

    Audio & Video

    Monitoring Need

    Baseband-only Monitors

    Features & Benefits

    • 4.3” 16:9 format color LCD video screen
    • Six high-resolution 53-segment meters showing simultaneous VU and PPM
    • Premium quality drivers and power amplifiers
    • Output limiter protected speakers
    • Hear and see up to 6 channels of audio simultaneously
    • Powerful 100dB SPL at 2 feet (0.6m)
    • Focused sound, reduces adjacent bay crosstalk
    • Includes an internal Dolby Digital AC-3 decoder
    • Balanced analog output of 2 selected channels or multi-channel downmix
    • Thorough magnetic shielding


    A-V Specs

    Spkr Power Output  15 W per speaker
    Peak Acoustic Output @ 2 feet  100 dB SPL @ 2 ft
    AES Input Sampling Rate  32-48 kHz, auto-detecting
    Frequency Response  80 Hz – 16 kHz (+/-7 dB)
    Hum and Noise  Better than -68 dB below full output
    Meter Dynamics  Simultaneous VU & PPM
    Display Type  Transmissive High-resolution LCD, active matrix TFT
    Number of screens  1
    Diagonal Display Size  4.3″
    Display Resolution (HxV)  480H x 272V
    Luminance  165NITs


    Physical Specs

    Rack Height  2RU
    Power Consumption  60 Watts
    Power Supply  100-240 VAC ± 10%, 50/60 Hz,CE & UL approved.
    Dimension Width  19.0″ (483mm)
    Dimension Height  3.5″ (90mm)
    Dimension Depth  15.0″ (381mm)
    Net Weight  18 lbs (8.2 kg)
    Shipping Weight  20 lbs (9.1 kg)
    Shipping Dimensions  N/A (LxWxH)
