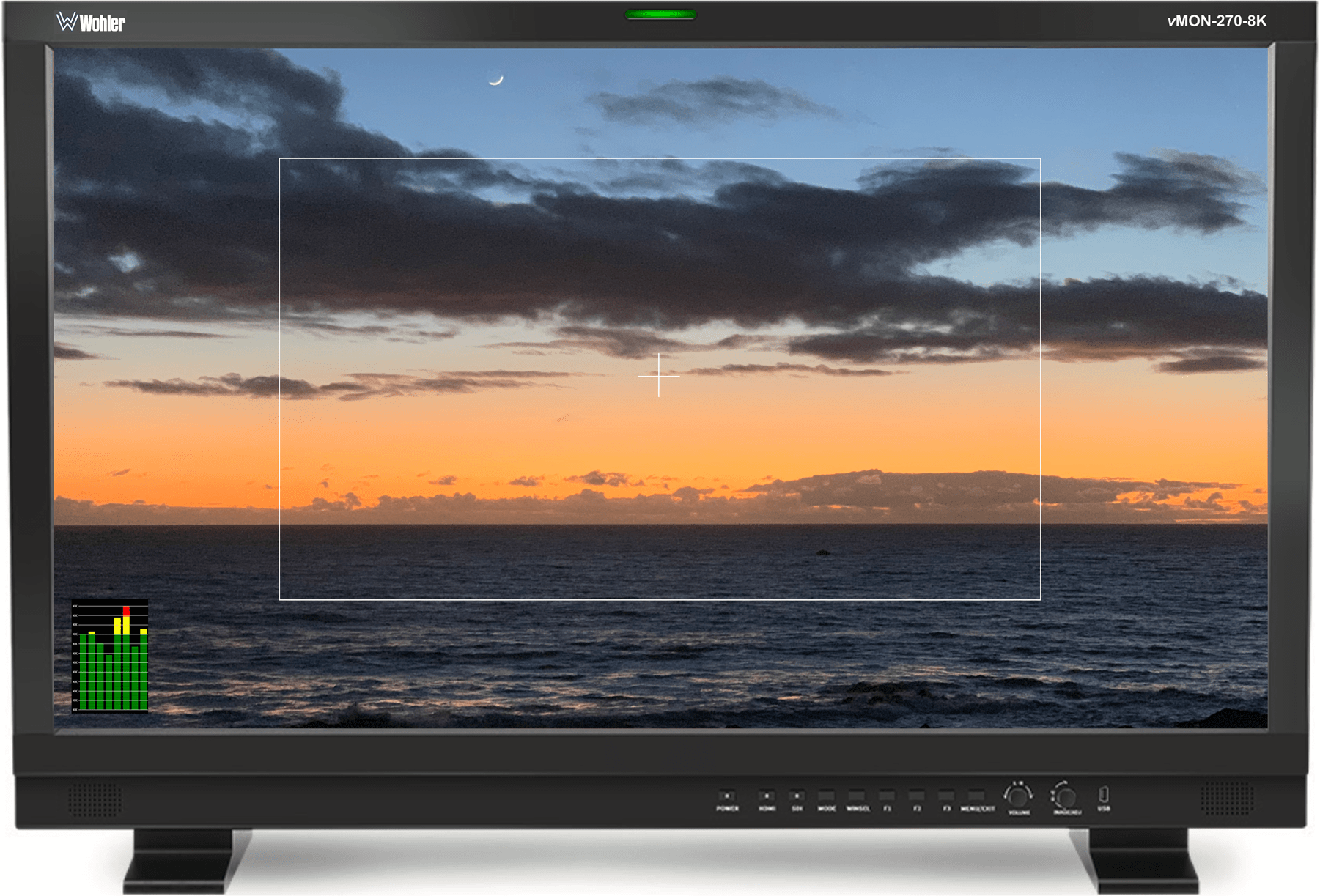

vMON-270-8K – 27″ 8K 12G-SDI, HDMI Video Monitor

SKU: 8006-0310

Fully featured, slim and cost effective 27” free standing 8K video monitor with on-screen audio level meters, quad split, waveform, and histogram.

Request a Quote
Video Monitor 12G-SDI HDMI Level Meters Measurement Tools Headphone Socket Speakers


The vMON Series is a full-featured range of slim, free standing video monitors ideal for mobile trucks, news and transmission control rooms, production/post-production and video surveillance applications. These monitors come standard with in-monitor level metering, selectable video vectorscope/histogram, safe area and aspect ratio markers, IMD labeling, tally, and built-in color bars, as well as a variety of picture controls and productive video features such as zoom controls and focus assist.

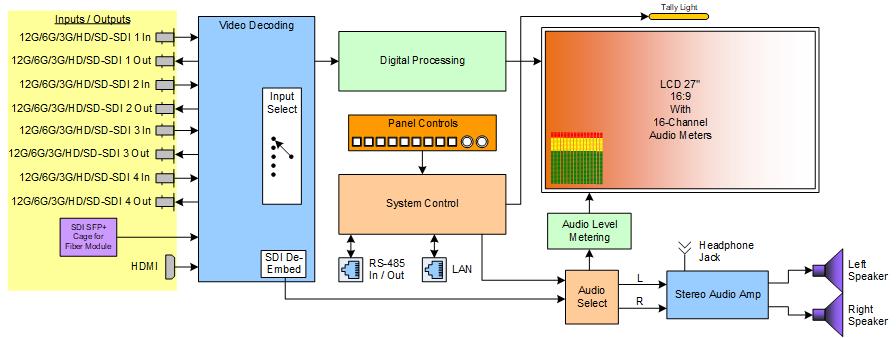

The vMON-270-8K is a 27” 8K HDR monitor with 4x12G/6G/3G/HD/SD-SDI inputs and outputs and an integral HDMI 2.0 interface. It supports up to 8192×4320 60P signals. 3D LUT color calibration with a Klein K10 probe provides an excellent picture quality. The vMON-270-8K is suggested for high-end 8K, 4K and FHD outside shooting, production, studio and OB van applications.


All standard frame rates and resolutions are supported from 12G-SDI and HDMI input sources, and each 12G-SDI input has a looping output. Up to 16 audio channels may be selected for visual monitoring using on-screen bar graph style level meters. Monitoring speakers on the front panel allow the selected screen to be audibly monitored, while a 3.5mm headphone jack provides optional private monitoring.


The vMON-270-8K contains a vast array of Features and Benefits as listed in the table on the following page.

Features and Benefits


– 3840 x 2160 4K resolution

– Supports 8K SDI signals at 8192 x 4320 resolution

– 12 Bit Video Processing, no image delay

– 4K 12G-SDI single link signal, 4K/8K Quad link 2 Sample Interleave (2SI), Square Division (SQD)

– 1 x SDI SFP+ module optical input cage, 1 x HDMI 2.0 input

– Free Quad-View (border control/window adjustment), 4 x SDI/HDMI mixed inputs & frequency rates

– 16 ch Embedded Audio Level Meters

– 4K HDR Waveform, Vector Scope, Marker/Box Control Function

– Picture Flip, Focus Assist, False Color, Zebra

– Full Scan, Over Scan, Blue/Mono Only

– Key Lock, Video Freeze

– SDR and HDR comparison, Darkness Check

– Color Space & EOTF Curves Auto Sensing, matching(REC709/REC2020)

– Color Space (REC709/EBU/DCI-P3 D65/DCI-P3/REC2020/Bypass)

– HDR: PQ (ST2084), HLG (1.0, 1.1, 1.2, 1.3, 1.4, 1.5)

– Sony Camera Log Curves: Slog, Slog2, Slog3

– Canon Camera Log Curves: Clog, Clog2, Clog3

– ARRI Camera Log Curves: LogC

– Panasonic Camera Log Curves: Vlog, Vlog (softroll)

– Gamma (2.0, 2.2, 2.4, 2.6), HDR Area Display

– 3D LUT Color calibration with ColourSpace & CalMAN

– 3rd party 3D LUT files import (USER1/USER2)

– Eight Selectable Scene Settings

– Dynamic and Static UMD/IMD Display (TSL3.1/4.0/5.0)

– 608/708 CC Closed Caption

– Firmware upgrade/LUT file import via USB/Ethernet

– GPI (selectable/markable windows)

– Built-in Speakers


A-V Specs

Meter Dynamics2-16 channels for each display window (source dependent)
Number of screens1
Color Depth1.07 billion
Diagonal Display Size27" Diagonal (597.0 mm H x 336.3 mm V)
Display Resolution (HxV)3840 H x 2160 V
Luminance400 cd/m2

Physical Specs

Power Consumption63 Watts
Power Supply100 – 240 VAC or 12 VDC
Dimension Width26.3" (649 mm)
Dimension Height17.4" (441 mm)
Dimension Depth6.3" (160 mm)
Net Weight26 lbs (11.7 kg)
Shipping Weight31 lbs (26.3 kg)
Shipping Dimensions32 × 24 × 11 in (LxWxH)


Looking for software updates for other products? Click here.

Reporting an issue? Click here.



There are no reviews yet.

Write your review here

Be the first to review “vMON-270-8K – 27″ 8K 12G-SDI, HDMI Video Monitor”

Your email address will not be published. Required fields are marked *

This site uses Akismet to reduce spam. Learn how your comment data is processed.


Signal Input x
Data Ports 1 Ethernet connector for software updates; 2 RS-485 on RJ-45 for UMD controls; 6 GPI Inputs on RJ-45 for external control
Audio Specifications
Meter Dynamics 2-16 channels for each display window (source dependent)
Video Specifications
Color Depth 1.07 billion
Contrast 2000:1
Diagonal Display Size 27" Diagonal (597.0 mm H x 336.3 mm V)
Display Resolution (HxV) 3840 H x 2160 V
Luminance 400 cd/m2
Number of screens 1
Dimension Depth 6.3" (160 mm)
Dimension Height 17.4" (441 mm)
Dimension Width 26.3" (649 mm)
Net Weight 26 lbs (11.7 kg)
Power Consumption 63 Watts
Power Supply 100 – 240 VAC or 12 VDC
Shipping Weight 31 lbs (26.3 kg)
