The vMON Series is a full-featured range of slim, free standing video monitors ideal for mobile trucks, news and transmission control rooms, 4K production/post-production and video surveillance applications. These monitors come standard with in-monitor level metering, selectable video vectorscope/histogram, safe area and aspect ratio markers, IMD labeling, tally, and built-in color bars, as well as a variety of picture controls and productive video features such as zoom controls and focus assist.

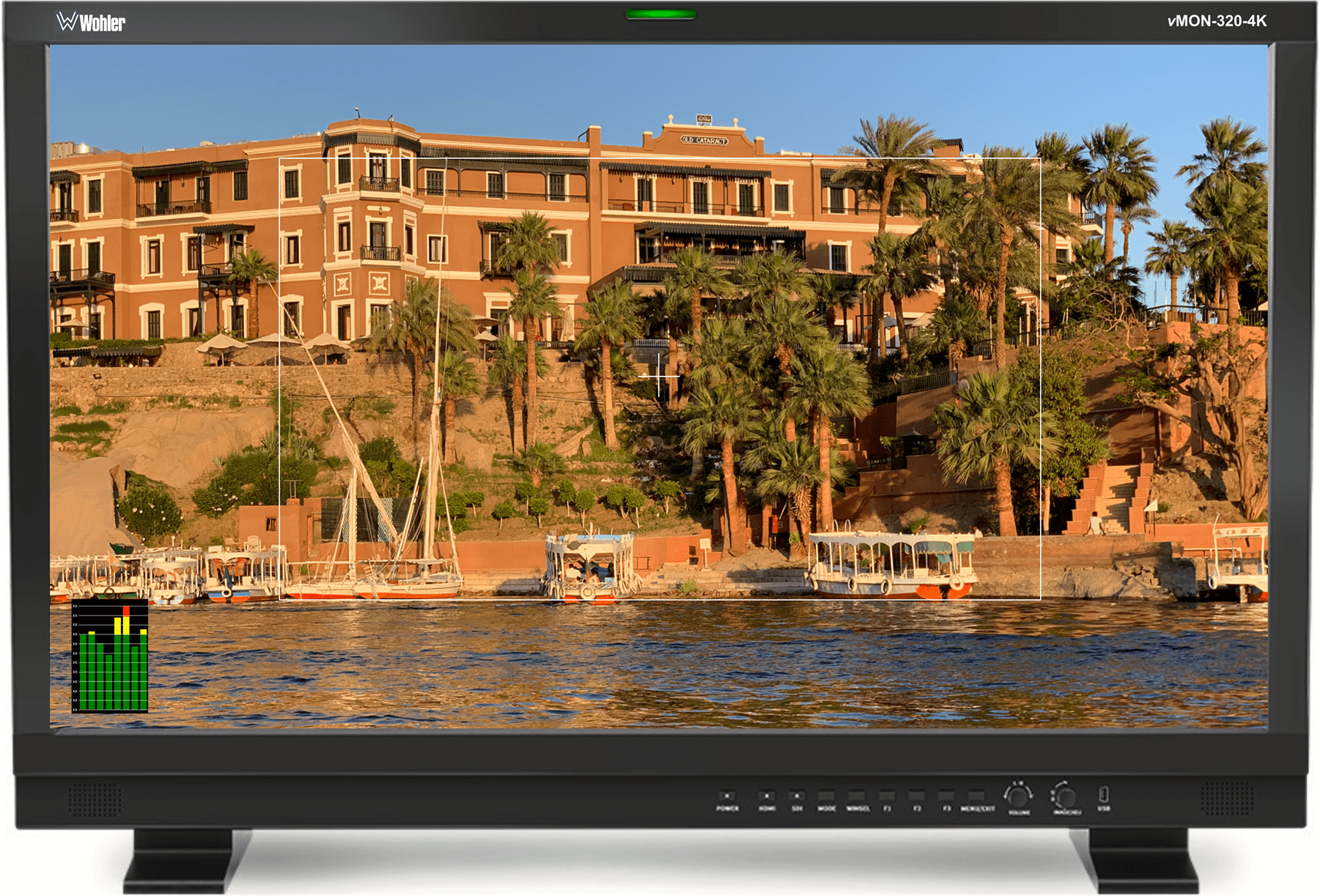

The vMON-320-4K is a 31.5” 4K HDR monitor with 2x12G/6G/3G/HD/SD-SDI and 2x3G/HD/SD-SDI inputs and outputs. It supports a large variety of professional broadcasting features such as Quad Split, Waveform, Histogram, Darkness Check, making vMON-320-4K a brilliant 31.5 inch monitor in 4K production workflow.



All standard frame rates and resolutions are supported from 12G-SDI, 6G-SDI, 3G-SDI, and HDMI input sources, and each SDI input has a looping output. Up to 16 audio channels may be selected for visual monitoring using on-screen bar graph style level meters. Monitoring speakers on the front panel allow the selected screen to be audibly monitored, while a 3.5mm headphone jack provides optional private monitoring.



The vMON-320-4K contains a vast array of Features and Benefits.



– 3840 x 2160 4K resolution

– 12 Bit Video Processing, no image delay

– 12G/6G/3G/HD/SD-SDI auto detect

– 4K 12G-SDI single link signal, 4K Quad link 2 Sample Interleave (2SI), Square Division (SQD)

– 1 x SDI SFP+ module optical input cage, 1 x HDMI 2.0 input

– Free Quad-View (border control/window adjustment), 4 x SDI/HDMI mixed inputs & frequency rates

– 16 ch Embedded Audio Level Meters

– 4K HDR Waveform, Vector Scope, Marker/Box Control Function

– Picture Flip, Focus Assist, False Color, Zebra

– Full Scan, Over Scan, Blue/Mono Only

– Key Lock, Video Freeze

– SDR and HDR comparison, Darkness Check

– Color Space & EOTF Curves Auto Sensing, matching (REC709/REC2020)

– Color Space (REC709/EBU/DCI-P3 D65/DCI-P3/REC2020/Bypass)

– HDR: PQ (ST2084), HLG (1.0, 1.1, 1.2, 1.3, 1.4, 1.5)

– Sony Camera Log Curves: Slog, Slog2, Slog3

– Canon Camera Log Curves: Clog, Clog2, Clog3

– ARRI Camera Log Curves: LogC

– Panasonic Camera Log Curves: Vlog, Vlog (softroll)

– Gamma (2.0, 2.2, 2.4, 2.6), HDR Area Display

– 3D LUT Color calibration with ColourSpace & CalMAN

– 3^rd party 3D LUT files import (USER1/USER2)

–  Eight Selectable Scene Settings

– Dynamic and Static UMD/IMD Display (TSL3.1/4.0/5.0)

– 608/708 CC Closed Caption

– Firmware upgrade/LUT file import via USB/Ethernet

– GPI (selectable/markable windows)

– Built-in Speakers

Meter Dynamics	2-16 channels for each display window (source dependent)
Number of screens	1
Color Depth	1.07 billion
Diagonal Display Size	31.5" Diagonal (719.5 mm H x 404.7 mm V)
Display Resolution (HxV)	3840 H x 2160 V
Contrast	2000:1
Luminance	400 cd/m2

Power Consumption	70 Watts
Power Supply	100 – 240 VAC or 12 VDC
Dimension Width	29.5" (750 mm)
Dimension Height	19.6" (498 mm)
Dimension Depth	6.3" (160 mm)
Net Weight	28 lbs (12.5 kg)
Shipping Weight	58 lbs (26.3 kg)
Shipping Dimensions	40 × 29 × 17 in (LxWxH)
