SKU: 8001-0175

RM-3270WS-3G

Dual 7.0" Widescreen LCD Video Monitor, 3G/HD/SD-SDI, Composite. Audio/Video Metering. 3RU
Data Sheet

Data Sheet

Manual

Manual

Ask a Question

Ask a Question

Support

Support


Sold Out

Request a Quote

fields marked with an * are required

RM-3270WS-3G

    First Name*

    Last Name*

    Email*

    Phone*

    Company Name*

    Select Country*

    Signal
    Please indicate the signals you need
    to decode or monitor

    3G-SDI12G-SDI/4K12G-SDI/4KST-2110ST-2022Ravenna/AES67Dante/AES67AnalogAES3MADIToslinkCVBS

    Any additional processing needs?
    Wohler offers additional processing options.
    Please check any/all that you want quoted.

    Dolby D/DD+/EDolby ATMOSOutput Routing

    Please describe your project

    please provide project informaion to help us give you the best quote.
    Quantities and # of channels to monitor is especially useful.

    Budget Status

    Date Product is required

    Number of units required

    Description

    From time to time Wohler offers units here that have been unboxed, demonstrated or that we quite simply just want to get off of our factory shelves – either way the result is an incredible deal for you. All units are in excellent condition, are fully factory tested and come covered by our one year full warranty for your complete peace of mind.

    • Sales are on a CASH-IN-ADVANCE or CREDIT CARD basis.
    • Each item carries a full one year manufacturer’s warranty.
    • At these prices all sales are final, we can’t accept any returns.
    • All quantities are while supplies last.

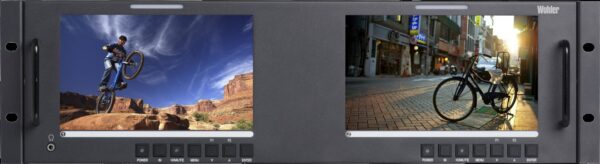

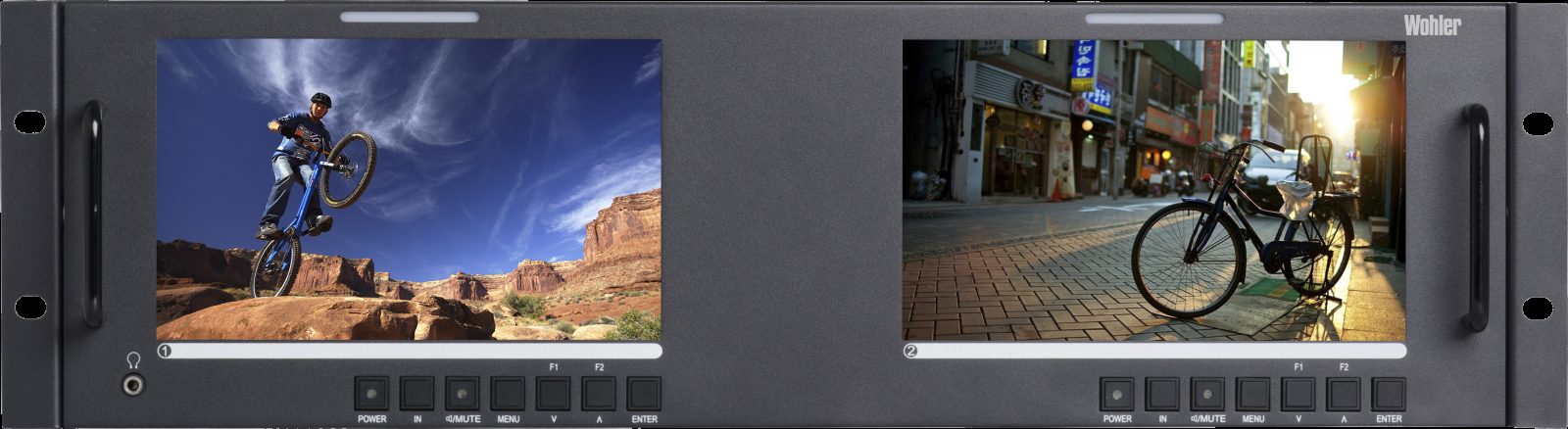

    The RM-3270WS-3G is a highly-featured, low-cost in-rack 3G/HD/SD-SDI and CVBS video monitor ideal for the many feeds in mobile trucks, news and transmission control rooms, duplication, and post production applications.

    The RM-3270WS-3G come standard with in-monitor level metering, selectable video waveform and vectorscope, safe and title markers, labeling, tally, timecode, video format, and built-in color bars, and an intuitive on-screen configuration menu.

    Input signals are automatically detected and up to 16 audio channels embedded in an 3G/HD/SD-SDI bitstream may be selected for visual monitoring. A headphone jack or speakers provides audible stereo monitoring of selected left and right channels.

    Each of the two high-resolution LCD screens display high-definition or standard- definition video at either 16:9 or 4:3 aspect ratio. Parameters are selected and adjusted using an on-screen display menu.

    Features and Benefits

    • Monitor 3G/HD/SD-SDI and analog composite video signals
    • 1024 x 600 LCD displays
    • Waveform and vectorscope display
    • 16-channel in-picture level metering
    • Closed caption detection
    • Labelling, tally, timecode, detected video format, safe area and title markers display
    • Headphone output
    • Ethernet configuration and control

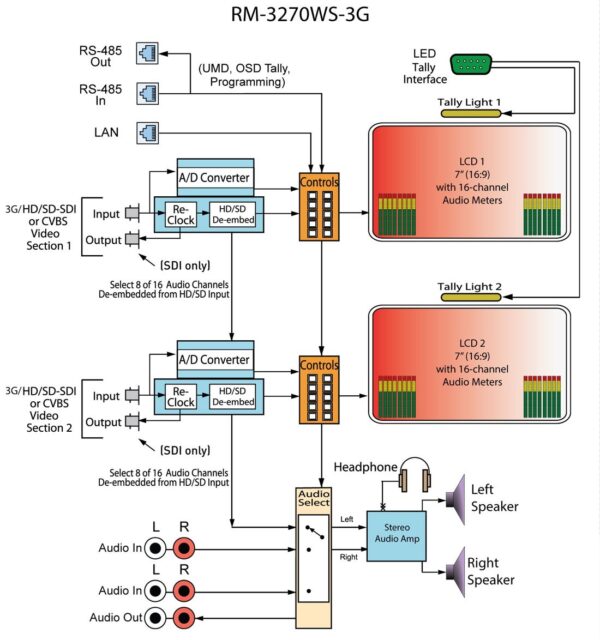

    Diagram

    Options

    Download

    A - V Specs

    Meter Dynamics VU or PPM or both
    Display Type LCD
    Number of screens 2
    Color Depth 16.7M, 24-Bit
    Diagonal Display Size 7 Inch
    Native Aspect 16:09
    Display Resolution (HxV) 1024 x 600
    Viewing Angle 135 (H) x 110 (V)
    Contrast 700:01:00
    Pixel Response 25 ms
    Luminance 350 cd/m^2

    Physical Specs

    Rack Height 3RU
    Power Consumption 10 Watts(3.8 Amps Max)
    Power Supply External 12VDC/3.8A, CE & UL approved.
    Dimension Width 19.0″ (483mm)
    Dimension Height 5.25″ (143mm)
    Dimension Depth 3.0″ (76mm)
    Net Weight 6.0 lbs. (2.7 kg)
    Shipping Weight 9.0 lbs (4.1 kg)
    Shipping Dimensions N/A (LxWxH)
