vMON-3280W-3G

Cost effective dual 8” screen, 3RU rack-mountable video monitor with on-screen audio level meters, video vectorscope, waveform and histogram.

Datasheet

Ask a Question

Contact Support

Request a Quote

fields marked with an * are required

vMON-3280W-3G

    First Name*

    Last Name*

    Email*

    Phone*

    Company Name*

    Select Country*

    Signal
    Please indicate the signals you need
    to decode or monitor

    3G-SDI12G-SDI/4K12G-SDI/4KST-2110ST-2022Ravenna/AES67Dante/AES67AnalogAES3MADIToslinkCVBS

    Any additional processing needs?
    Wohler offers additional processing options.
    Please check any/all that you want quoted.

    Dolby D/DD+/EDolby ATMOSOutput Routing

    Please describe your project

    please provide project informaion to help us give you the best quote.
    Quantities and # of channels to monitor is especially useful.

    Budget Status

    Date Product is required

    Number of units required

    Description

    The vMON-3280W-3G is a full-featured  in-rack video monitor ideal for mobile trucks, news and transmission control rooms, production/post-production and video surveillance applications. These tilting monitors come standard with in-monitor level metering, selectable video waveform/vectorscope/histogram, safe area and aspect ratio markers, IMD labeling and tally, as well as a variety of picture controls and assistive video features such as zoom controls and focus assist.

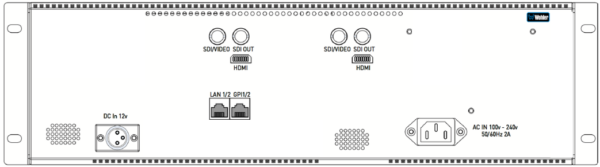

    All standard frame rates and resolutions are supported from 3G-SDI, HDMI input sources with SDI looping output. Up to 8 audio channels may be selected for visual monitoring using on-screen bar graph style level meters. Monitoring speakers to the rear of the unit allow the selected screen to be audibly monitored, while a 3.5mm headphone socket provides optional private monitoring.

    Each of the high-resolution LCD screens displays high-definition or standard-definition video in a range of aspect ratios. Parameters are selected and adjusted using an on-screen display menu.

    Features and Benefits

    • On-screen level meters up to 8 channels provide confidence audio monitoring
    • Tally and on-screen labeling for quick and easy signal identification
    • Image controls allow video image enhancement for each screen, individually
    • On-screen video waveform, vectorscope and histogram displays
    • Ratio and Safe Area markers
    • Intuitive on-screen menu
    • Headphone output

    Specifications

    Dimensions (W x H x D) 3RU in standard 19” rack: 19” x 5.2” x 2.2” (483 mm x 131 mm x 56 mm). Shipping dims: 23”x 13.5”x 9.5”
    Shipping Weight / Net Weight 10.0 lbs. (4.4 kg) / 5.8 lbs. (2.6 kg)
    Power Consumption / Supply 25W, DC 12V and AC 100-240, 50-60 Hz
    Display Type / Resolution 2 x 8.0 Diagonal” (154mm H x 90mm V; 1920H x 1200V
    Viewing Angle 160° (H) x 160° (V)
    Audio Channels 8 Channels embedded Audio
    Color Depth
    16.7M
    Native Aspect
    16:9, 4:3 selectables
    Contrast 900:1
    Luminance 290 cd/m^2
    Speakers / Headset
    2 x 2.5W in rear with 3.5mm headset jack (1 per screen)
