RM-2443W-3G

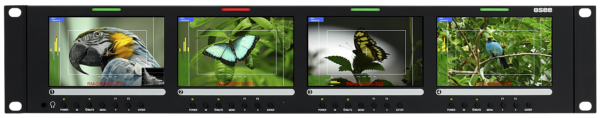

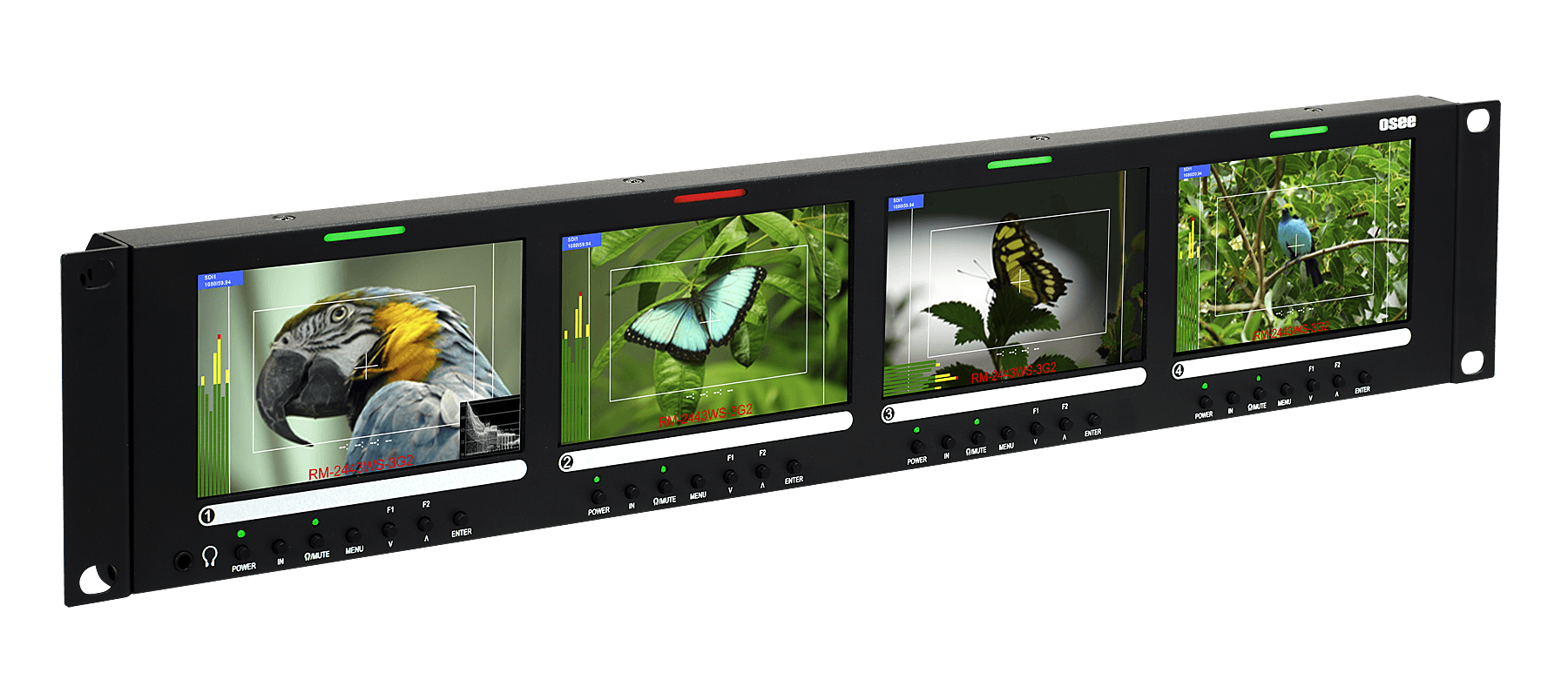

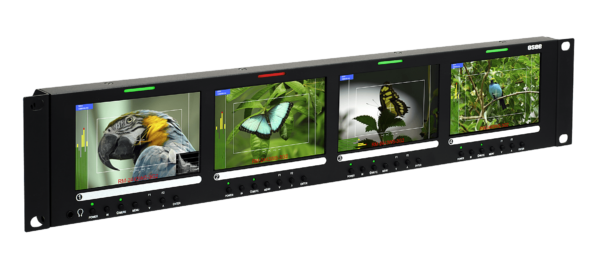

Quad 4.3″ 16:9 Widescreen LCD Video Monitor, 3G/HD/SD-SDI, Composite. Audio/Video Metering. 2RU.
Ask a Question

Ask a Question

Support

Support


Sold Out

Request a Quote

fields marked with an * are required

RM-2443W-3G

    First Name*

    Last Name*

    Email*

    Phone*

    Company Name*

    Select Country*

    Signal
    Please indicate the signals you need
    to decode or monitor

    3G-SDI12G-SDI/4K12G-SDI/4KST-2110ST-2022Ravenna/AES67Dante/AES67AnalogAES3MADIToslinkCVBS

    Any additional processing needs?
    Wohler offers additional processing options.
    Please check any/all that you want quoted.

    Dolby D/DD+/EDolby ATMOSOutput Routing

    Please describe your project

    please provide project informaion to help us give you the best quote.
    Quantities and # of channels to monitor is especially useful.

    Budget Status

    Date Product is required

    Number of units required

    Description

    The RM Series is a full-featured, low-cost range of in-rack 3G/HD/SD-SDI and CVBS video monitors ideal for the many feeds in mobile trucks, news and transmission control rooms, duplication, and post production applications.

    These tilting monitors come standard with in-monitor level metering, selectable video waveform and vectorscope, safe and title markers, labeling, tally, timecode, video format, and built-in color bars, as well as familiar CRT-style picture controls and an intuitive on-screen configuration menu.

    Input signals are automatically detected and up to 8 of the 16 audio channels embedded in an HD/SD-SDI bitstream may be selected for visual monitoring on 8 on-screen bar graph style level meters on the 3G and 3G2 models. A headphone jack provides audible stereo monitoring of selected left and right channels.

    Each of the four high-resolution LCD screens display high-definition or standard-definition video at either 16:9 or 4:3 aspect ratio. Parameters are selected and adjusted using an on-screen display menu.

    Features and Benefits

    BENEFITS:

    • On-screen level meters provide confidence audio monitoring.
    • Tally and on-screen labeling provide quick and easy signal identification
    • CRT-style image controls allow video image enhancement for each screen individually
    • User defined hot key functionality provides either H/V delay, underscan, on-screen display, and more

    FEATURES:

    • In-picture waveform, and vectorscope display
    • Labelling, tally, timecode, detected video format, safe area and title markers display
    • On-screen image calibration controls
    • Gamma color calibration
    • Built-in color bars
    • User-defined function buttons
    • Intuitive on-screen menu

    Download

    Options

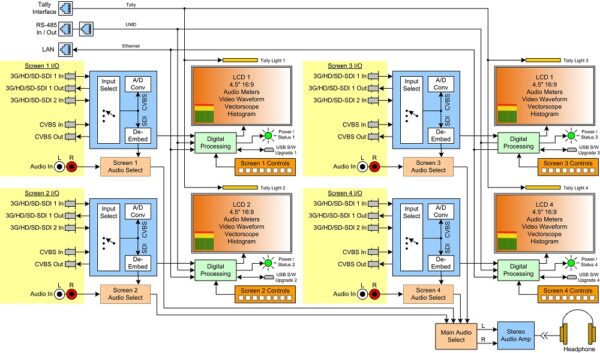

    Diagram

    A - V Specs

    Audio-2 A-V spec

    Meter Dynamics VU or PPM or both
    Number of screens 4

    Physical Specs

    Audio-2 Physical Spec

    Rack Height 2RU
    Power Consumption 10 Watts (3.8 Amps Max)
    Power Supply External 12VDC/3.8A, CE & UL approved.
    Dimension Width 19.0" (483mm)
    Dimension Height 3.5" (89mm)
    Dimension Depth 2.5" (64mm)
    Net Weight 7.0 lbs (3.2 kg)
    Shipping Weight 7.0 lbs (3.2 kg)
    Shipping Dimensions 24.0 × 10.0 × 6.0 in (LxWxH)
